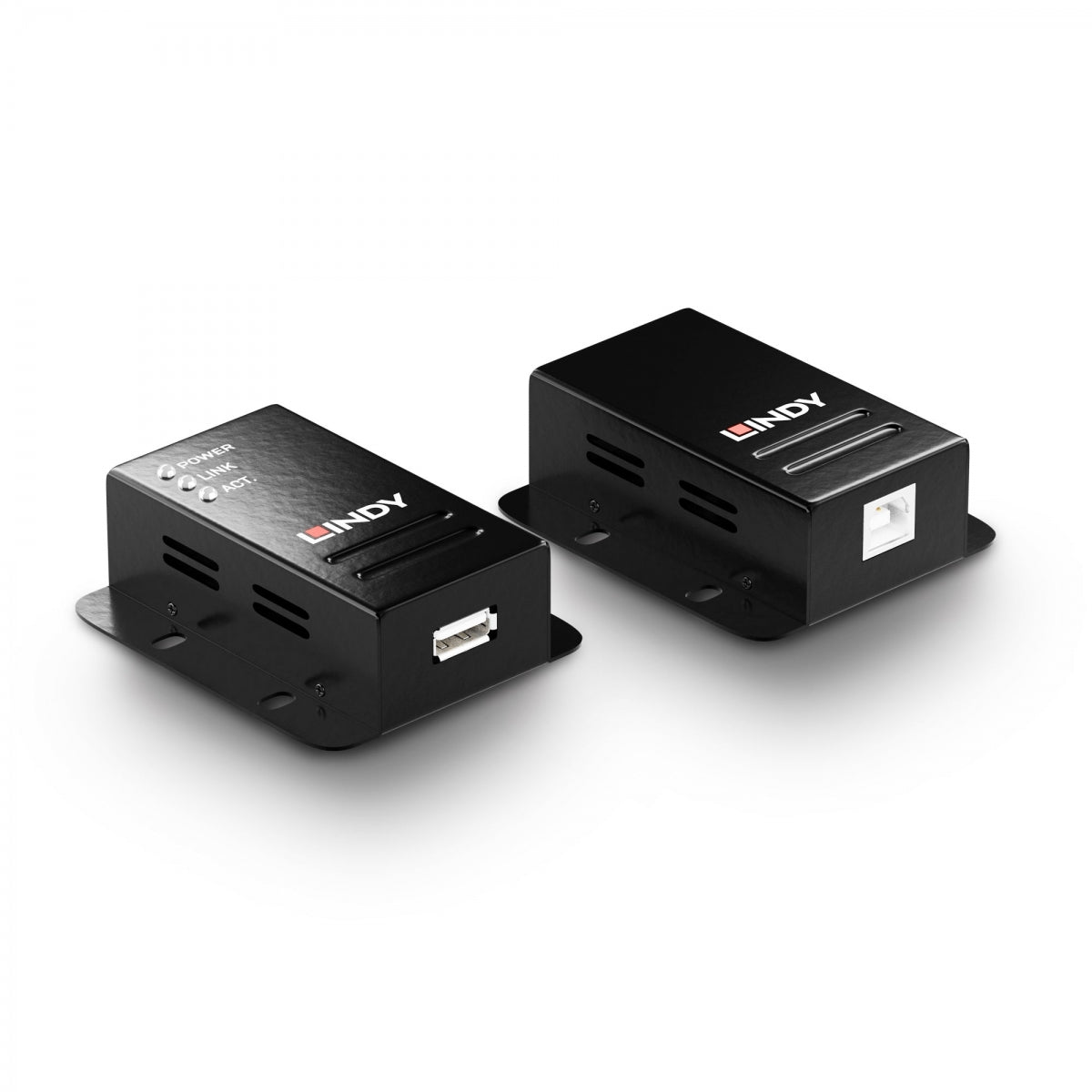

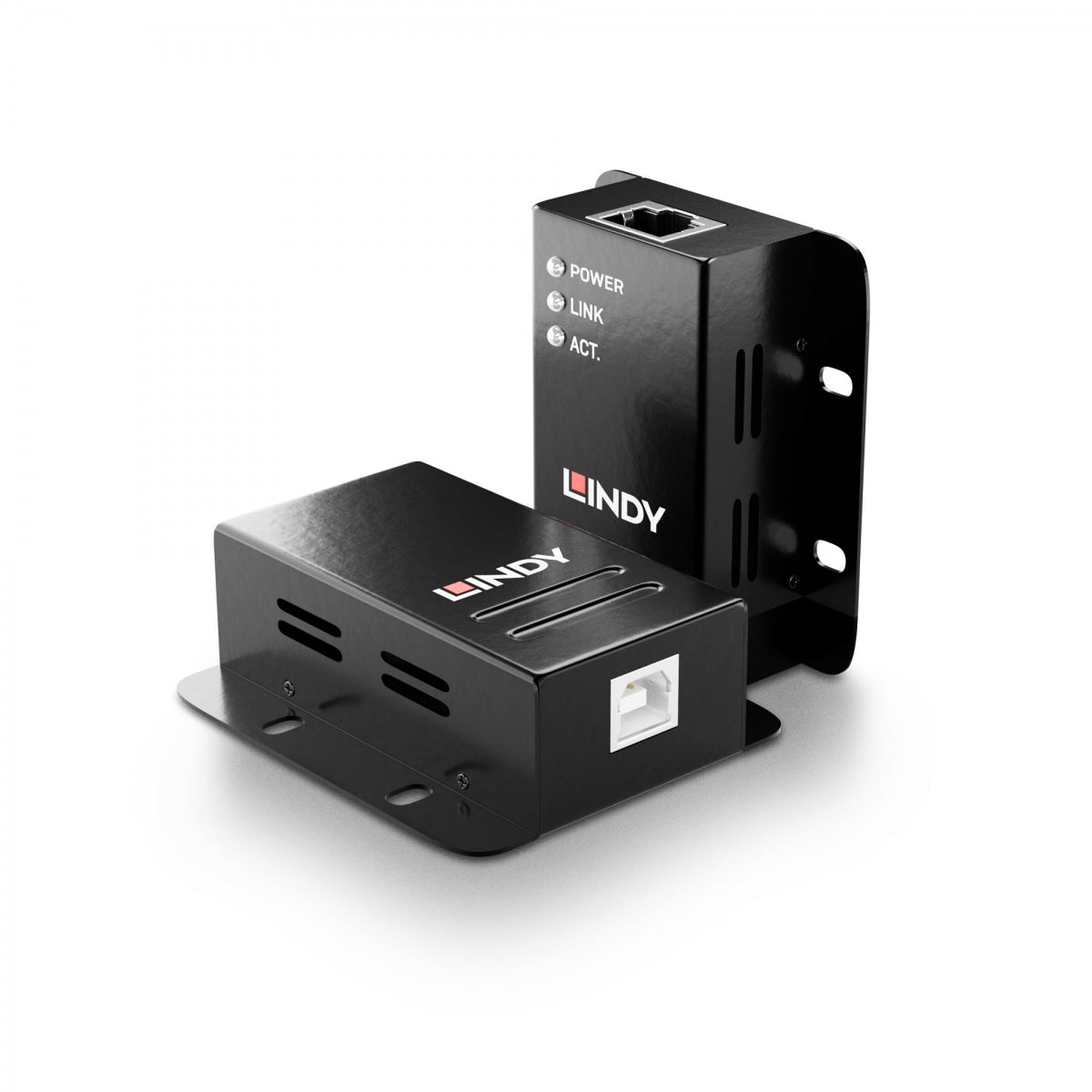

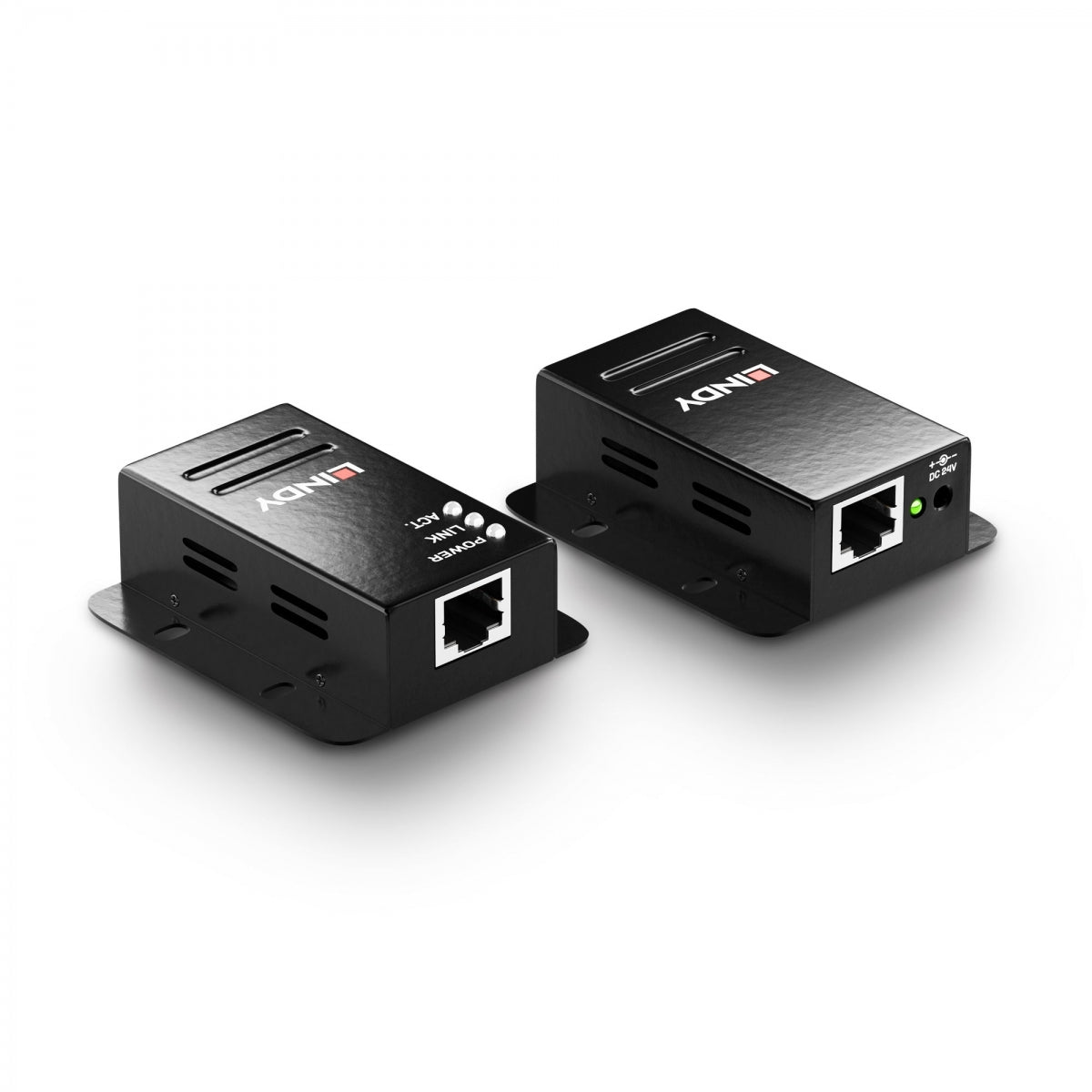

Lindy 50m USB 2.0 Cat.6 Extender | 42680
USB, Anywhere You Need It.
Extend with confidence. Performance that goes the distance.
The Lindy 50m USB 2.0 Cat.6 Extender enables reliable USB extension over distances of up to 50 metres using standard Cat.5e/6 cabling. With Power over Cable functionality and a single power connection to the transmitter, this solution simplifies installations in commercial, industrial, and professional environments. Supporting both USB 2.0 and USB 1.1 devices, it’s ideal for extending USB peripherals such as keyboards, external drives, interactive displays, and control interfaces. Robust metal housing and mounting brackets make it perfectly suited for long-term, fixed installations.
AT A GLANCE
USB 2.0 up to 480Mbps
Enables fast, reliable data transmission for modern USB peripherals.
50m Extension over Cat.5e/6
Eliminates the 5m USB limitation using widely available network cable.
Power over Cable
Simplifies installation – only one power supply is required at the transmitter.
Support for Isochronous Transfer
Ensures smooth performance with audio, video, and timing-sensitive devices.
Plug & Play Setup
No drivers or software required – simple to deploy and operate.
Metal Housing with Mounting Brackets
Ideal for secure installation in industrial and professional settings.

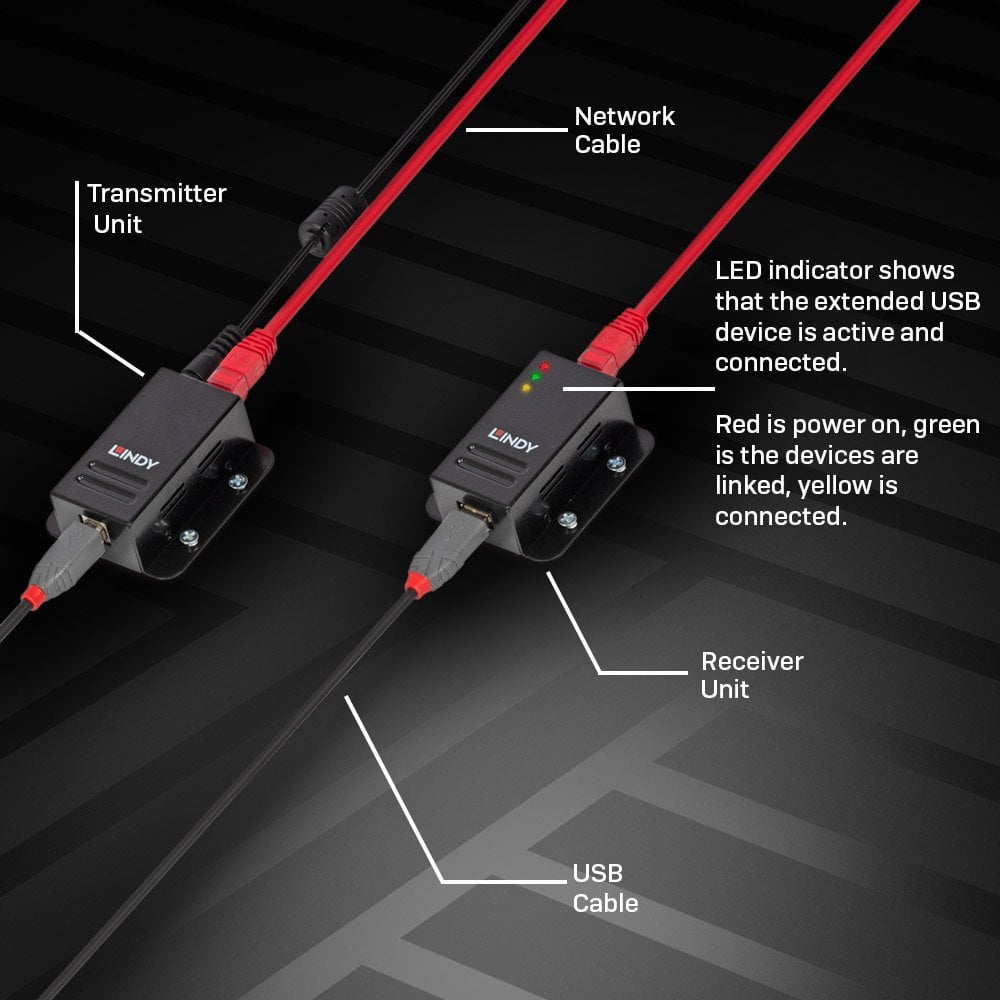

CONNECTION OVERVIEW
INSTALLATION EXAMPLE
APPLICATIONS
Interactive Displays & Whiteboards
Extend the reach of USB touchscreens in classrooms and meeting spaces.
USB Control Interfaces
Connect industrial controls or diagnostic equipment away from the PC.
Keyboard & Mouse Extensions
Ideal for security or presentation environments where the PC is locked away.
USB Audio Interfaces & Cameras
Supports isochronous transfer for media devices.
Remote Workstations
Centralise hardware while providing full USB access at remote locations.
USB Storage Devices
Access external drives, flash media, or backup solutions at distance without compromising data integrity.
EXTEND WITH CONFIDENCE. PERFORMANCE THAT GOES THE DISTANCE.
When you need reliable USB 2.0 extension up to 50 metres with minimal cabling, the Lindy 50m USB 2.0 Cat.6 Extender delivers. With Power over Cable, simple installation, and robust design, it’s the dependable choice for modern, professional and industrial environments.
| USB Standard | USB 2.0 | Bandwidth | 480Mbps |
| Max Distance | 50m (164.04ft) | Medium | Cat.5e/6 or higher |
| Chipset | NS1021 | Special Features | PoRJ45, Isochronous, Hub |

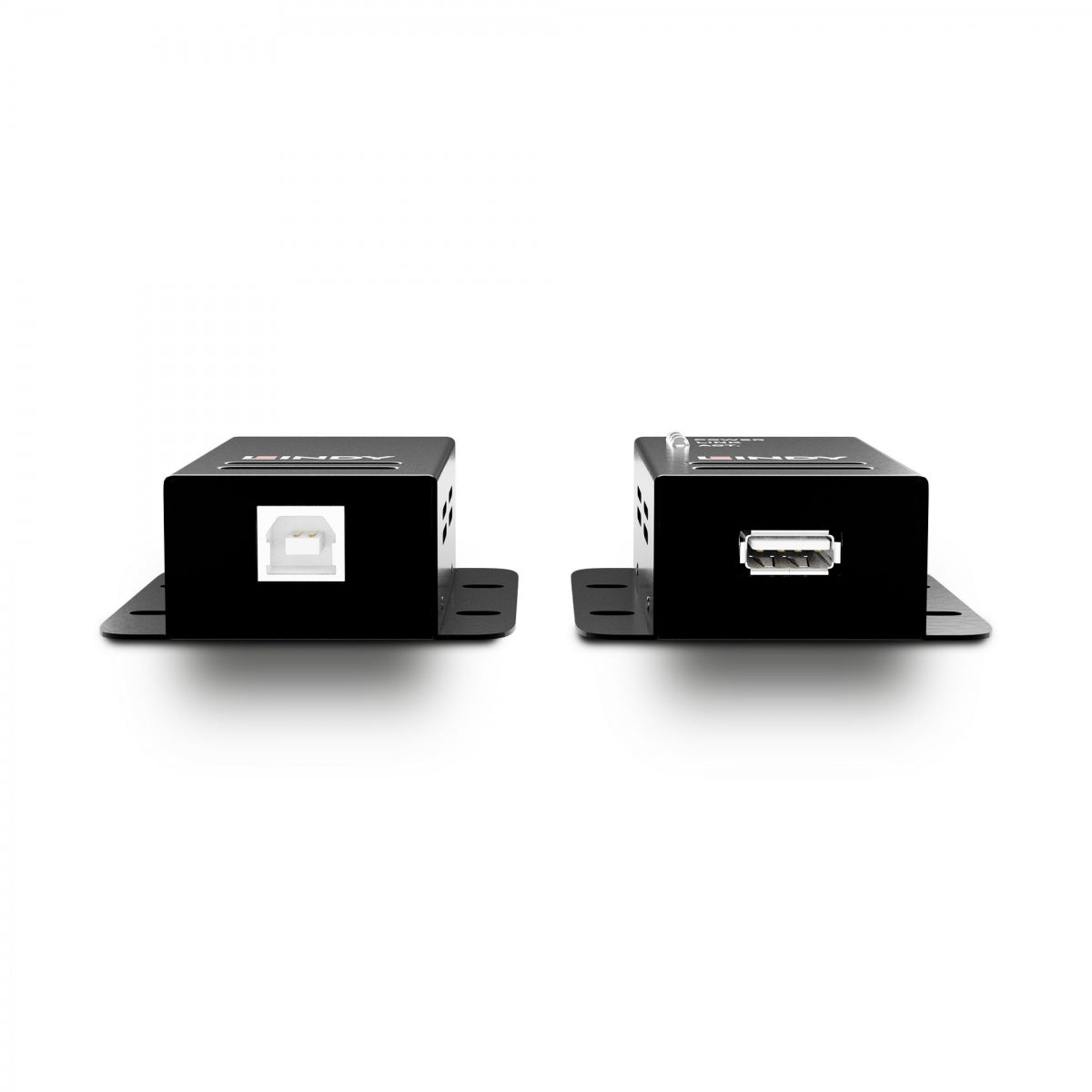

| TX Input | USB Type B (Female) | TX Output | RJ45 (Female) |
| RX Input | RJ45 (Female) | RX Output | USB Type A (Female) |

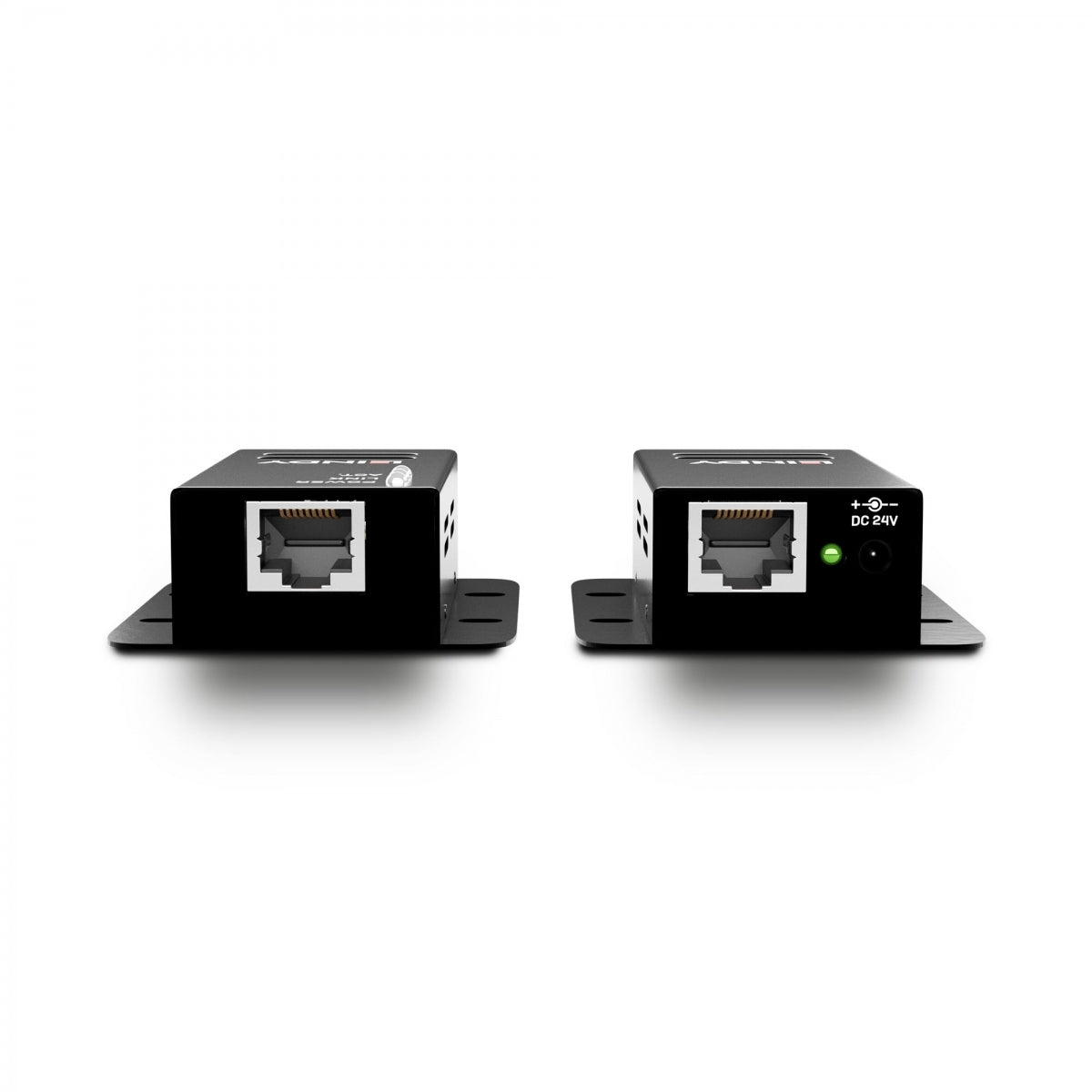

| Power Input | 3.5/1.35mm DC socket | Power Req. | 24VDC 0.5A |
| Dimensions (TX) | 60x67x23mm | Dimensions (RX) | 60x67x23mm |
| Housing Material | Metal | Net Weight | 0.3kg (0.66lb) |
| Operating Temp. | -0° - 70°C | Storage Temp. | -20° - 80°C |
| Humidity | 0 - 90% RH | Colour | Black |
| Packaging Type | Carton Box | Packaging Size | 235x200x65mm |
| Gross Weight | 0.4kg (0.88lb) | Warranty | 2 Years |
| Certified | CE, UKCA, FCC, RoHS, REACH | Package Contents | TX, RX, USB Cable, Power Supply, Manual |
| Part Number | 42680 | EAN | 4002888426800 |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
