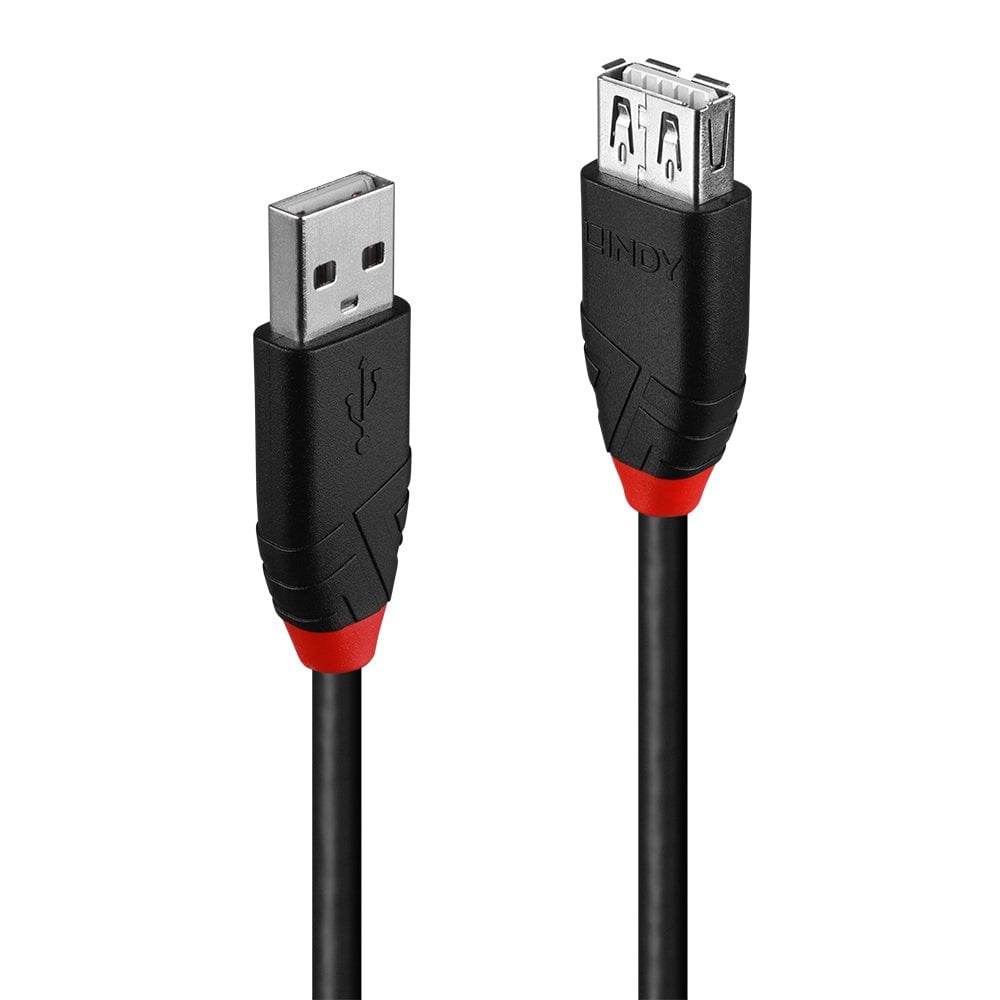

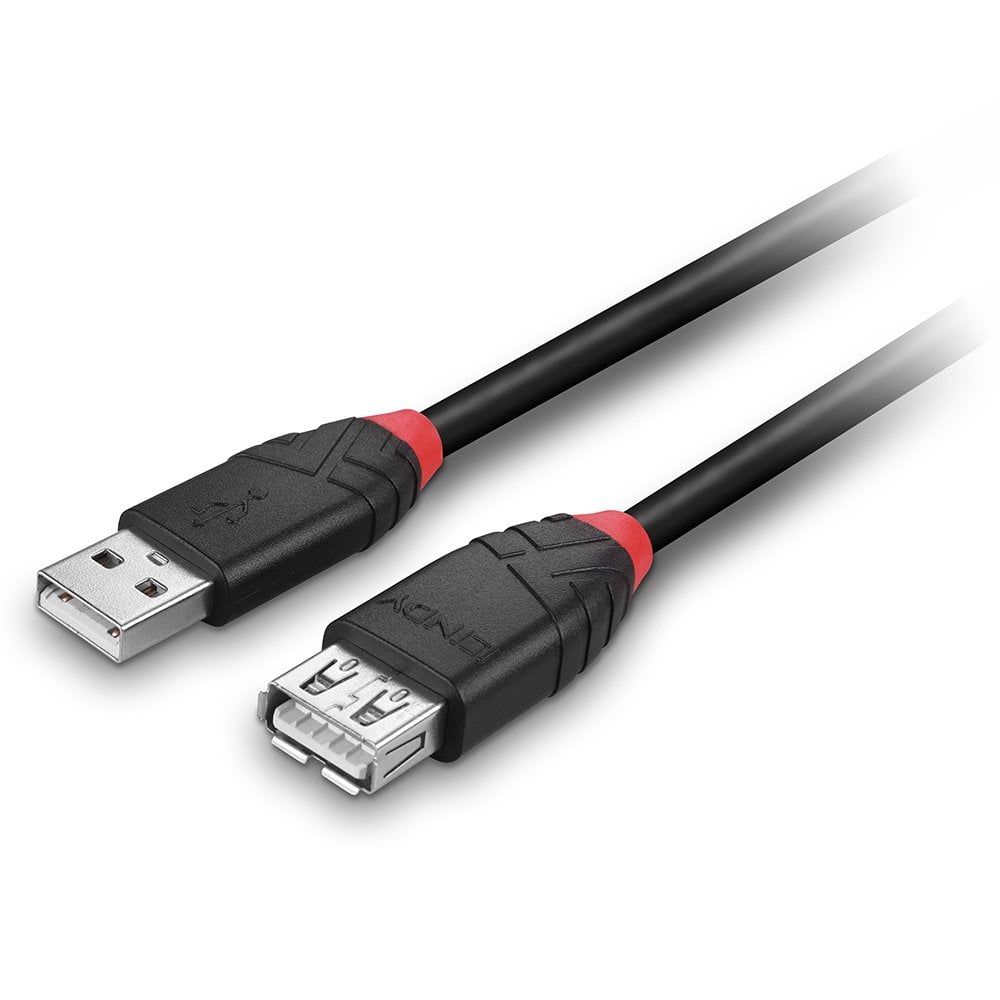

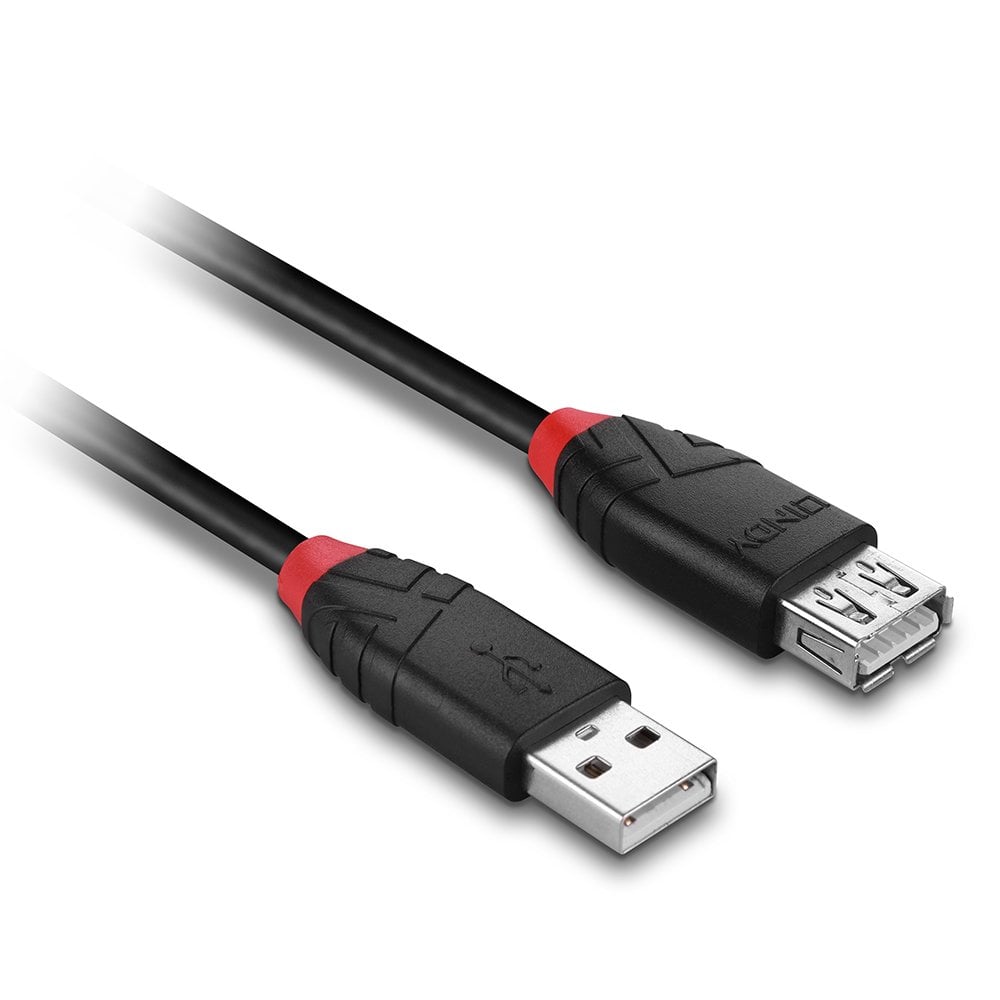

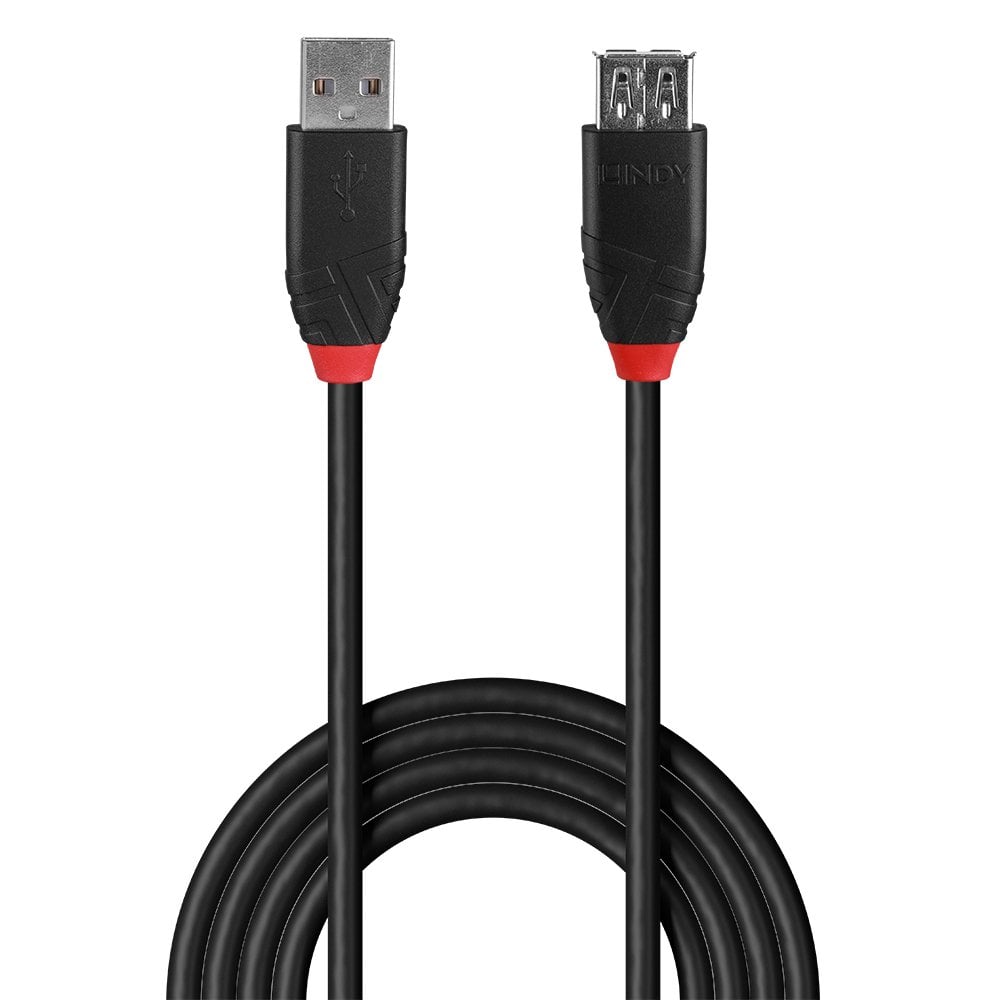

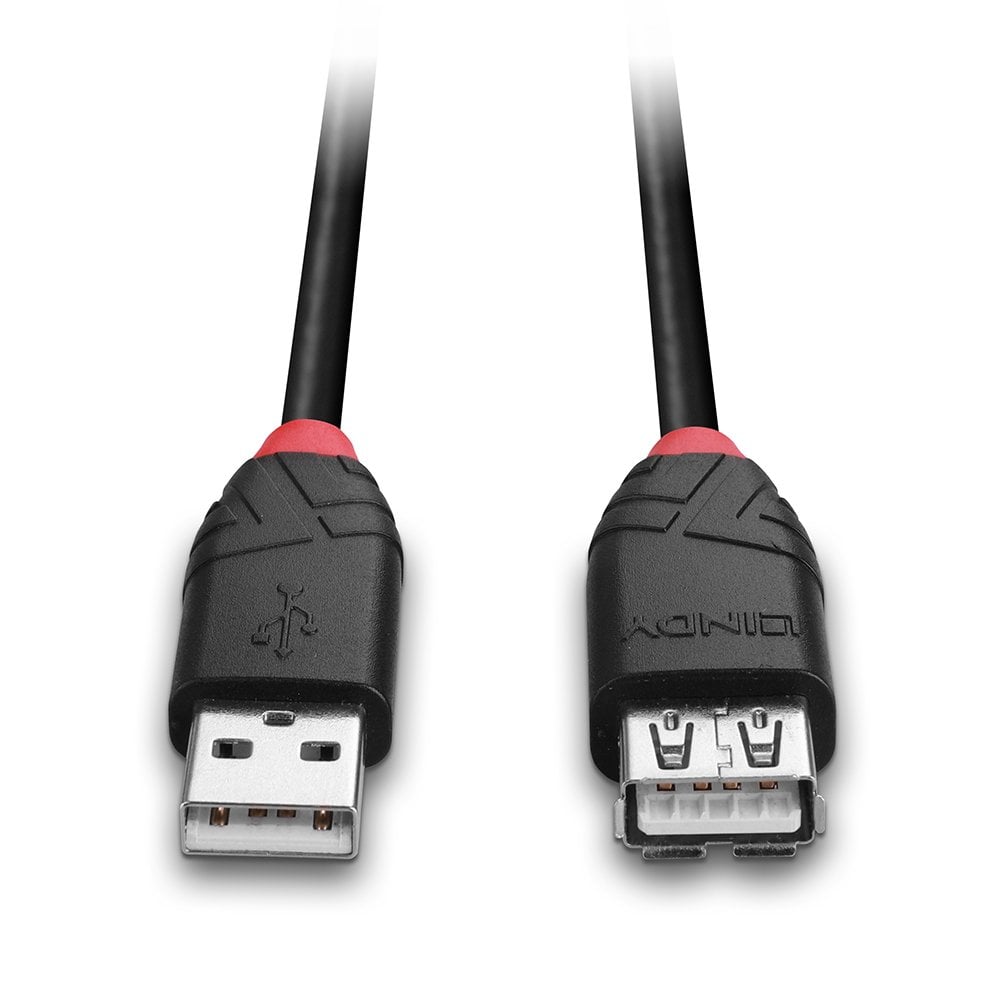

The Lindy USB 2.0 Active Extension Slim Cable uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 5m whilst continuing to support data transfer rates of up to 480Mbps.

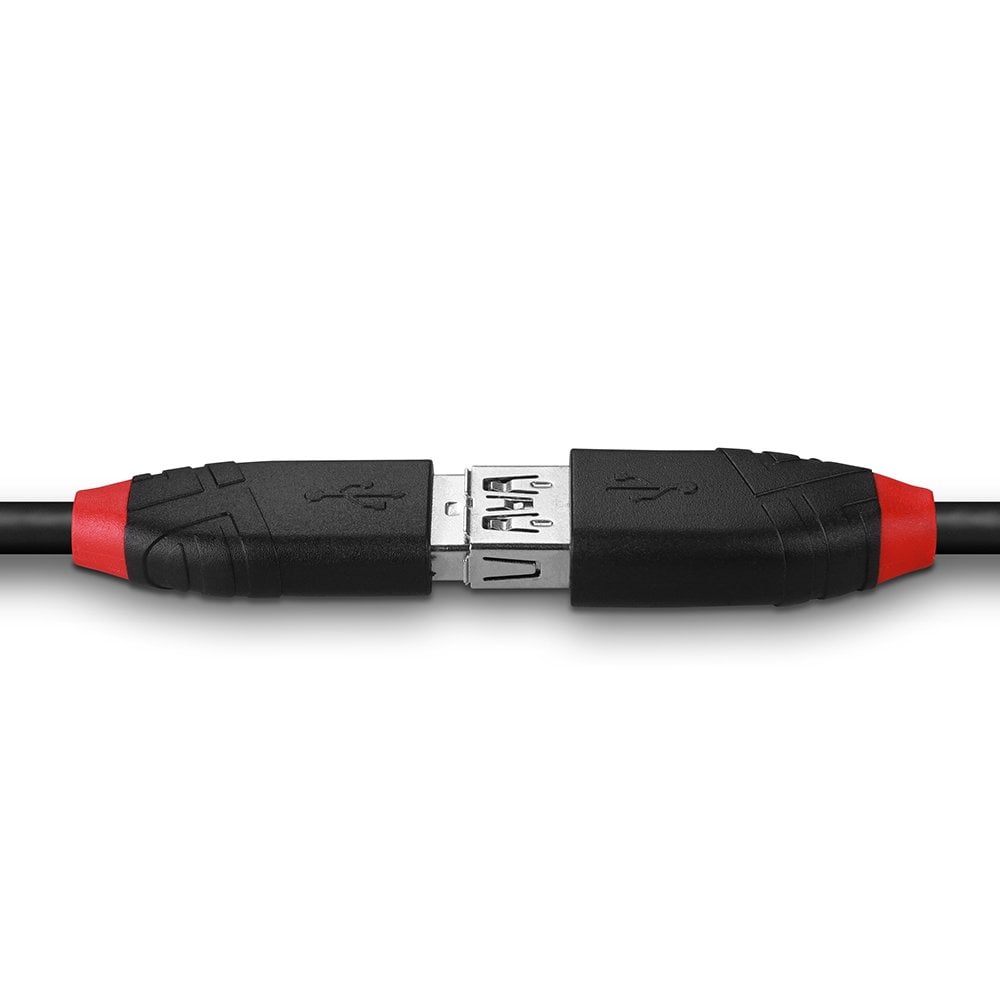

With its USB A male and USB A female connector it allows Type A devices to be connected at longer distances and ensures flexible positioning. Up to 5 extension cables can be chained together to achieve a distance of 25m.
The cable's unique and slim design allows the active electronics to fit into a standard USB connector - an advantage over other active USB leads which use bulky connectors. Compatible with all USB Type A equipped computers.
| Connector A | USB Type A Male | Connector B | USB Type A Female |
| Power | - | Housing Material | Plastic |
| Connector Plating | Nickel | Pin Construction | Brass |
| Pin Plating | Gold | USB A Male Dimensions | 15x40x6mm (0.59x1.57x0.24in) |
| USB A Female Dimensions | 15x45x8mm (0.59x1.77x0.31in) | Length | 5m (16.4ft) |
| Standard | USB 2.0 | Colour | Black |
| Type | Round | Jacket Diameter | 4.8mm (0.19in) |
| Jacket Material | PVC | Conductor Material | Tinned Copper |
| Conductor Gauge | 24AWG+28AWG | Shielding | AL Mylar |
| Supported Bandwidth | 480 Mbps | Nominal Attenuation | 24AWG: 93.25Ohm/km, 28AWG: 237.25Ohm/km |
| Minimum Bend Radius | 48mm (1.89in) | Maximum Tensile Load | - |
| Operating Temperature | 0°C - 70°C (32°F - 158°F) | Storage Temperature | -10°C - 80°C (14°F - 176°F) |
| Transmission Medium | Twisted Pair | Transmission Technology | USB 2.0 |
| Packaging Type | Polybag | Packaging Dimensions | 214x146x38mm (8.43x5.75x1.5in) |
| Net Weight | 0.18kg (0.4lb) | Gross Weight | 0.2kg (0.48lb) |
| Warranty (Years) | 2 | Certified | CE, UKCA, FCC, RoHS & REACH |
| Package Contents | USB 2.0 Active Extension Slim 5m | Purchasing No. | 42817 |
| EAN | 4002888428170 | Other Lengths | 42631 - 20m (65.62ft) |
