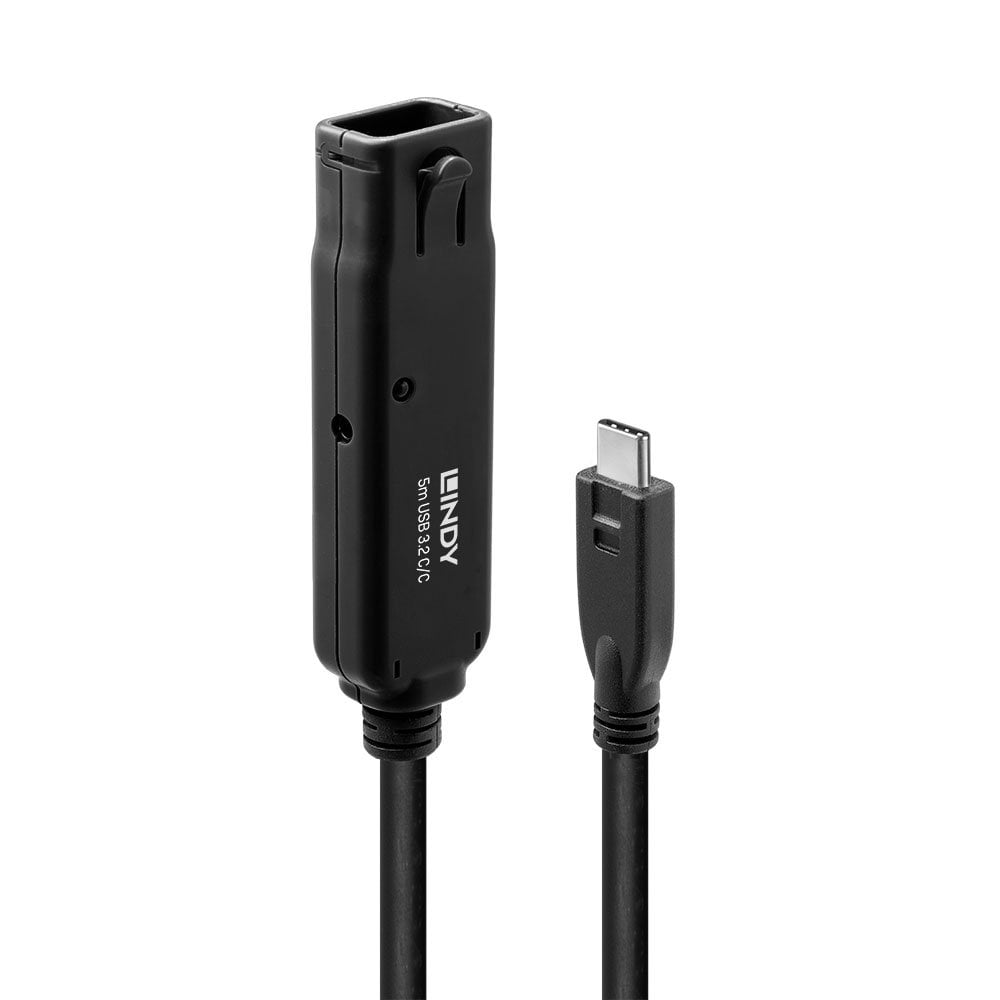

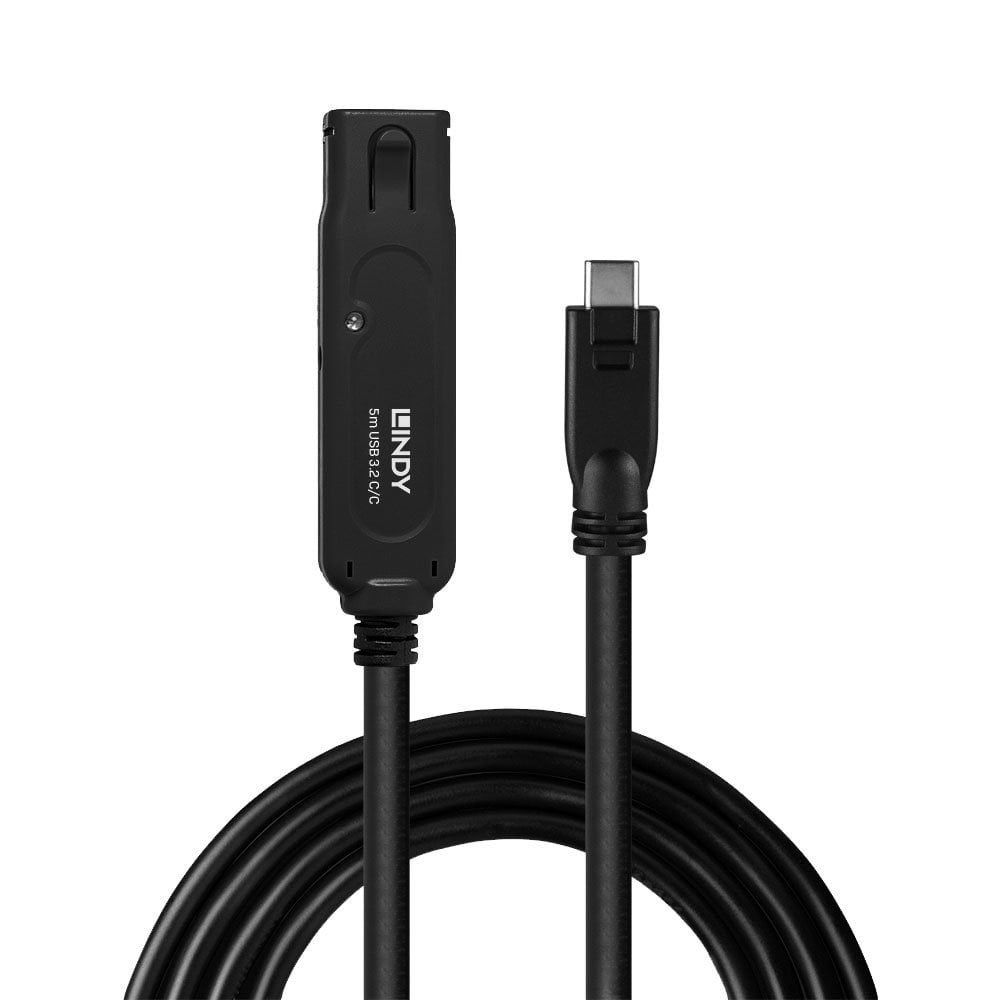

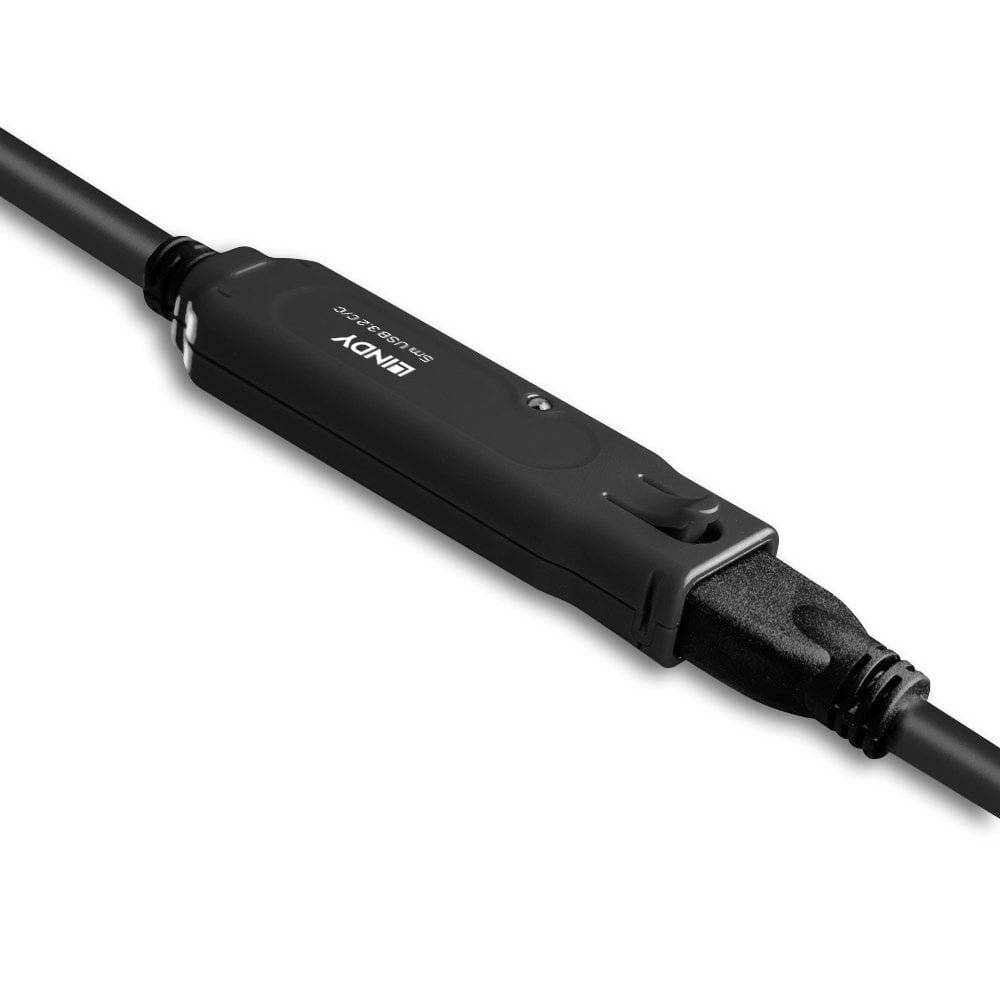

The Lindy USB 3.2 Gen 2 Active Extension Pro is a high-performance active cable that enables access to USB devices over long distances. It supports data transfer rates of up to 10Gbps and is perfect for transferring large amounts of data quickly and reliably.

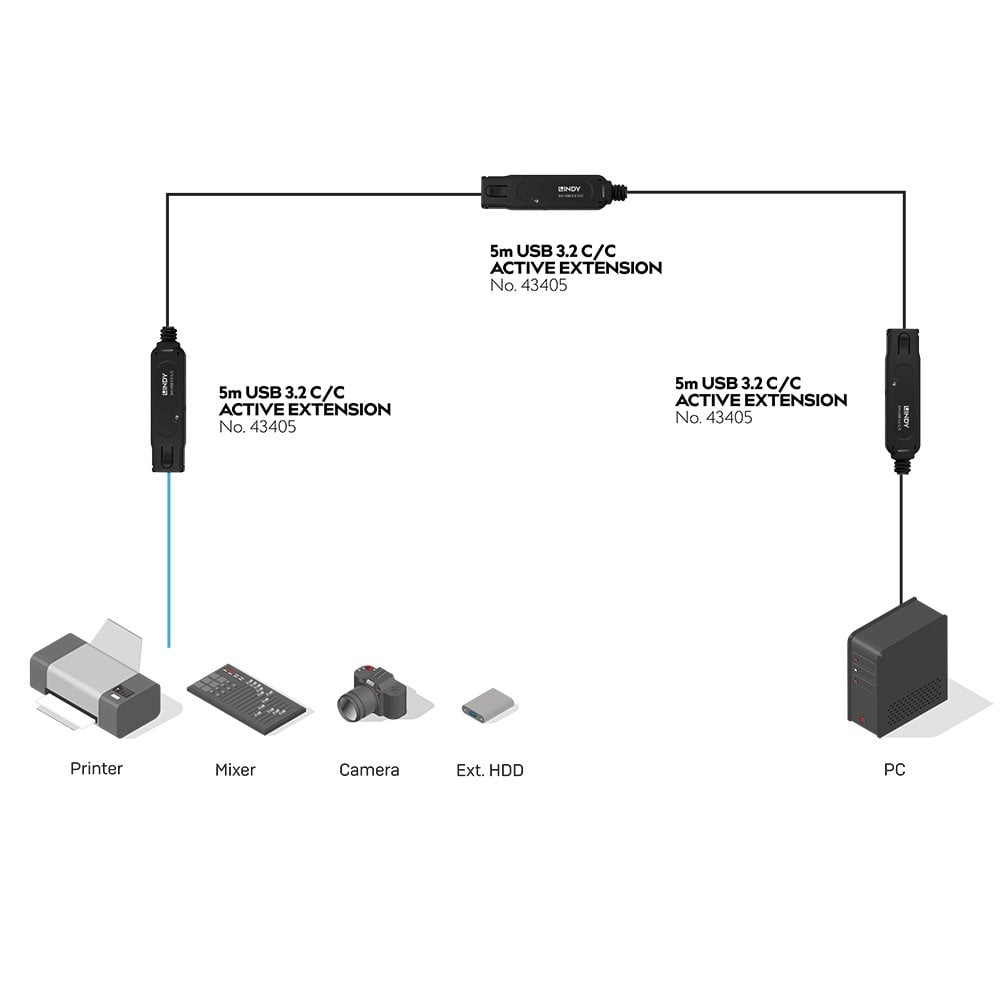

This 5m USB 3.2 active extension can be cascaded up to a maximum distance of 15m.
It can be used if a USB device is to be connected at a greater distance, e.g. a permanently installed webcam in a meeting room, a multi-function hub with various interfaces or if repeated access to a device is difficult. The Lindy USB 3.2 Active Extension is compatible with computers with USB 3.2 Type C or Thunderbolt 3/4 ports, making it the perfect extension tool for newer notebooks, Macbooks and PCs with USB Type C ports.
The Lindy USB 3.2 Active Extension features a DC socket for connecting a power supply unit for the power supply. A USB power adapter cable is included in the scope of delivery, a USB power supply unit must be purchased separately.
These active extension cables with active, industrial-grade technology and sockets with hook mechanism ensure high and reliable signal quality even in demanding environments.
Please note that USB Power Delivery and DisplayPort Alternate Mode are not supported.
| Connector A | USB Type C Male | Connector B | USB Type C Female |
| Power | 2.5/0.7mm DC Connector | Housing Material | Plastic |
| Connector Plating | Nickel | Pin Construction | Brass |
| Pin Plating | Gold Flash | Dimensions USB C Male | 14x41x11.2mm (0.55x1.61x0.44in) |
| Dimensions USB C Female | 22x82x16.1mm (0.86x3.23x0.63in) | Length | 5m (16.4ft) |
| Standard | USB 3.2 / 3.1 Gen 2 | Colour | Black |
| Type | Round | Jacket Diameter | 5mm +/- 0.15mm (0.22in +/- 0.01in) |
| Jacket Material | Half matt PVC low toxic | Conductor Material | Tinned Copper |
| Conductor Gauge | 26/26/24AWG | Shielding | AL Mylar and braid |
| Supported Bandwidth | 10Gbps | Nominal Attenuation | 0.064MHz - <0.08dB, 0.256MHz - <0.11dB, 0.512MHz - <0.13dB, 0.772MHz - <0.15dB, 1.0MHz - <0.20dB, 4MHz - <0.39dB, 8MHz - <0.57dB, 12MHz - <0.67dB, 24MHz - <0.95dB, 48MHz - <1.35dB, 96MHz - <1.90dB, 200MHz - <3.20dB, 400MHz - <5.80dB |
| Minimum Bend Radius | 60mm (2.36in) | Maximum Tensile Load | - |
| Operating Temperature | 0°C - 50°C (32°F - 122°F) | Storage Temperature | -20°C - 75°C (-4°F - 167°F) |
| Transmission Medium | Twisted Pair | Transmission Technology | USB 3.2 / 3.1 Gen 2 |
| Packaging Type | Carton Box | Packaging Dimensions | 170x160x50mm (6.7x6.3x1.97in) |
| Net Weight | 0.23g (0.51lb) | Gross Weight | 0.37kg (0.82lb) |
| Warranty | 2 Years | Certificated | CE, FCC, RoHS, REACH & California Proposition 65 |
| Package Contents | USB 3.2 Gen 2 C/C Active Extension Pro 5m, Power Adapter Cable Nr. 70265, Lindy Manual | Product No. | 43405 |
| EAN | 4002888434058 |
