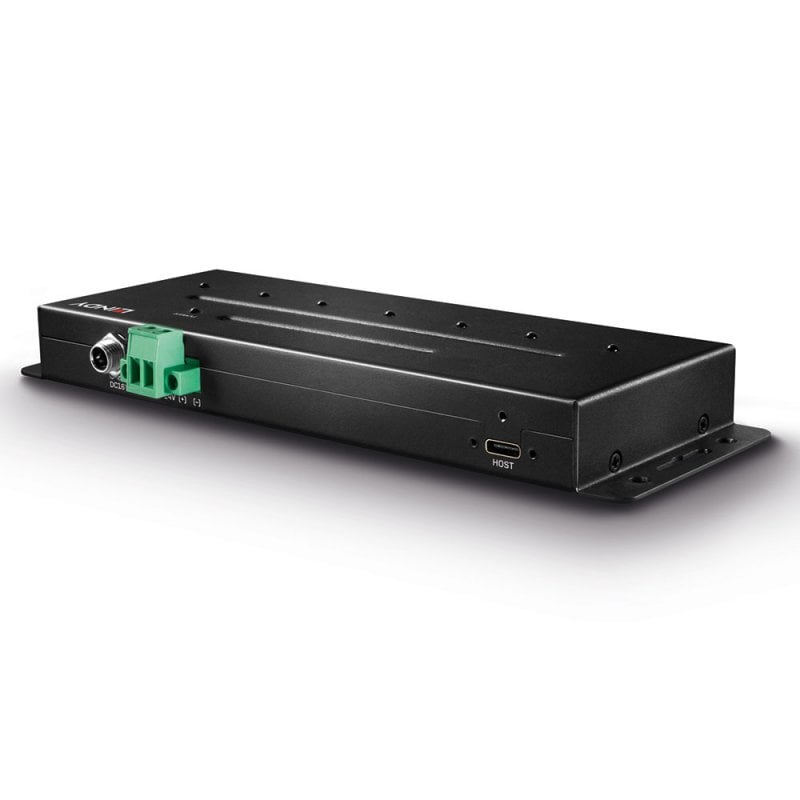

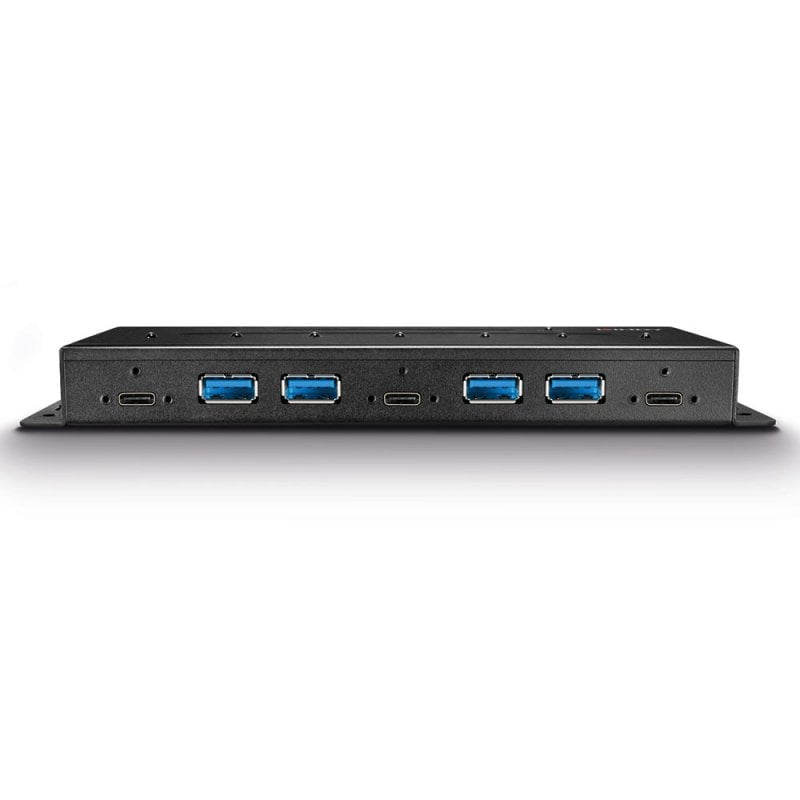

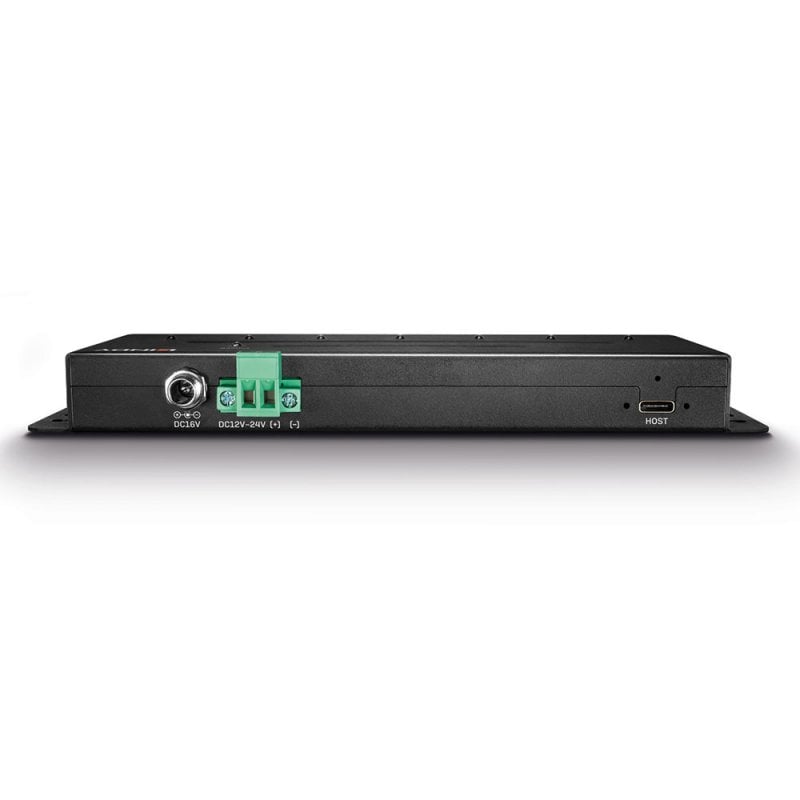

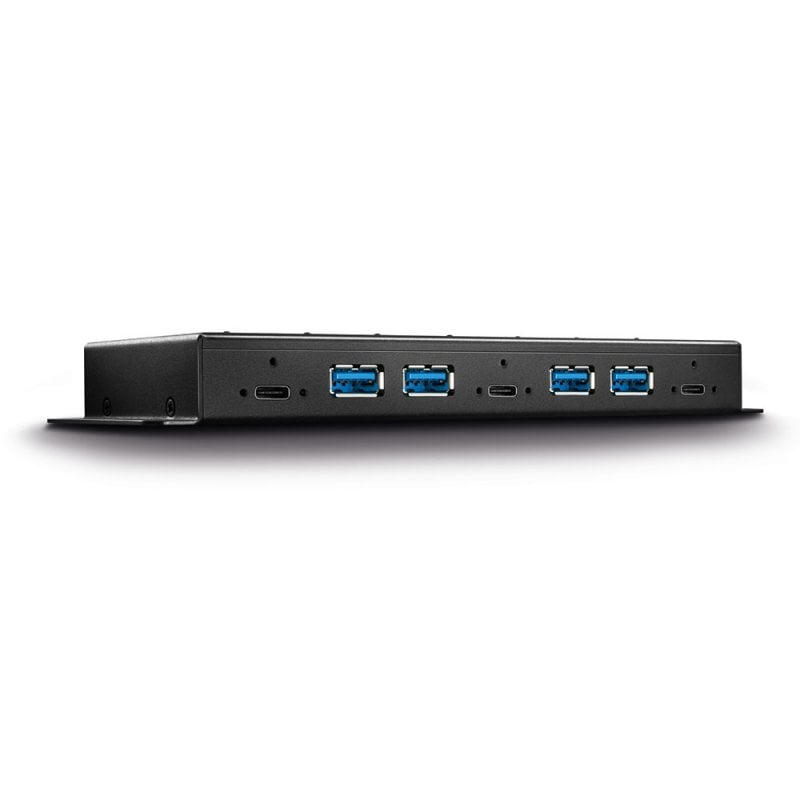

The Lindy 7 Port USB 3.2 Gen 2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps.
This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.
Each port features individual short circuit protection - and all 7 USB ports support the Battery Charging specification 1.2 with a total charging power of 40 Watts for all 7 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Category | Details |
|---|---|
| Specifications | |
| USB Standard | USB 3.2 / 3.1 Gen 2 |
| Supported Bandwidth | 10Gbps |
| Chipset | 2x VL820 |
| Compatibility | USB Type C equipped computers, Thunderbolt 3 |
| Power Delivery | - |
| Special Features | Integrated mounting brackets, USB-C locking cable support, Terminal Block |
| Connectors | |
| Inputs | 1 x USB Type C (Female) |
| Outputs | 3 x USB Type C (Female), 4 x USB Type A (Female) |
| Power | DC screw connector |
| Physical Properties | |
| Dimensions | 184.5x64.3x20mm (7.26x2.53x0.79in) |
| Cable Length | - |
| Housing Material | Metal |
| Net Weight | 0.3kg (0.66lb) |
| Operating Temperature | 0°C - 50°C (32°F -122°F) |
| Storage Temperature | -20°C - 60°C (-4°F -140°F) |
| Humidity | 90% RH (non-condensing) |
| Power Requirements | 16VDC 3A |
| Colour | Black |
| Miscellaneous | |
| Packaging Type | Carton Box |
| Packaging Dimensions | 260x180x70mm (10.24x7.09x2.76in) |
| Gross Weight | 0.7kg (1.54lb) |
| Warranty | 2 years |
| Certified | CE, UKCA, FCC, RoHS, REACH, California Proposition 65 |
| Package Contents | 7 Port USB 3.2 Gen 2 Metal Hub, USB Cable, Power Supply, Lindy Manual |
| Purchasing Information | No.: 43275, EAN: 4002888432757 |
| Description | Downloads |
|---|---|
| Datasheet | Download |
