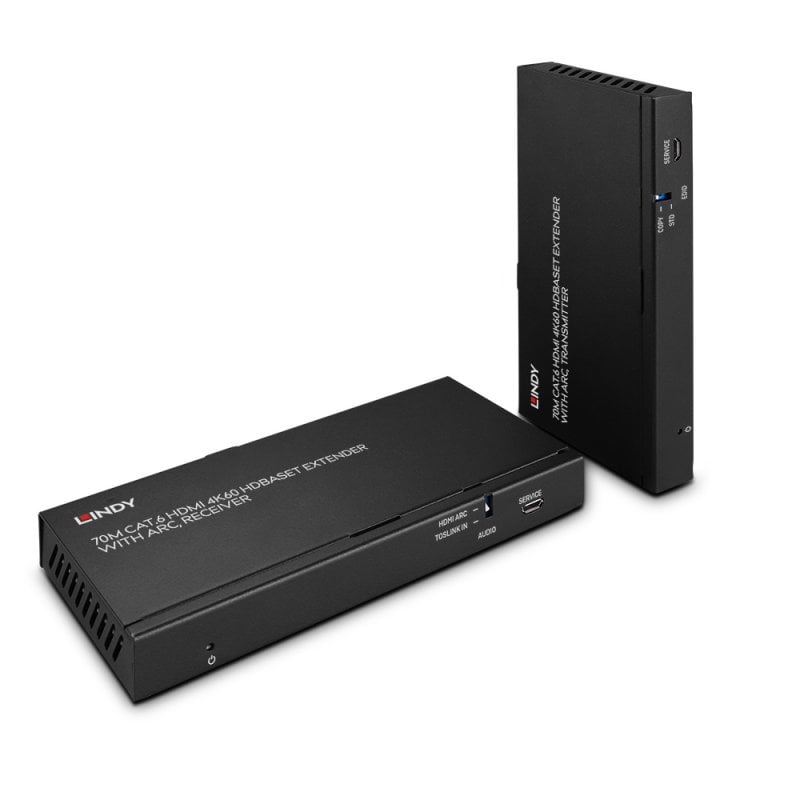

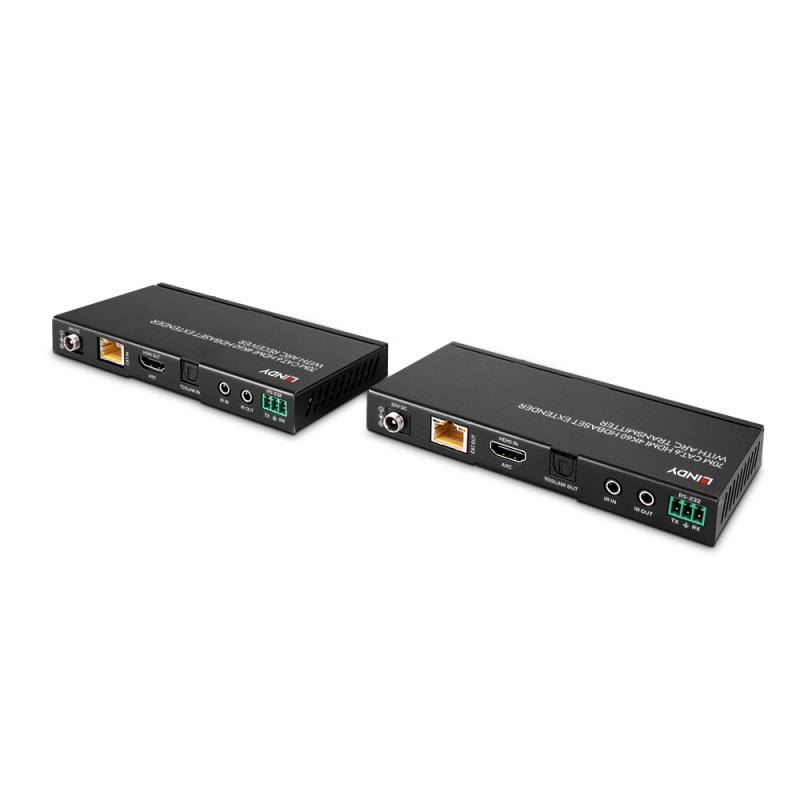

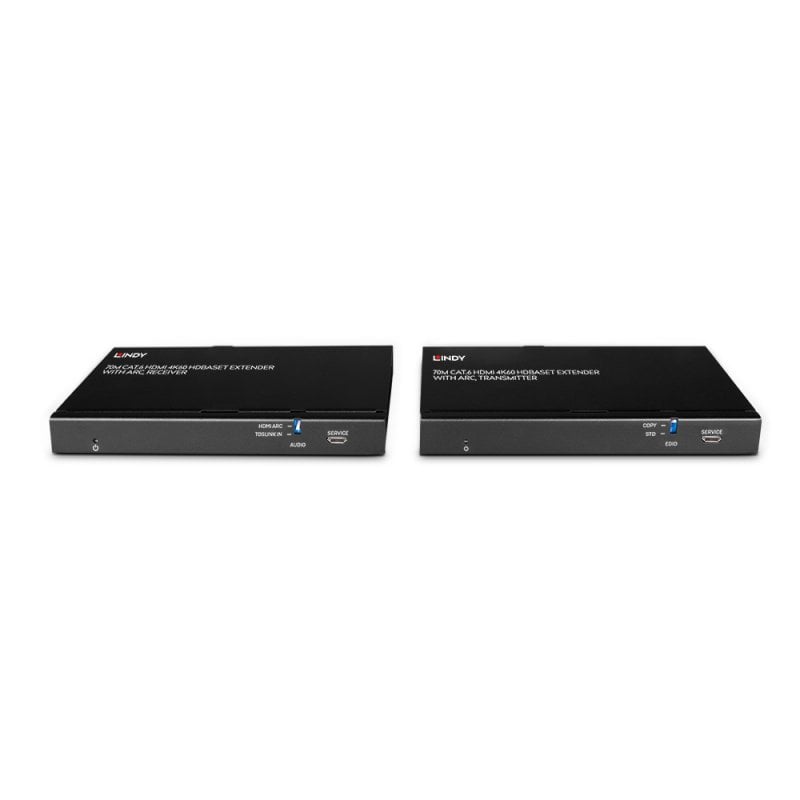

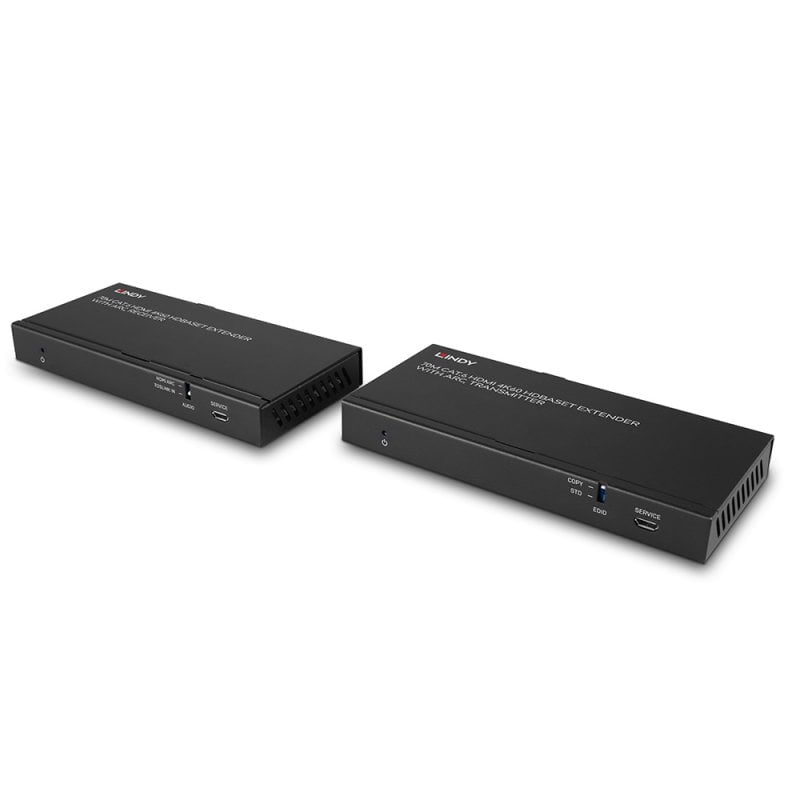

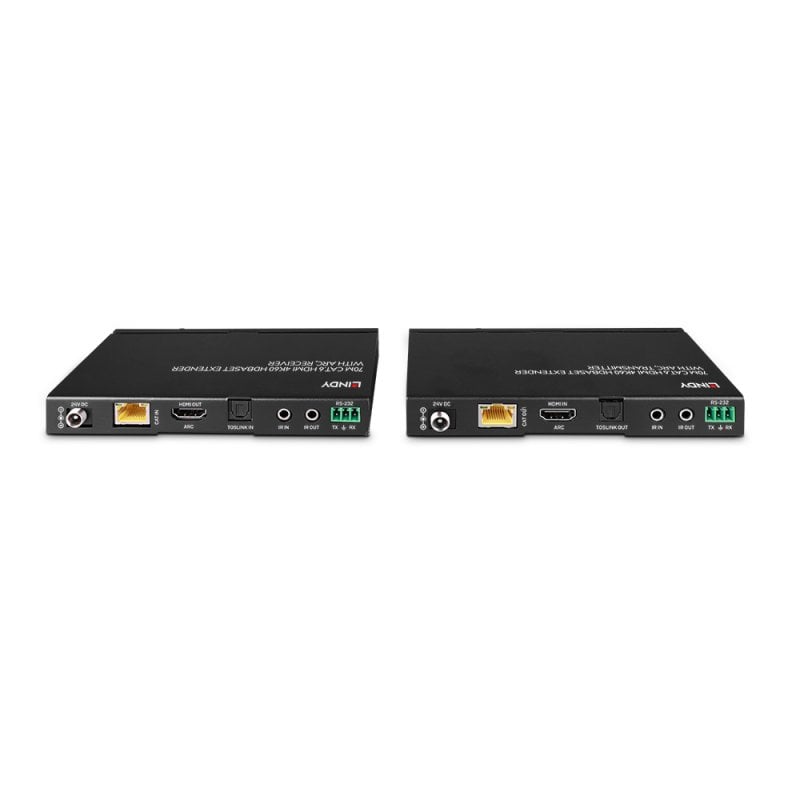

Lindy 70m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Extender with ARC | 38349

SKU: 38349
Part Number: 38349
Condition: Brand New
Purchase Orders Accepted
Sold out

£223.71 (Excl. VAT)

Current price - £268.45 (Inc. VAT)
£223.71 - £223.71
Current price- - £268.45
Availability:
Out of stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Lindy 70m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Extender with ARC | 38349

    The Lindy 70m Cat.6 HDMI 4K60, Audio, IR & RS-232 HDBaseT Extender is a complete end to end high performance, reliable solution for extending HDMI® signals over long distances via Cat.6 network cable.

    The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:
    70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit

    Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

    ARC support over HDMI® allows for audio content to be returned from the display to a connected amplifier or soundbar, while local audio extraction allows for the connection of audio outputs for immersive multi-channel audio. Digital audio embedding at the receiver side can also be used for source audio, which can easily be switching via the dip-switch on the receiver unit.

    PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit. Ideal for example when power outlets are limited at the receiver end of the installation.


    Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI® source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block.

    In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.

    HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

    HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

    Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above cable. Using a different cable type, introducing couplers, wall plates or patch panels may result in a reduction of possible distances.

  • Category Details
    AV Interface HDMI®
    Interface Standard HDMI® 2.0
    Supported Bandwidth 18Gbps
    Maximum Distance 70m (229.66ft)
    Maximum Resolution 3840x2160@60Hz 4:4:4 8bit
    HDCP Support 2.2
    EDID Pass Through Dip Switch with copy function
    Supported Audio Pass Through
    Separate Audio Ports TosLink (Optical)
    IR Support 20 - 60KHz
    CEC Support -
    Serial Interface RS-232 Pass Through
    Transmission Protocol HDBaseT
    Transmission Medium Cat.6
    Chipset VS010-A0
    Special Features Bi-directional IR, PoC and ARC
    Transmitter Input HDMI® Type A (Female), 3.5mm IR (Female)
    Transmitter Output RJ-45 (Female), TosLink (Optical) (Female), 3.5mm IR
    Receiver Input RJ-45 (Female), TosLink (Optical) (Female), 3.5mm IR
    Receiver Output HDMI® Type A (Female), 3.5mm IR (Female)
    Bi-directional Ports RS-232 3-Pin Terminal Block
    Power 5.5/2.1mm
    Dimensions (WxDxH) 140x65x18mm (5.51x2.56x0.71in) each unit
    Housing Material Metal
    Net Weight 0.76kg (1.68lb)
    Operating Temperature 0°C - 40°C (32°F - 104°F)
    Storage Temperature -20°C - 60°C (-4°F - 140°F)
    Humidity 20 - 90% RH (non-condensing)
    Power Requirements 24VDC 1A
    Colour Black
    Packaging Type Carton Box
    Packaging Dimensions 245x75x185mm (9.65x2.95x7.28in)
    Gross Weight 0.94kg (2.07lb)
    Warranty 2 Years
    Product Compliance CE, UKCA, FCC, RoHS, REACH & California Proposition 65
    Package Contents Transmitter, Receiver, IR Emitter/Receiver Cables (1.5m), Mounting Ears & Screws, 3-Pin Terminal Blocks, Multi-country Power Supply (UK, EU, US & AUS), Lindy Manual
    Part Number 38349
    EAN 4002888383493
