Lindy 70m Cat.6 HDMI 4K60, IR & RS-232 HDBaseT EU Wall Plate Extender, Transmitter | 38348

SKU: 38348
Part Number: 38348
Condition: Brand New
Purchase Orders Accepted
Save £106.27 Save £106.27

£170.75 (Excl. VAT)

Current price - £204.90 (Inc. VAT)
£170.75 - £170.75
Current price- - £204.90
Availability:
Only 3 left at this price!

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Lindy 70m Cat.6 HDMI 4K60, IR & RS-232 HDBaseT EU Wall Plate Extender, Transmitter | 38348

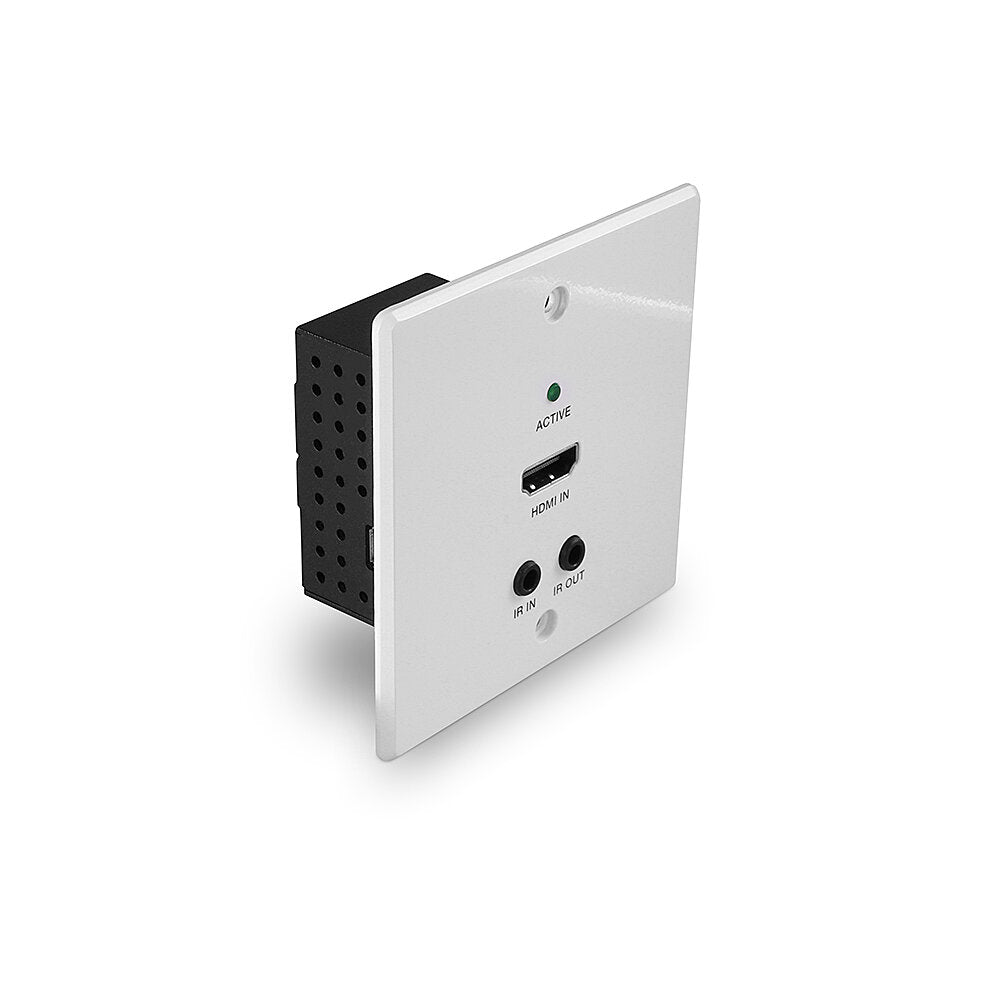

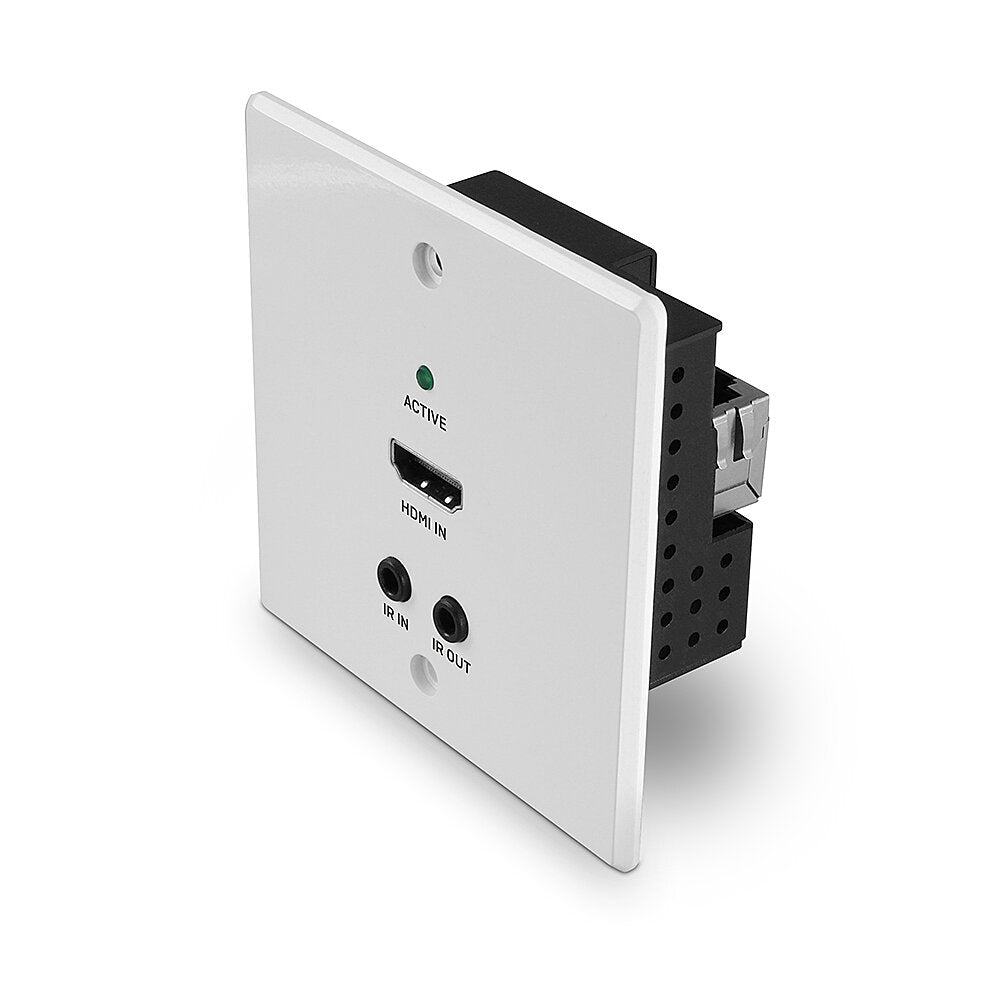

    The Lindy Cat.6 HDBaseT HDMI 4K60 Wall Plate Transmitter is one part of a high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.

    By combining this Transmitter unit with a compatible HDBaseT Receiver such as Lindy No. 38214 and 38342, this solution ensures reliable transmission up to 70m.

    The following distance and resolution combinations are possible when using high quality Cat.6 or above U/UTP or F/UTP cable:

    70m: 1920x1080@60Hz 4:4:4 8bit

    40m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit


    Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

    PoC (Power over Cable) functionality with On/Off switch provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at one side of the installation.

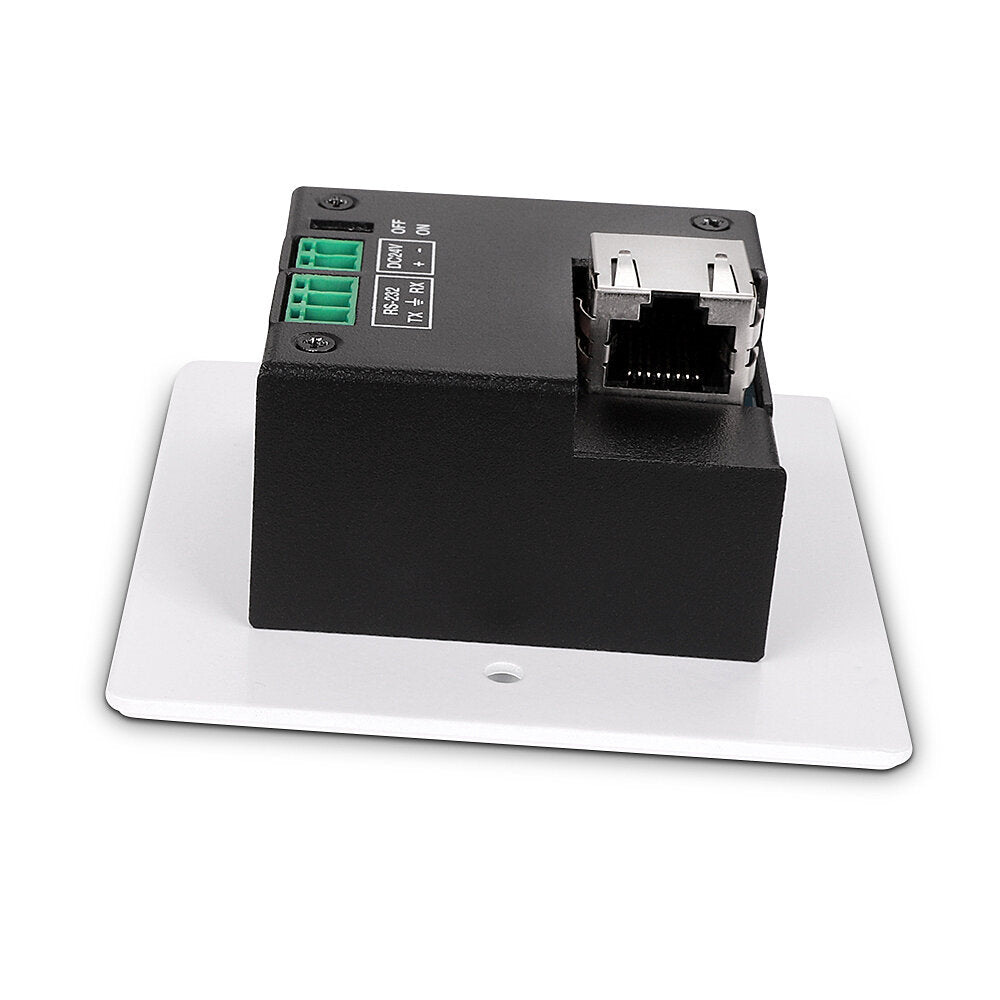

    Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block on the rear side of the wall plate.

    HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

    HDBaseT™ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

  • Category Details
    AV Interface HDMI
    Interface Standard HDMI 2.0
    Supported Bandwidth 18Gbps
    Maximum Distance 40m (131.23ft) at 3840x2160@60Hz 4:4:4 8bit, 70m (229.66ft) at 1920x1080@60Hz
    Maximum Resolution 3840x2160@60Hz 4:4:4 8bit
    HDCP Support 2.2
    EDID Pass Through Pass Through
    Supported Audio Pass Through
    IR Support 20 - 60KHz
    Serial Interface RS-232 Pass Through
    Transmission Protocol HDBaseT
    Transmission Medium Cat.6
    Chipset VS010
    Special Features Bi-directional IR, PoC (Power over Cable) with On/Off switch

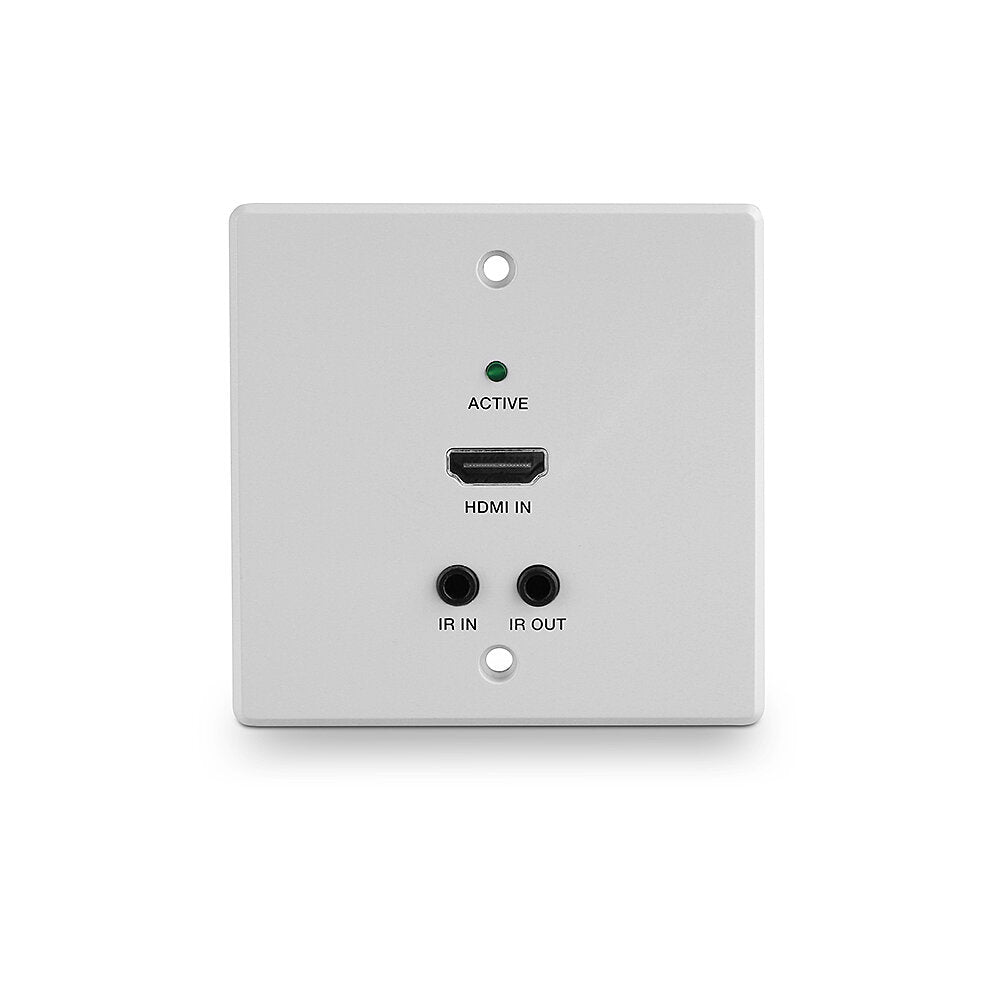

    Connectors Transmitter Input: HDMI Type A (Female), 3.5mm IR (Female)

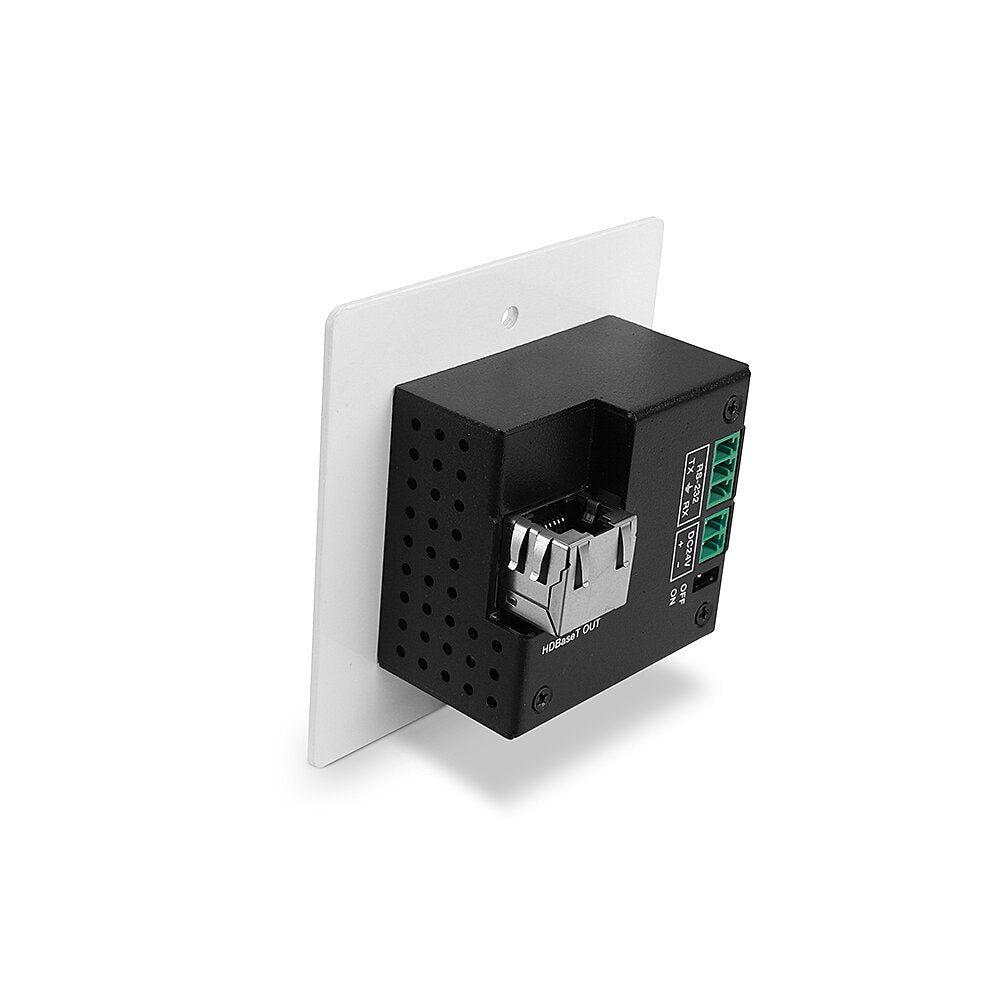

    Transmitter Output: RJ-45 (Female), 3.5mm IR (Female)
    Bi-directional Ports: RS-232 3-Pin Terminal Block
    Power: 2-Pin Terminal Block DC connector
    Physical Dimensions 80x38.05x80mm (3.15x1.5x3.15in)
    Housing Material Metal
    Net Weight 0.39kg (0.86lb)
    Operating Temperature 0°C - 40°C (32°F - 104°F)
    Storage Temperature -20°C - 60°C (-4°F - 140°F)
    Humidity 20 - 90% RH (non-condensing)
    Power Requirements 24VDC 1A
    Colour White plate
    Packaging Type Carton Box
    Packaging Dimensions 152x95x133mm (5.98x3.74x5.24in)
    Gross Weight 0.54kg (1.19lb)
    Warranty 2 Years
    Product Compliance CE, UKCA, FCC, RoHS, REACH & California Proposition 65
    Package Contents HDMI Transmitter, Multi-country Power Supply (UK, EU, US & AUS), IR Emitter Cable, 1.5m, IR Receiver Cable, 1.5m, 3-Pin Terminal Block, 2-Pin Terminal Block, Lindy Manual
    Product Number 38348
    EAN 4002888383486
