Lindy 70m Cat.6A HDMI 4K60 & Type C HDBaseT 3.0 KVM Extender | 38346

SKU: 38346
Part Number: 38346
Condition: Brand New
Purchase Orders Accepted
Sold out

£506.36 (Excl. VAT)

Current price - £607.63 (Inc. VAT)
£506.36 - £506.36
Current price- - £607.63
Availability:
Out of stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Lindy 70m Cat.6A HDMI 4K60 & Type C HDBaseT 3.0 KVM Extender | 38346

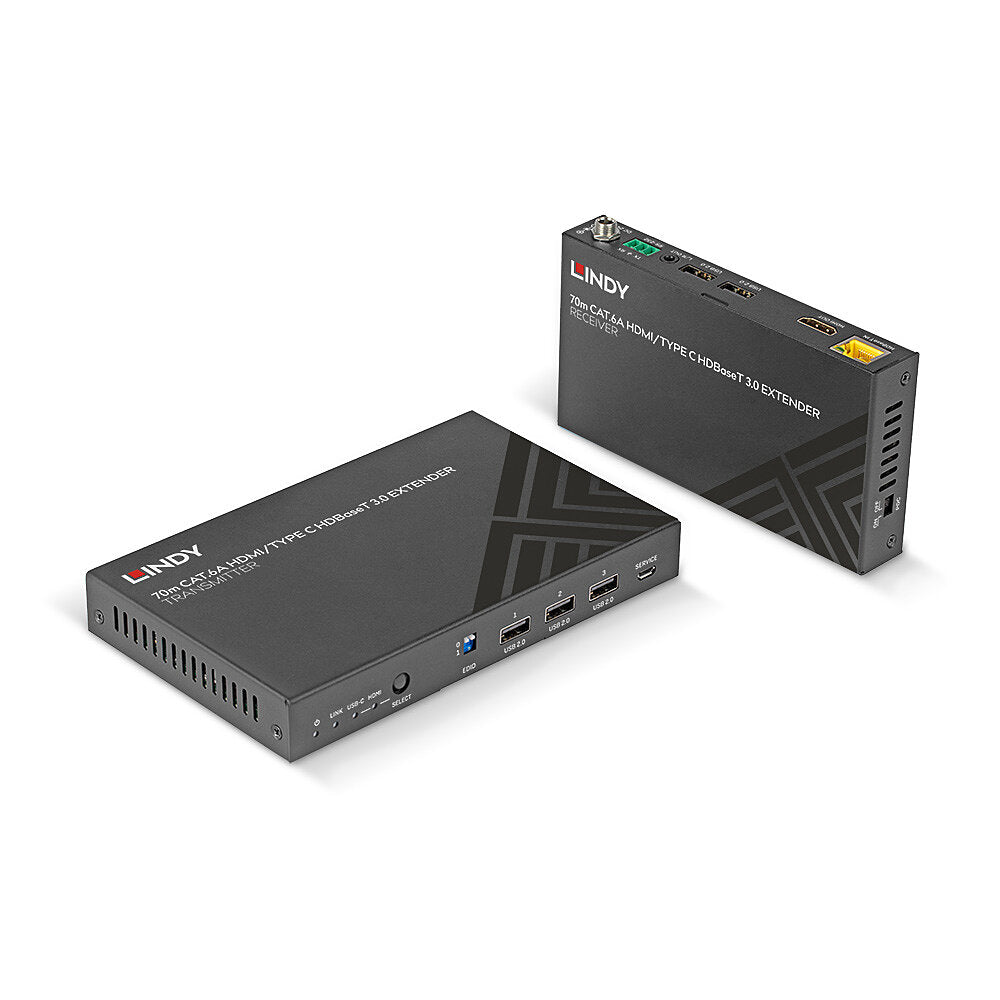

    The Lindy Cat.6A HDMI® 4K60 & Type C HDBaseT 3.0 KVM Extender is a high performance, reliable solution for extending AV and data signals over long distances via Cat.6A network cable.

    The following distance and resolution combinations are possible when using high quality Cat.6A or above U/UTP or F/UTP cable:
    40m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
    70m: 3840x2160@30Hz 4:4:4 8bit / 4:2:2 12bit

    Supporting uncompressed resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. 4K to 1080p downscaling function is also supported on HDMI output.

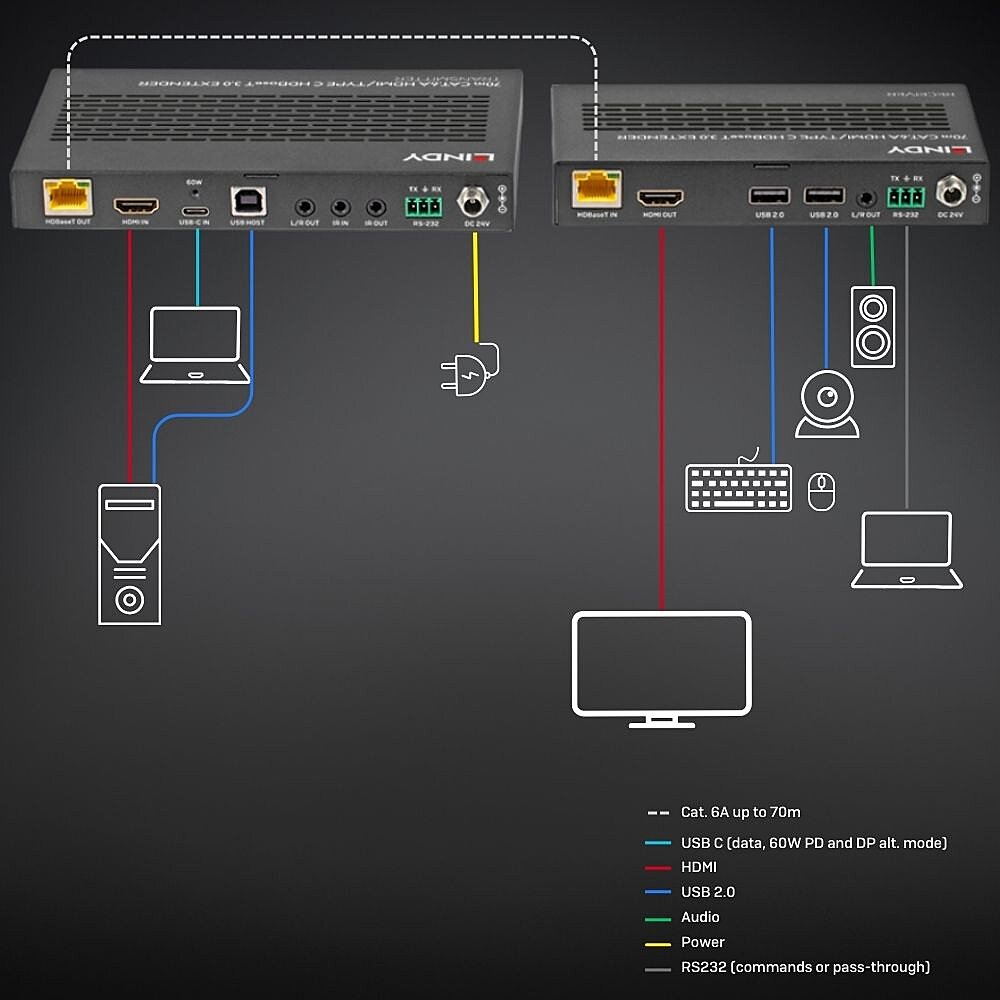

    The user can connect a Type C or HDMI® (with USB) input port in order to control any source such as a PC or Laptop, the Type C port supports also 60W power delivery provided directly from the Transmitter just connecting the included power supply. Switching between the 2 inputs is possible pushing the button on the transmitter unit, auto switch feature is also supported.


    PoC (Power over Cable) functionality with On/Off switch provides additional flexibility. This allows power to be supplied alongside data through Cat.6A network cable in a point to point connection between the transmitter and receiver, meaning only a single power supply is required at one side of the installation.

    Featuring 3.5mm Analog Audio outputs with de-embedding function to connect speakers or amplifier on both units, EDID DIP switch with presets and copy function on the transmitter.
    Bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extennder allows for complete control for the user providing APIs over RS-232 or USB Micro B ports.

    HDBaset is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

    HDBaseT Trade Mark and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

    Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6A or above cable. Using a different cable type, introducing couplers or patch panels may result in a reduction of possible distances.

  • Category Details
    AV Interface HDMI®, Type C
    Interface Standard HDMI® 2.0, USB 2.0
    Supported Bandwidth HDMI® 18Gbps
    Maximum Distance 40m at 3840x2160@60Hz 4:4:4 8bit, 70m at 3840x2160@30Hz 4:4:4 8bit / 4:2:2 12bit
    Maximum Resolution 3840x2160@60Hz 4:4:4 8bit
    HDCP Support 2.3
    EDID Pass Through Dip-switch with presets and copy function
    Supported Audio Pass Through
    Separate Audio Ports 3.5mm
    IR Support 20 - 60KHz
    CEC Support Pass Through
    Serial Interface RS-232 Pass Through
    Transmission Protocol HDBaseT 3.0
    Transmission Medium Cat.6A
    Special Features APIs, 60W PD on Type C port, Bi-directional IR, PoC, Audio de-embedded, 4K to 1080p downscaling

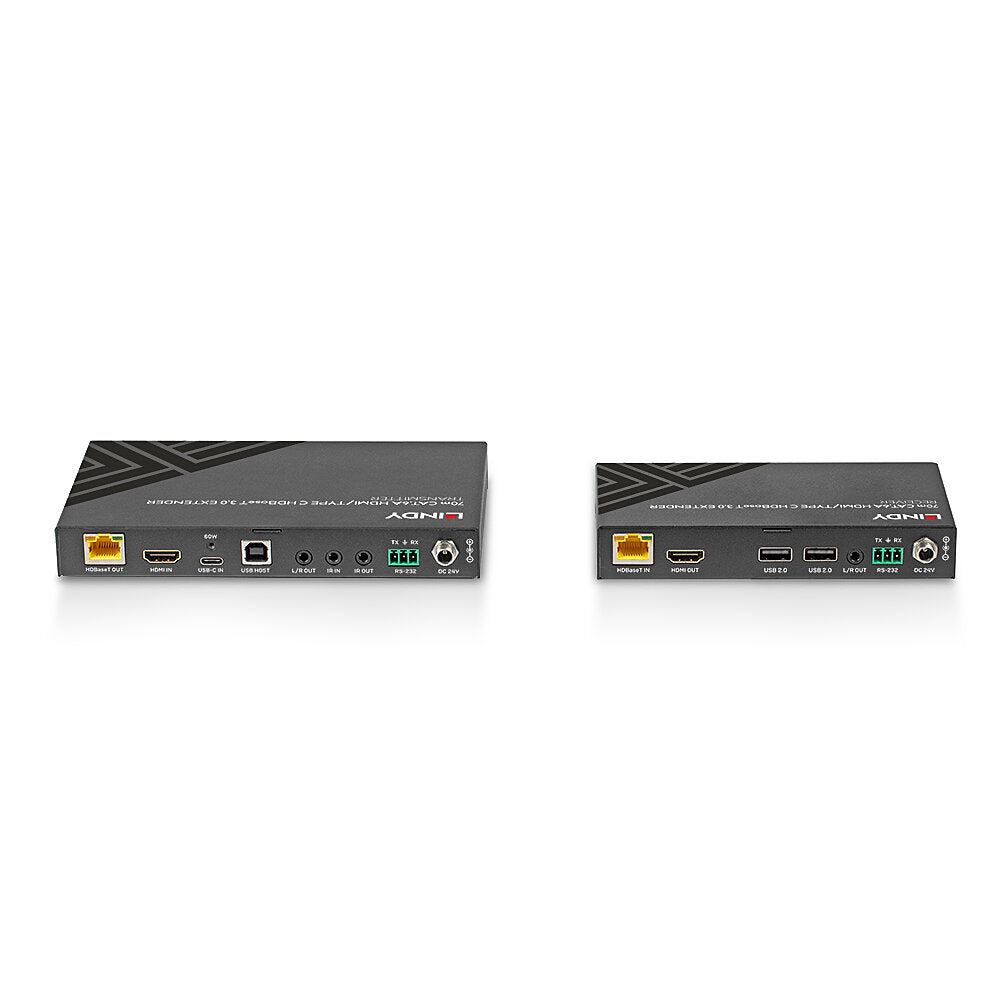

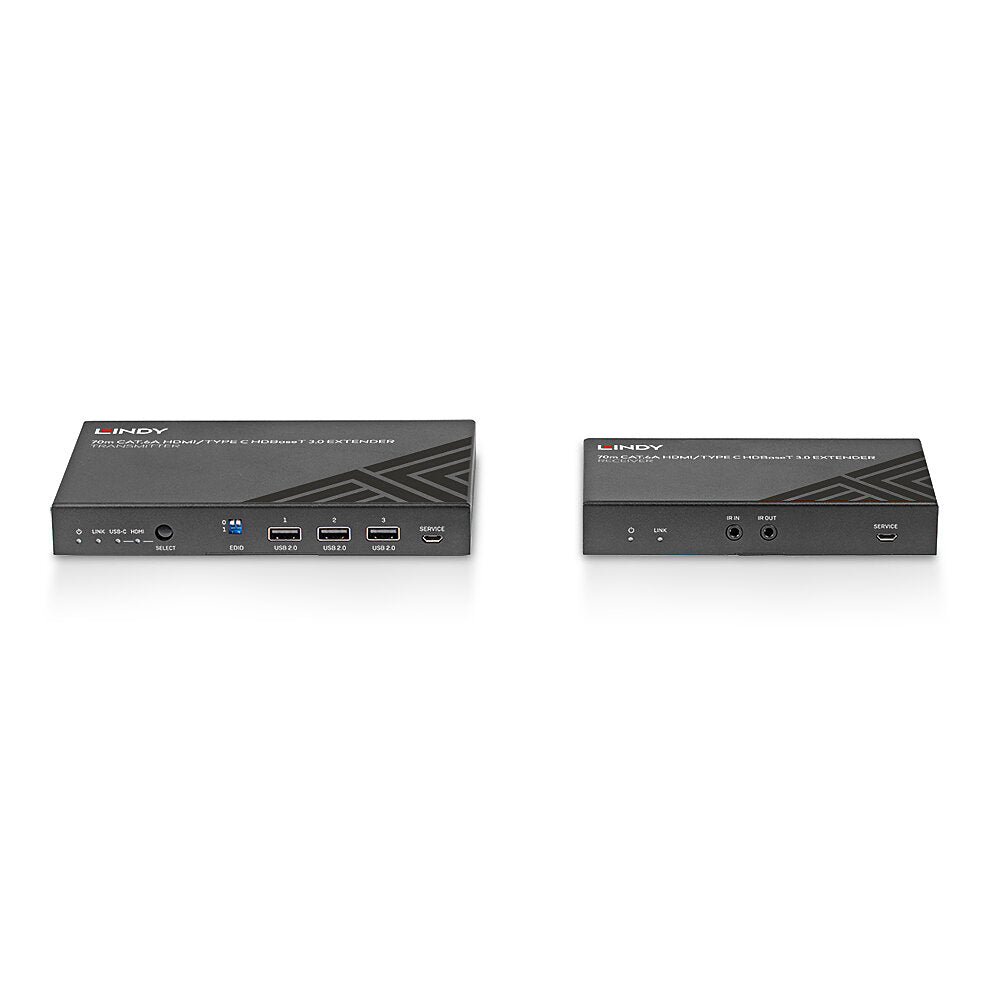

    Connectors Transmitter Input: HDMI® Type A (Female), USB Type C (Female), USB Type B (Female), 3.5mm IR (Female)
    Transmitter Output: RJ-45 (Female), 3.5mm IR (Female), 3.5mm Audio (Female), 3x USB Type A (Female)
    Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
    Receiver Output: HDMI® Type A (Female), 3.5mm IR (Female), 3.5mm Audio (Female), 2x USB Type A (Female)
    Control Ports: USB Micro B (Female), RS-232 3-Pin Terminal Block
    Power: 5.5/2.1mm DC socket
    Physical Properties Dimensions: Tx: 170x102x22mm, Rx: 144x78x23mm
    Housing Material: Metal
    Net Weight: 1.9Kg
    Operating Temperature: 0°C - 40°C
    Storage Temperature: -20°C - 60°C
    Humidity: 20 - 90% RH (non-condensing)
    Power Requirements: 24VDC 3.75A
    Colour: Black
    Miscellaneous Packaging Type: Carton Box
    Packaging Dimensions: 290x75x220mm
    Gross Weight: 2.18Kg
    Warranty: 2 Years
    Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
    Package Contents Transmitter, Receiver, Multi-country Power Supply, IR Emitter/Receiver Cables, Mounting Ears & Screws, Manual
    Purchasing Information No.: 38346
    EAN: 4002888383462
