A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.
This advanced KVM Switch has been designed for use with PCs and Macs. It features DVI single link video ports and a two port USB 2.0 hub for connecting and sharing your peripherals. With full audio support, you can also connect your speakers and microphone.

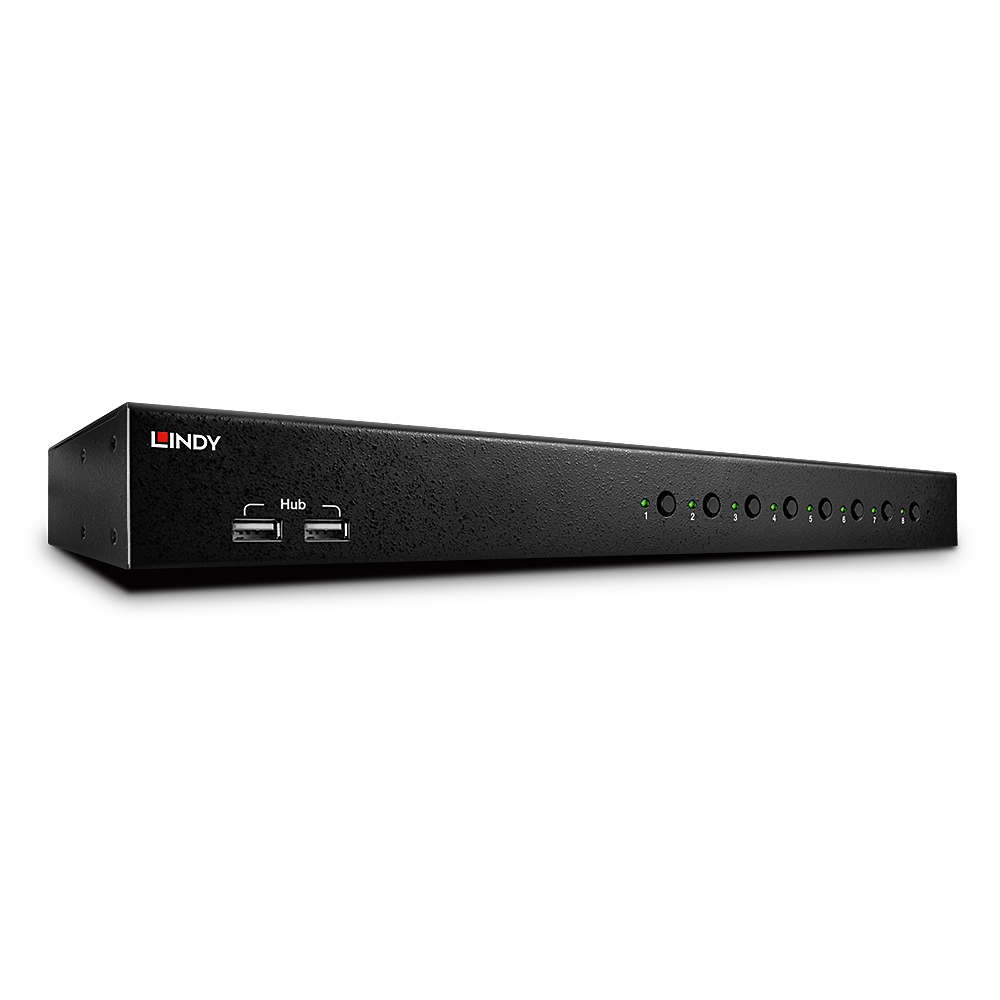

The switch occupies only a single 1U space in a 19” rack and supports screen resolutions of up to 1920x1200, great for ensuring optimum clarity if used in digital media or graphic design scenarios. It provides 2 simple switching modes, via keyboard hotkeys and front panel buttons.

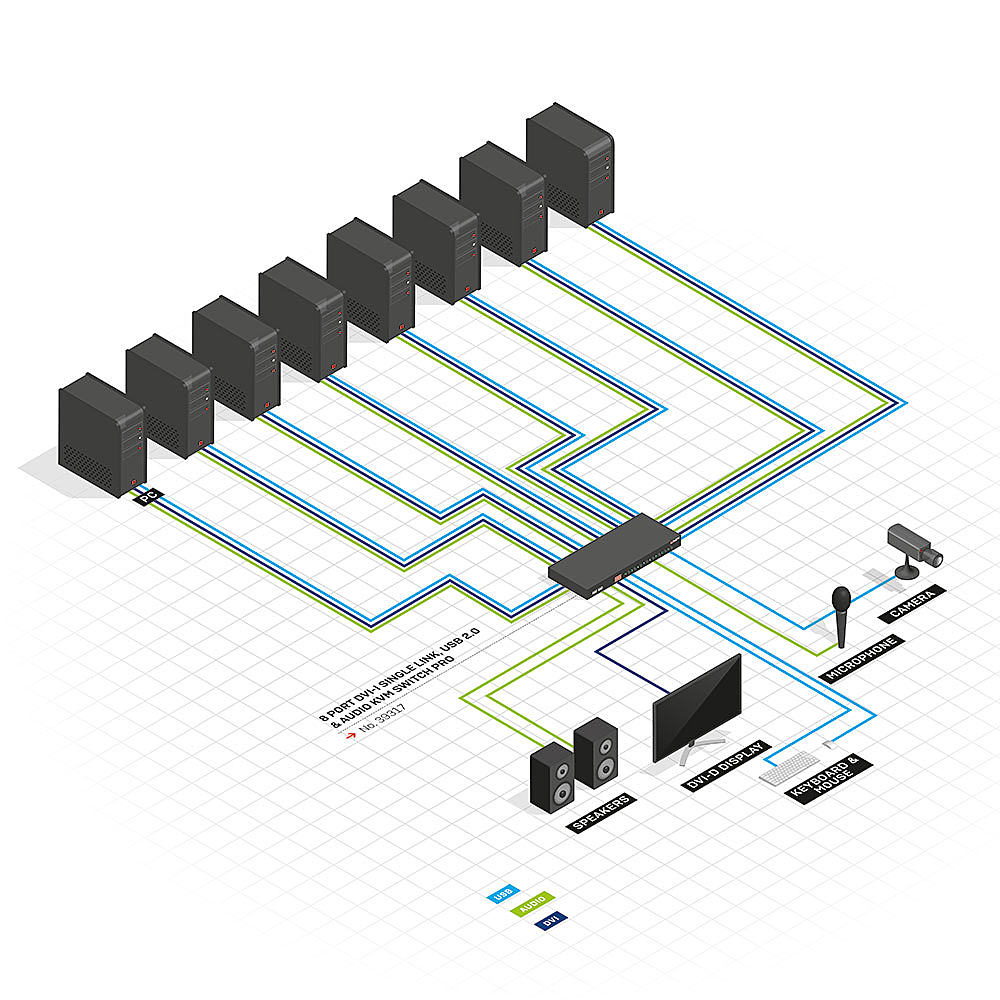

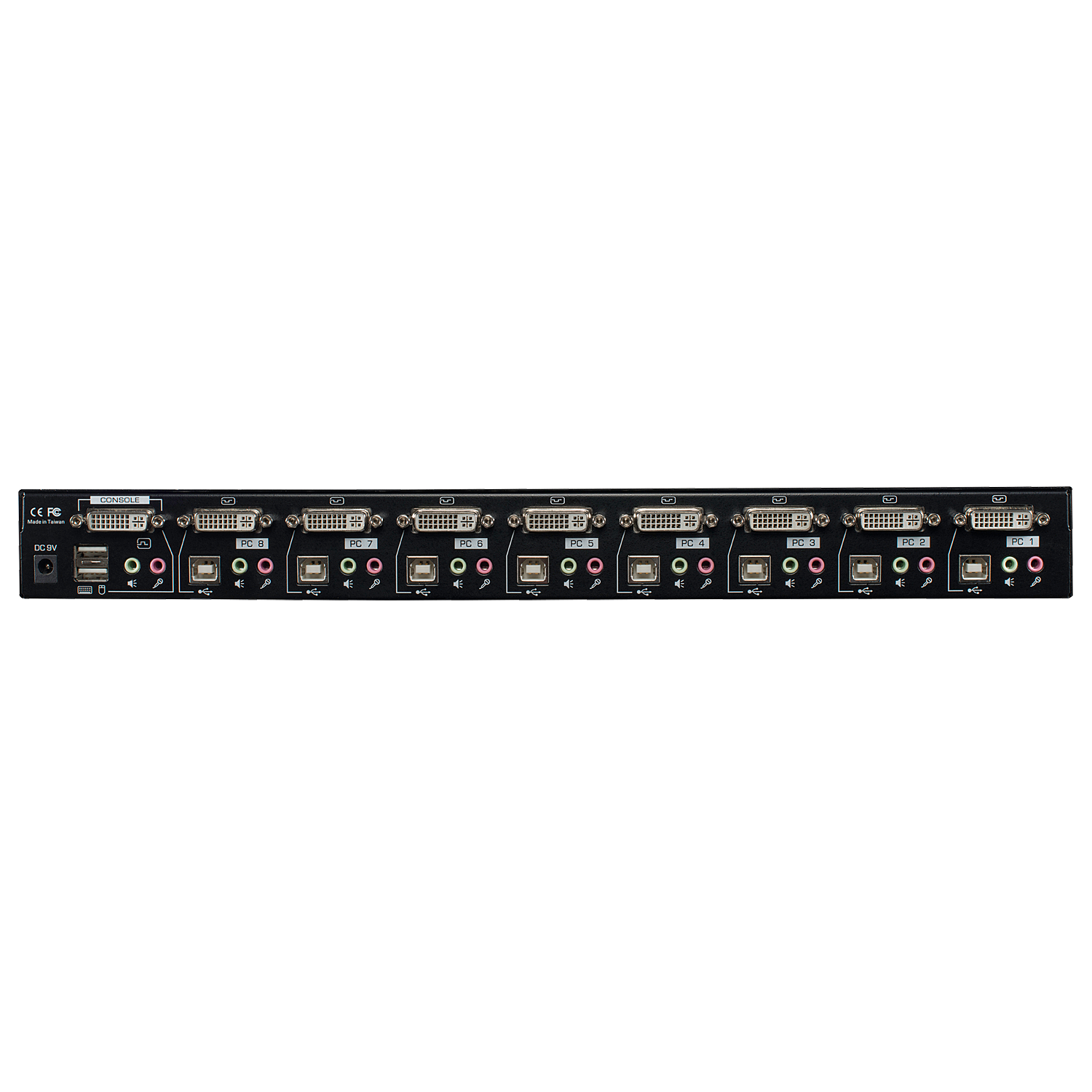

A local console can be connected to the 2 USB and DVI ports on the rear panel while the built-in 2 port USB 2.0 hub allows you to save money on additional devices by sharing peripherals between the connected computers. The unique switching arrangement allows the USB hub and the Audio ports to be switched independently of the PCs for uninterrupted listening, printing, scanning or external drive access. Options can be accessed only via keyboard hotkeys.
LED indicators show status of connected computers and selected channel. The switch supports digital and analogue signals via DVI-I ports but it doesn't convert video signals; it only switches between all digital or all analogue signals. If used with analogue signals, the device supports VGA resolutions up to 2048x1536.
Please Note: connection cables are not included. DVI, USB A to B, and 3.5mm microphone and speaker cables are required for each connected computer. The maximum supported distance for USB, using standard cables, is 5m. For distances over 5m, use a Lindy USB Active Extension Cable.
| Category | Details |
|---|---|
| Specifications | |
| AV Interface | DVI-I |
| Console Interfaces | USB |
| Interface Standard | DVI-I, USB 2.0 |
| Maximum Resolution | DVI: 1920x1200@60Hz VGA: 2048x1536@30Hz |
| HDCP Support | - |
| Supported Audio | Analog Stereo |
| Separate Audio Ports | 2 x 3.5mm (Female) |
| Serial Interface | - |
| Console Number | 1 |
| Max Number PC/Server | 8 |
| Cascadable | No |
| Switching Method | Port Buttons, Hotkey (configurable) |
| 19" Rack Mountable | Yes (1U - Rack Mount Brackets included) |
| Special Features | Shared USB Ports |
| Connectors | |
| Console Interfaces | DVI-I (Female), 2 x USB Type A HID (Female), 2 x 3.5mm (Female) |
| PC/Server Interfaces | 8 x DVI-I (Female), USB 2.0 Type B (Female), 2 x 3.5mm (Female) |
| Other Interfaces | 2 x USB 2.0 Type A (Female) Shared Ports (Front Panel) |
| Power | 5.5/2.5mm DC socket |
| Physical Properties | |
| Dimensions WxDxH | 407 x 110 x 46mm (16.02x4.33x1.81in) |
| Housing Material | Metal |
| Net Weight | 1.5kg (3.31lb) |
| Operating Temperature | 0°C - 50°C (32°F - 122°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 0~90% RH (non-condensing) |
| Power Requirements | 9VDC 2A |
| Colour | Black |
| Miscellaneous | |
| Packaging Type | Carton box |
| Packaging Dimensions | 570x245x105mm (22.44x9.65x4.13in) |
| Gross Weight | 2.5kg (5.51lb) |
| Warranty (Years) | 2 |
| Certificated | CE, FCC, RoHS & REACH |
| Package Contents | |
| Included Items | KVM Switch 2 x 19" Rack Mount Bracket With Screws Multi-Country PSU (UK, Euro, US, AUS) LINDY Manual |
| Purchasing Information | |
| No. | 39317 |
| EAN | 4002888393171 |
| Description | Downloads |
|---|---|
| Manual | Downloads |
