Your USB Extension, Your Way.
The Modular USB 3.2 Gen 1 Extension System.
The Lindy 8m USB 3.2 Gen 1 Active Extension Pro Cable enables reliable, high-performance USB connectivity at extended distances. Designed for both standalone use and as part of Lindy’s modular Active Extension System Pro, it delivers full SuperSpeed 5Gbps performance over 8 metres — and supports bespoke installations of over 40 metres when cascaded with other system components. With active signal boosting, locking connectors, and rugged construction, it's ideal for AV, IT, and industrial environments where long-distance USB performance is a must.
AT A GLANCE
10m Active USB Extension Cable
Reliable USB performance far beyond standard cable lengths.
USB 3.2 Gen 1 (SuperSpeed)
Full 5Gbps data bandwidth for fast device communication.

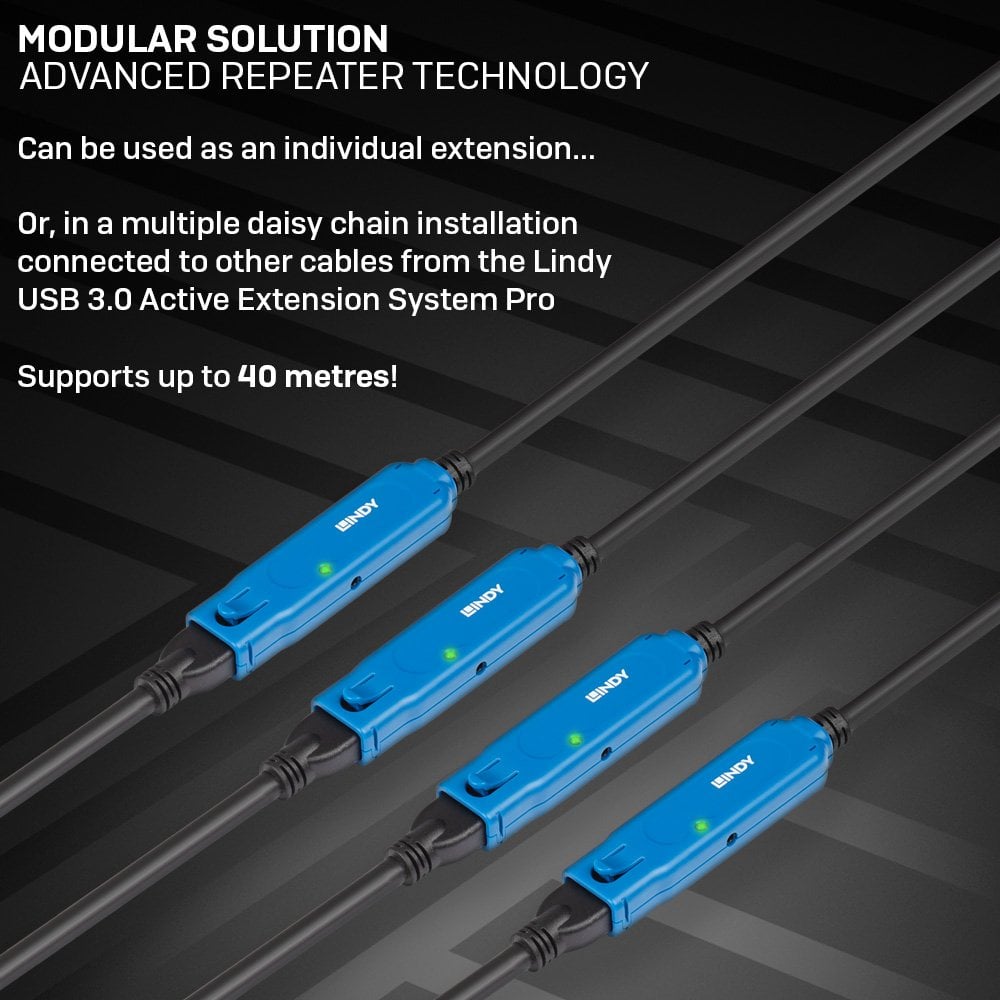

Modular System Support
Combine with other components for custom lengths up to 40m.
Locking Connectors
Secure fit for professional and industrial applications.
Rugged, shielded construction
Built for stability for professional and industrial applications.
Plug & Play
Easy installation with no drivers or configuration needed.
INSTALLATION EXAMPLE
APPLICATIONS
AV Installations
Extended USB peripherals for conference room AV setups.
Industrial Use
Long distance connection of control devices and data loggers.
Broadcast & Production
Connect high-speed USB devices (e.g. drivers, cameras) in studio environment.
Education
USB connection to whiteboards or student devices over longer distances.
Secure PC Setups
Place host systems in secure areas with user devices extended out.
Home Offices & Offices
Ensure fast, reliable connectivity from webcams and printers to conference room, even over longer distances.
HIGH SPEED USB, WHEVER YOU NEED IT.
The Lindy 8m USB 3.2 Gen 1 Active Extension Pro Cable lets you connect USB devices far beyond the standard 5m limit — with full 5Gbps performance and plug & play simplicity. Use it on its own or combine with other system components to build a custom USB extension network up to 40m.
| Connector A | USB Type A Male | Connector B | USB Type A Female |
| Power | 2.5/0.7mm DC Connector | Housing Material | Plastic |
| Connector Plating | Nickel | Pin Construction | Brass |
| Pin Plating | Gold Flash | USB A Male Dimensions | 15x49x8mm (0.59x1.93x0.31in) |
| USB A Female Dimensions | 20x80x13mm (0.79x3.15x0.51in) | Length | 8m (26.25ft) |
| Standard | USB 3.1 Gen 1 / 3.0 | Colour | Black |
| Type | Round | Jacket Diameter | 7mm +/- 0.15mm (0.28in +/- 0.01in) |
| Jacket Material | Half matt PVC low toxic | Conductor Material | Tinned Copper |
| Conductor Gauge | 24/24/20AWG | Shielding | AL Mylar and braid |
| Supported Bandwidth | 5 Gbps | Included Hubs | 1x USB 3.0 |
| Nominal Attenuation | 0.064MHz - <0.08dB ... 400MHz - <5.80dB | Minimum Bend Radius | 36mm (1.42in) |
| Operating Temperature | 0°C - 50°C (32°F - 122°F) | Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Transmission Medium | Twisted Pair | Transmission Technology | USB 3.1 Gen 1 / 3.0 |
| Packaging Type | Carton Box | Packaging Dimensions | 240x200x70mm (9.45x7.87x2.76in) |
| Net Weight | 0.75kg (1.65lb) | Gross Weight | 0.9kg (1.98lb) |
| Warranty (Years) | 2 | Certified | CE, UKCA, FCC, RoHS, REACH, Prop 65 |
| Package Contents | USB 3.0 Active Extension Pro 10m, Power Adapter Cable Nr. 70265, Lindy Manual | Purchasing No. | 43158 |
| EAN | 4002888431583 | Other Lengths | 43157 - 10m, 43159 - 10m w/ hub, 43229 - 15m, 43361 - 20m, 43362 - 30m |
| Description | Downloads |
|---|---|
| Product Safety Information | Downloads |
