Complete HDMI® Control, Seamlessly Delivered.
Switch, scale and display with complete flexibility.

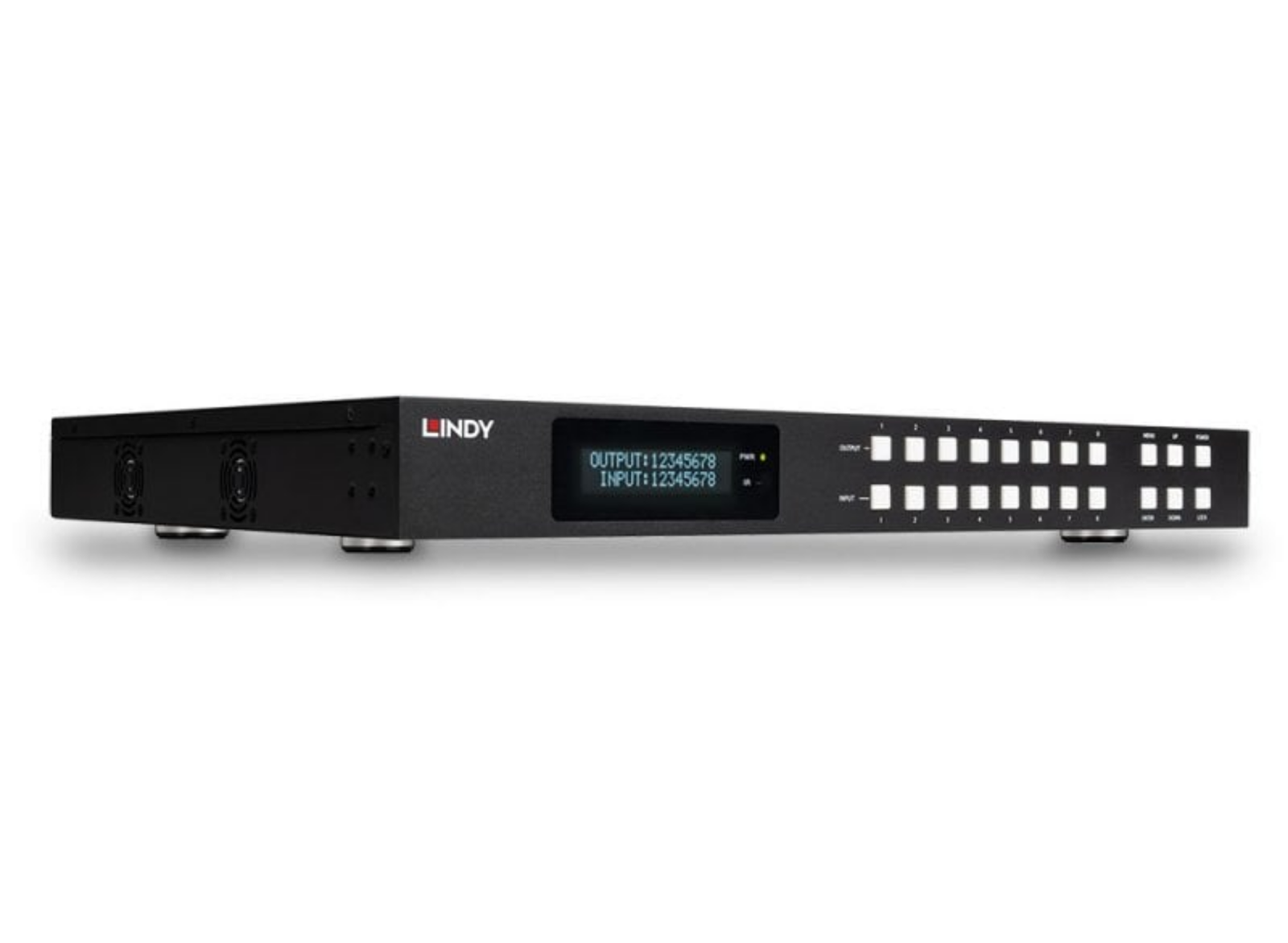

The Lindy 8x8 HDMI® 4K60 Seamless Multi-View Matrix is a powerful AV distribution solution for routing multiple HDMI® sources to multiple displays, while enabling advanced video wall and multi-view configurations for professional installations. Supporting seamless switching in under 0.1ms, 16 multi-view layouts, flexible video wall scaling, and integrated HDMI® pass-through, optical and analogue audio outputs, it ensures smooth, uninterrupted content delivery across demanding AV environments.
AT A GLANCE
8x8 HDMI® Matrix Switching
Distribute eight HDMI® sources to eight displays with full routing flexibility.
Seamless Switching <0.1ms
Switch between sources instantly with no visible interruption.
16 Multi-View Layouts
Display multiple sources on a single screen with predefined and custom layouts.
Video Wall Scaling
Create flexible video walls across up to eight displays.
4K60 HDMI® 2.0b Support
Supports Ultra HD resolutions up to 3840x2160@60Hz with 18Gbps bandwidth.
Flexible Audio Integration
HDMI® audio pass-through up to 7.1CH, plus TOSLink (5.1CH) and analogue stereo outputs.
SYSTEM OVERVIEW
Connect up to 8 HDMI® sources, 8 HDMI® displays and external audio systems, with IP, RS-232 and IR control for flexible professional AV integration.

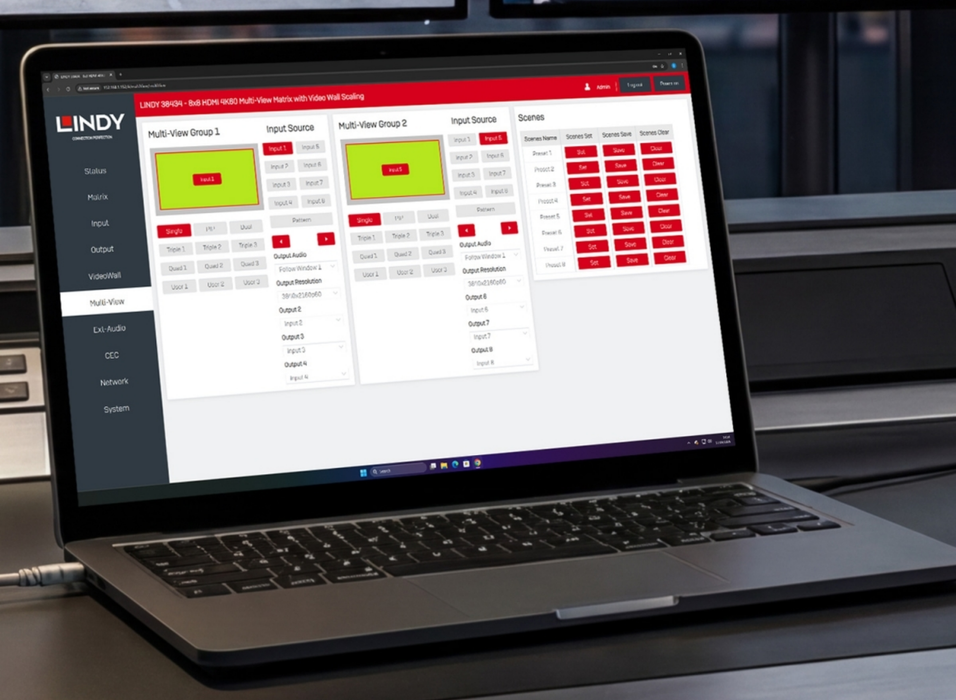

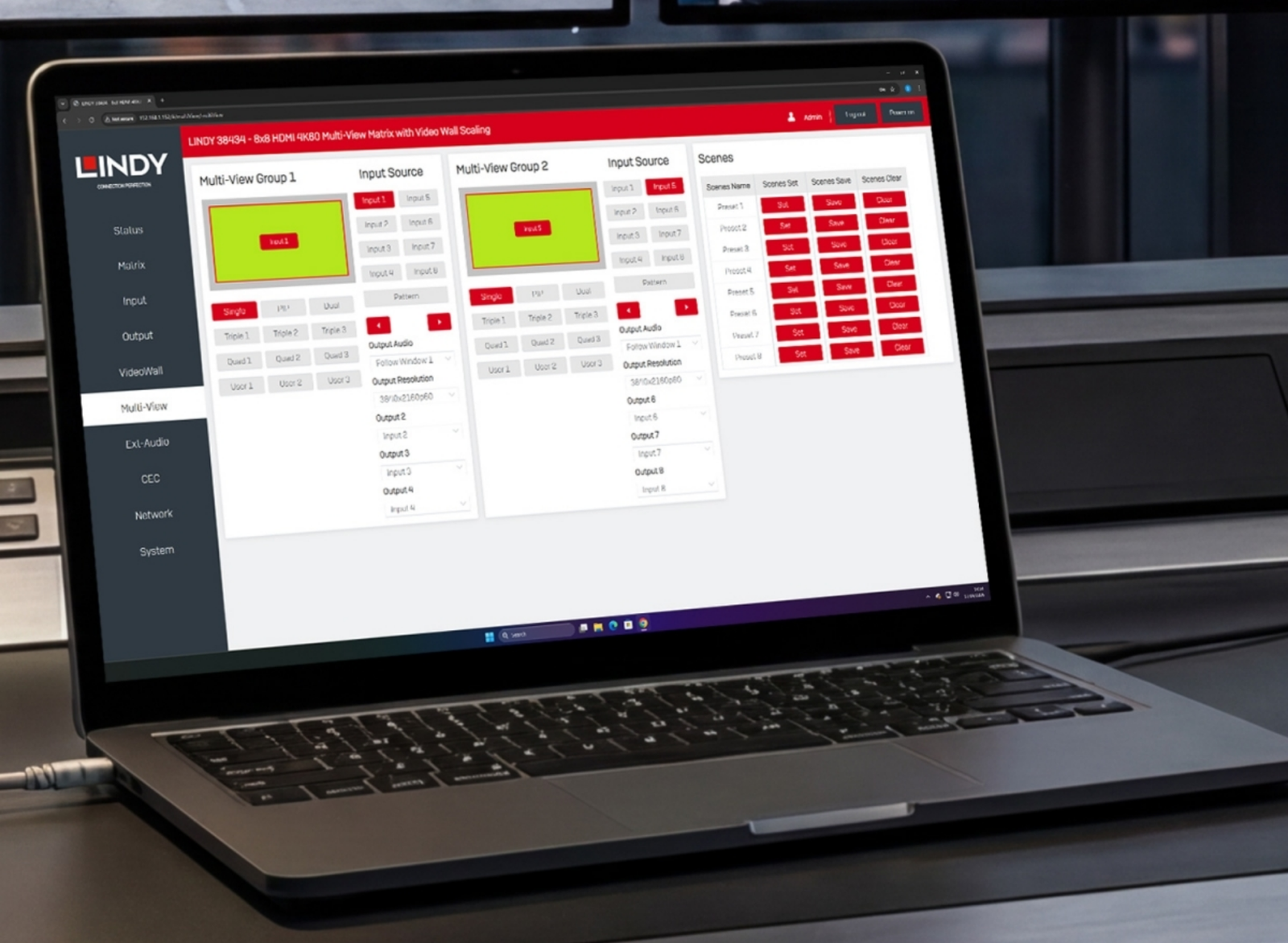

INTUITIVE WEB GUI CONTROL
Control and configure the matrix via a browser-based Web GUI for fast, flexible system management over the network.

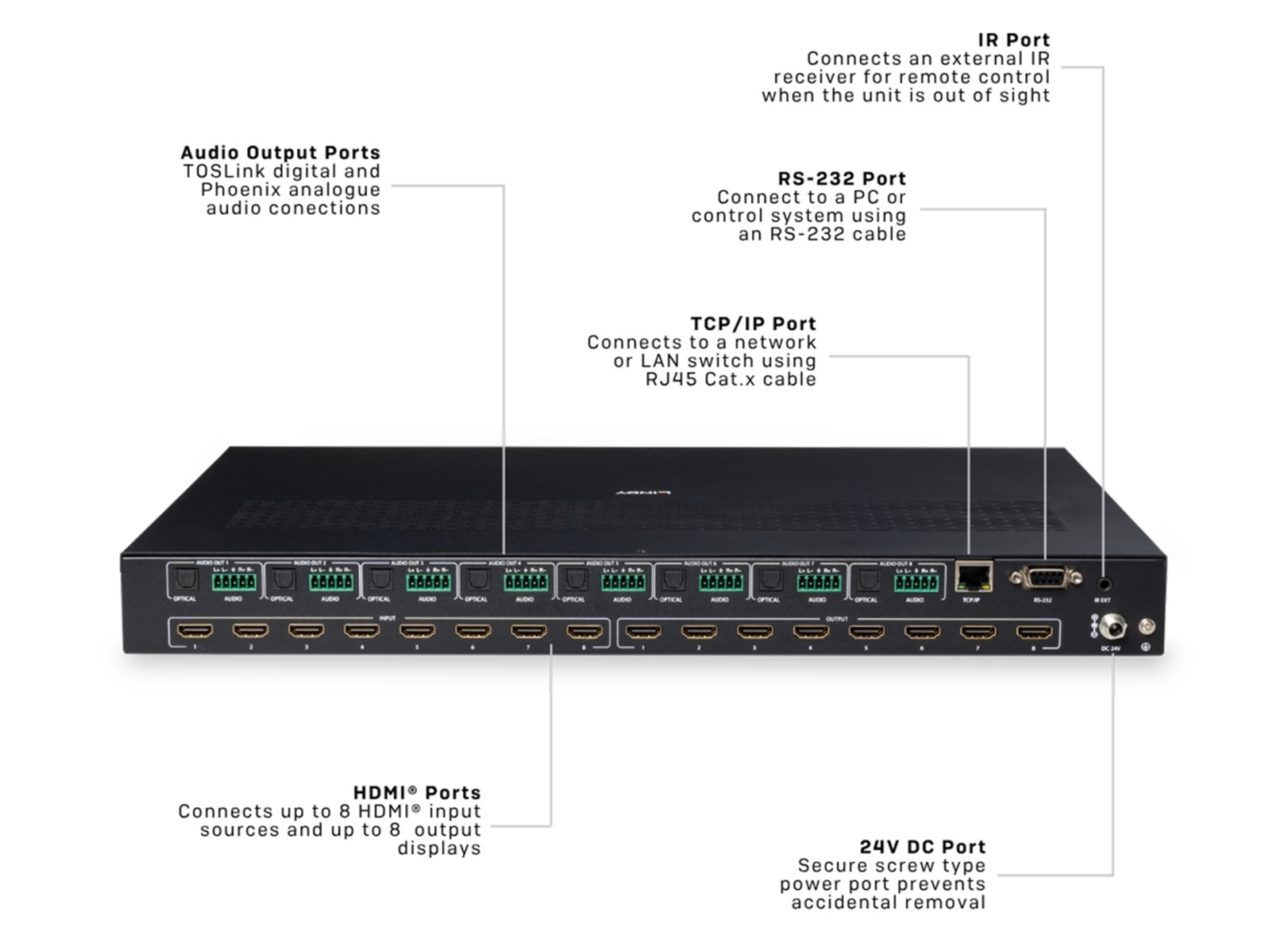

CONNECTION OVERVIEW
MULTI-VIEW & VIDEO WALL LAYOUTS
16 predefined layouts plus a user-defined configuration for flexible multi-view and video wall display.
TYPICAL SECTORS
Broadcasting & Media Production
Education & Training
Retail & Commerce
Security & Control Rooms
Digital Signage
Hospitality
APPLICATIONS

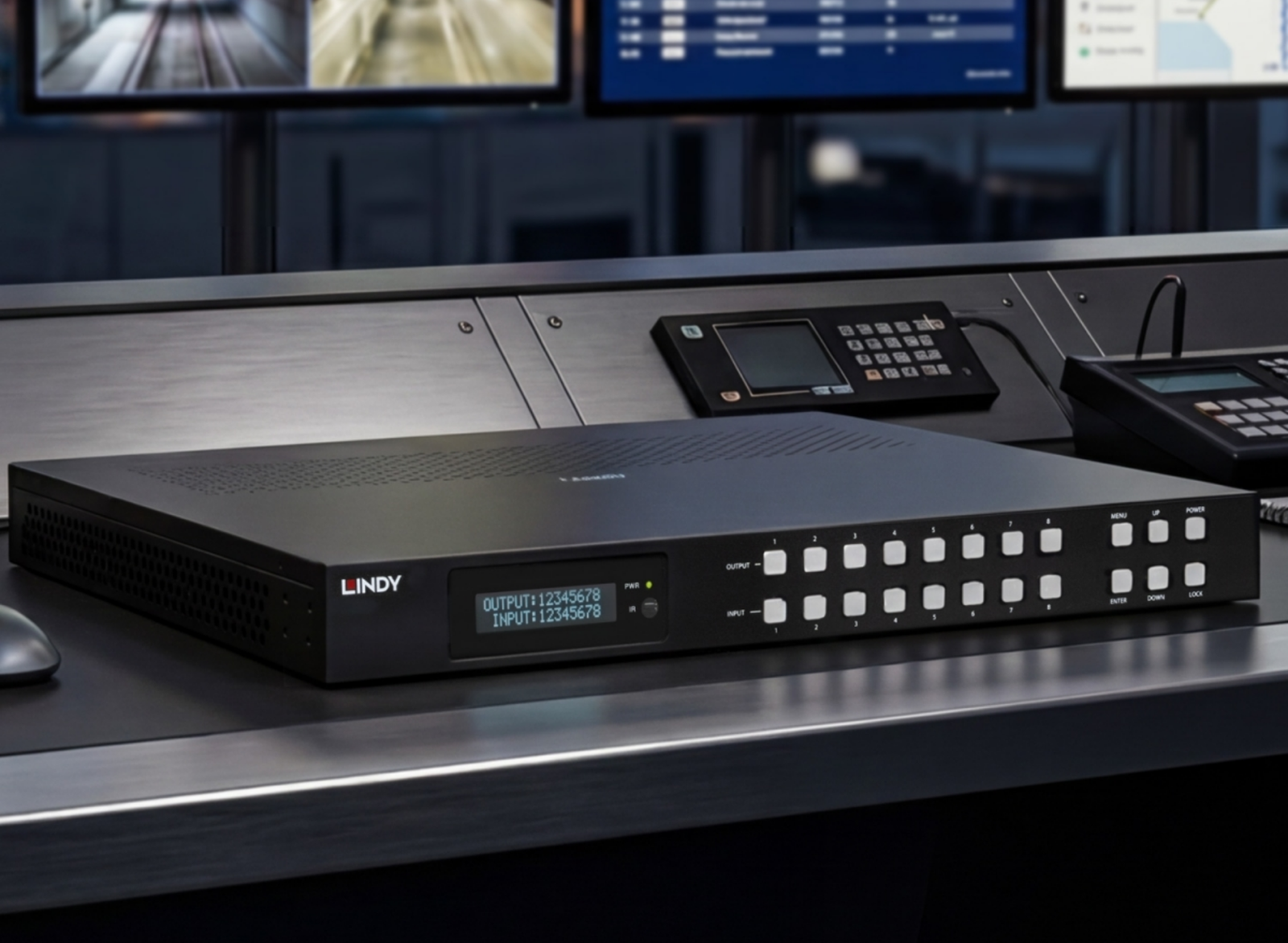

Control Room Monitoring
Route and view multiple HDMI® sources across operator displays, overview screens and multi-view layouts.
Video Wall Installations
Create large display surfaces for signage, monitoring, information sharing and public display applications.
Source Preview & Multi-View
Display multiple sources on one screen for preview, comparison and operational monitoring.
Retail & Signage Systems
Distribute promotional content, live feeds and media player outputs to multiple display zones.
Presentation Spaces
Switch between laptops, room PCs, media players and other HDMI® sources in meeting and training environments.
Integrated AV Control

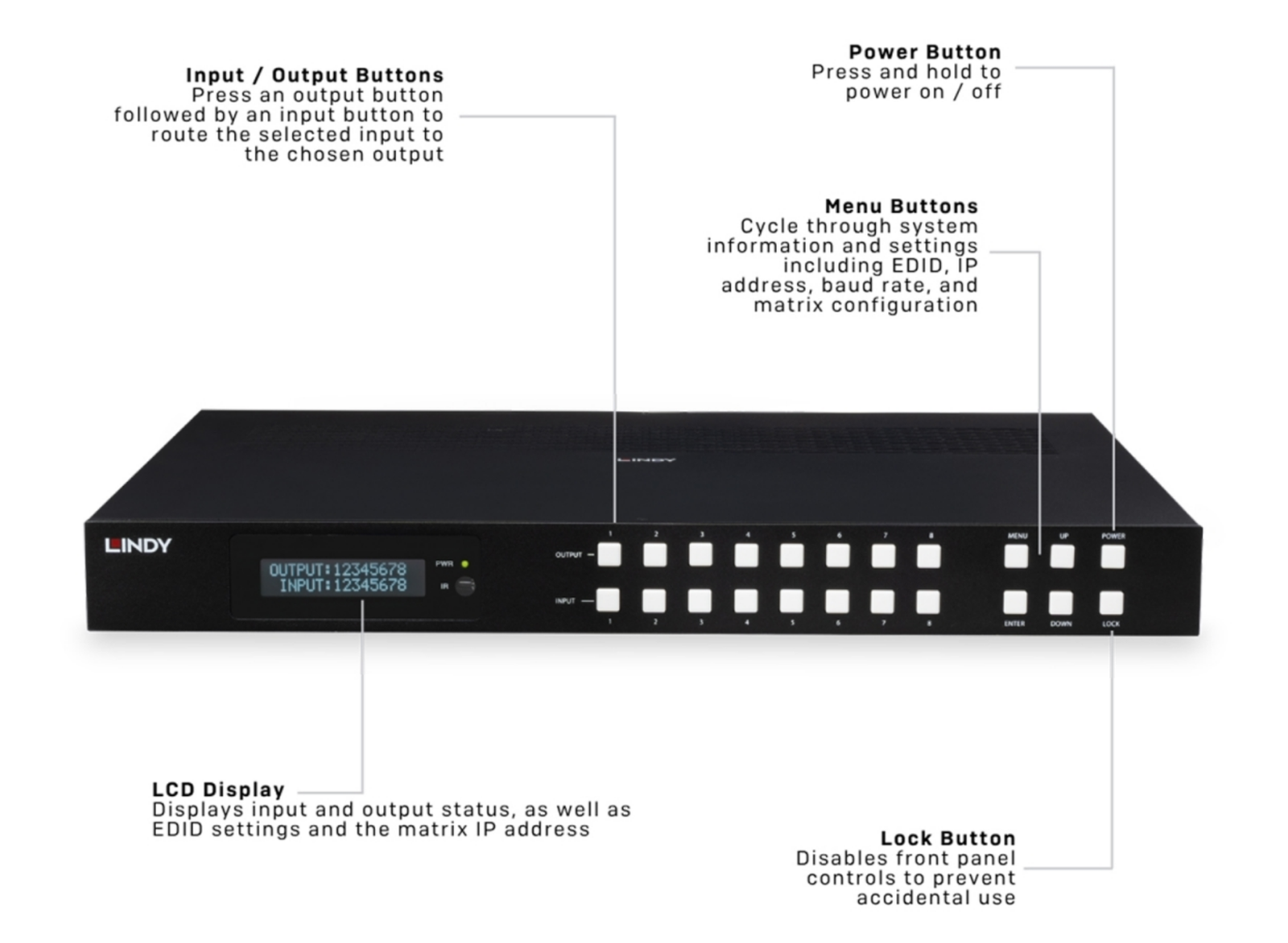

Manage the matrix using Web GUI, RS-232, IR or front panel control for flexible system integration.
ADVANCED HDMI® CONTROL FOR PROFESSIONAL AV ENVIRONMENTS.
With seamless switching, multi-view layouts, video wall scaling and flexible audio integration, the Lindy 8x8 HDMI® 4K60 Seamless Multi-View Matrix provides a complete solution for managing complex HDMI® installations in professional AV environments.
| AV Interface | HDMI® | Interface Standard | HDMI® 2.0b |
| Supported Bandwidth | 18Gbps | Maximum Resolution | 3840x2160@60Hz RGB 8bit |
| HDCP Support | 2.2 | Supported Audio | HDMI® Audio Pass-through up to 7.1CH, Optical up to 5.1CH, Stereo Analogue |
| IR Support | 38kHz | CEC Support | Yes |
| Serial Interface | RS-232 | LED / LCD Display | LCD Display |
| Control | Push Buttons, IR, RS-232, IP | Special Features | Multi-View, Video Wall, Seamless Switching |
| Input | 8 x HDMI® (Female) | Output | 8 x HDMI® (Female), 8 x Phoenix Connector (Female), 8 x TosLink (optical) (Female) |
| Control Ports | RS-232 (Female), RJ45 (Female) | Power | 5.5/2.1mm |
| Dimensions | 440x300x44.5mm (17.32x11.81x1.75in) | Housing Material | Metal |
| Net Weight | 3.95kg (8.71lb) | Operating Temperature | 0°C - 40°C (32°F - 104°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) | Humidity | 20 - 90 % (non-condensing) |
| Power Requirements | 24VDC 3.75A | Colour | Black |
| Packaging Type | Carton box | Packaging Dimensions | 660x316x119mm (25.98x12.44x4.69in) |
| Gross Weight | 5.94kg (13.1lb) | Warranty | 2 Years |

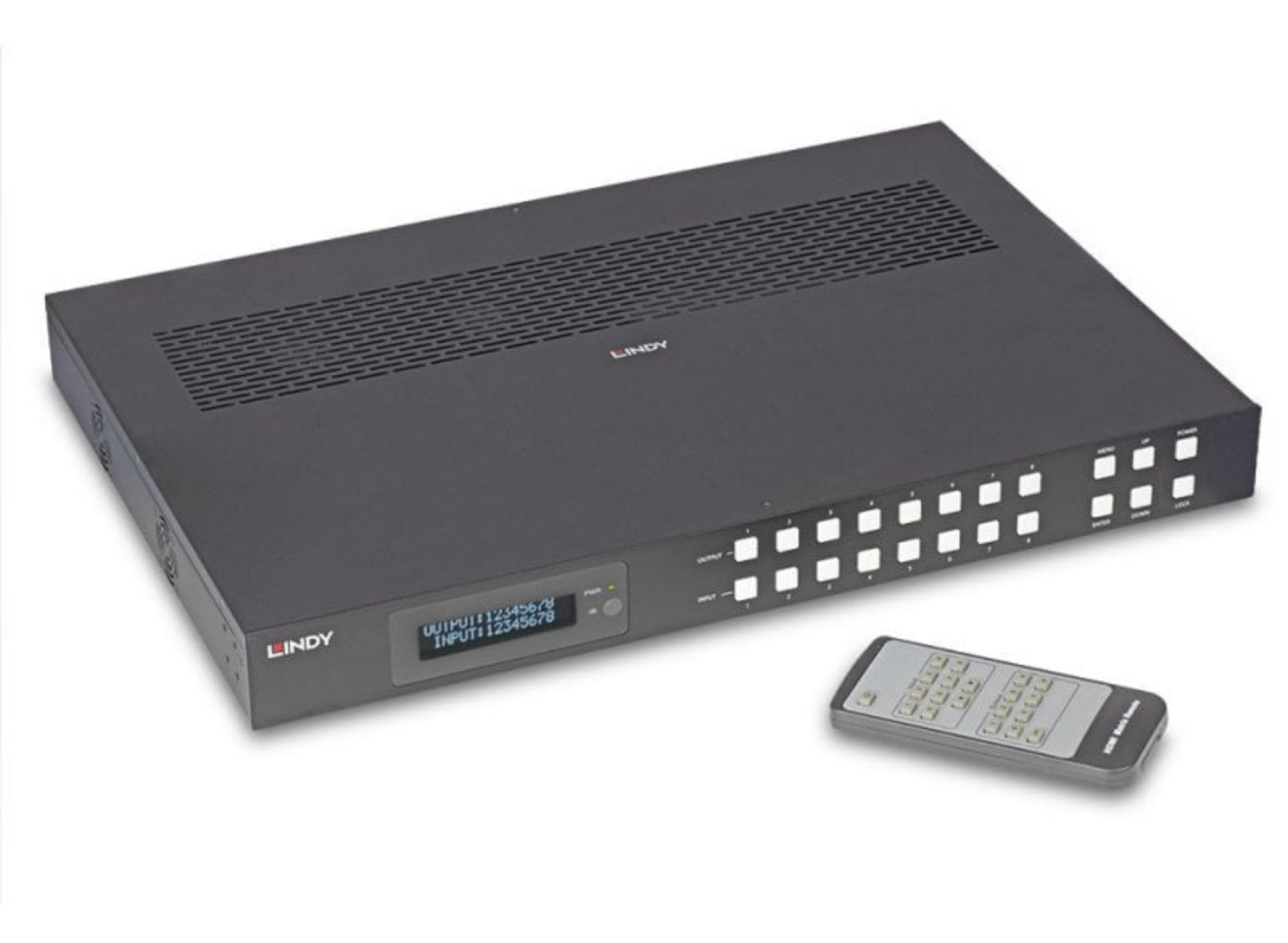

| Product Compliance | CE, UKCA, FCC, RoHS & REACH, CP65 | Package Contents | HDMI® Matrix, IR Remote Control, IR Receiver Cable, Mounting Brackets, Multi-Country PSU (UK, EU, US & AUS), Lindy Manual |
| No. | 38434 | EAN | 4002888384346 |
| Description | Downloads |
|---|---|
| Manual | Download |
