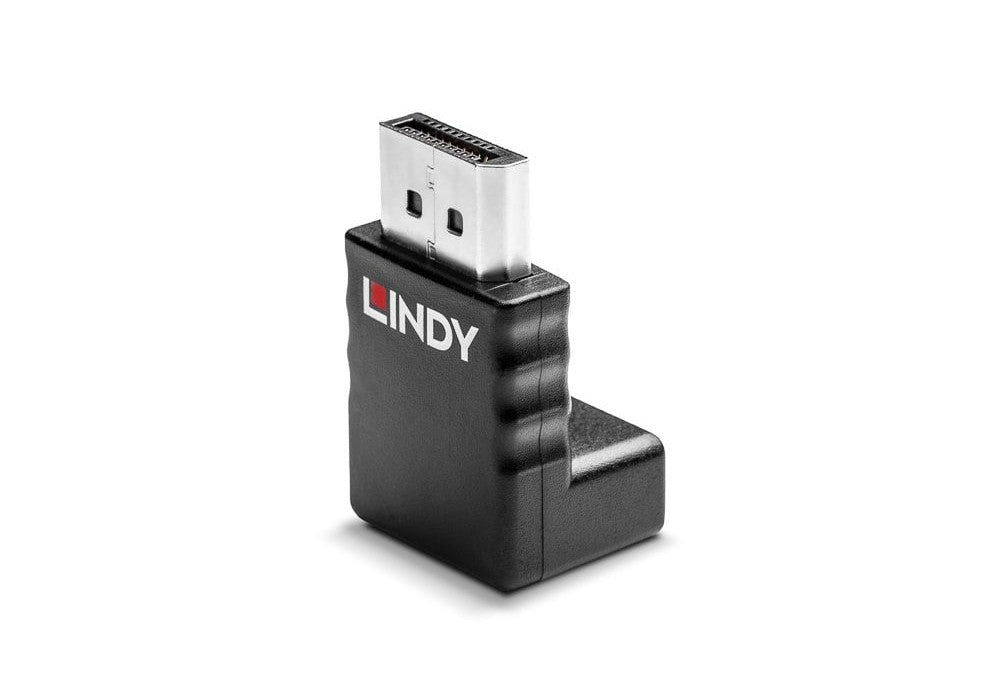

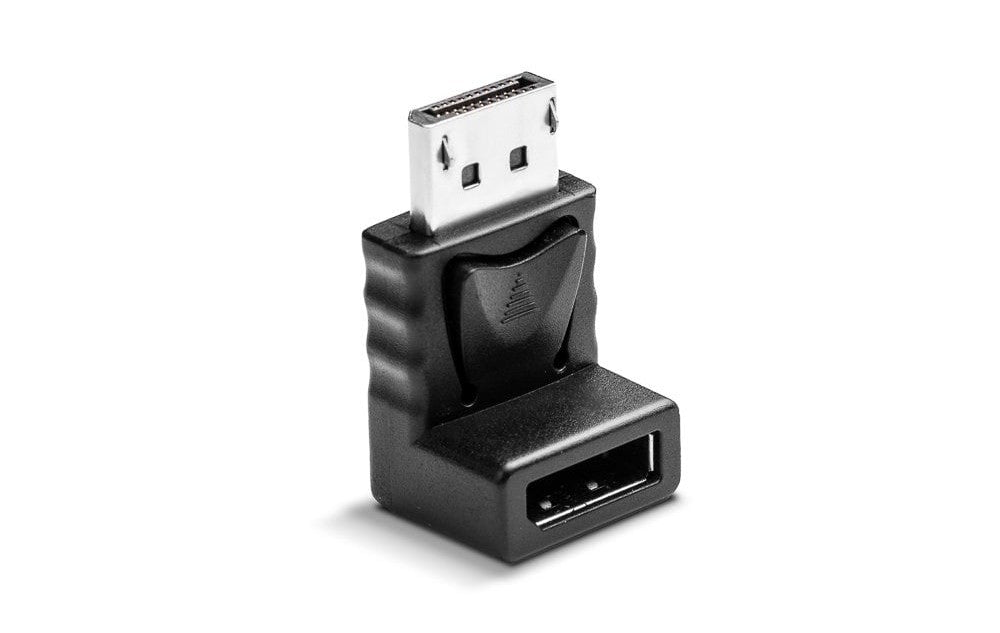

Lindy DisplayPort 1.2 Downward Angled Adapter | 41366
SKU: 41366
£4.94 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Right Angle Down DisplayPort 1.2 Coupler
The Lindy DisplayPort 1.2 downward angled adapter is a compact solution for connecting DisplayPort cables to DP displays or devices with recessed ports, or within limited space where cable connector sizing may affect installation. This adapter allows for a 90° connection in a downward direction if ports are situated on the back of the display or PC.
With DisplayPort 1.2 support, this adapter can be used with DisplayPort 1.2 cables, devices and monitors while also being backwards compatible with previous DisplayPort specifications. 4K UHD 3840x2160@60Hz resolutions are supported by the adapter, ensuring this is an ideal tool within wall mounted digital signage installations, gaming setups or educational spaces, with no lasting impact on a connected cables strain relief or lifespan.
Please note: it is common for desktop PCs to have DP ports function in the opposite configuration. If this is applicable, please check whether this or the opposing adapter (41365) is required.
Connects a DisplayPort cable to a DisplayPort display or device with recessed ports or within limited spaces
Install at a 90° angle for setup where connection is required in a downward configuration
Supports DisplayPort 1.2 resolutions up to 4K UHD 3840x2160@60Hz 4:4:4 8bit
Compact design, perfect for use in discreet or wall mounted display installations
10 year warranty
-
AV Interface DisplayPort Interface Standard DisplayPort 1.2 Supported Bandwidth 21.6Gbps Maximum Resolution 3840x2160@60Hz 4:4:4 8bit HDCP Support 1.4 Supported Audio Pass-through Input DisplayPort (Male) Output DisplayPort (Female) Dimensions (approx.) WxDxH 28x23.4x19.9mm (1.1x0.92x0.78in) Housing Material PVC Net Weight 0.01kg (0.02lb) Operating Temperature 5°C - 60°C (41°F - 140°F) Storage Temperature -10°C - 75°C (14°F - 167°F) Humidity 20 -75% RH (non-condensing) Colour Black Packaging Type Polybag Packaging Dimensions 133x144mm (5.24x5.67in) Gross Weight 0.021kg (0.05lb) Warranty (Years) 10 Certificated RoHS, REACH & California Proposition 65 Package Contents DisplayPort Adapter No. 41366 EAN '400288841366 -
Description Downloads Product Safety Information Downloads
