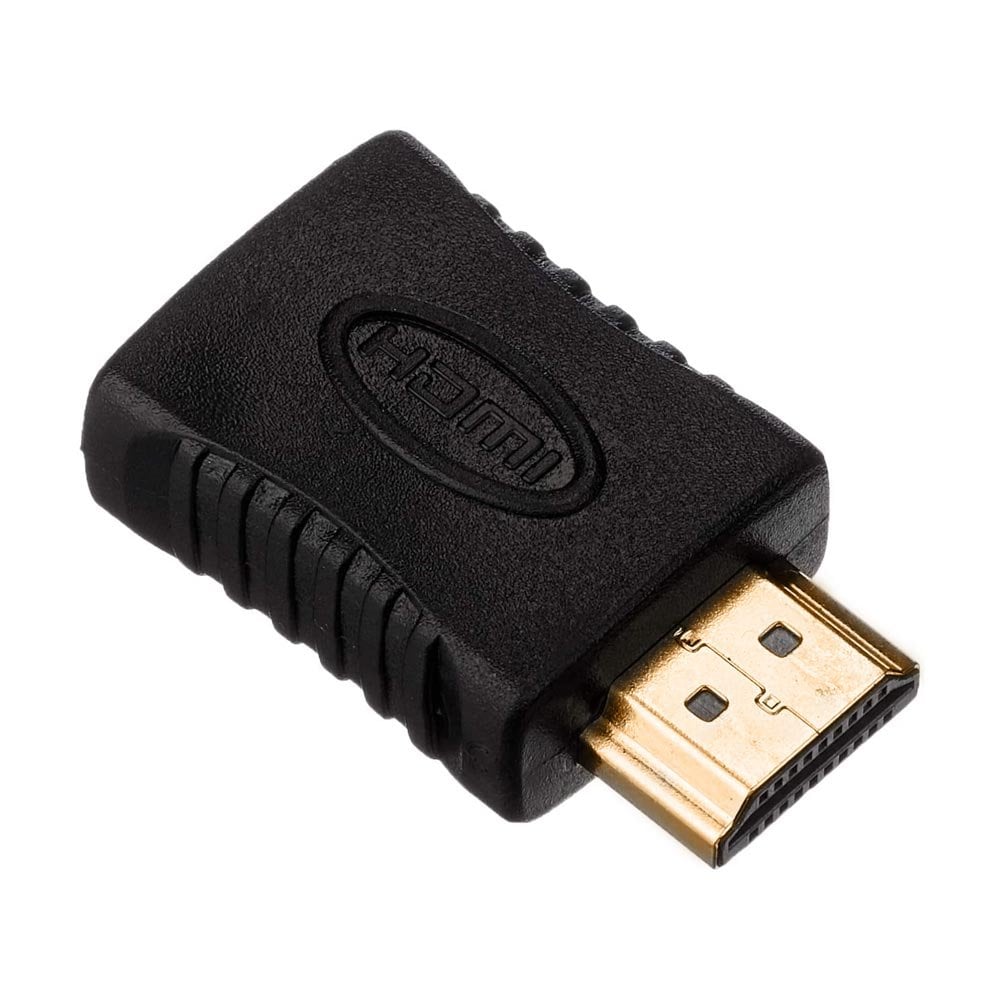

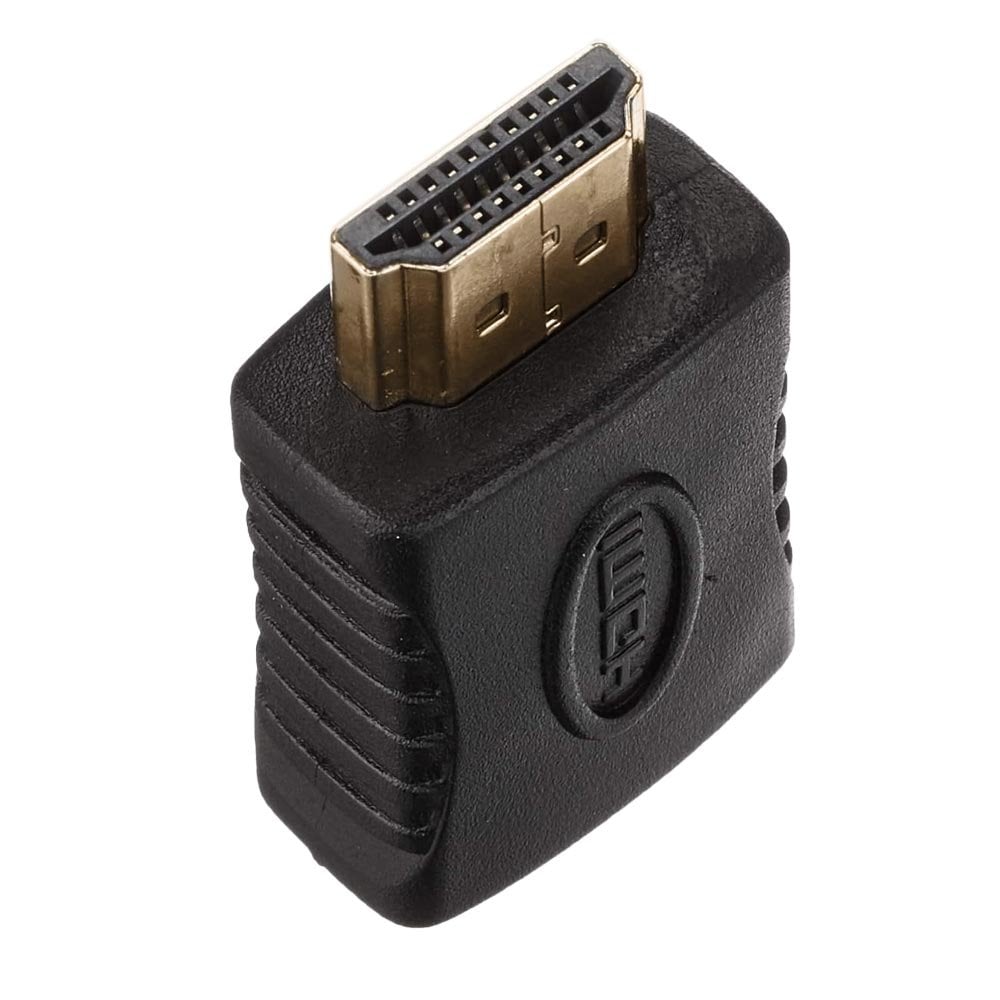

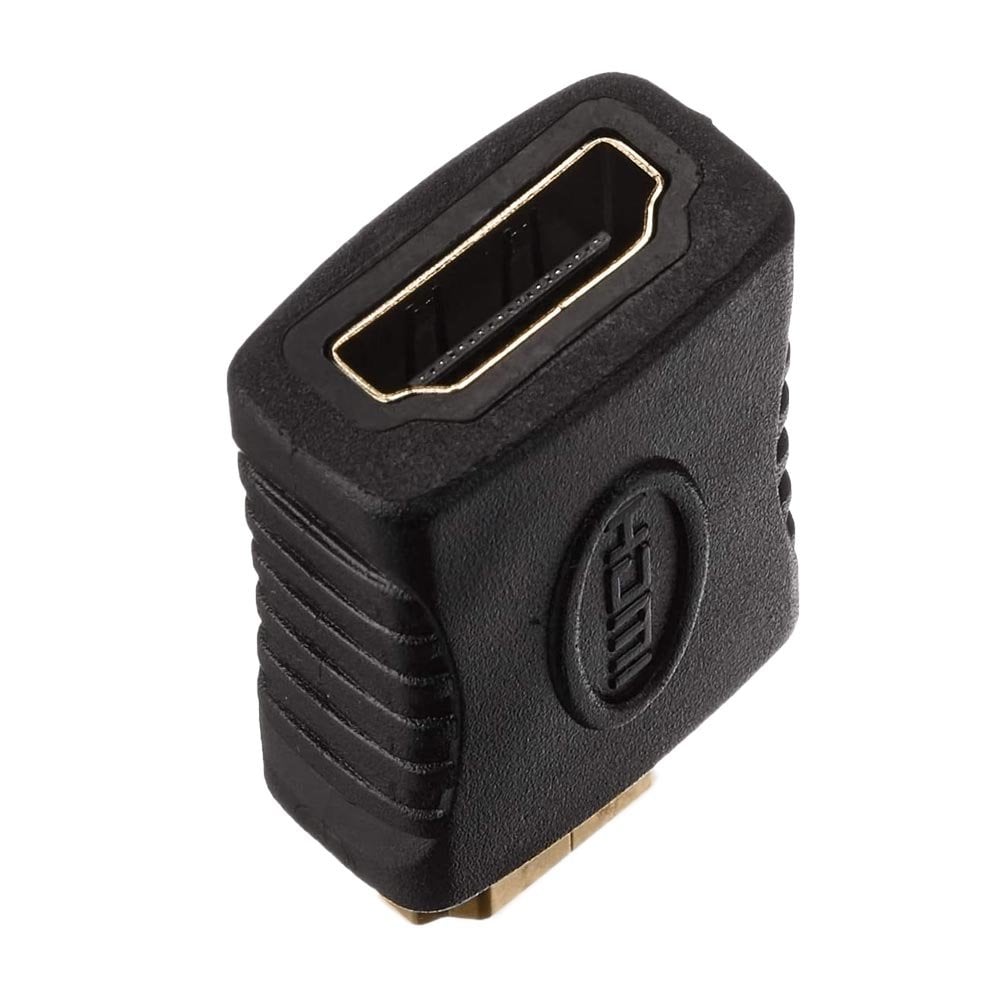

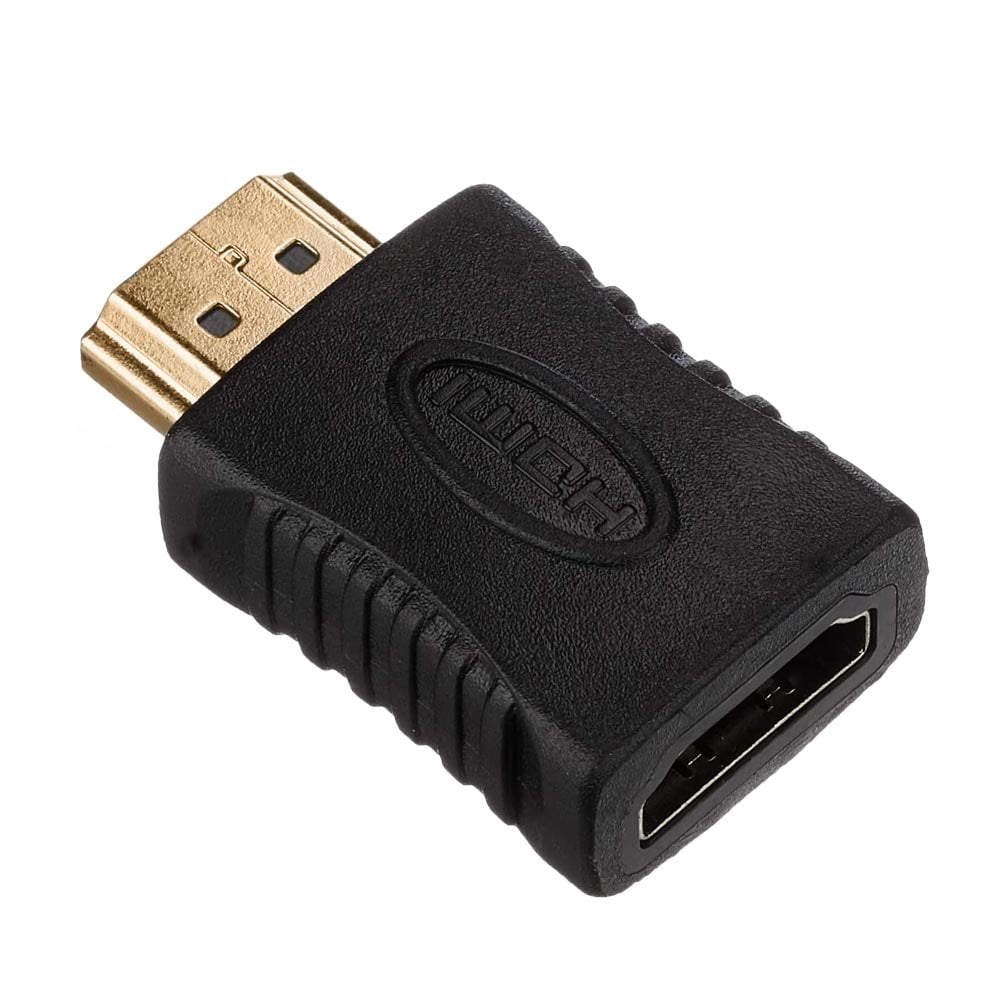

Blocks HDMI® CEC signals when there is an incompatibility
Use this adapter when you have problems with incompatibilities between IR remote controls; such problems tend to occur now and then in installations with HDMI® splitters and -switches.
The adapter does not pass on the CEC signal further. In principle, you only need to use this adapter upstream of the incompatible devices. However, several adapters installed upstream of a number of devices can be used.
| AV Interface | HDMI® | Interface Standard | HDMI® |
| Supported Bandwidth | 18Gbps | Max Resolution | 3840x2160@60Hz 4:4:4 8Bit |
| Audio EDID | LPCM 2-ch, 16/20/24-bit | HDCP Support | 2.2 |
| Special Features | CEC Pin Disconnected | Input | HDMI® Type A Female |
| Output | HDMI® Type A Male | Power | Via HDMI® Source Interface |
| Dimensions (WxDxH) | 20 x 40 x 10mm | Housing Material | PVC |
| Net Weight | 0.008kg (0.02lb) | Operating Temp | 0°C - 60°C (32°F - 140°F) |
| Storage Temp | -10°C - 70°C (14°F - 158°F) | Humidity | 0 - 80% RH (non-condensing) |
| Power Requirements | - | Colour | Black |
| Packaging Type | Polybag | Packaging Dimensions | 136x138mm (5.35x5.43in) |
| Gross Weight | 0.013kg (0.03lb) | Warranty | 2 Years |
| Compliance | CE, FCC, RoHS & REACH, UKCA | Package Contents | HDMI® NON-CEC Adapter, Manual |
| Product No. | 41232 | EAN | 4002888412322 |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
