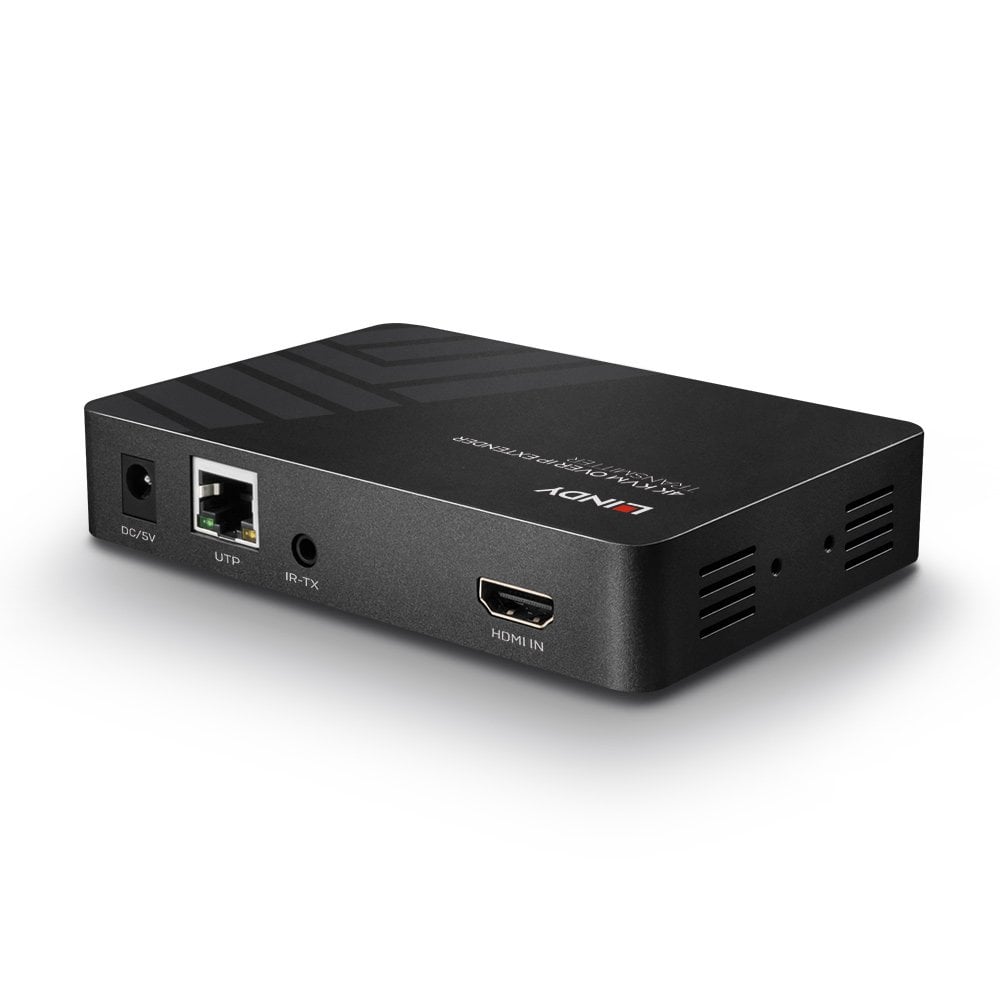

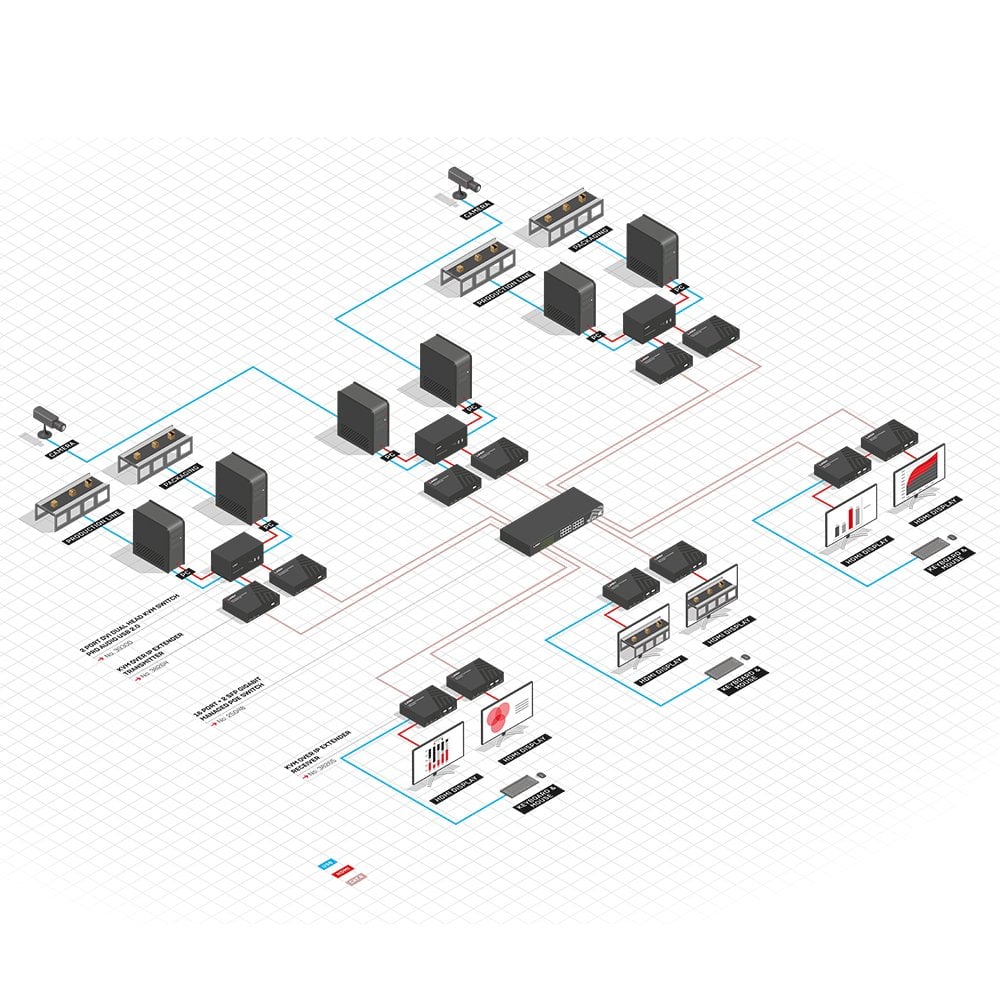

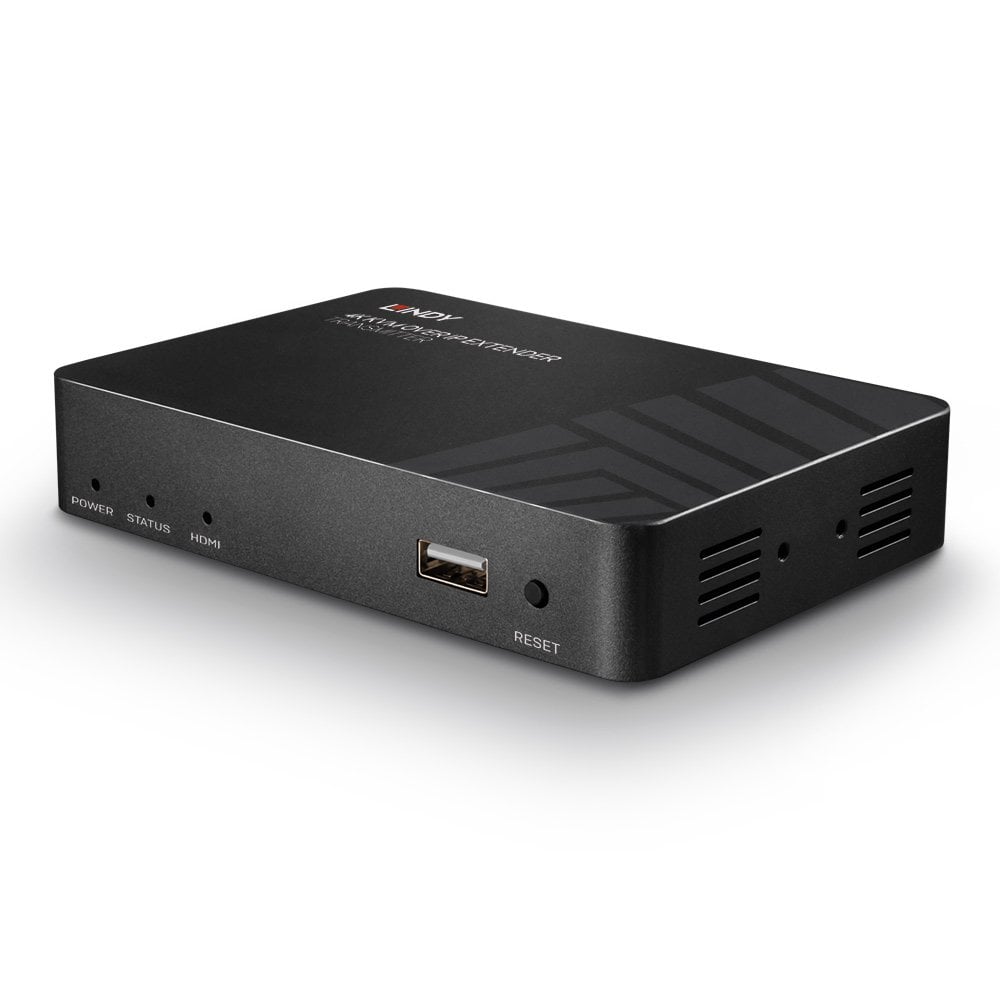

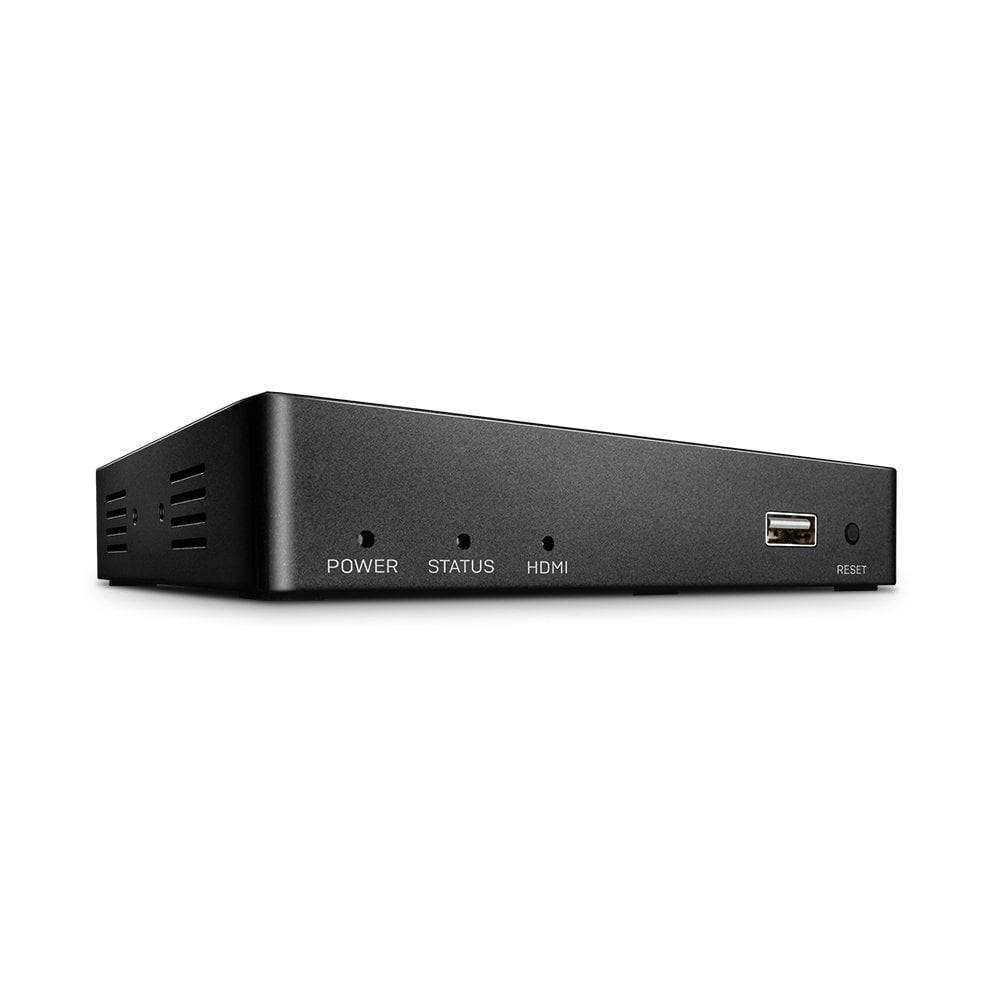

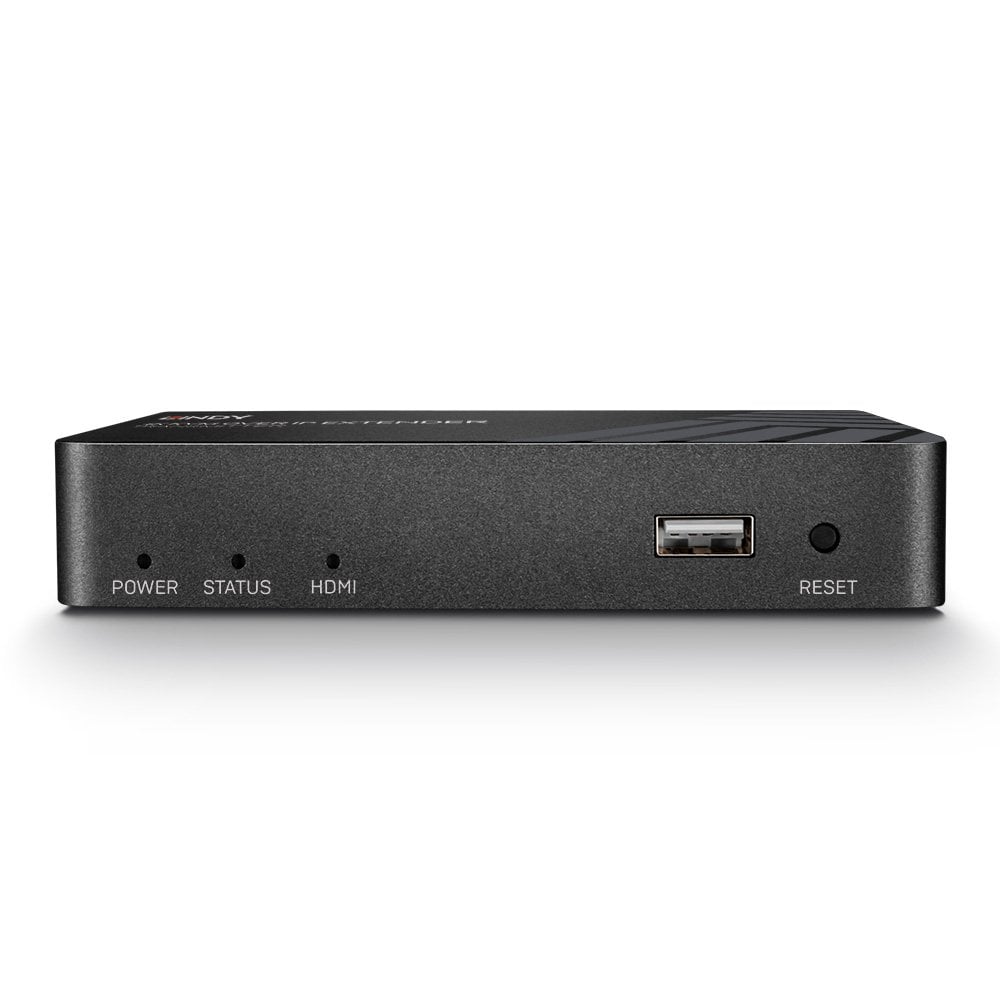

The Lindy KVM Over IP Extender system allows users to control a source device such as a PC or PVR through a standard IP network. This transmitter unit must be connected to one or more receiver units (No. 38265 – not included) to create a standard point to point control system, with a maximum distance of 150m (492,12ft). It's also possible to set up a distributed control system (One to Many configuration) which allows a single device connected to a Transmitter to be controlled by several consoles each connected to a receiver unit (No. 38265 - not included) via a dedicated Ethernet switch or VPN.
This extender system includes a convenient IR (25 to 56kHz) repeating system to allow for the dedicated use of a remote control from the console side. This is a typical solution for security system management (PVR management or control rooms), or remote server administration (KVM switch remote control) as well as AV signals over IP extension for distributed monitoring of industrial facilities.
| Category | Feature | Details |
|---|---|---|
| AV Interface | HDMI® | |
| Console Interface | USB | |
| Interfaces Standard | HDMI® 1.4, USB (HID) | |
| Supported Bandwidth | 10.2Gbps | |
| Maximum Distance | 150m (492.12ft) (Point to Point) | |
| Maximum Resolution | 4K@30Hz (3840x2160@30Hz) | |
| HDCP Support | HDCP 1.4 | |
| Supported Audio | Audio supported over HDMI® signal | |
| Transmission Protocol | IP | |
| Transmission Medium | Cat.5e / 6 | |
| Special Features | IR Signal (25 to 56kHz) forwarding | |

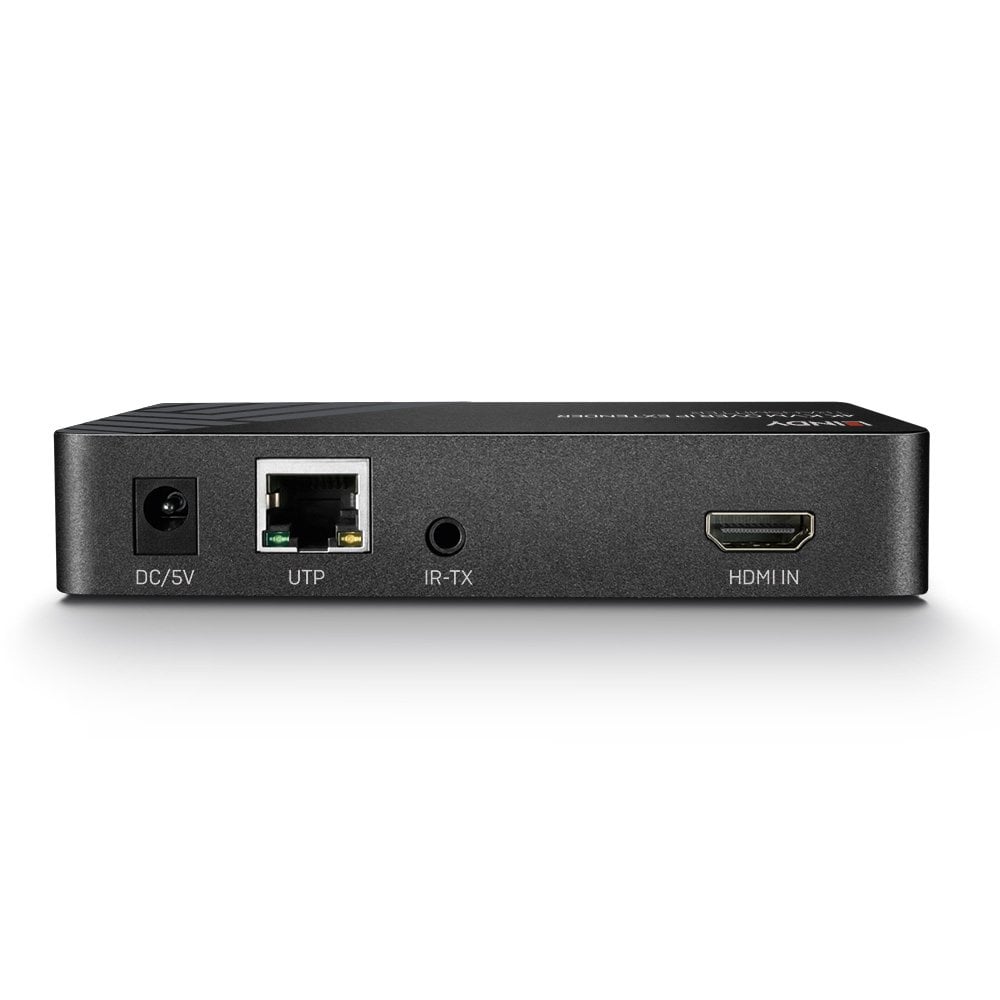

| Connectors | Transmitter KVM Interfaces | HDMI® (Female), USB Type A (Female) |
| Transmitter Extension Port | RJ45 | |
| Other Interfaces | IR 3.5mm (Female) | |
| Power | 5.5/2.1 mm DC socket | |
| Physical Properties | Dimensions (approx.) WxDxH | 124x85x24mm (4.88x3.35x0.94in) |
| Housing Material | Plastic | |
| Net Weight | 0.2kg (0.45lb) | |
| Operating Temperature | 0°C - 55°C (32°F - 131°F) | |
| Storage Temperature | -10°C - 75°C (14°F - 167°F) | |
| Humidity | 10 - 80% RH (non-condensing) | |
| Power Requirements | 5VDC 1A | |
| Colour | Black | |
| Miscellaneous | Packaging Type | Carton box |
| Packaging Dimensions | 220x170x60mm (8.66x6.69x2.36in) | |
| Gross Weight | 0.8kg (1.76lb) | |
| Warranty | 2 Years | |
| Certification | CE, FCC, RoHS, REACH | |
| Package Content | Contents | 1x KVM Over IP Transmitter, 1x IR Transmitter, 1x USB Type A/A Cable, 1 x Multi-Country Power Supply (EU, UK, US, AUS), LINDY Manual |
| Purchasing Information | No. | 38264 |
| EAN | 4002888382649 |
| Description | Downloads |
|---|---|
| Manual | Downloads |
