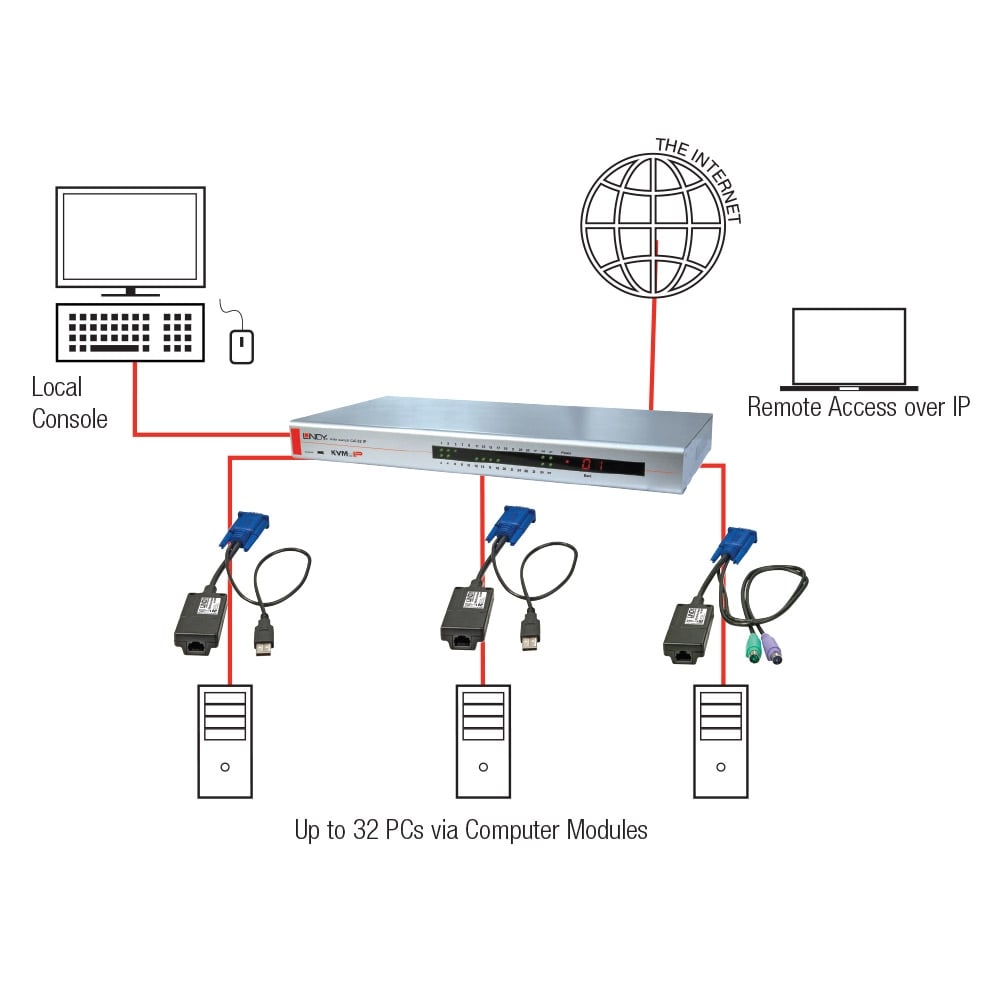

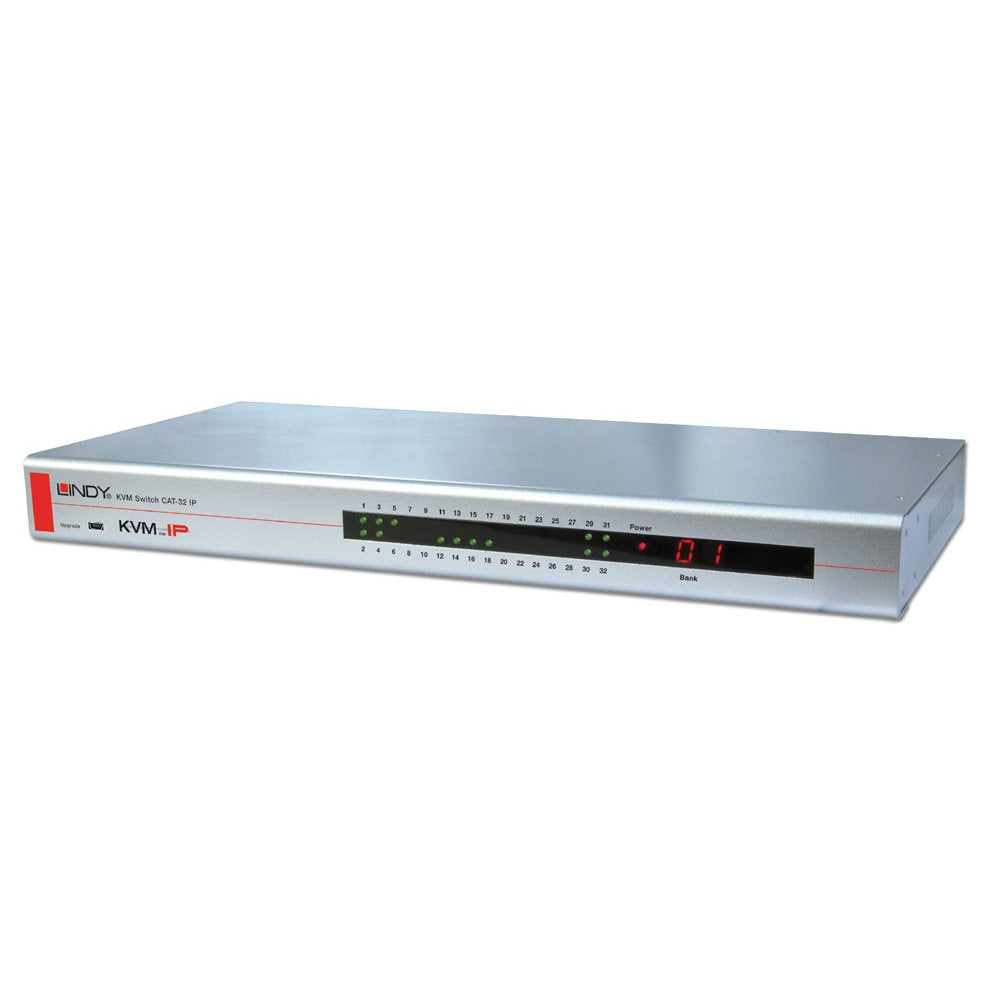

The KVM Switch CAT-32 allows administrators to access and control up to 32 computers using a single KVM console connected to one compact, high density control centre.
The switch occupies only a single 1U space in a 19” rack and makes use of CAT5e/6 structured cabling to provide the long distance connections to the computers using USB+VGA (No.39634) or PS/2+VGA (No.39633) connection dongles.
It provides BIOS-level access to up to 32 multi platform computers with security features with password access, auto log out, SSL security. All the functions are accessible through an On-screen display for ease of use.
| Category | Details |
|---|---|
| Specifications | |
| AV Interface | VGA |
| Console Interfaces | USB, PS/2 |
| Interface Standard | VGA, USB 2.0, PS/2 |
| Maximum Resolution | VGA: 1920x1200@30Hz |
| HDCP Support | - |
| Supported Audio | - |
| Separate Audio Ports | - |
| Serial Interface | - |
| Console Number | 1 |
| Max Number PC/Server | 32 |
| Cascadable | Yes |
| Switching Method | Port Buttons, Hotkey Switching (Configurable Hotkeys) |
| 19" Rack Mountable | Yes (1U - Rack Mount Brackets included) |
| Special Features | - |
| Connectors | |

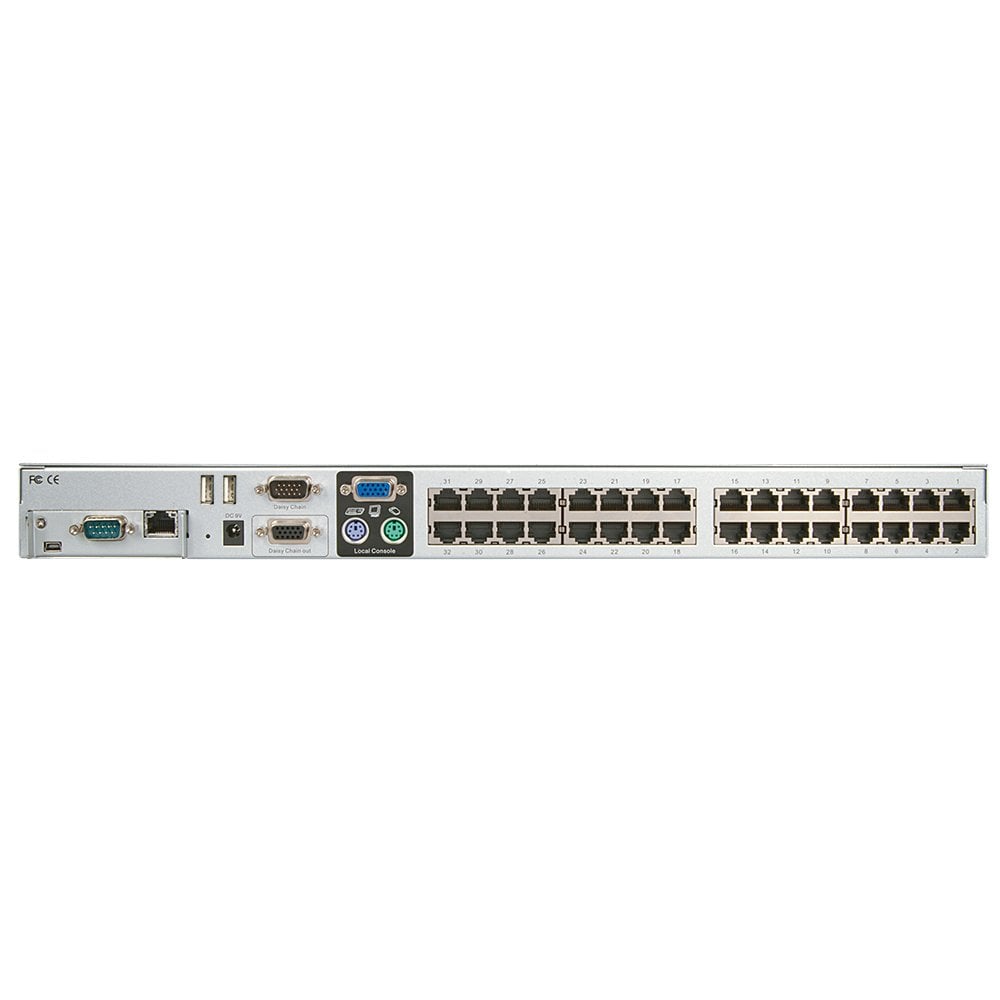

| Console Interfaces | VGA (Female), 2 x USB Type A HID (Female), 2 x PS2 (Female) |
| PC/Server Interfaces | 32 x RJ45 (Female) |
| Other Interfaces | - |
| Power | 5.5/2.5mm DC socket |
| Physical Properties | |
| Dimensions WxDxH | 440x210x44mm (17.32x8.27x1.73in) |
| Housing Material | Metal |
| Net Weight | 1.5kg (3.31lb) |
| Operating Temperature | 0°C - 50°C (32°F - 122°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Humidity | 0~90% RH (non-condensing) |
| Power Requirements | 9VDC 2A |
| Colour | Silver |
| Miscellaneous | |
| Packaging Type | Carton box |
| Packaging Dimensions | 547x263x106mm (21.54x10.35x4.17in) |
| Gross Weight | 3.5kg (7.72lb) |
| Warranty (Years) | 2 |
| Certified | CE, UKCA, FCC, RoHS & REACH |
| Package Content | |
| Included Items | KVM Switch 2 x 19" Rack Mount Bracket With Screws Multi-Country Power Supply (UK, Euro, US, AUS) FW update cable (SubD 9 pin Female to HD15 Female ~1m) Daisy Chain Cable (HD15 M/F ~0.2m) LINDY Utilities and Manuals CD LINDY Manual |
| Purchasing Information | |
| No. | 39631 |
| EAN | 4002888396318 |
| Description | Downloads |
|---|---|
| Manual | Downloads |
