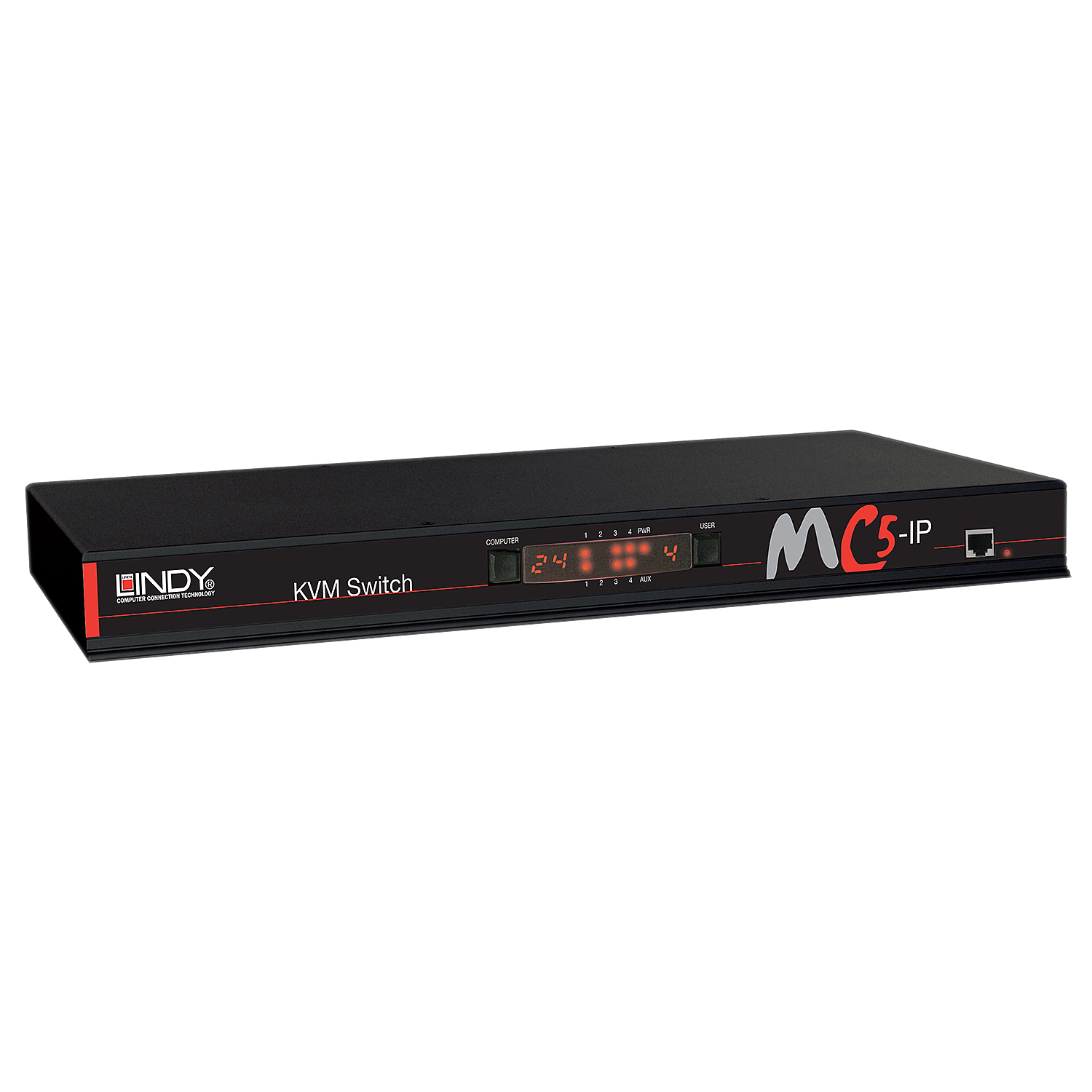

Lindy KVM Switch MC5-IP, 24 Port | 32368
The MC5-IP KVM Switch is a 24 port KVM switch which allows multiple users to access and control up to 24 different computers. Its advanced design makes use of CAT5/5e structured cabling to provide high quality linking for both computers and KVM consoles. This allows greater connection distances than when using standard KVM cables.

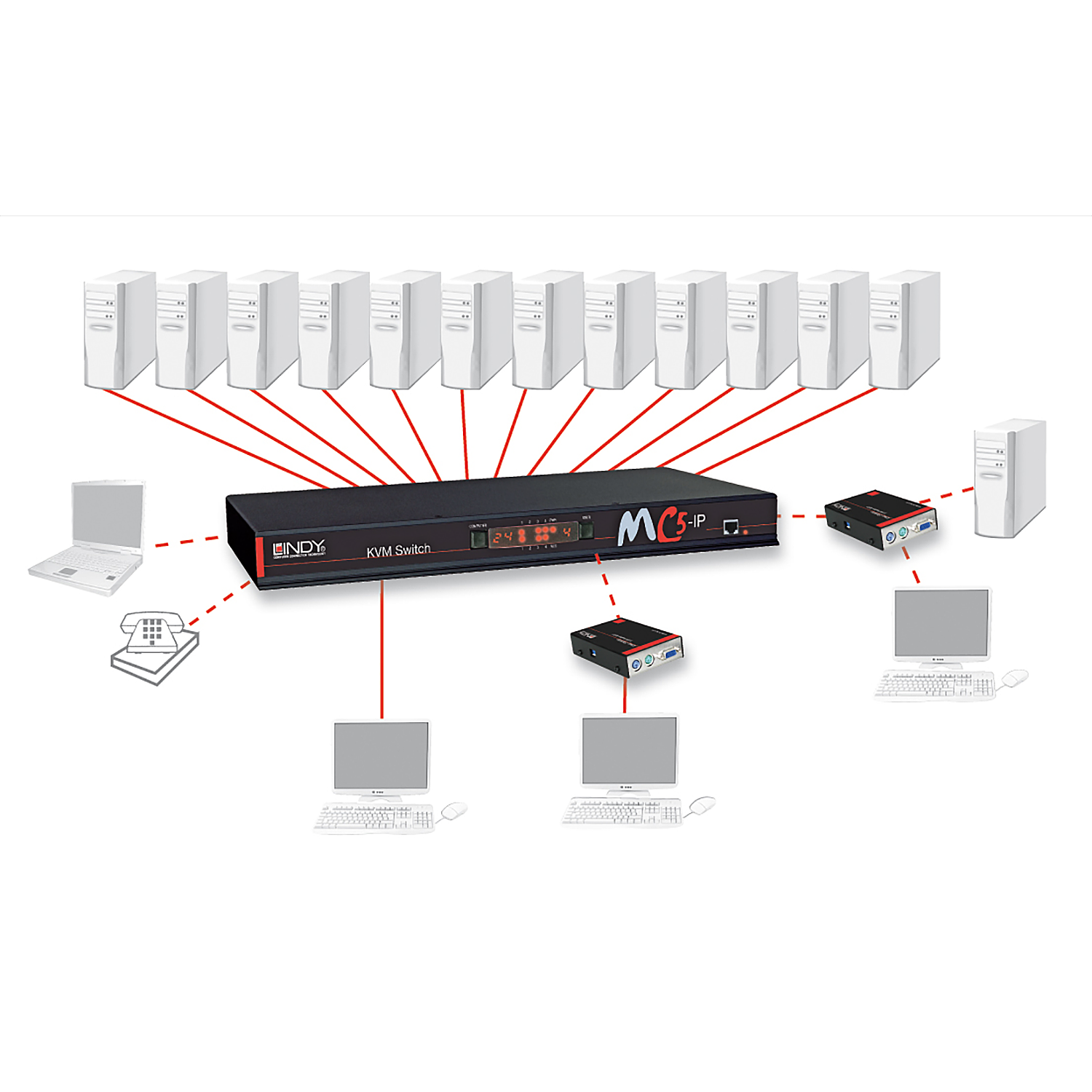

The MC5-IP additionally allows up to four global users to share access to the switch via an IP network/internet connection using a RealVNC client application. A modem/ISDN port provides an alternative backup connection should the network link suffer a failure. Optional power switch control allows you to remotely perform a hard reset on any hosts system.
Unique CAM (Computer Access Module) technology is used to make the connections to the computers at up to 50m, whilst remote 'User Stations' are used to connect to the operators at up to 300m. CAM modules are available to support a variety of platforms including PCs, Macs and SUN systems.More Information
Provides 4 concurrent local, remote or global users with BIOS level access to up to 24 multi platform computers
Modem and 10/100Base-T ports for dial-up and IP access
Audio support when using the appropriate Computer Access Module
Global users (IP) can choose between HTTP or RealVNC for highly secure connections and high performance
Power control functions are supported via a dedicated serial port
Dual power inputs for maximum redundancy
19" 1U rackmountable (brackets included)
Compatible with all common operating systems: DOS, Windows 98SE/ME/2000/XP/2003 Server/Vista, Linux, UNIX, SUN, all Mac OS and Netware -
Category Details Type 19" Rackmount KVM Switch Supported Systems PC, SUN (USB & 8-pin), Mac (USB), RS/6000, Alpha, SGI Max Number of Computers Up to 24 Connection Distance Up to 50m using PS/2, USB, or SUN Computer Access Modules Remote Console Access Via intranet, internet, or dial-in IP connection Simultaneous Users Supports 4 users simultaneously Extended User Distance Two users via optional CAT5 extenders up to 300m Local User Connection PS/2, USB, and VGA Control Interface On-Screen Display (OSD) Security Features AES 128-bit encryption, RSA 2048-bit public key authentication Resolution Support Up to 1900 x 1440 (1600 x 1200 on IP links) IP Protocol Support IP V.6 not supported for internal LAN connections Warranty 3 years Additional Options Complete range of accessories available for use with the KVM Switch MC5-IP -
