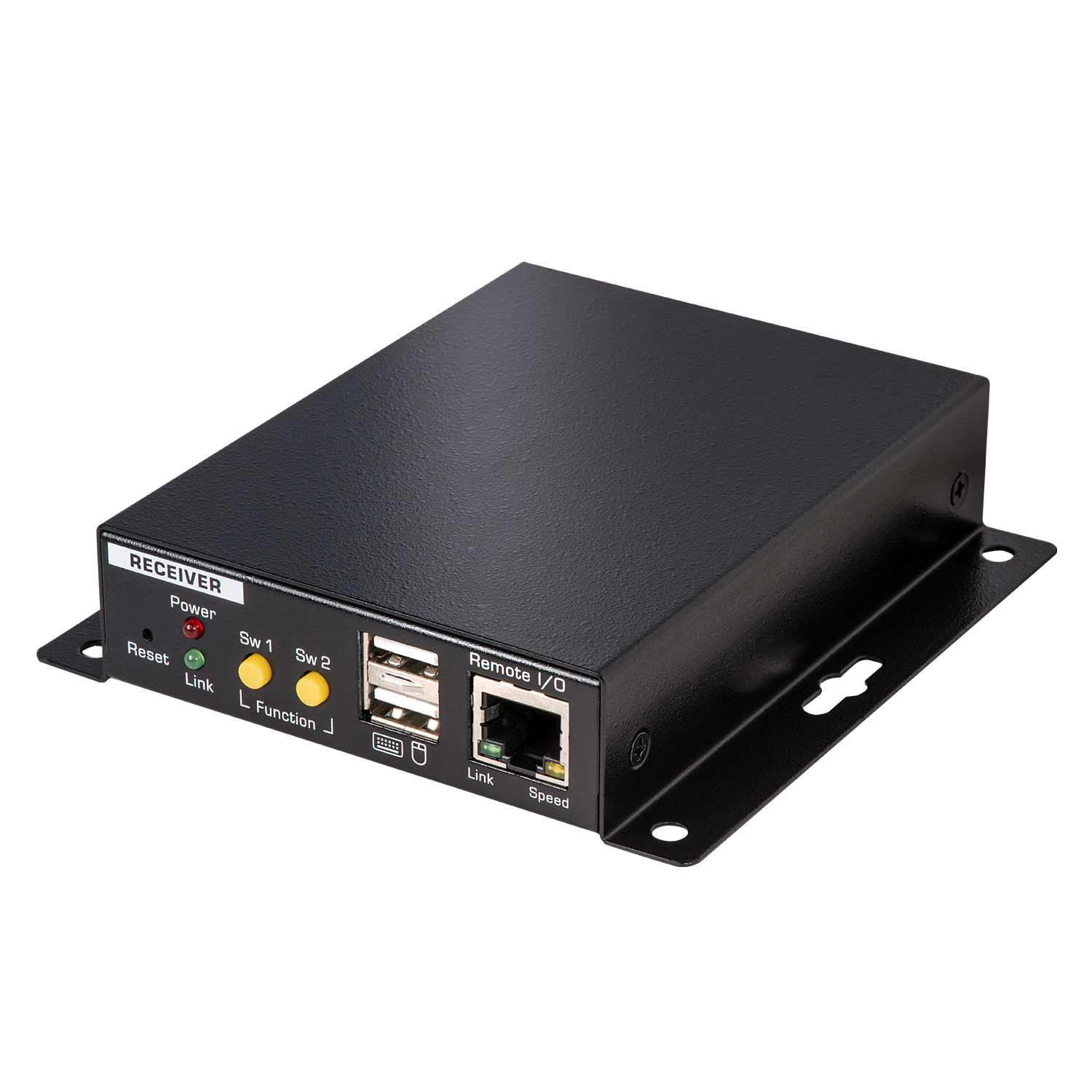

This remote module allows you to replicate the main console of the Quad View KVM Switch PRO (No. 32327) over an IP connection (direct or through a Gigabit switch).
With the direct connection it's possible to reach a maximum distance of 100m using a Cat.5e/6 cable.
While through a Gigabit Ethernet switch the distance can be increased to a maximum of 200m.

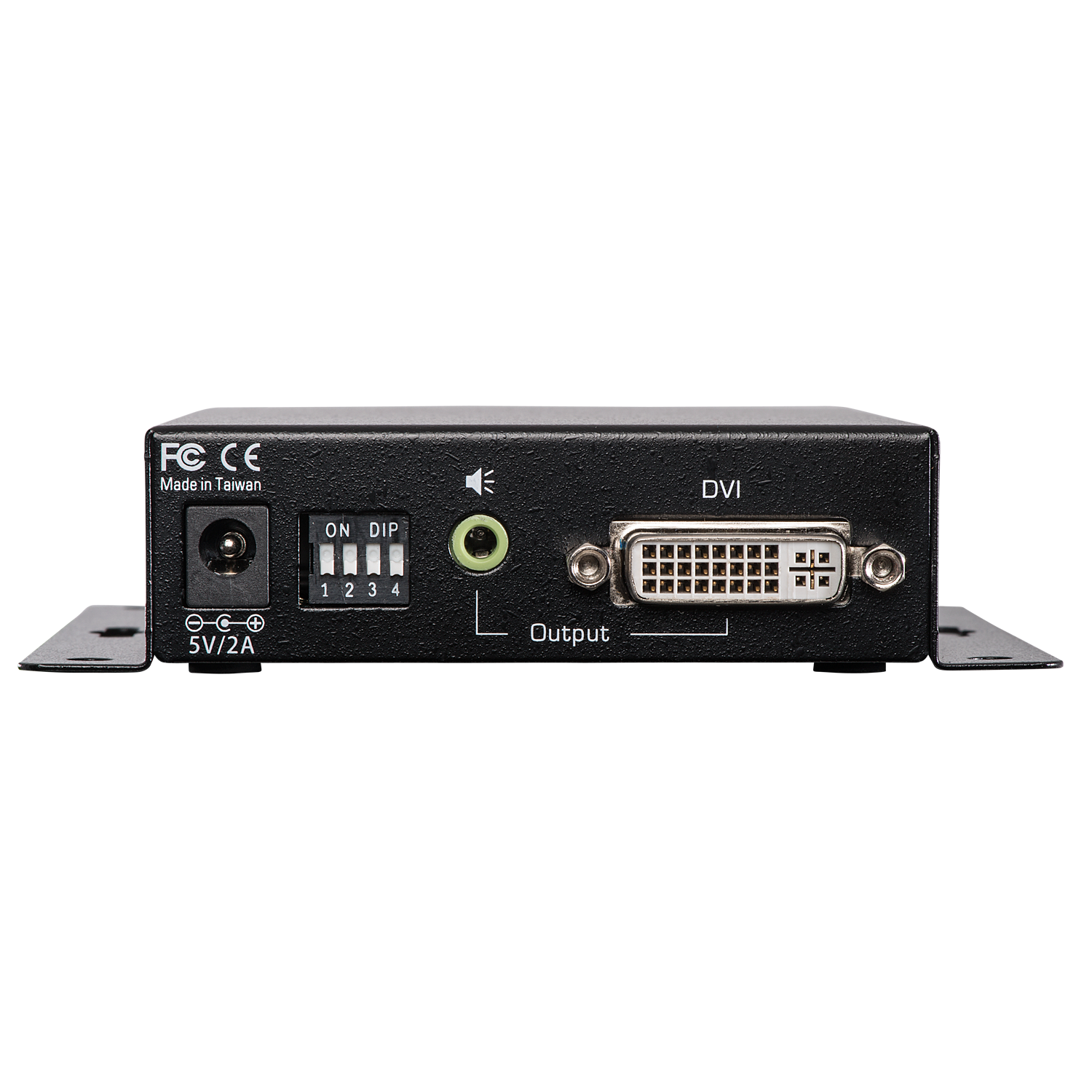

The remote module provides a remote for USB Mouse & Keyboard, a DVI-D Single Link monitor and Audio Stereo 3.5mm interfaces.
Package Contents:
1 x KVM Extender Over IP – Remote Module for No.32327
1 x Multi-Country Power Adapter 5V 2.0A
1 x Quick Installation Guide
| Category | Feature | Details |
|---|---|---|
| KVM Extender | Connection Type | Standard IP protocol |
| Connection Requirement | Must connect to LAN port of Quad View KVM Switch PRO (No.32327) | |
| Direct Cable Connection | Cat.5e/6 100m (200m with gigabit Ethernet switch) | |
| Video Support | Supported Video Signals | 1x DVI-D digital video, up to 1920x1200 |
| Audio Support | Supported Audio Signals | Analogue stereo speaker signals |
| USB Support | Console Connection | USB mouse and keyboard, no USB 2.0 |
| Environmental Specs | Operating Temperature | 0…40°C |
| Storage Temperature | -20…60°C | |
| Humidity | 0…90%, non-condensing, indoor use only | |
| Certifications | Compliance | CE, FCC, REACH, and RoHS compliant |
| Description | Downloads |
|---|---|
| Manual | Downloads |
