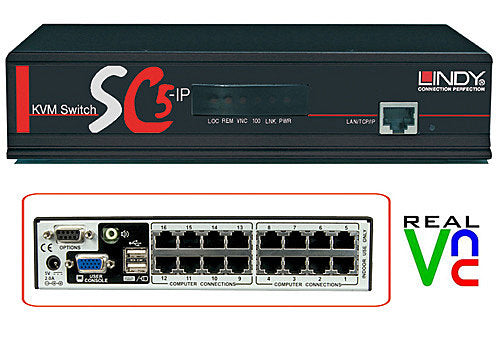

The SC5-IP KVM Switch is a 16 port KVM switch which allows users to access and control up to 16 different computers from a local or remote location. Its advanced design makes use of CAT5/5e structured cabling to provide high quality linking for both computers and KVM consoles. This allows greater connection distances than when using standard KVM cables. The SC5-IP allows access to the switch via an IP network or internet connection using a Real VNC client application.
Unique CAM (Computer Access Module) technology is used to make the connections to the computers at up to 10m, whilst remote '' are used to connect to the operators at up to 300m. are available to support a variety of platforms including PCs, Macs and SUN systems.
More Information
Provides 4 concurrent local, remote or global users with BIOS level access to up to 24 multi platform computers
Audio support when using the appropriate Computer Access Module
Power control functions are supported via a dedicated serial port
Dual power inputs for maximum redundancy
19" 1U rackmountable (brackets included)
Compatible with all common operating systems: DOS, Windows 98SE/ME/2000/XP/2003 Server/Vista, Linux, UNIX, SUN, all Mac OS and Netware
| Specification | Details |
|---|---|
| Type | 19" Rackmount KVM Switch |
| Supported Systems | PC, SUN (USB & 8-pin), Mac (USB), RS/6000, Alpha, SGI |
| Max Number of Computers | Up to 16 |
| Connection Distance | Up to 10m using PS/2, USB, or SUN Computer Access Modules |
| Simultaneous Users | Supports 4 users simultaneously |
| Extended User Distance | Up to 300m via optional CAT5 extenders |
| Local User Connection | PS/2, USB, and VGA |
| Control Interface | On-Screen Display (OSD) |
| Security Features | AES 128-bit encryption, RSA 2048-bit public key authentication |
| Resolution Support | Up to 1900 x 1440 |
| IP Protocol Support | IP V.6 protocol supported |
| Warranty | 3 years |
| Description | Downloads |
|---|---|
| Manual | Downloads |
