Lindy SDVoE Controller | 38364

SKU: 38364
Part Number: 38364
Condition: Brand New
Purchase Orders Accepted
Sold out

£376.95 (Excl. VAT)

Current price - £452.34 (Inc. VAT)
£376.95 - £376.95
Current price- - £452.34
Availability:
Out of stock

payment-icons

Bulk Price & Price Match Request

Contact our expert sales team on 020 8191 9223 for best price and dedicated assistance.

Educational & Public Sector Prices Available

For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com

  • Description
  • Specifications
  • Downloads
  • Lindy SDVoE Controller | 38364

    SDVoE is a globally recognised standard for high quality distribution of AV content with other features, including control, matrix, video wall and multi view over longer distances via 10G Network with no compressions and latency.

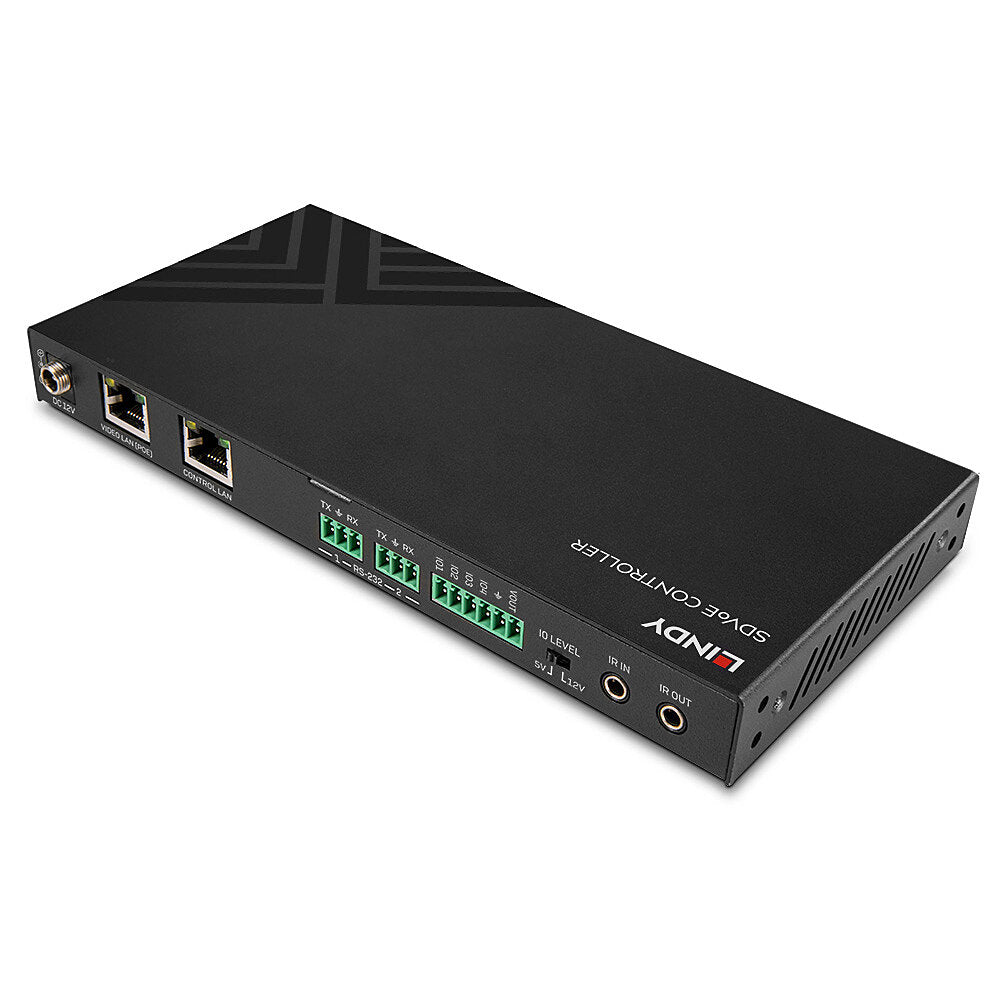

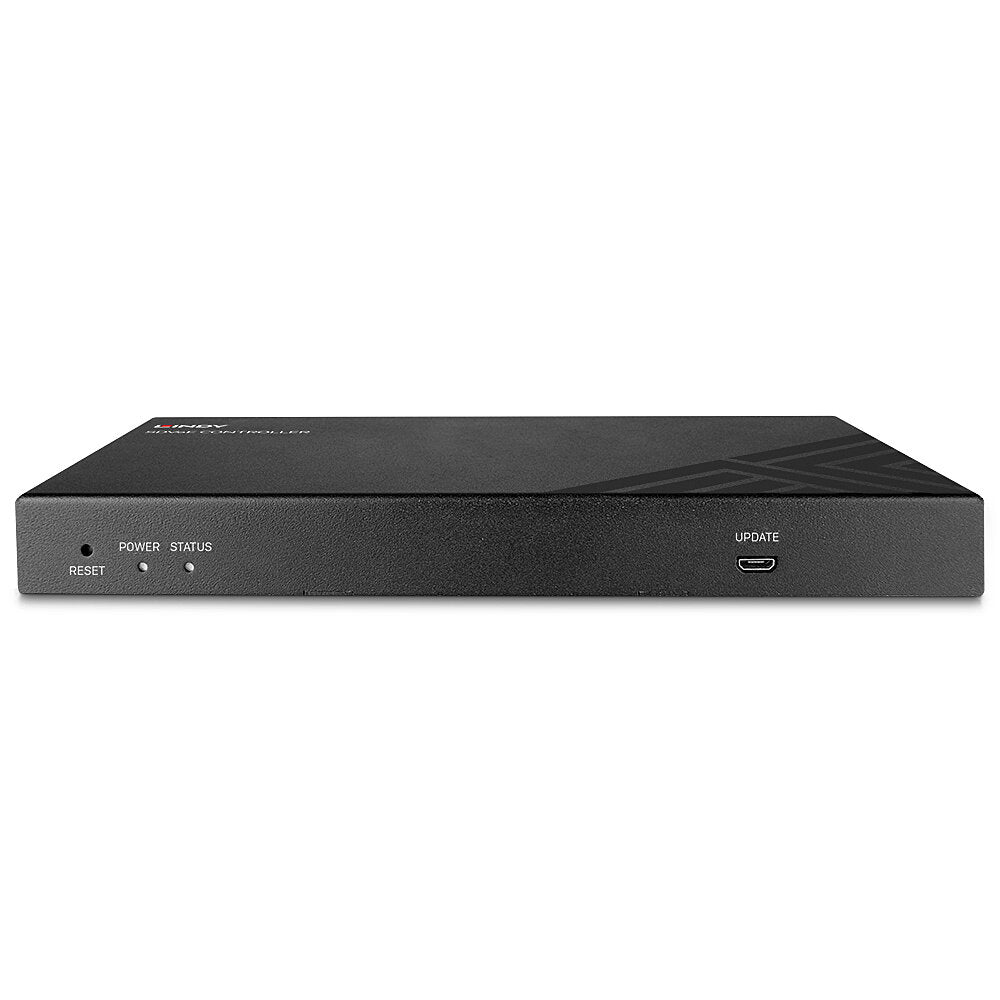

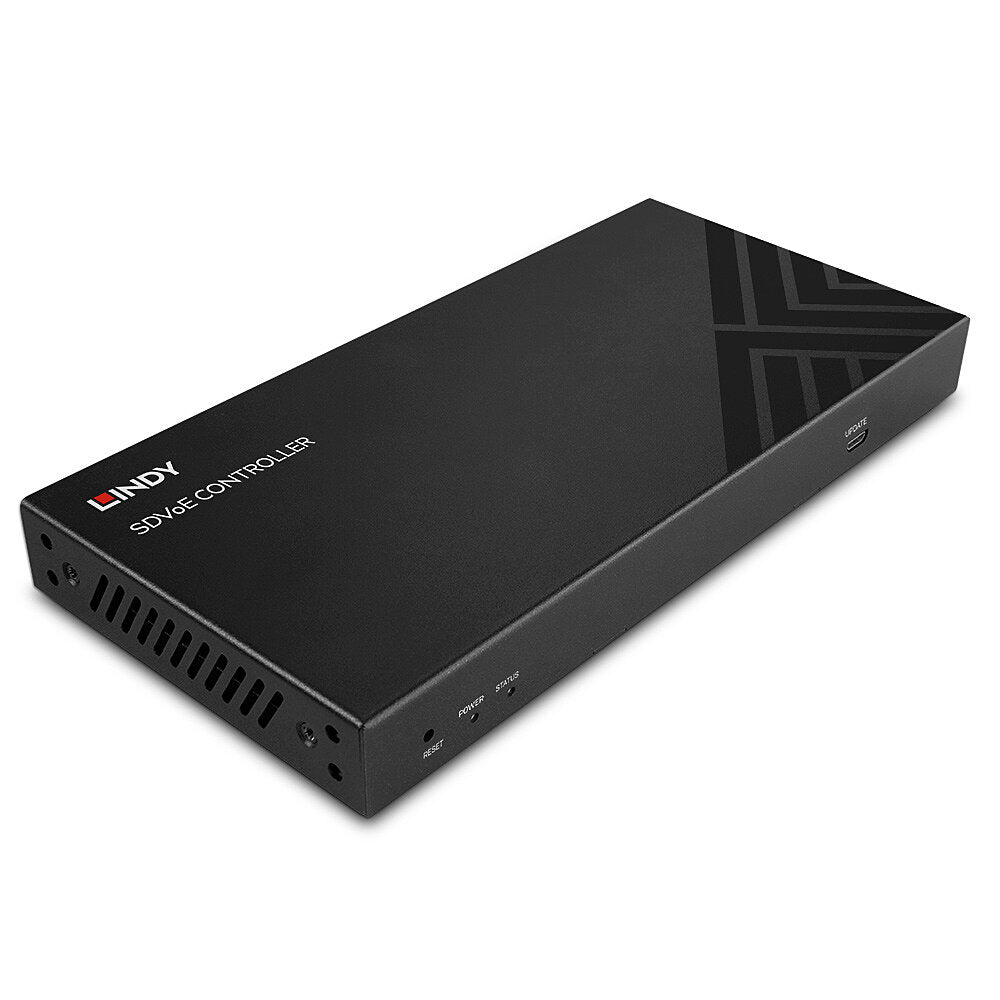

    The Lindy SDVoE controller is a fast and reliable control system for 4K60 Over IP Extender installations. This unit provides a single interface to manage large installations including multi view functions and video walls with the option to create projects to simplify the control tasks. Device management is controlled by a web based visual interface with signal preview supporting drag and drop operations making setup of the installation fast and intuitive.

    Provides dual network ports to isolate Controls and Multicast networks and it can be managed also via third-party RS-232 central control.
    The convenient PoE gigabit interface allows users to install the unit without connecting the included PSU.

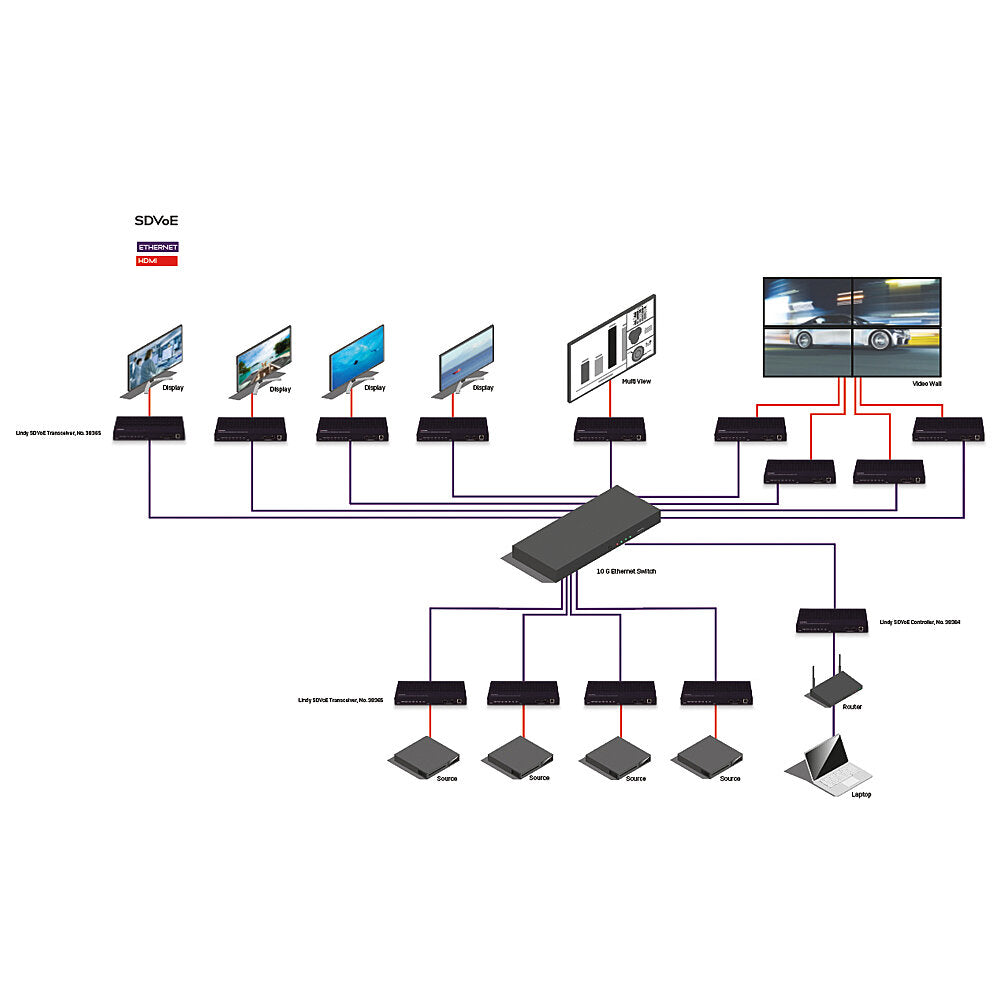

    Please note: this unit works only when connected to a 10Gigabit network where several extender transceiver units (No.38365) are connected.
  • Category Details
    AV Interface -
    Console Interface -
    Interface Standard PoE+ 802.3at
    Supported Bandwidth 1Gbps
    Maximum Distance 100m (393.7ft) (Point to Point)
    Maximum Resolution -
    HDCP Support -
    Supported Audio -
    Separate Audio Ports -
    Transmission Protocol IP
    Transmission Medium Cat.6
    Special Features API support, 4 channel GPIO control ports (5V/12V optional level)

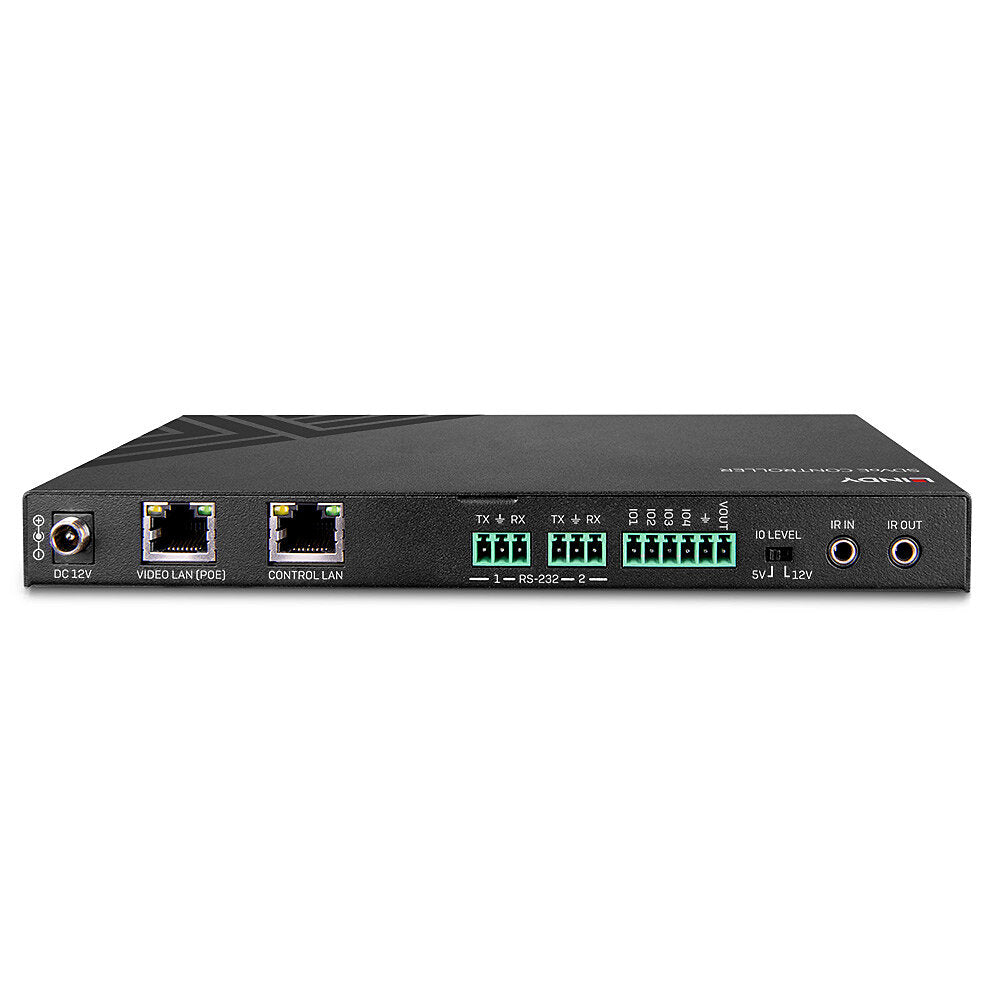

    Other Interfaces 1 x RJ45 Gigabit POE, 1 x RJ45 Gigabit, 2 x RS232 (3-pin terminal block), Trigger Contacts (6-pin terminal block), 2 x 3.5mm (Female) for bidirectional IR, 1 x Micro USB
    Power 5.5/2.1mm DC socket
    Dimensions (WxDxH) 204x98.5x21.5mm (8.03x3.88x0.85in)
    Housing Material Metal
    Net Weight 0.76kg (1.68lb)
    Operating Temperature 0°C - 40°C (32°F - 104°F)
    Storage Temperature -20°C - 60°C (-4°F - 140°F)
    Humidity 20 - 90% RH (non-condensing)
    Power Requirements 12VDC 1A
    Colour Black
    Packaging Type Carton Box
    Packaging Dimensions 255x157x77mm (10.04x6.18x3.03in)
    Gross Weight 0.96kg (2.12lb)
    Warranty 2 Years
    Certifications CE, UKCA, FCC, RoHS, REACH & California Proposition 65
    Package Contents SDVoE Controller, Multi-country Power Supply (UK, EU, US & AUS), IR Emitter Cable (1.5m), IR Receiver Cable (1.5m), 2 x 3-Pin Terminal Block, 6-Pin Terminal Block, 2 x Mounting Ears & Screws, Quick Installation Guide
    Part Number 38364
    EAN 4002888383646
