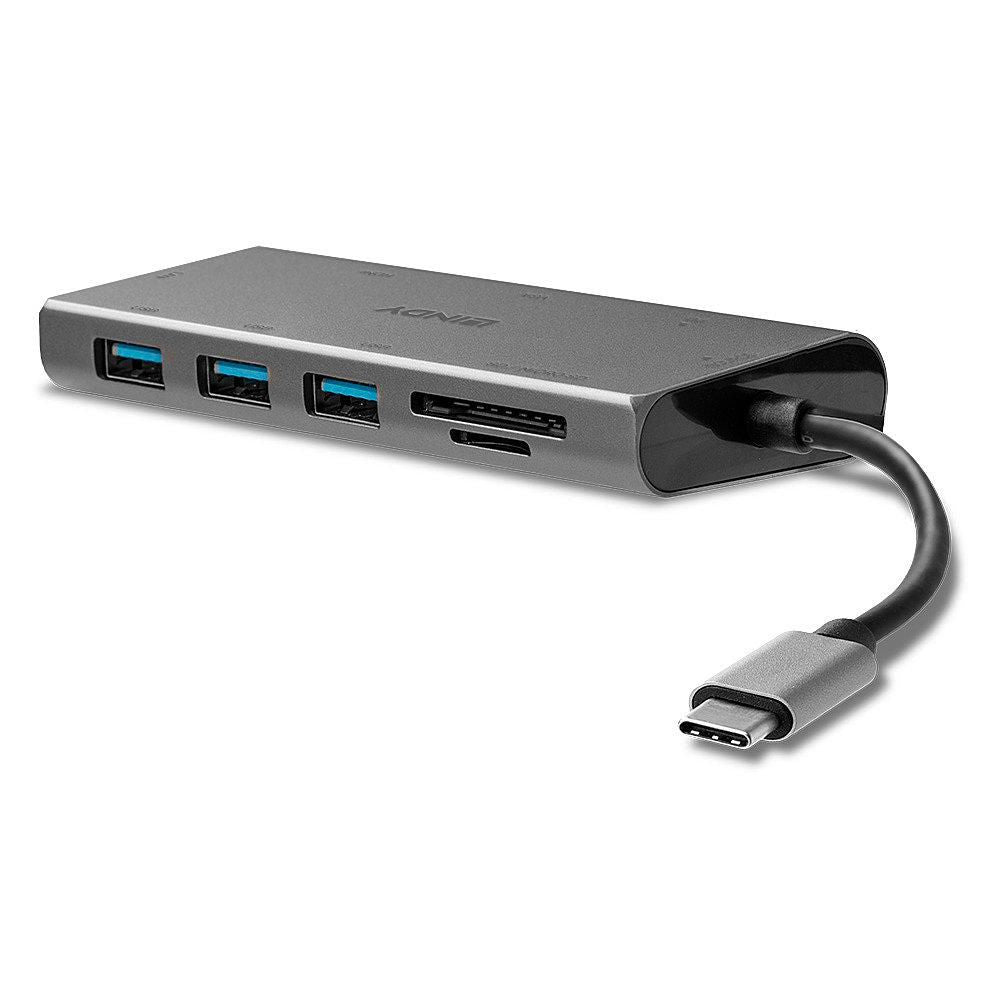

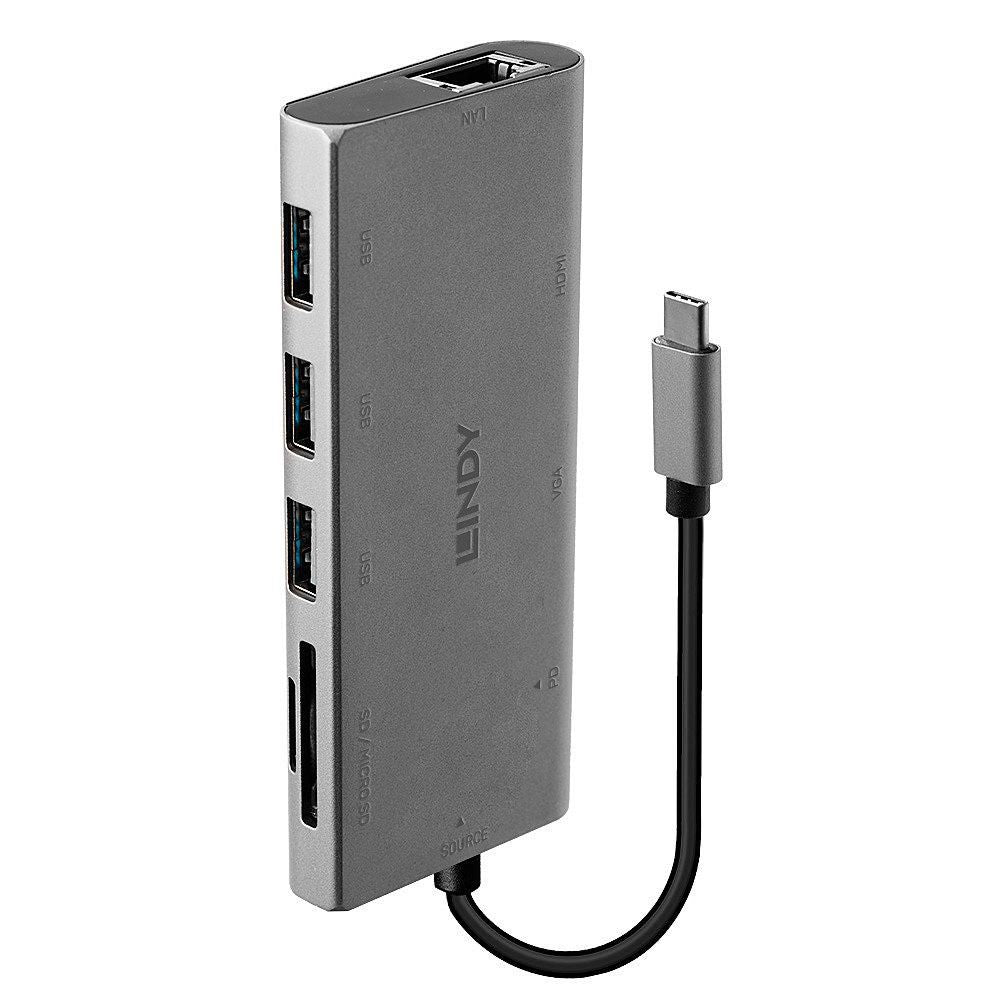

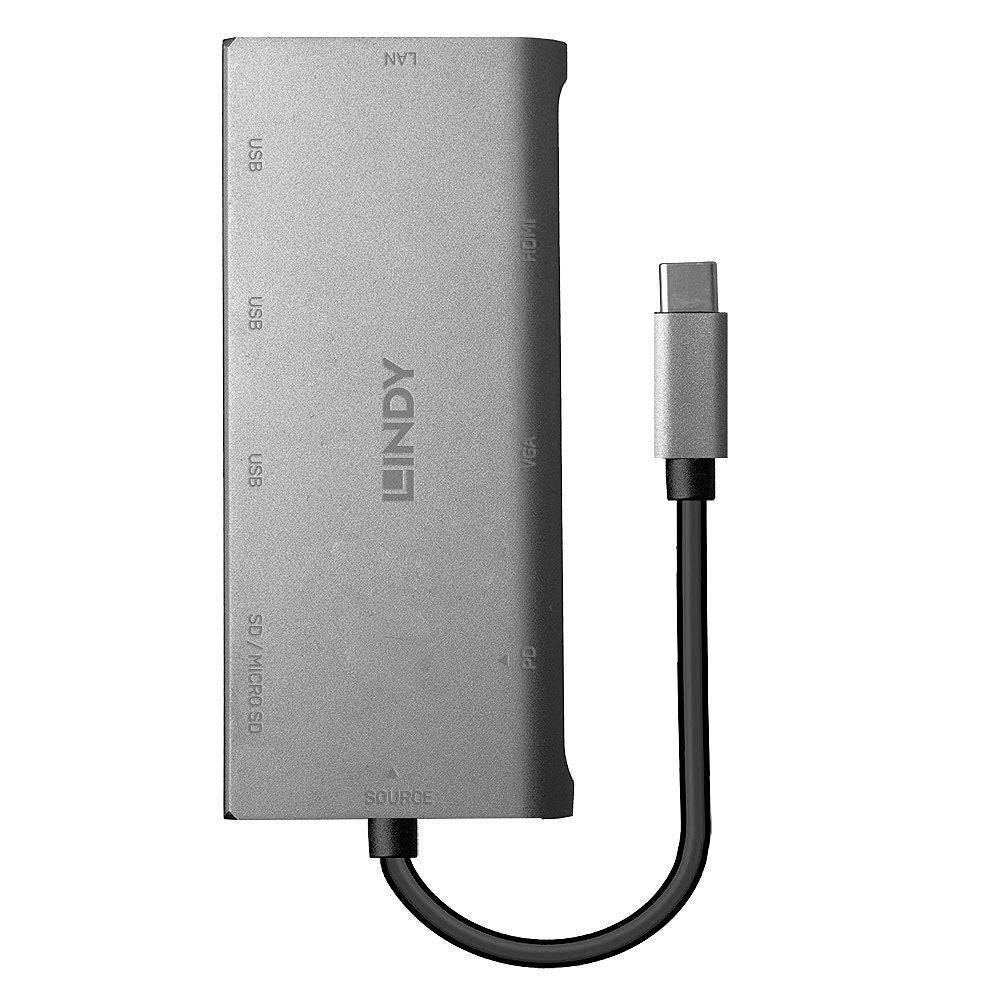

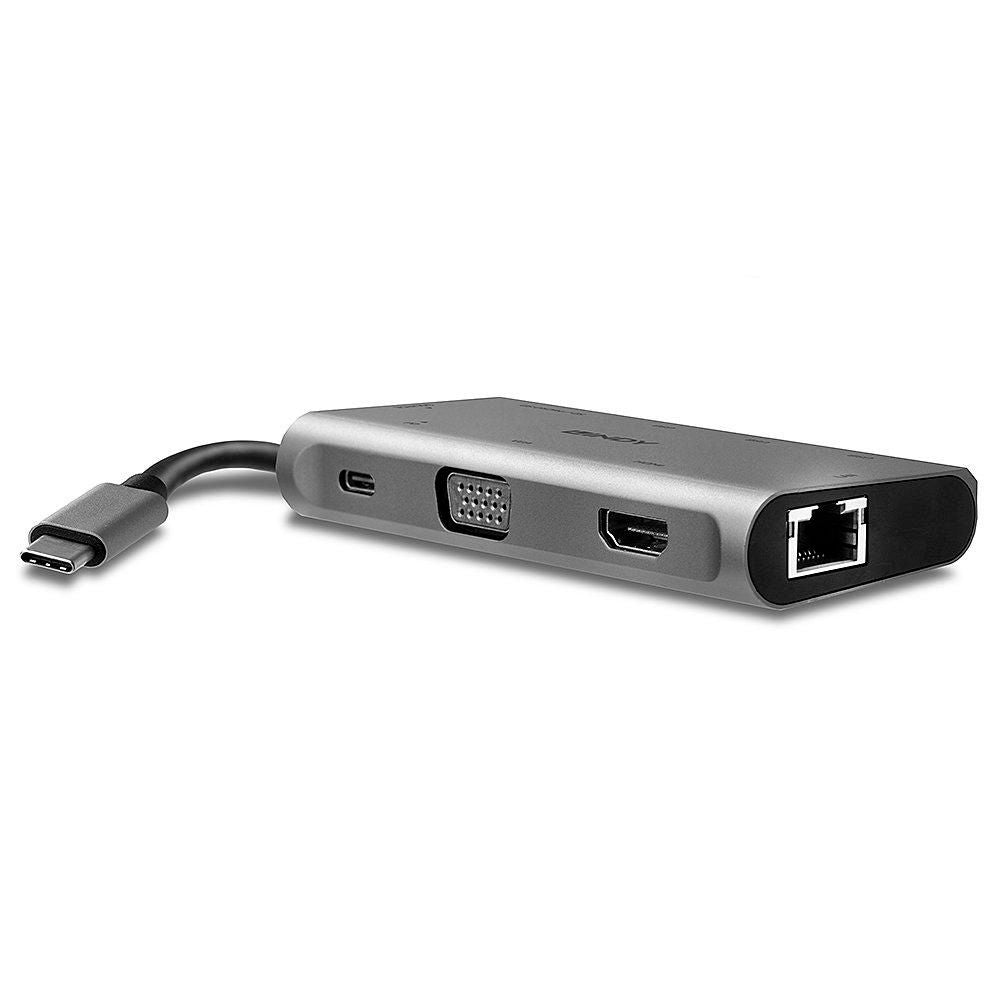

The DST-Mini Plus with VGA is a compact, multifunctional solution for hybrid workers. Housed in a robust aluminium with a high-quality braided USB-C cable, this dock has been designed for durability during travel. With support for HDMI and VGA, it is ideal for those who have an older legacy monitor they wish to plug their device into.
Extended Displays
This docking station can support a 4k extended display at 30Hz or 1080p Full HD 60Hz via its HDMI port. It does this through a single USB-C connection using DisplayPort Alternate Mode. Alternatively, you can access crisp 1080p Full HD via the legacy VGA connection. If both video outputs are connected, 1080p Full HD is possible with the displays showing mirroring content
Added Connectivity
Providing three SuperSpeed USB Type A ports (5Gbps), Card Readers (SD and microSD), USB-C PD, Gigabit Ethernet, VGA and HDMI, the DST-Mini Plus unlocks a world of connectivity for your device. With a single USB-C connection, you can connect USB accessories such as keyboard and mice as well as expand your storage and take advantage of a lightening quick wired Ethernet connection.
Pass-through Charging
Thanks to the USB-C Power Delivery, by connecting a USB-C charger to the docking station you can expect up to 100W charging to any connected laptop (depending on the USB-C charger and how much power the dock is using). Simply connect one USB-C cable and be confident that all your connected device will be fully charged and ready to go.
Plug-and-Play
This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.
| Category | Specification |
|---|---|
| Features | |
| Certification | CE, UKCA, FCC, REACH, RoHS, CP65 |
| Data transfer rate | 5000 Mbit/s |
| HDCP | Yes |
| HDCP version | 2.2 |
| Housing material | Aluminium |
| Maximum resolution (HDMI) | 3840 x 2160 Pixels |
| Product colour | Grey |
| Supported graphics resolutions | 1920 x 1080 (HD 1080)/3840 x 2160 |
| Supported video modes | 1080p/2160p |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 Watt |
| Legal Information | |
| UNSPSC Code | 43211615 |
| Logistics data | |
| Harmonized System (HS) code | 84719000 |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000 Mbit/s |
| Operational conditions | |
| Maximum operating temperature | 45 °C |
| Operating relative humidity (H-H) | 20 - 80 % |
| Operating temperature (T-T) | 0 - 45 °C (32 - 113 °F) |
| Storage relative humidity (H-H) | 20 - 80 % |
| Storage temperature (T-T) | -20 - 60 °C |
| Other features | |
| Chipset | RTL8153B, EP9632G, GL3510 |
| Maximum operating temperature | 45 °C |
| Package dimensions | |
| Depth (package, cm) | 19.4 cm |
| Gross Weight (Package, kg) | 0.26 kg |
| Width (package, cm) | 17.4 cm |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Performance | |
| Card reader integrated | Yes |
| Certification | CE, UKCA, FCC, REACH, RoHS, CP65 |
| Compatible memory cards | MicroSD (TransFlash)/SD |
| Housing material | Aluminium |
| Hub interfaces | HDMI/RJ-45/USB 3.2 Gen 1 (3.1 Gen 1) Type-A/USB 3.2 Gen 1 (3.1 Gen 1) Type-C/VGA |
| Product colour | Grey |
| Ports & interfaces | |
| Card reader integrated | Yes |
| Card reader slot | 2 |
| Compatible memory cards | MicroSD (TransFlash)/SD |
| Ethernet LAN (RJ-45) ports | 1 |
| HDCP | Yes |
| HDCP version | 2.2 |
| HDMI ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Hub interfaces | HDMI/RJ-45/USB 3.2 Gen 1 (3.1 Gen 1) Type-A/USB 3.2 Gen 1 (3.1 Gen 1) Type-C/VGA |
| Ports quantity | 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 Watt |
| USB Type-C DisplayPort Alternate Mode | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Power | |
| Power supply type | USB |
| Product dimensions | |
| Net Weight (Product, kg) | 0.2 kg |
| Product Depth | 1.7 cm |
| Product Height | 4.9 cm |
| Product Width | 18 cm |
| Vendor information | |
| Brand Name | Lindy |
| Warranty | 2 Year(s) |
| Description | Downloads |
|---|---|
| User Manual | Downloads |
