| Audio |
|
| Built-in speaker(s) |
Yes |
| Echo cancellation |
Yes |
| Frequency range |
300 - 10000 Hz |
| Microphone pick-up range |
4.5 m |
| Noise reduction |
Yes |
| Output level |
95/100 dB |
| Sample rates |
0 - 48 kHz |
| Battery |
|
| Battery capacity |
0.675 Wh |

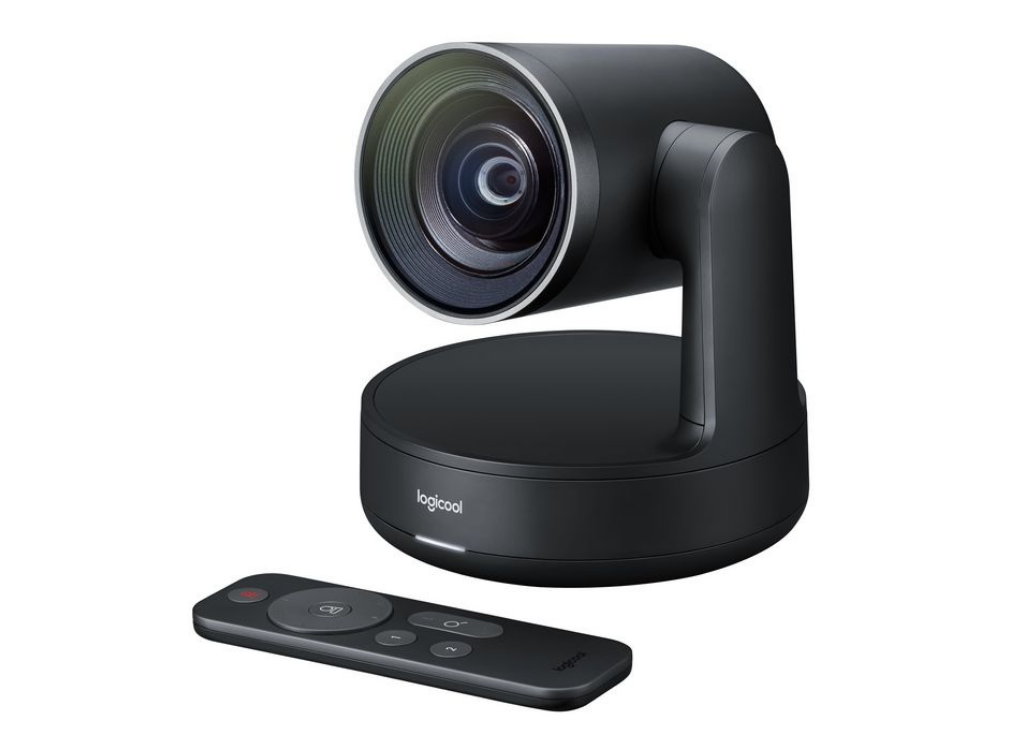

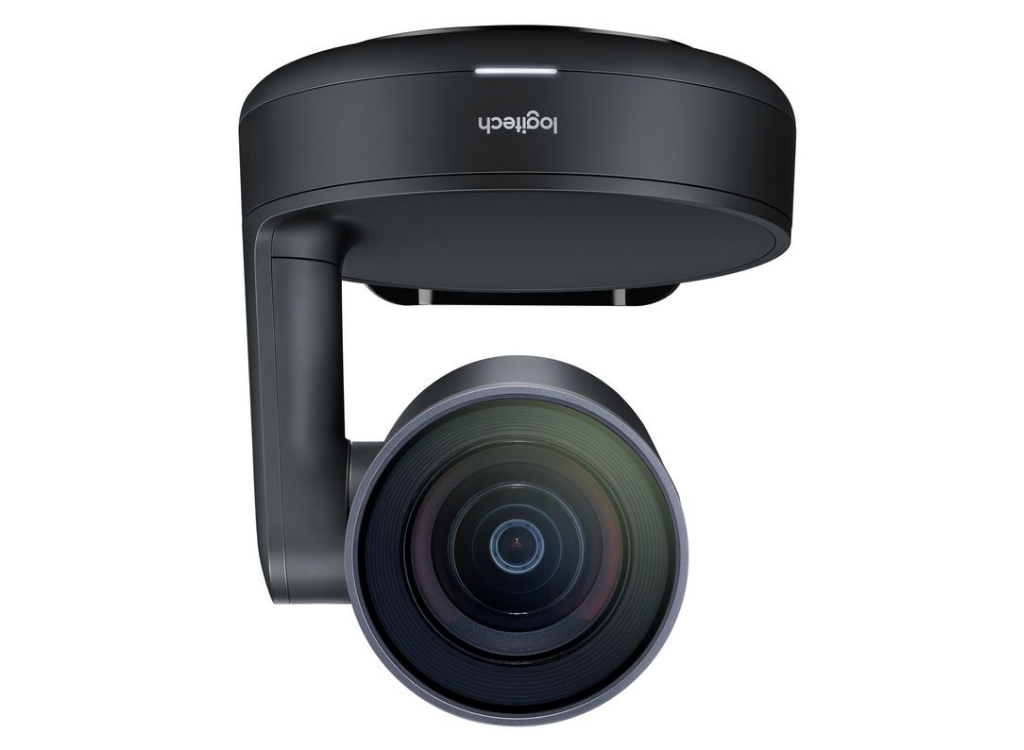

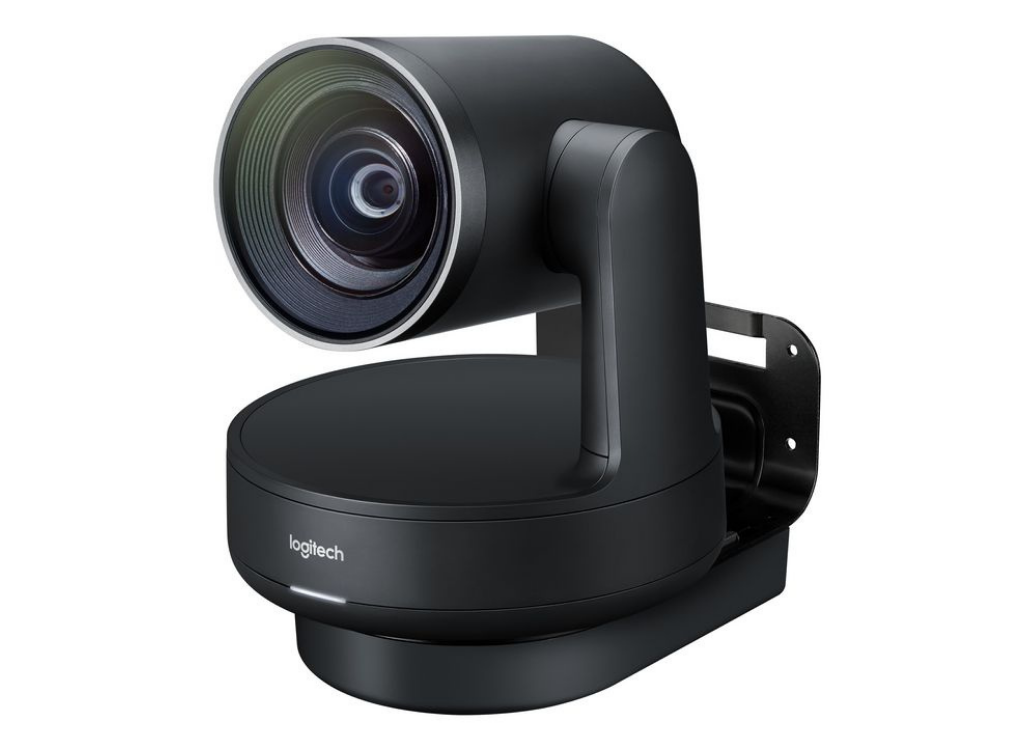

| Camera |
|
| Digital zoom |
15 x |
| Field of view (FOV) angle |
90 ° |
| Focus adjustment |
Auto |
| Number of camera presets |
3 |
| Zoom capability |
Yes |
| Computer system |
|
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Windows operating systems supported |
Windows 10, Windows 11, Windows 8.1 |
| Features |
|
| Cable lock slot |
Yes |
| Telepresence |
No |

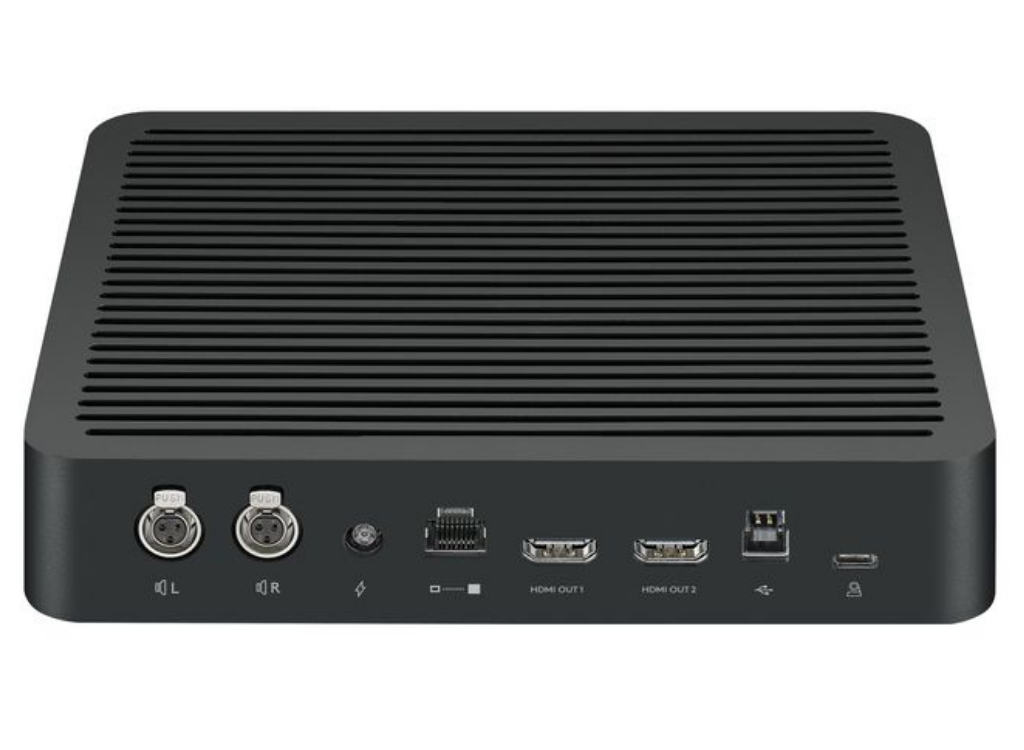

| Interface module HDMI input ports quantity |
2 |
| Interface module HDMI output ports quantity |
2 |
| Legal Information |
|
| EU ECCN Code |
N/A |
| UNSPSC Code |
45111902 |
| US ECCN Code |
5A992 |
| Logistics data |
|
| Harmonized System (HS) code |
85176990 |
| Master (outer) case gross weight |
12.34 kg |
| Master (outer) case height |
72.2 cm |
| Master (outer) case length |
41.7 cm |
| Master (outer) case width |
22.7 cm |

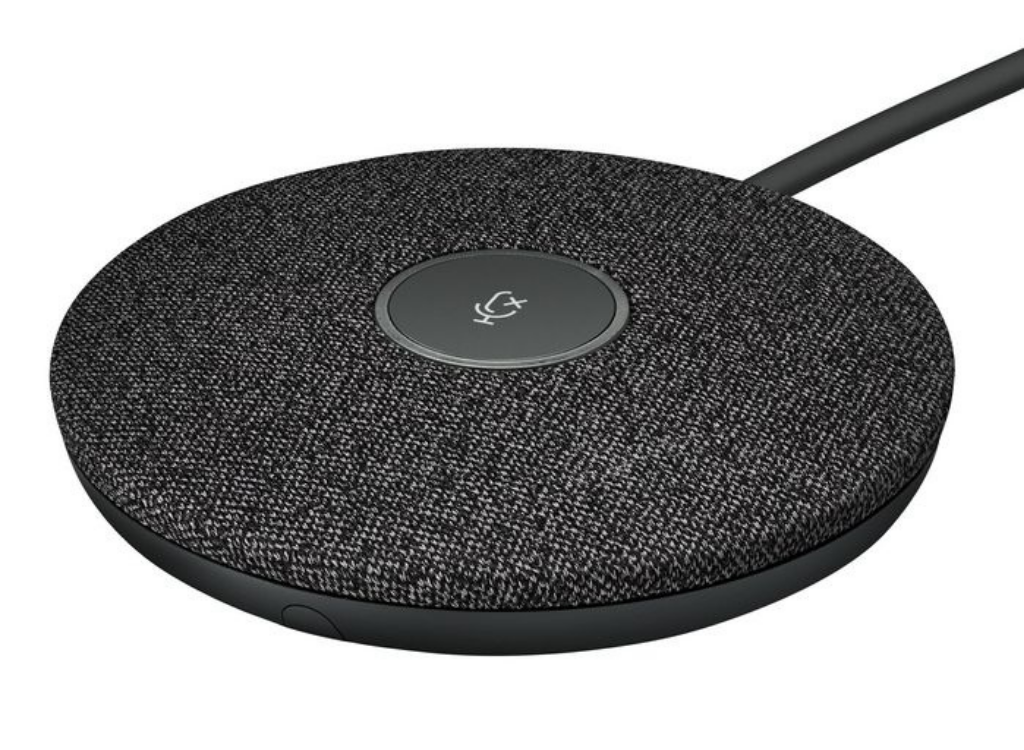

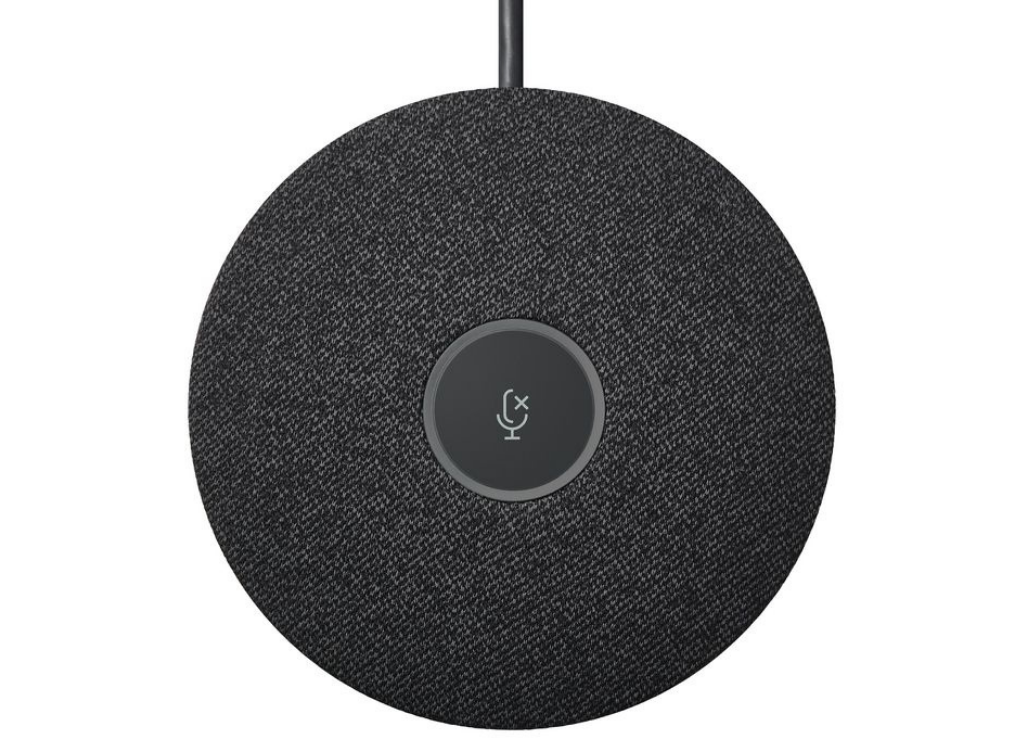

| Microphone |
|
| Microphone colour |
Black |
| Microphone direction type |
Omnidirectional |
| Microphone frequency |
90 - 16000 Hz |
| Microphone mute |
Yes |
| Microphone sensitivity |
-27 dB |
| Number of microphone arrays |
2 |
| Number of microphones |
4 |
| Sound pressure level (max) |
95 dB |
| Network |
|
| Ethernet LAN |
Yes |
| Package dimensions (verified) |
|
| Depth Verified |
35 cm |
| Gross Weight Verified |
4 kg |
| Height Verified |
25 cm |
| Width Verified |
40 cm |
| Packaging content |
|
| AC adapter included |
Yes |
| Cables included |
AC, HDMI, LAN (RJ-45), USB Type-A to Micro USB-B, USB Type-C to USB Type-C |
| Camera included |
Yes |
| External interface module included |
Yes |
| HDMI cable length |
2 m |
| Microphone included |
Yes |
| Networking cable length |
5 m |
| Power cable length |
1.5 m |
| Quick start guide |
Yes |
| Remote control included |
Yes |
| Speaker included |
Yes |
| Performance |
|
| Bluetooth |
Yes |
| Number of persons |
16 person(s) |
| Pan range |
-90 - 90 ° |
| Pan speed |
70 °/sec |
| Product colour |
Black |
| Product type |

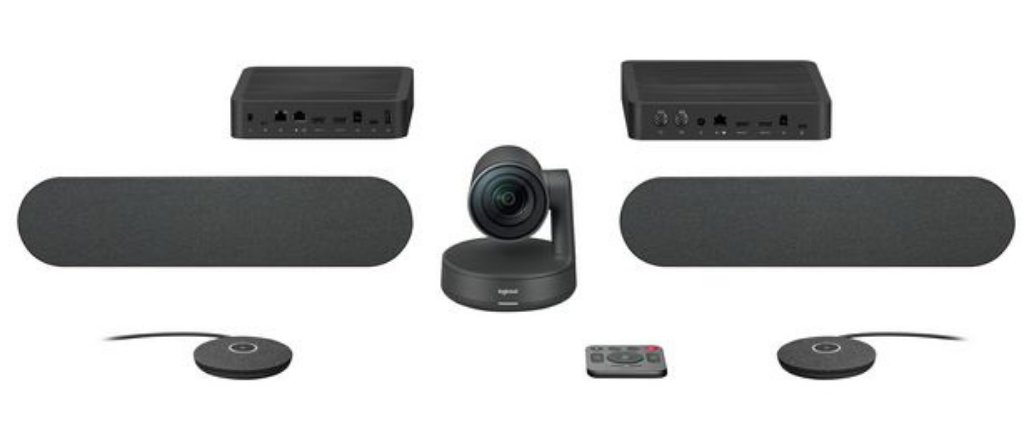

Group video conferencing system |
| PTZ control |
Yes |
| Tilt angle range |
-90 - 50 ° |
| Tilt speed |
70 °/sec |
| Tripod mounting supported |
Yes |

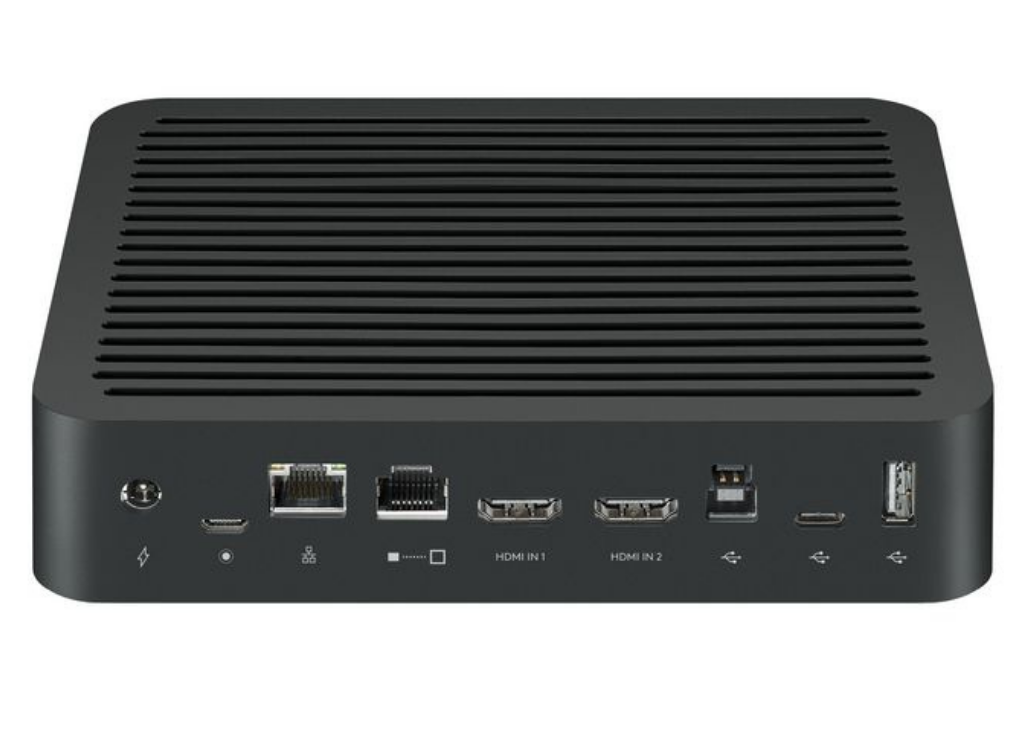

| Ports & interfaces |
|
| DC-in jack |
Yes |
| Ethernet LAN (RJ-45) ports |
3 |
| HDMI ports quantity |
2 |
| Line-in |
Yes |
| USB 2.0 ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
2 |
| USB connector type |
USB Type-A, USB Type-B, USB Type-C |
| Power |
|
| Battery capacity |
220 mAh |
| Battery technology |
Lithium |
| Number of batteries supported |
2 |
| Power source type |
AC |
| Product dimensions |
|
| Net Weight (Product, kg) |
3.8 kg |
| Technical details |
|
| Harmonized System (HS) code |
85176990 |
| Number of persons |
16 person(s) |
| Pan range |
-90 - 90 ° |
| Product colour |
Black |
| Product type |
Group video conferencing system |
| PTZ control |
Yes |
| Tilt angle range |
-90 - 50 ° |
| Tilt speed |
70 °/sec |
| Vendor information |
|
| Brand Name |
Logitech |
| Warranty |
2 Year(s) |
| Video |
|
| Digital zoom |
15 x |
| HD type |
4K Ultra HD |
| Maximum frame rate |
60 fps |
| Supported video modes |
1080p, 1440p, 2160p, 576p, 720p, 900p |
| Weight & dimensions |
|
| Camera dimensions (WxDxH) |
152 x 152 x 182.5 mm |
| Microphone dimensions (WxHxD) |
102 x 102 x 21 mm |

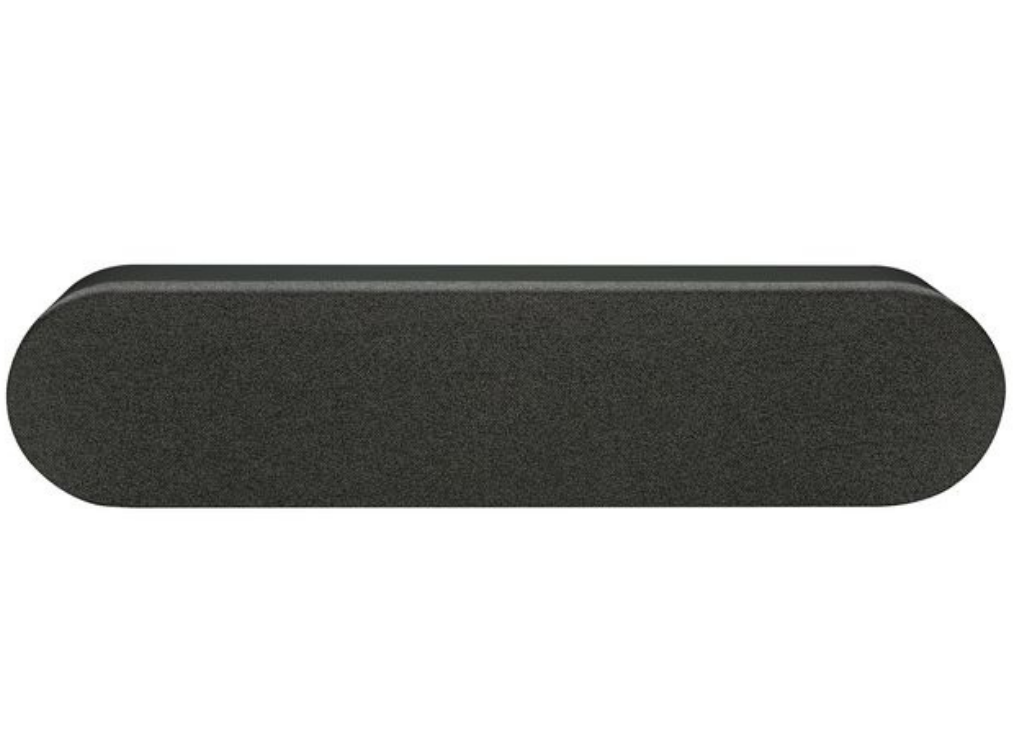

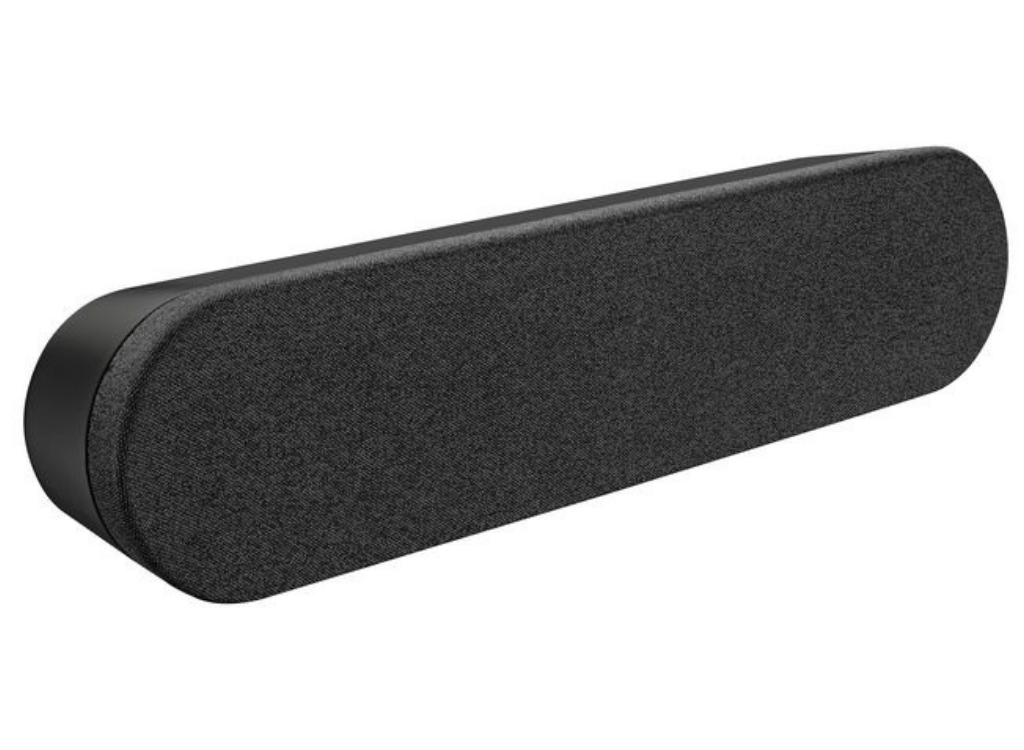

| Speaker dimensions (WxDxH) |
449 x 80 x 103 mm |
