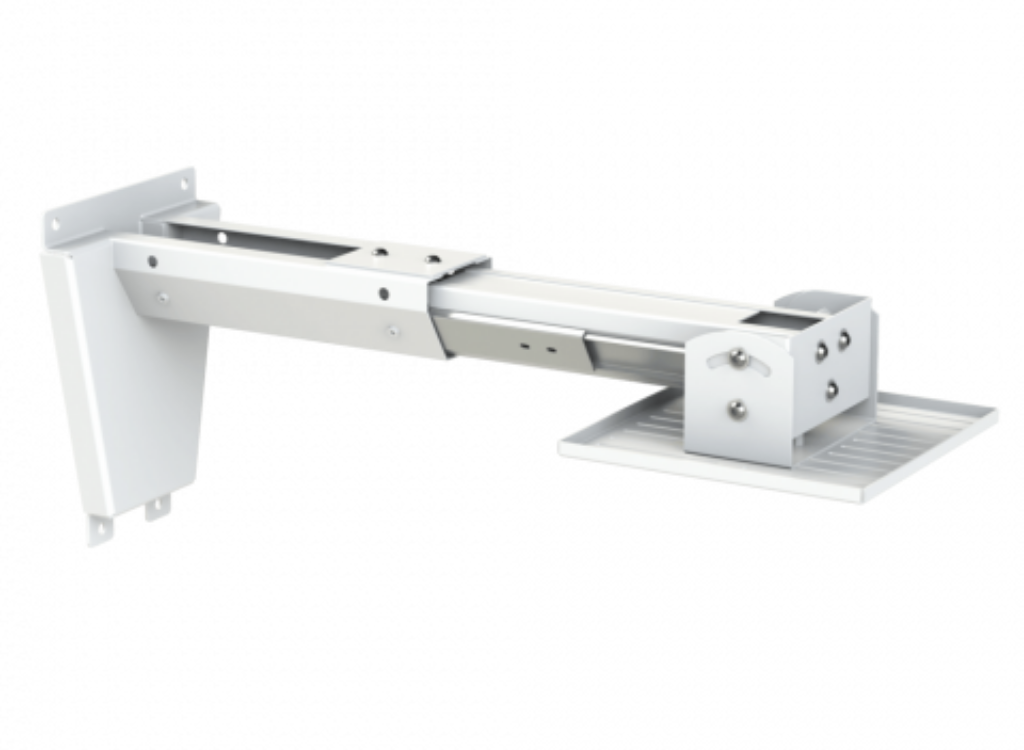

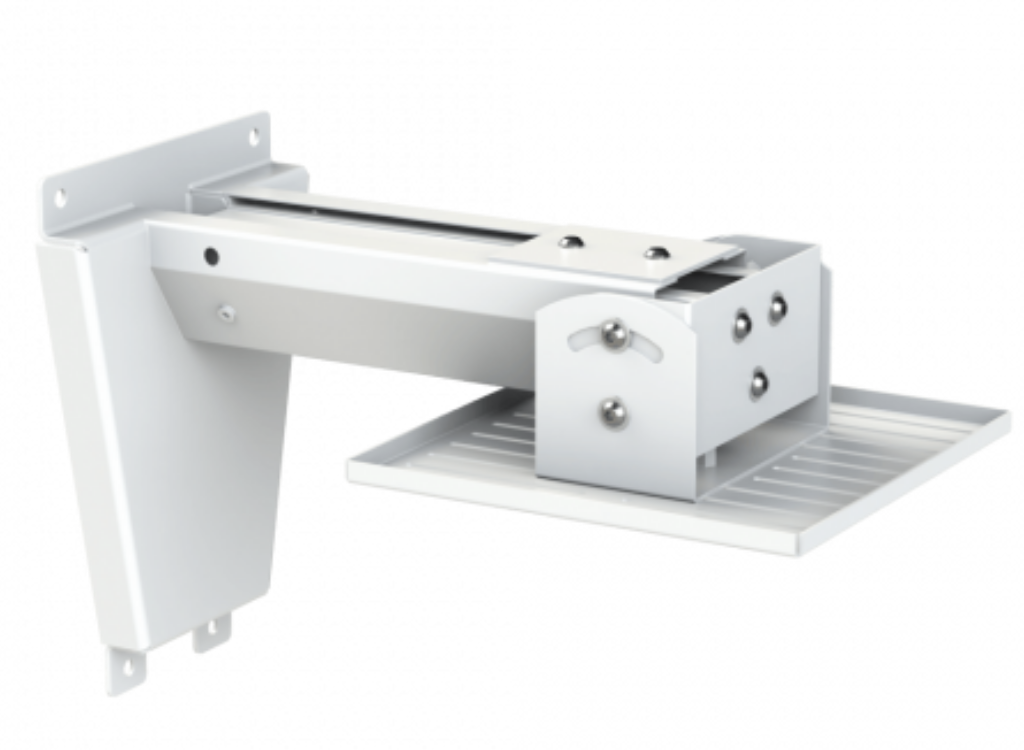

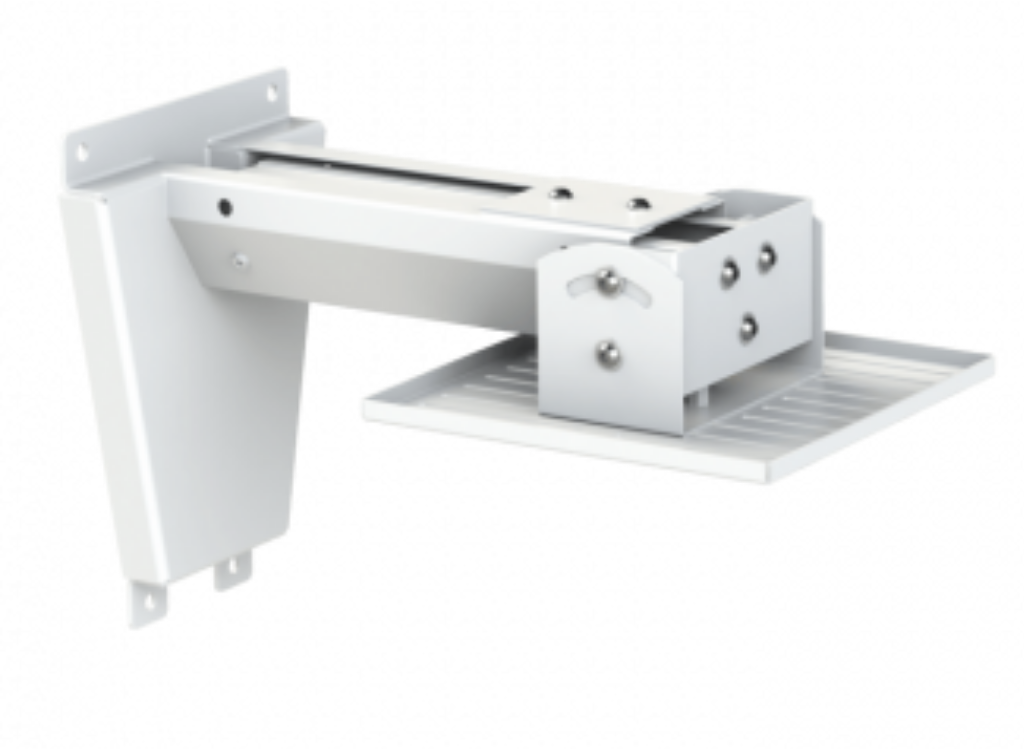

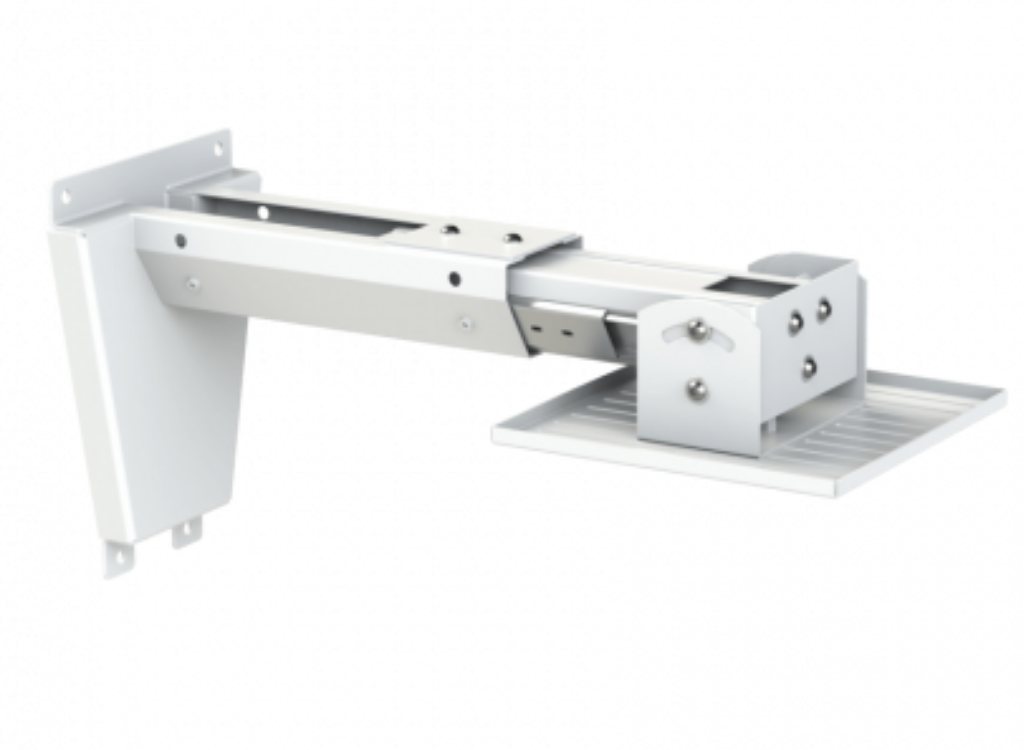

Loxit 8268 Ultra Short Throw Universal Projector Wall Mount 168mm – 478mm - For Up To 20 Kg Projectors

Loxit 8268 Ultra Short Throw Universal Projector Wall Mount 168mm – 478mm - For Up To 20 Kg Projectors

Extremely stable, highly durable and simple to install, the Universal Ultra Short Throw Projector Wall Mount is designed to accommodate all ultra short throw projectors.

With high quality telescopic movement using ball bearing sliders, the smooth and simple operation is able to offer 310mm of adjustment – enough to cover many makes and models of ultra short throw projectors on the same projector wall bracket.

Minimum distance to projector mount fixing at front of projector from wall: 168mm.

Maximum distance to projector mount fixing at front of projector from wall: 478mm.

Maximum grid of projector mount fixing points: 304mm x 304mm.

The universal projector mount plate allows the projector to fit tight against the projector mount back plate, which is set off the wall by 30mm.

A standard whiteboard surface sets off a wall at approximately 50mm, making the Loxit Universal Ultra Short Throw Projector ideal for virtually all ultra short throw projectors.

Also suitable for mounting large, long throw projectors, to project images across a room to the screen opposite.

Features
Highly engineered, strong projector wall mount, excellent value for money.

Universal projector wall mount for ultra short throw projectors.

Projector throw length adjustment 310mm.

Minimum distance to projector mount fixing at front of projector from wall: 168mm.

Maximum distance to projector mount fixing at front of projector from wall: 478mm.

Maximum grid of projector mount fixing points: 304mm x 304mm.

Smooth, engineered telescopic action.

The universal projector mount plate allows the projector to fit tight against the projector mount back plate, which is set off the wall at 30mm.

A standard whiteboard surface sets off a wall at approximately 50mm, making the Loxit Universal Ultra Short Throw Projector ideal for virtually all ultra short throw projectors, with the projector able to mount slightly behind the whiteboard.

Very simple installation – projector mount is fixed to wall via 4 easy access fixings. Projector wall mount is ready assembled, simply requiring projector mounting to plate and plate attaching to projector wall mount.

Image adjustment – clever design enables projected image to be simply adjusted vertically and laterally, in addition to the projector’s own adjustment settings for a perfect installation.

Maximum vertical projector mount tilt of 15 degrees or 30 degrees if projector mount plate is reversed, also achieving maximum throw length.

Cable management through the boom and mount plate to allow projector cabling to the ceiling or the below the bracket.

High quality, solid fixing – 2.5mm thick steel wall plate providing a very stable platform for the projector, minimising requirement for future adjustment.

Fully ventilated projector mount design – no overheating issues.

White powder coated finish.

Security compatible.

Maximum load 20kg.

Application
Universal Ultra Short Throw Projector Wall Mount is perfect to mount virtually all ultra short throw projectors.

Using the projector plate ‘Z’ bars, the projector mount points can be picked up within a 310 x 310mm grid.

Loxit’s Ultra Short Throw Projector Wall Mount is suitable for mounting large, long throw projectors to project images on walls opposite, by turning the projector mount plate around 180 degrees.

Technical
Max projector weight 20kg.
