Manhattan 32" - 55" Full-Motion TV Wall Mount With Post-Leveling Adjustment | 462419
SKU: 462419
£20.07 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- WarrantyLT Warranty
- Mount ConfigurationMax 1 Screen
- Max Load (kg)35 kg per screen
- Mounting TypeSwivel Wall Mounts
- Screen Sizes32" - 55"
- VESA Patterns400x400
- Description
- Specifications
- Downloads
-
Manhattan 32" - 55" Full-Motion TV Wall Mount With Post-Leveling Adjustment
Articulating TV Wall Bracket – fully adjustable mounting bracket to fit almost any space
This strong, Full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and provides optimized views with +3 to -15° tilt and +/-90° swivel adjustment. It fits flat and curved LCD, OLED or plasma TVs up to 55" and weighing up to 35 kg (77lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation with an included bubble level and +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classrooms, conference rooms, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.
Supports one flat or curved 32" to 55" TV up to 35 kg (77 lbs.)
Optimized views with +3 to -15° tilt, +/-90° swivel and +/-3° post-installation leveling adjustment

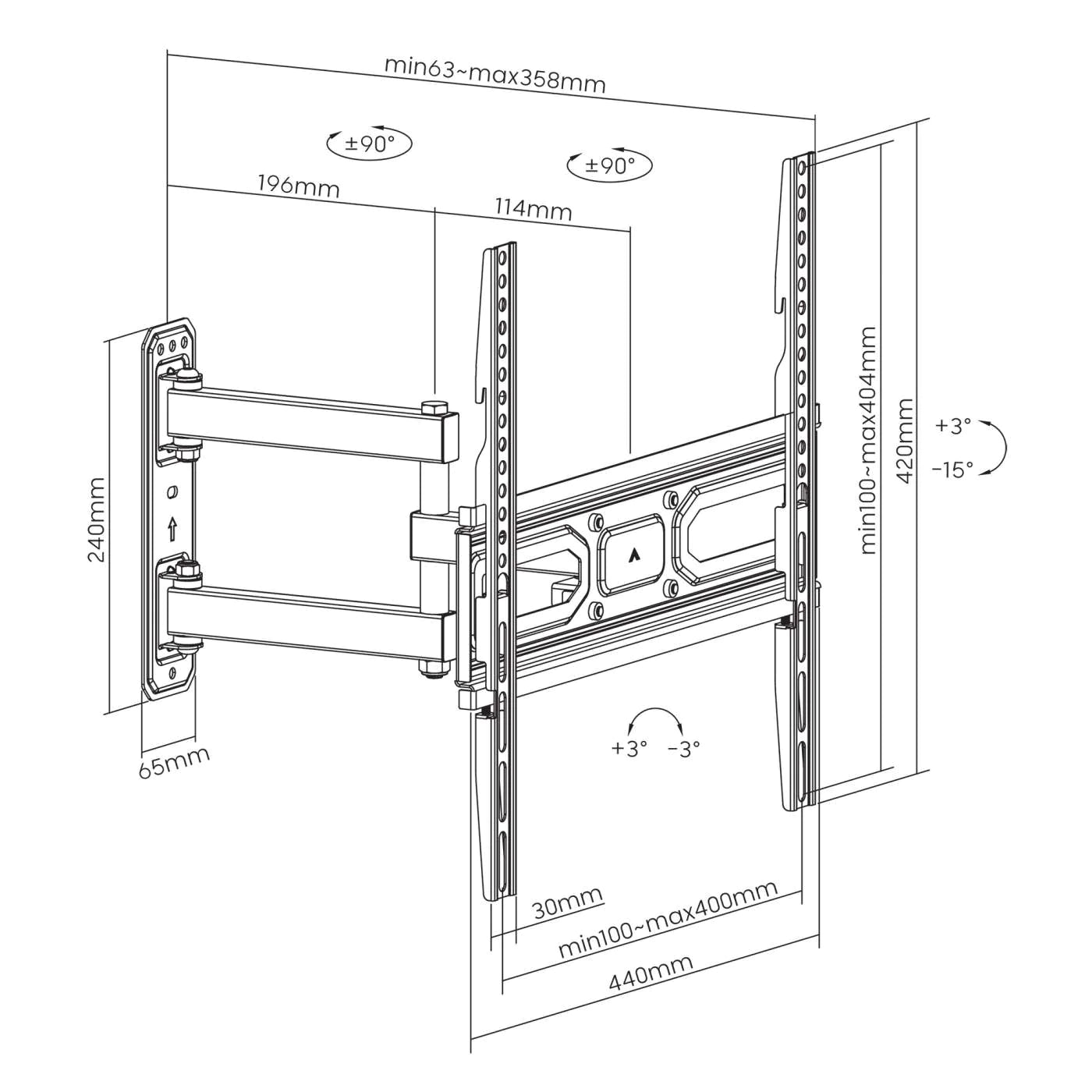

Holds TV 63 to 358 mm (2.5 to 14.1 in.) from wall
Heavy-duty steel construction with powder coating
Includes attachable bubble level
Built-in cable management to minimize clutter
Easy installation; ideal for home, office and commercial applications
Meets VESA standards from 100x100 to 400x400 (e.g., 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400)
Lifetime warranty -
Technical Details Quantity per pack 1 pc(s) Design Product colour Black Housing material Steel Packaging Content Manual Yes Mounting kit Yes Weight & Dimensions Weight 2.2 kg Height 420 mm Width 440 mm Depth (max) 35.8 cm Logistics Data Master (outer) case height 270 mm Master (outer) case width 520 mm Master (outer) case gross weight 22.9 kg Master (outer) case length 460 mm Products per master (outer) case 8 pc(s) Packaging Data Package weight 2.63 kg Package depth 62 mm Package height 250 mm Package width 445 mm Package type Box Mounting Maximum weight capacity 35 kg Mounting type Wall Minimum screen size 81.3 cm (32") Maximum screen size 139.7 cm (55") Number of displays supported 1 Minimum VESA mount 100 x 100 mm Maximum VESA mount 400 x 400 mm Ergonomics Swivel angle range -90 - 90° Tilt angle range -15 - 3° Distance to the wall (max) 35.8 cm Distance to the wall (min) 6.3 cm Swivelling Yes Tilt adjustment Yes Built-in spirit level Yes Adjustable depth Yes -
Description Downloads Manhattan 462419 Full-Motion TV Wall Mount DataSheet Downloads Manhattan 462419 Full-Motion TV Wall Mount Quick Instruction Guide Downloads
