Manhattan 32" - 70" Full-Motion TV Wall Mount | 462433
SKU: 462433
£31.82 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- WarrantyLT Warranty
- Mounting TypeSwivel Wall Mounts
- VESA Patterns400x400
- Description
- Specifications
- Downloads
-

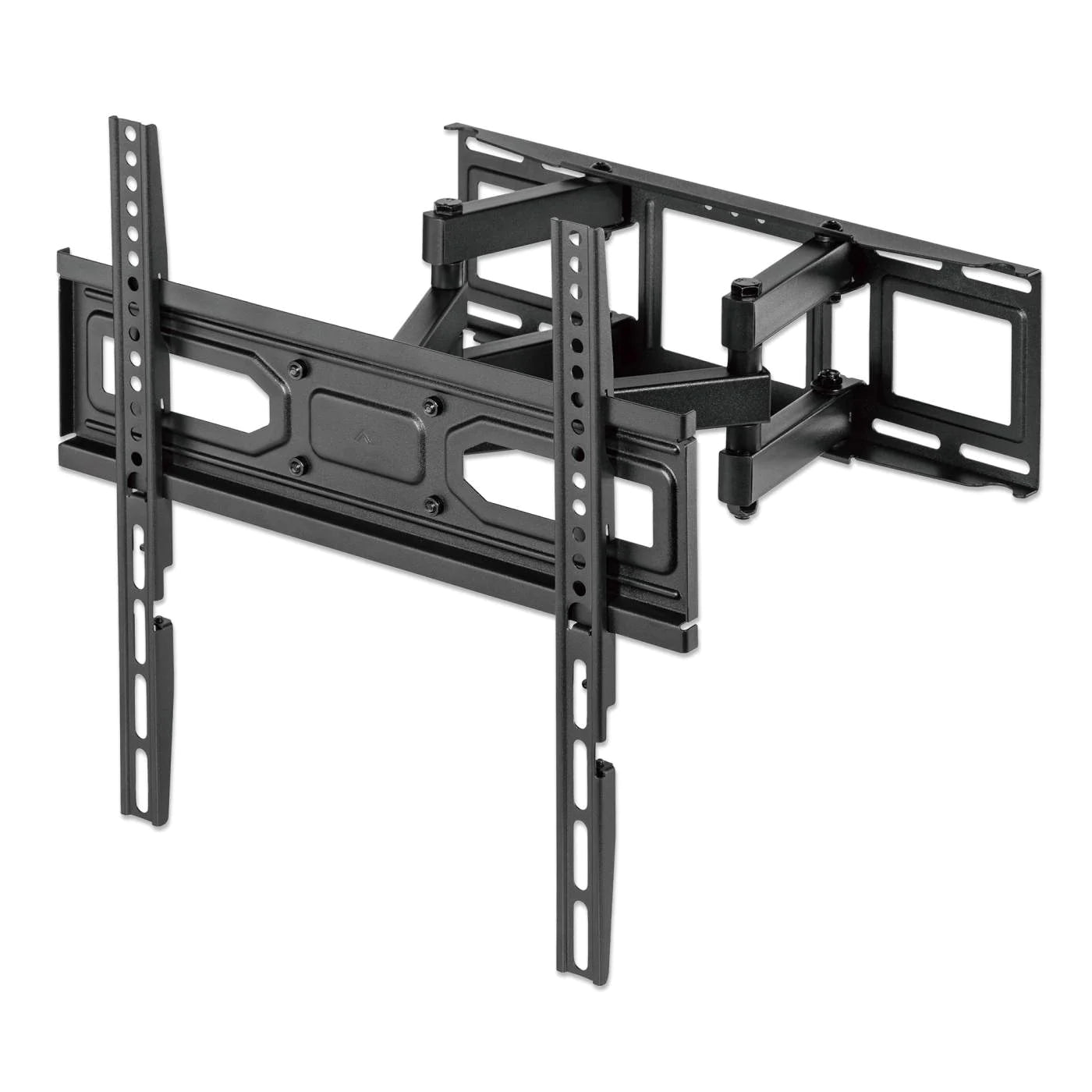

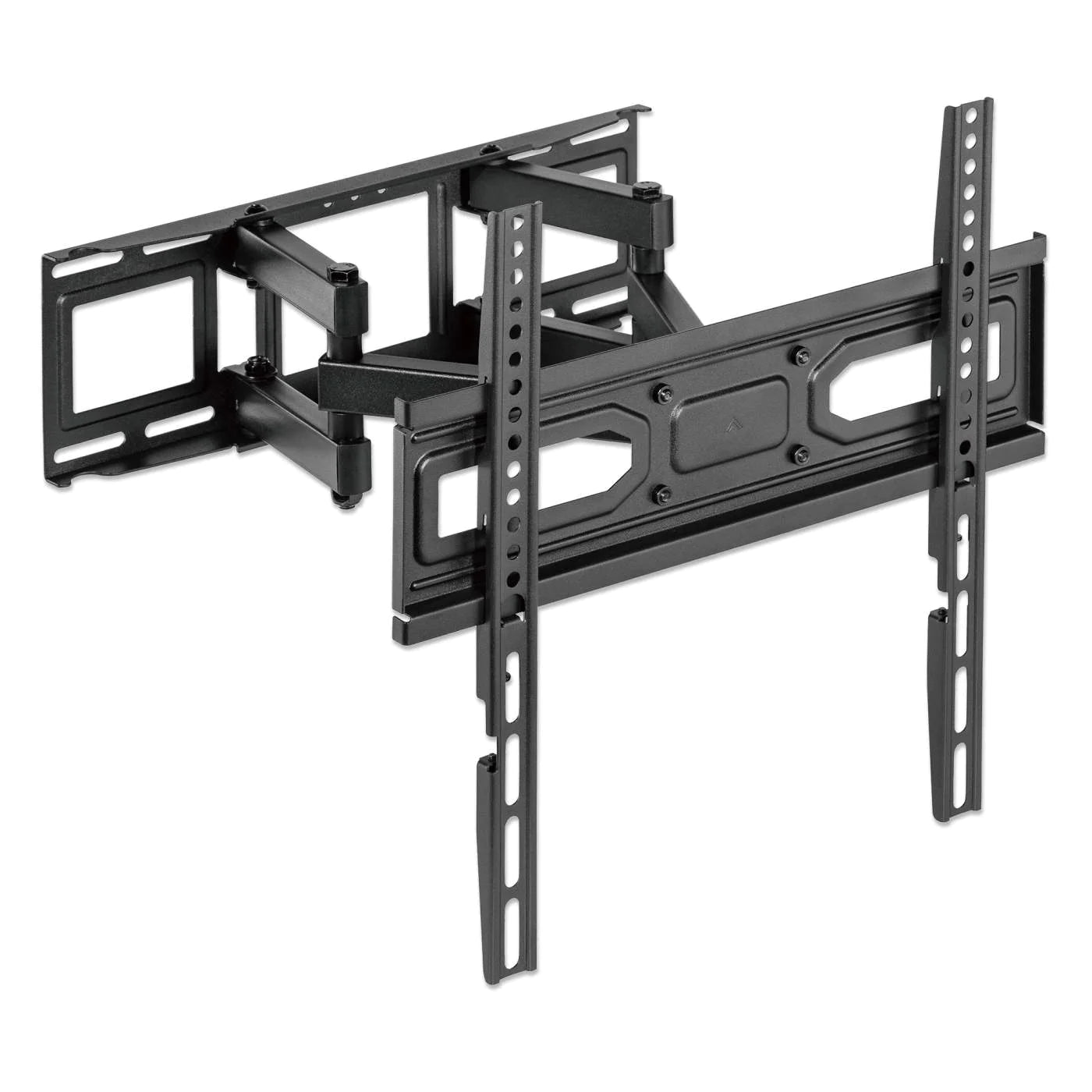

Manhattan 32" - 70" Full-Motion TV Wall Mount
Articulating TV Wall Bracket – fully adjustable mounting bracket to fit almost any space

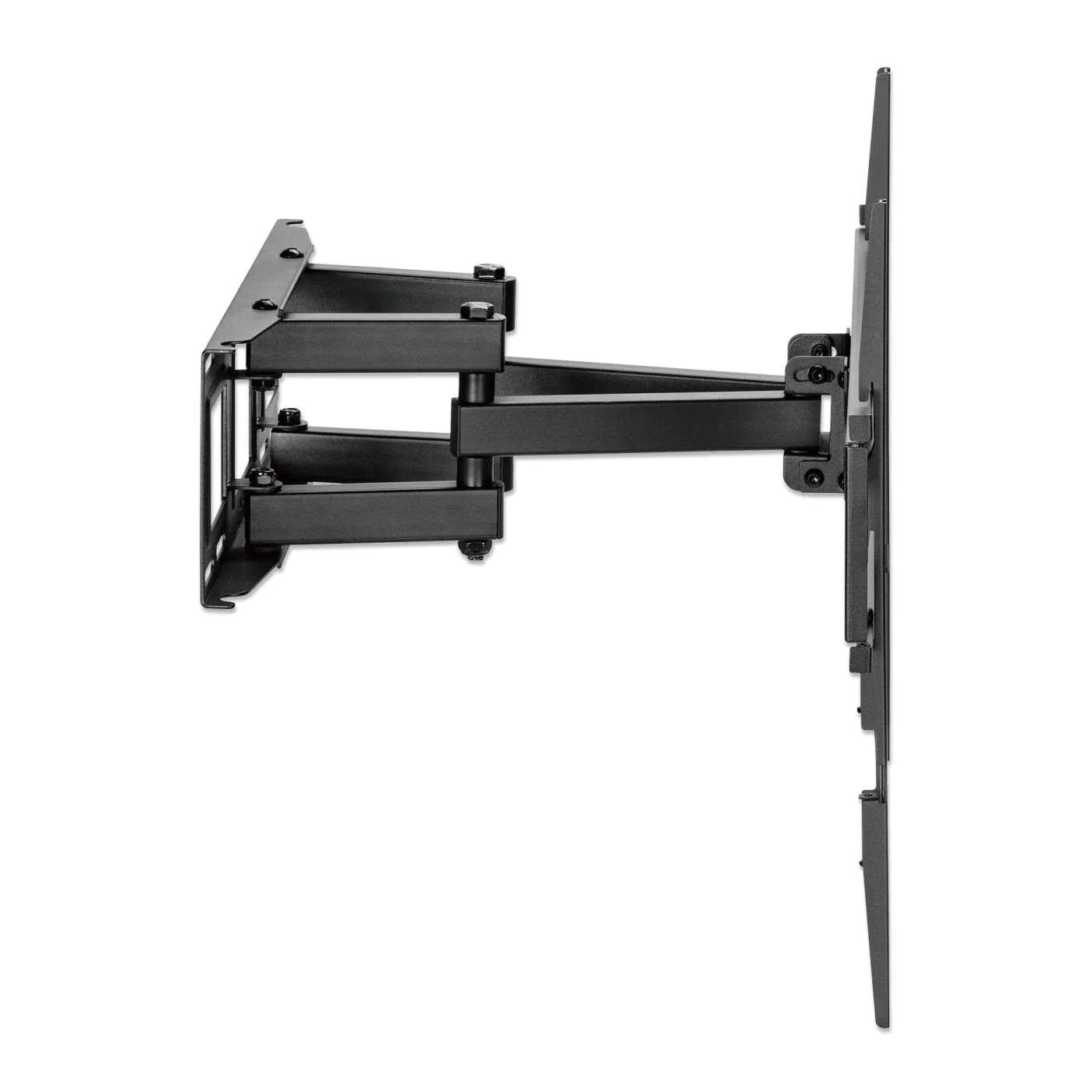

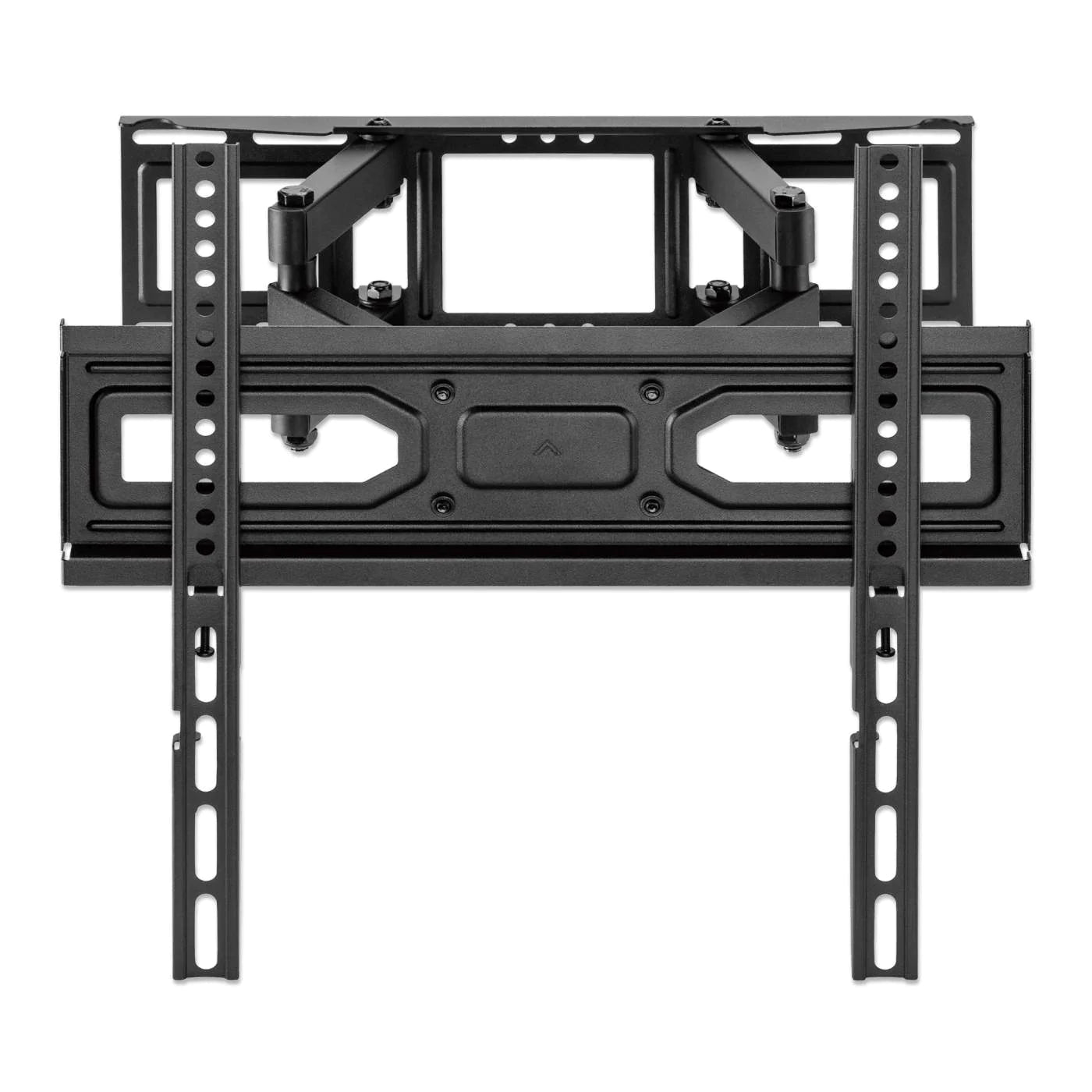

This strong, full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and provides optimized views with +3 to -15° tilt and +/-60° swivel adjustment. It fits flat and curved LCD, OLED or plasma TVs up to 70" and weighing up to 40 kg (88 lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation with an included bubble level and +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classrooms, conference rooms, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.
Supports one flat or curved 32" to 70" TV up to 40 kg (88 lbs.)
Optimized views with +3 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment

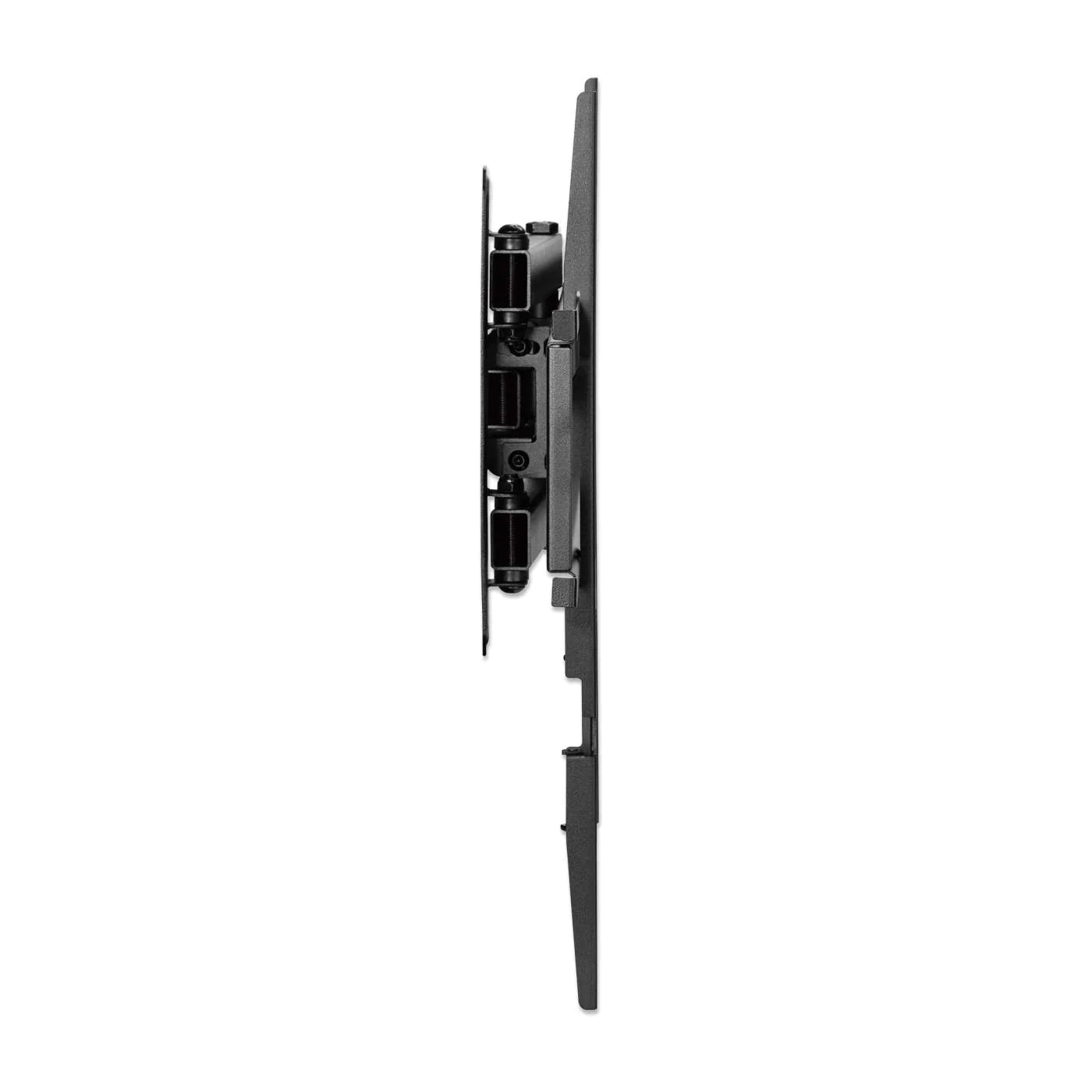

Holds TV 67 to 355 mm (2.6 to 14 in.) from wall

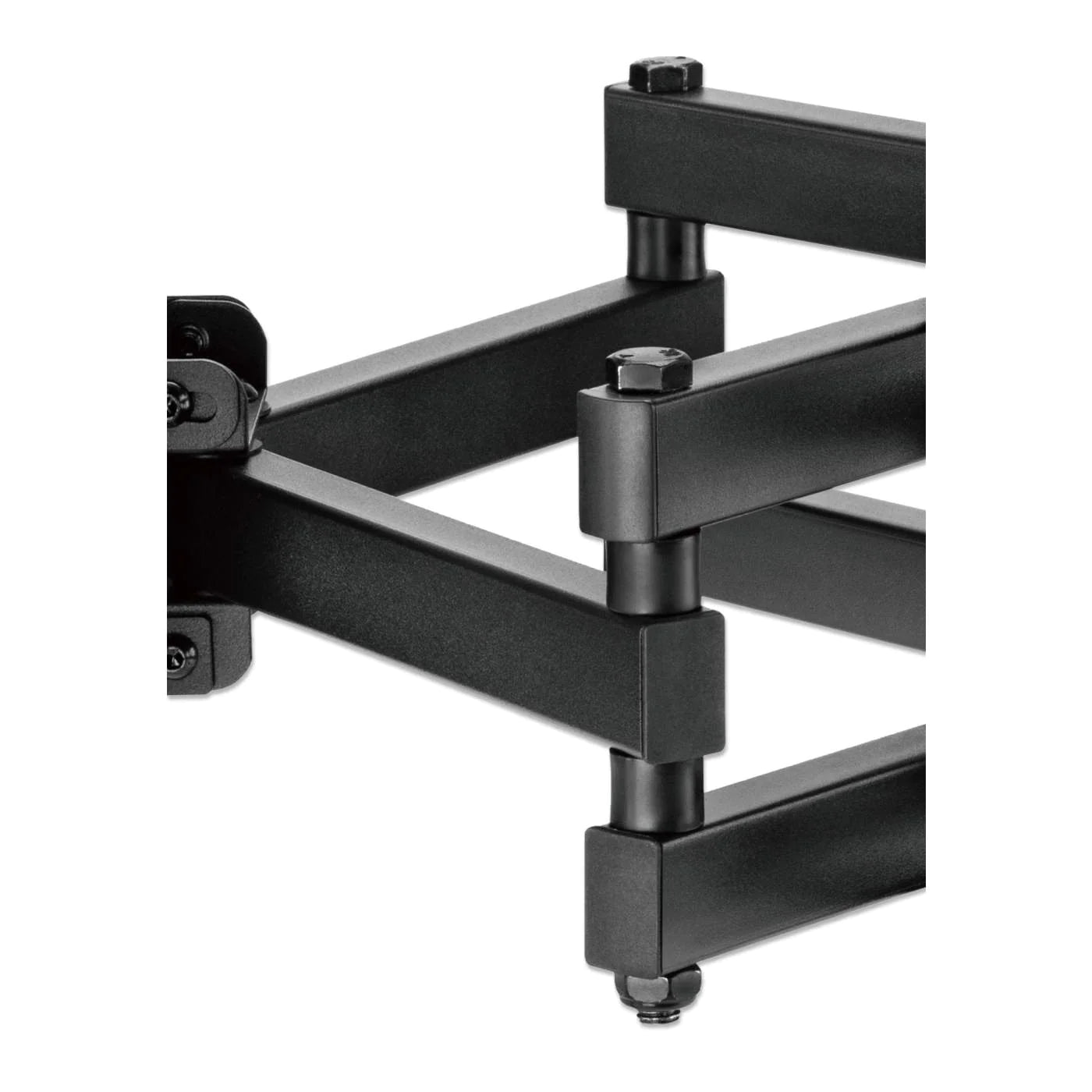

Heavy-duty steel construction with powder coating
Includes attachable bubble level

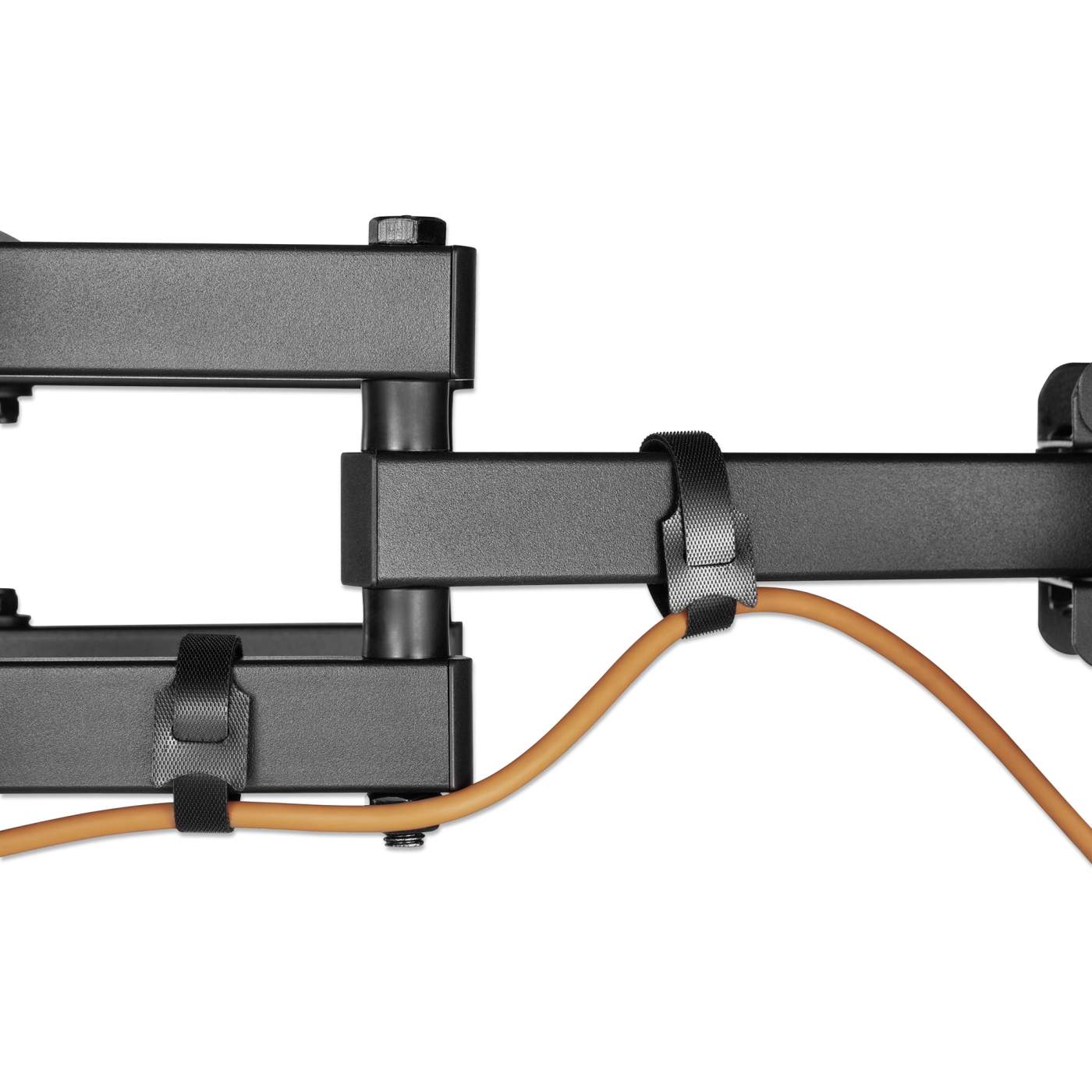

Built-in cable management to minimize clutter
Easy installation; ideal for home, office and commercial applications
Meets VESA standards from 100x100 to 400x400 (e.g., 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 400x400)
Lifetime warranty -

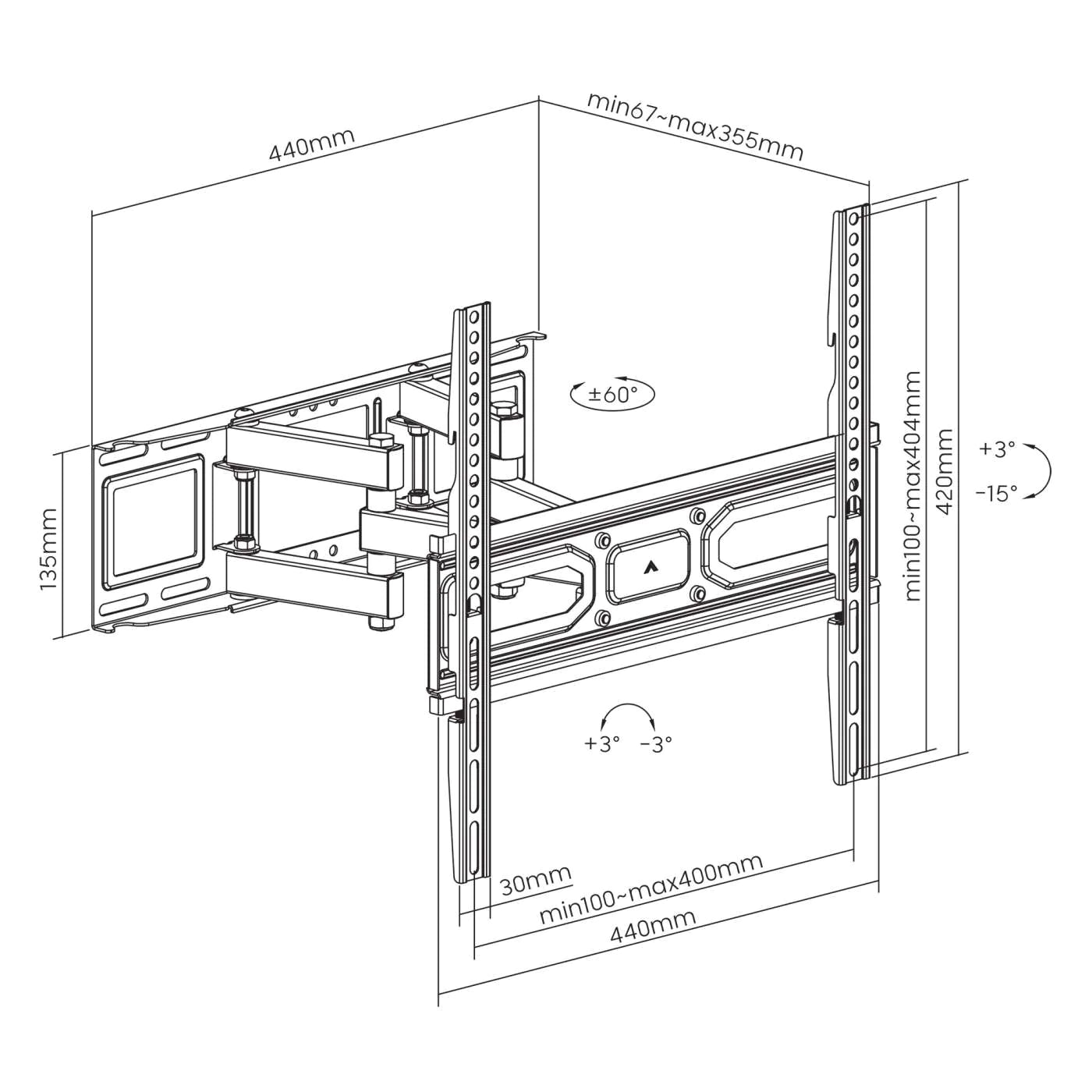

Category Details Design Product colour Black Housing material Steel Weight & Dimensions Weight 3.33 kg Height 420 mm Width 440 mm Depth (max) 35.5 cm Logistics Data Master Case Height 205 mm Master Case Width 460 mm Master Case Gross Weight 22 kg Master Case Length 330 mm Products per Master Case 6 pc(s) Packaging Content Manual Yes Mounting Kit Yes Ergonomics Swivel Angle Range -60 - 60° Tilt Angle Range -15 - 3° Distance to the Wall (Max) 35.5 cm Distance to the Wall (Min) 6.7 cm Swivelling Yes Tilt Adjustment Yes Adjustable Depth Yes Suitable for Curved Screen Yes Mounting Maximum Weight Capacity 40 kg Panel Mounting Interface 100 x 100, 100 x 150, 100 x 200, 150 x 100, 150 x 150, 200 x 100, 200 x 200, 300 x 200, 300 x 300, 400 x 200, 400 x 400, 400 x 300 Mounting Type Wall Minimum Screen Size 81.3 cm (32") Maximum Screen Size 177.8 cm (70") Number of Displays Supported 1 Minimum VESA Mount 100 x 100 mm Maximum VESA Mount 400 x 400 mm Technical Details Orientation Landscape Post-installation Leveling Roll Yes Warranty Period 10 year(s) Packaging Data Package Weight 3.56 kg Package Depth 62 mm Package Height 155 mm Package Width 445 mm Package Type Box -
Description Downloads Manhattan 462433 Full-Motion TV Wall Mount DataSheet Downloads Manhattan 462433 Full-Motion TV Wall Mount Quick Instruction Guide Downloads
