Manhattan 37"-80" Full-Motion TV Wall Mount With Post-Leveling Adjustment | 462440
SKU: 462440
£34.53 (Excl. VAT)
Check display compatibility before you buy
Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
- WarrantyLT Warranty
- Mount ConfigurationMax 1 Screen
- Max Load (kg)40 kg per screen
- Mounting TypeSwivel Wall Mounts
- Screen Sizes37" - 80"
- VESA Patterns600x400
- Description
- Specifications
- Downloads
-

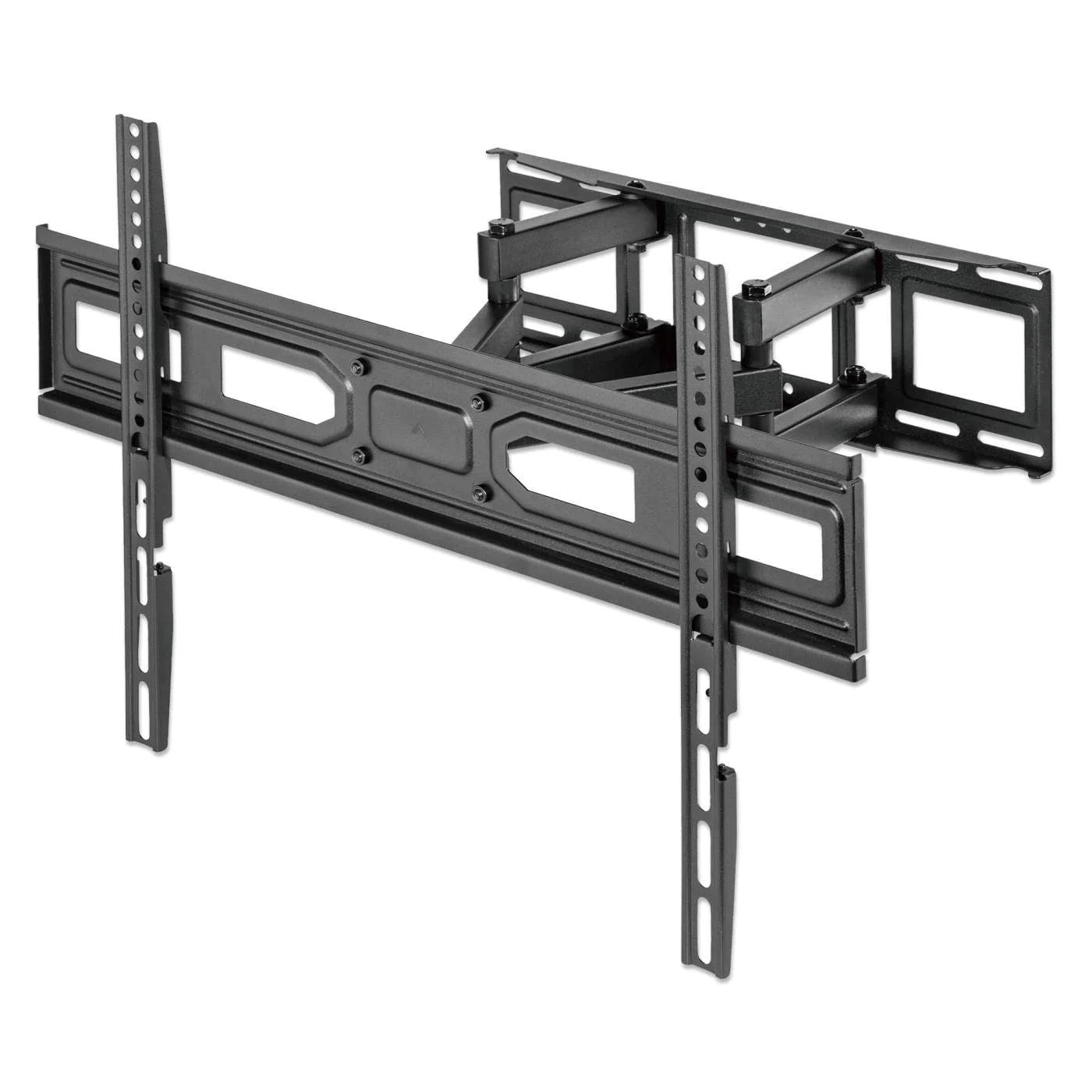

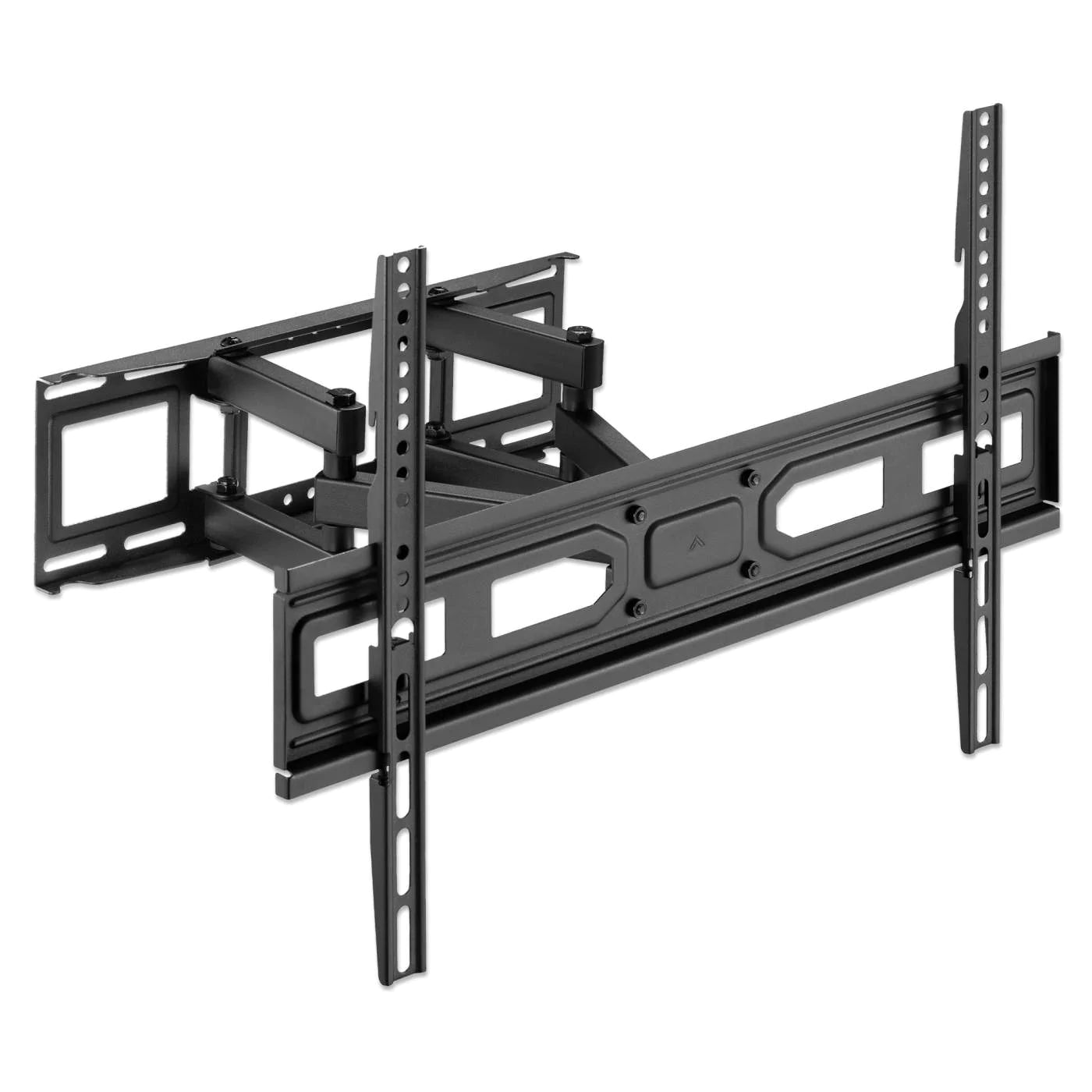

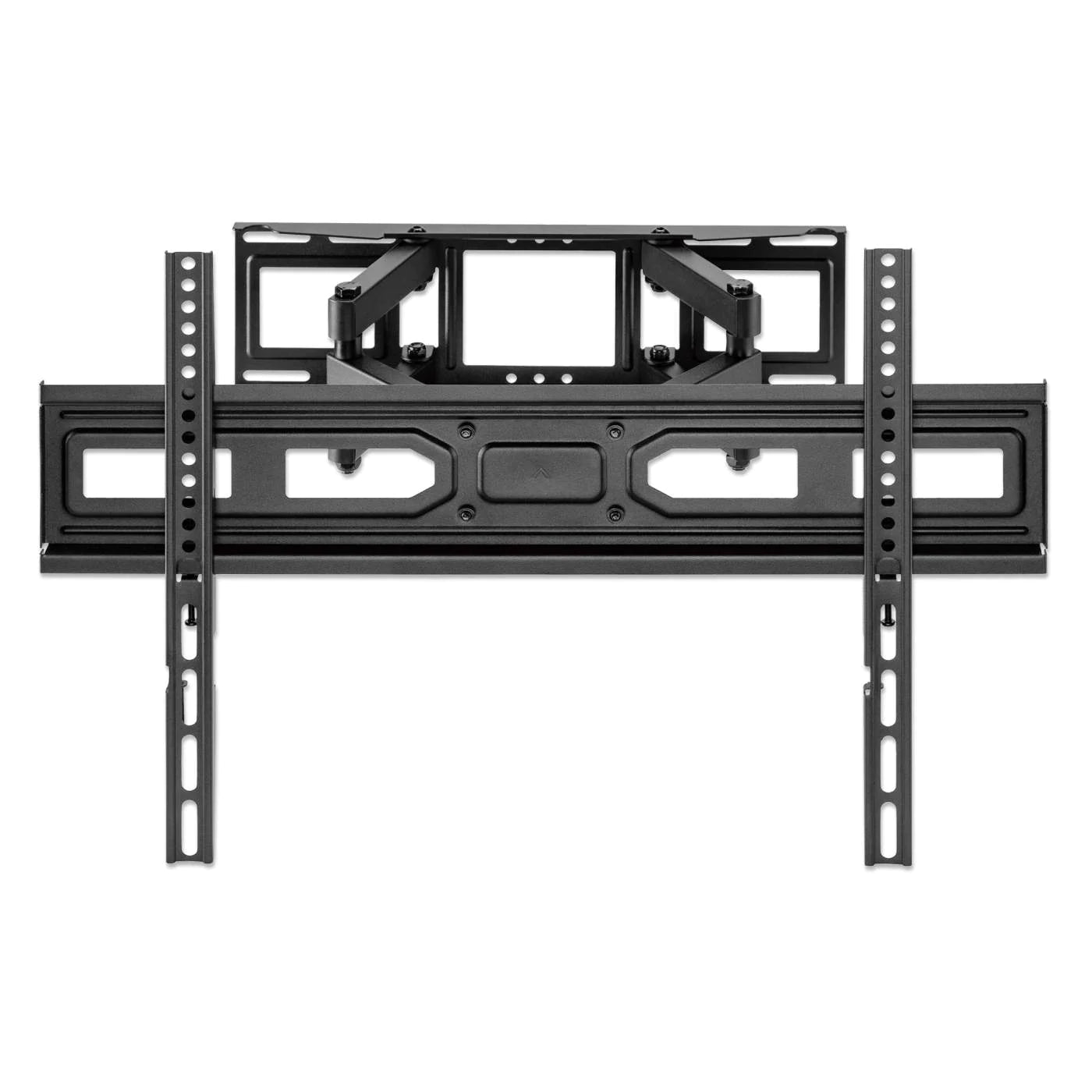

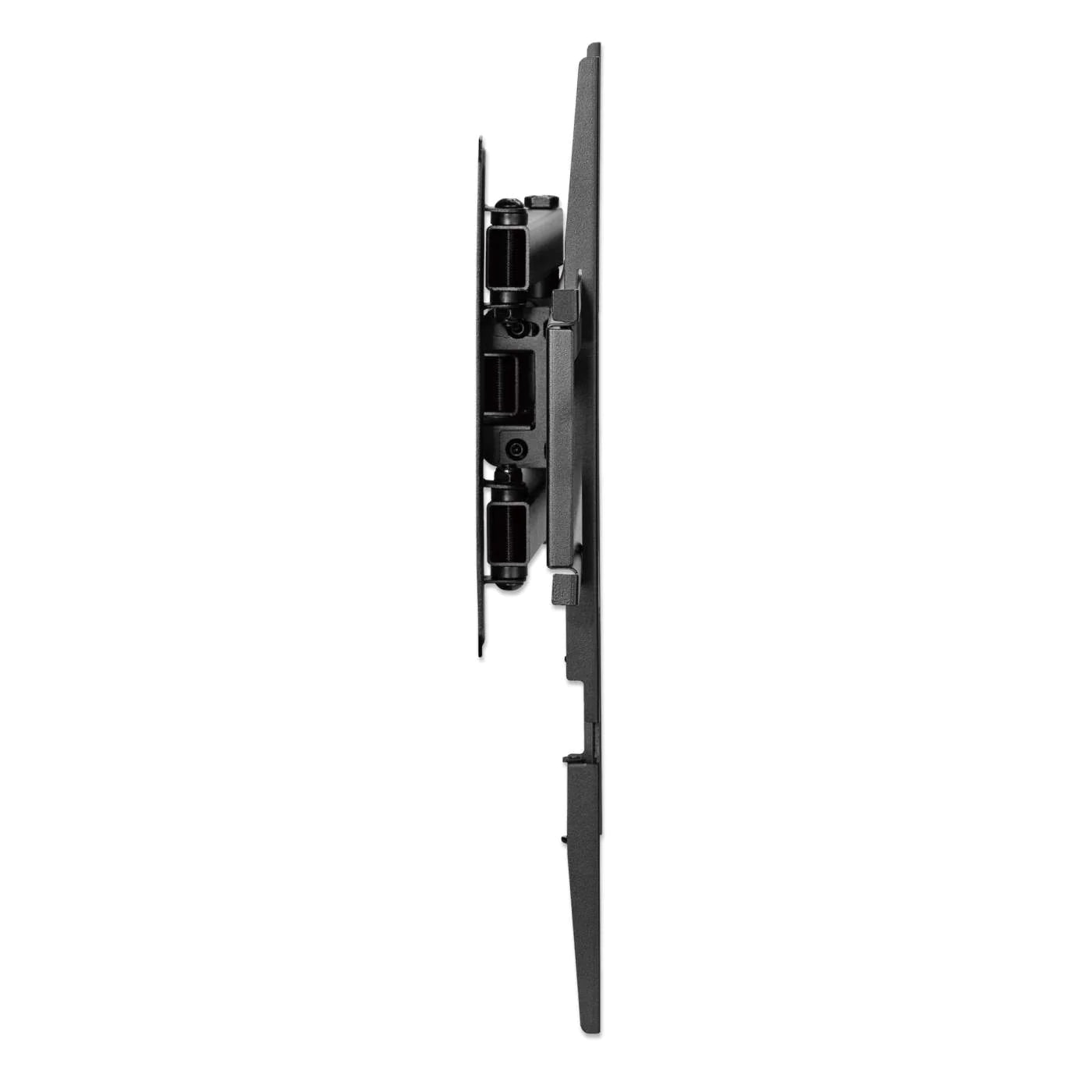

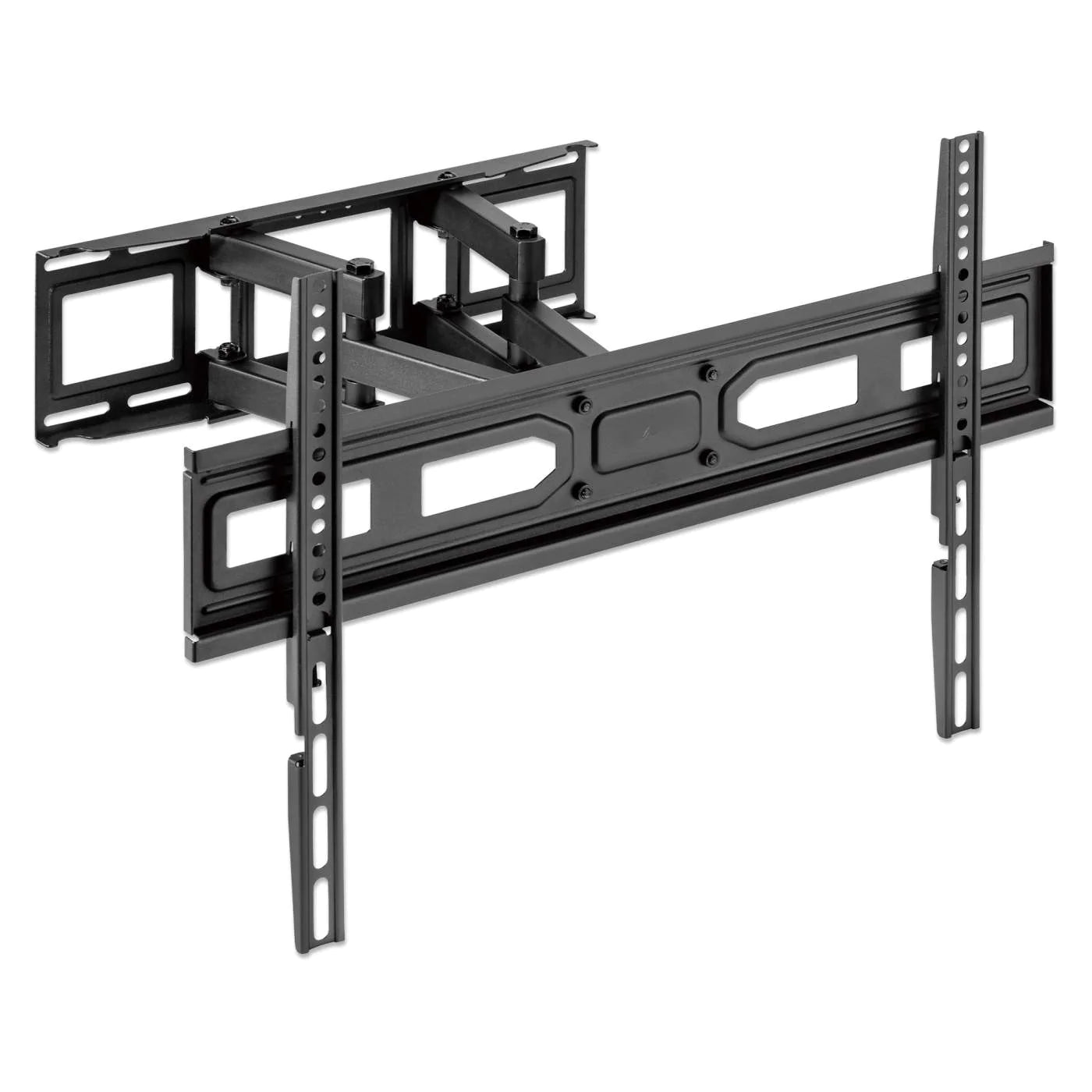

Manhattan 37"-80" Full-Motion TV Wall Mount With Post-Leveling Adjustment
Articulating TV Wall Bracket – fully adjustable mounting bracket to fit almost any space

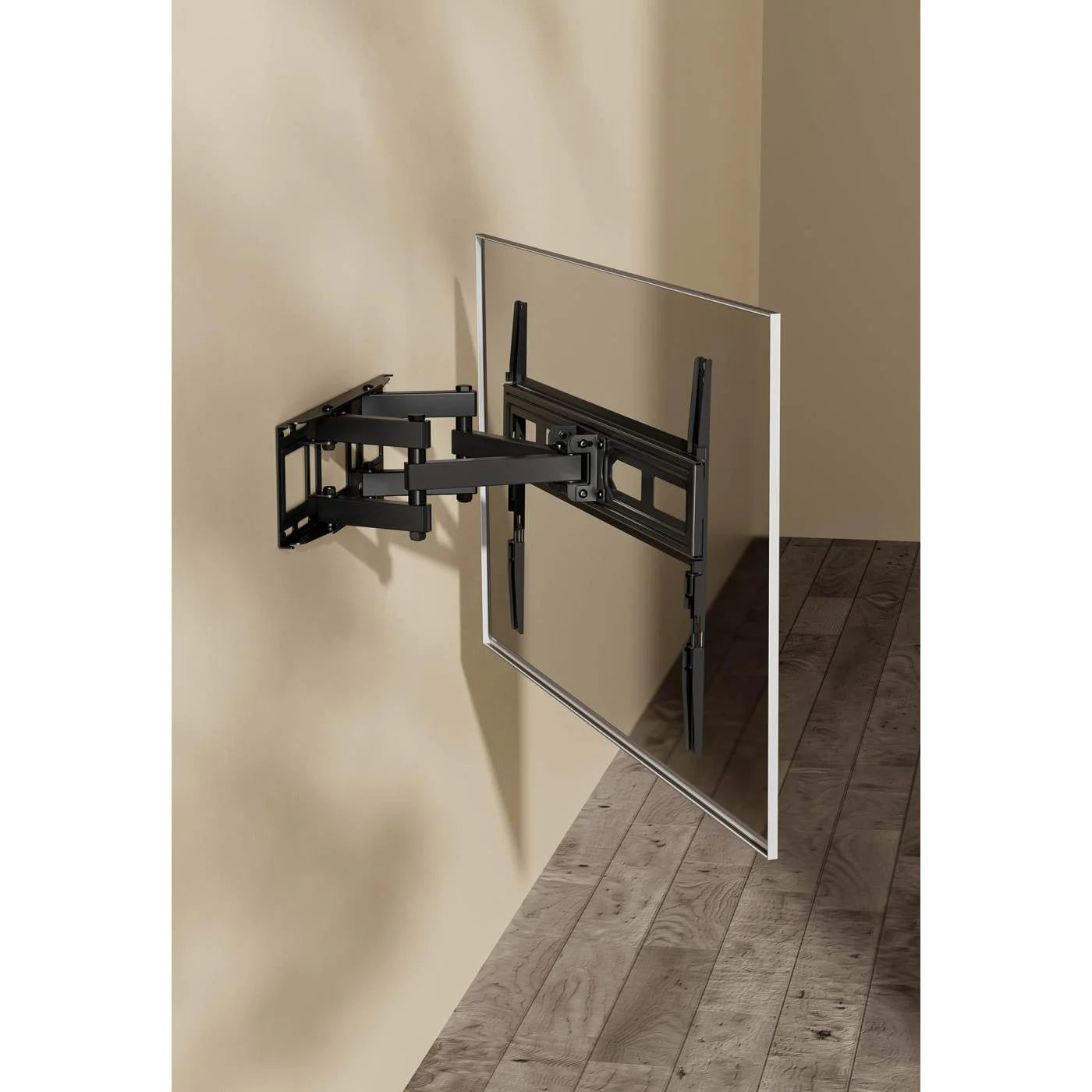

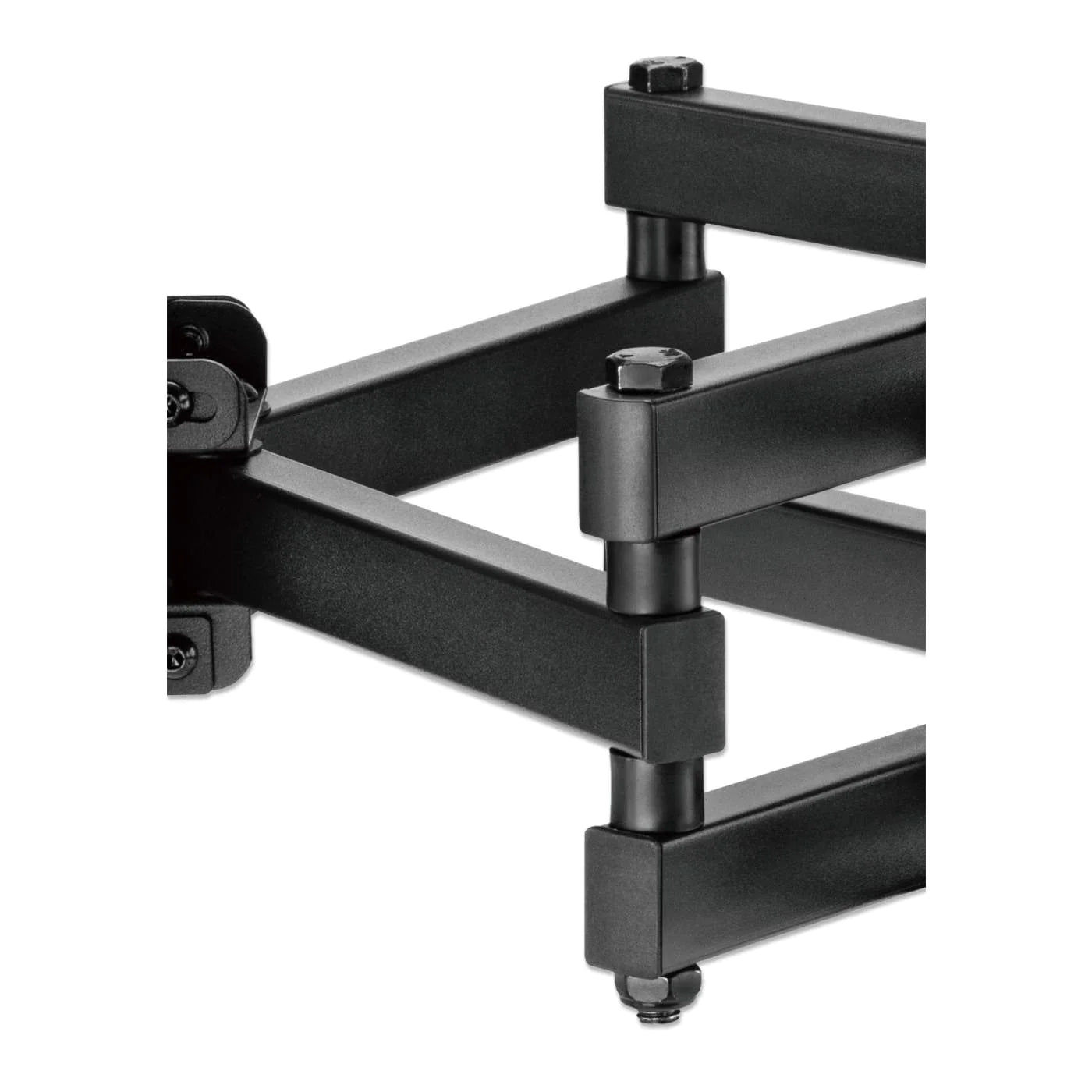

This strong, full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and provides optimized views with +3 to -15° tilt and +/-60° swivel adjustment. It fits flat and curved LCD, OLED or plasma TVs up to 80" and weighing up to 40 kg (88 lbs.) with VESA compliance up to 600x400. You're all set for a confident above-the-floor installation with an included bubble level and +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classrooms, conference rooms, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.
Supports one flat or curved 37" to 80" TV up to 40 kg (88 lbs.)

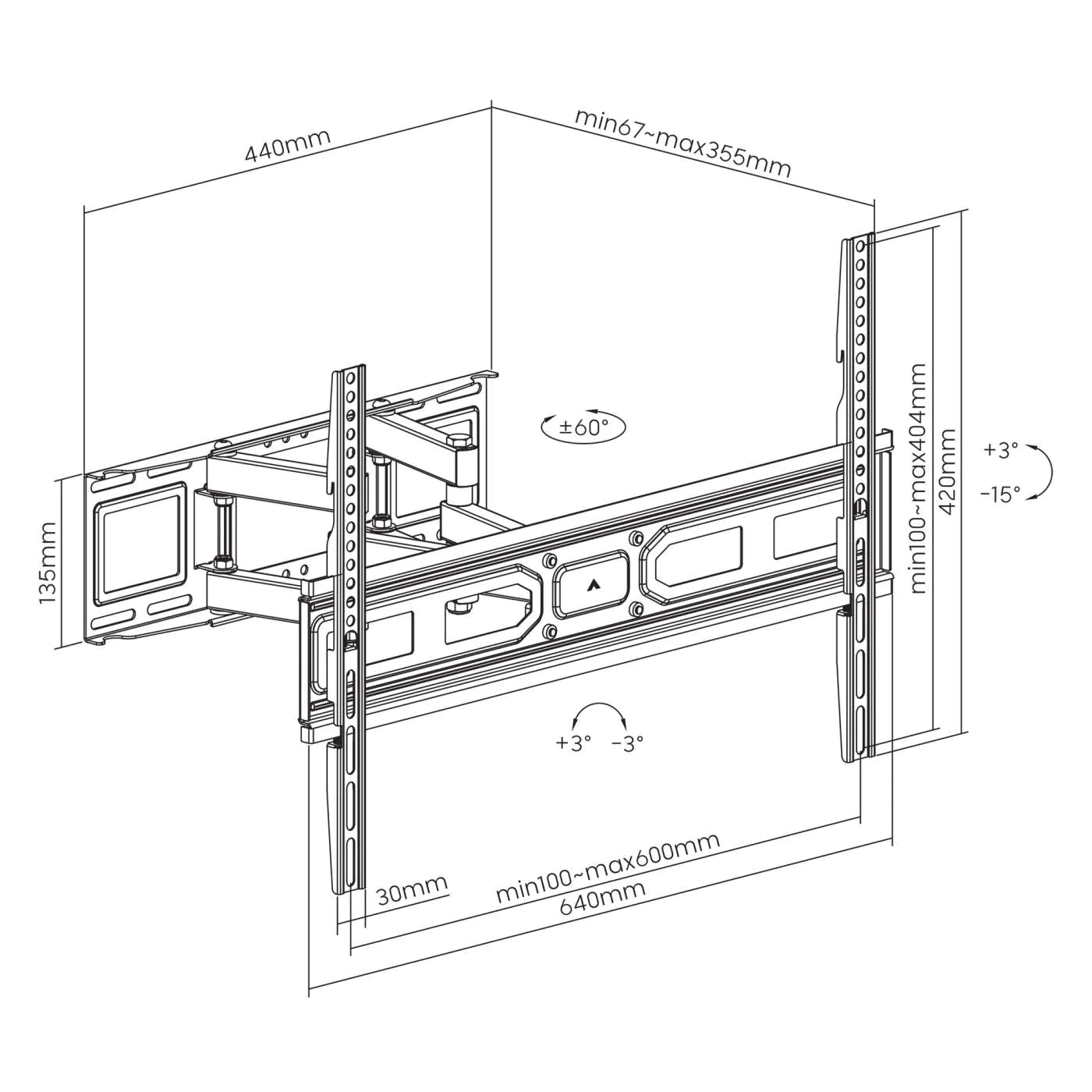

Optimized views with +3 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment

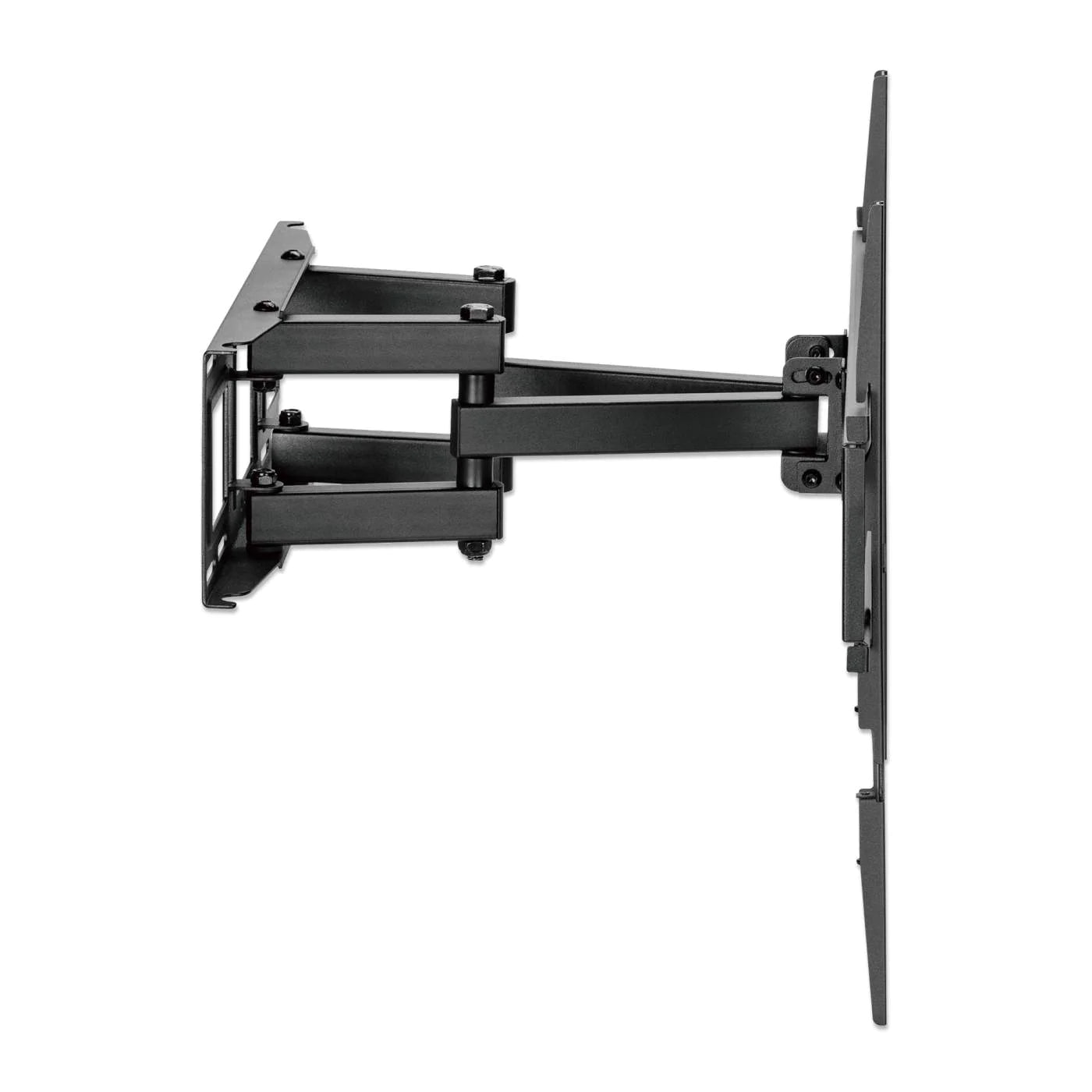

Holds TV 67 to 355 mm (2.6 to 14 in.) from wall
Heavy-duty steel construction with powder coating
Includes attachable bubble level

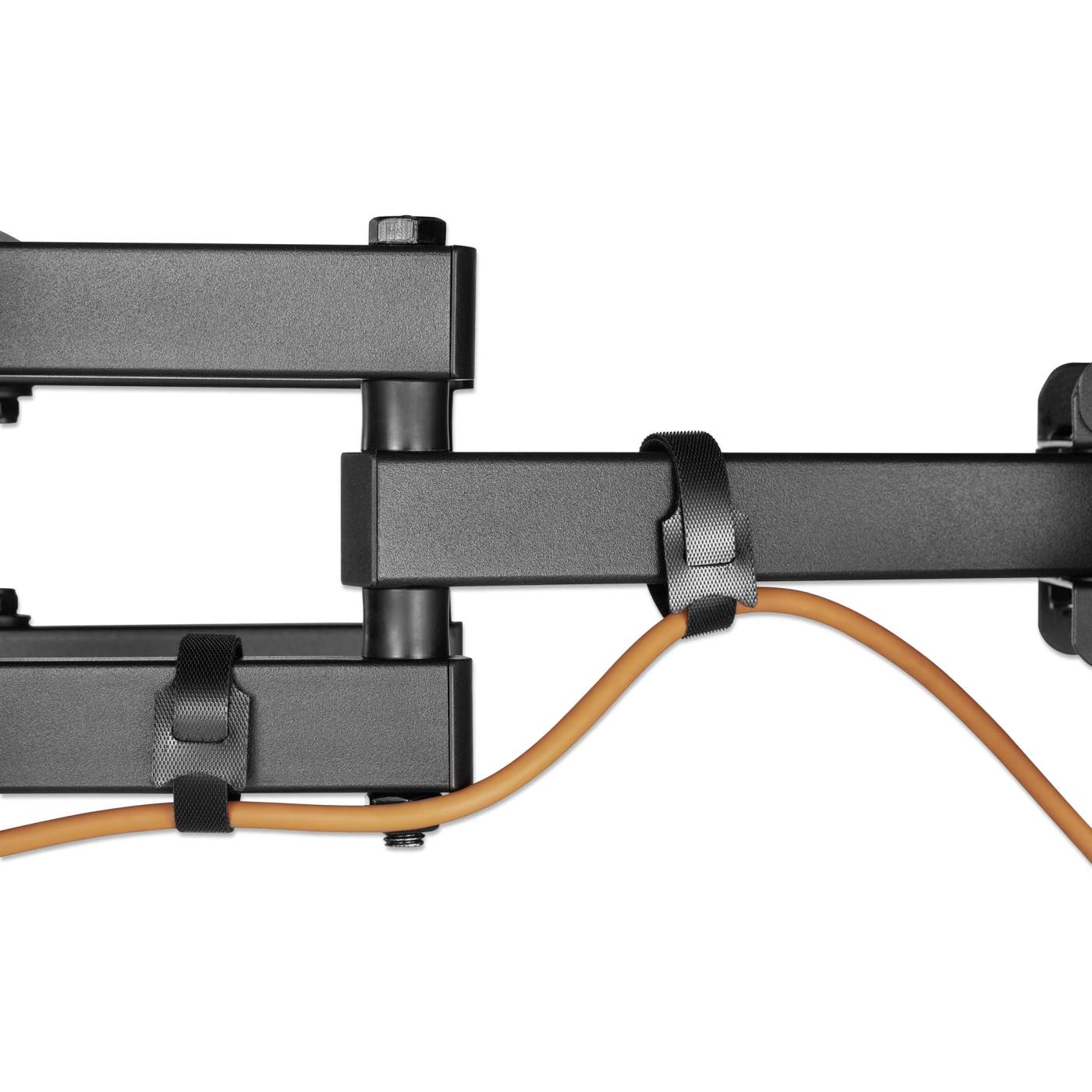

Built-in cable management to minimize clutter
Easy installation; ideal for home, office and commercial applications
Meets VESA standards from 100x100 to 600x400 (e.g., 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 600x200, 400x400, 600x300, 600x400)
Lifetime warranty -
Category Details Warranty Limited Warranty Lifetime Physical Characteristics Finishing Powder Coated Weight (Approximate) 3.40 kg Length 42 cm Height 35.5 cm Width 64 cm VESA Mount Compatible Yes General Information Product Type Mounting Bracket Manufacturer Part Number 462440 Manufacturer Website IC INTRACOM Manufacturer IC INTRACOM Product Name Full-Motion TV Wall Mount with Post-Leveling Adjustment Package Type Retail Brand Name Manhattan Miscellaneous Application/Usage Office, Residential, Classroom, Commercial, Conference Room, Digital Signage, Home, Hospitality Package Contents - Full-Motion TV Wall Mount with Post-Leveling Adjustment - Attachable Bubble Level - Installation Hardware with Instructions Product Information Device Supported OLED TV, TV, Curved Screen Display, LCD TV, Flat Panel Display, Plasma TV Features Heavy Duty, Full Motion, Cable Management, Bubble Level, Articulating, Adjustable, +/- 60° Swivel, +/- 3° Level Adjustment, Adjustable Tilt Maximum Load Capacity 40 kg Minimum Screen Size Supported 94 cm Maximum Screen Size Supported 203.2 cm (80") Number of Displays Supported 1 -
Description Downloads Manhattan 462440 Full-Motion TV Wall Mount DataSheet Download Manhattan 462440 Full-Motion TV Wall Mount Quick Instruction Guide Download
