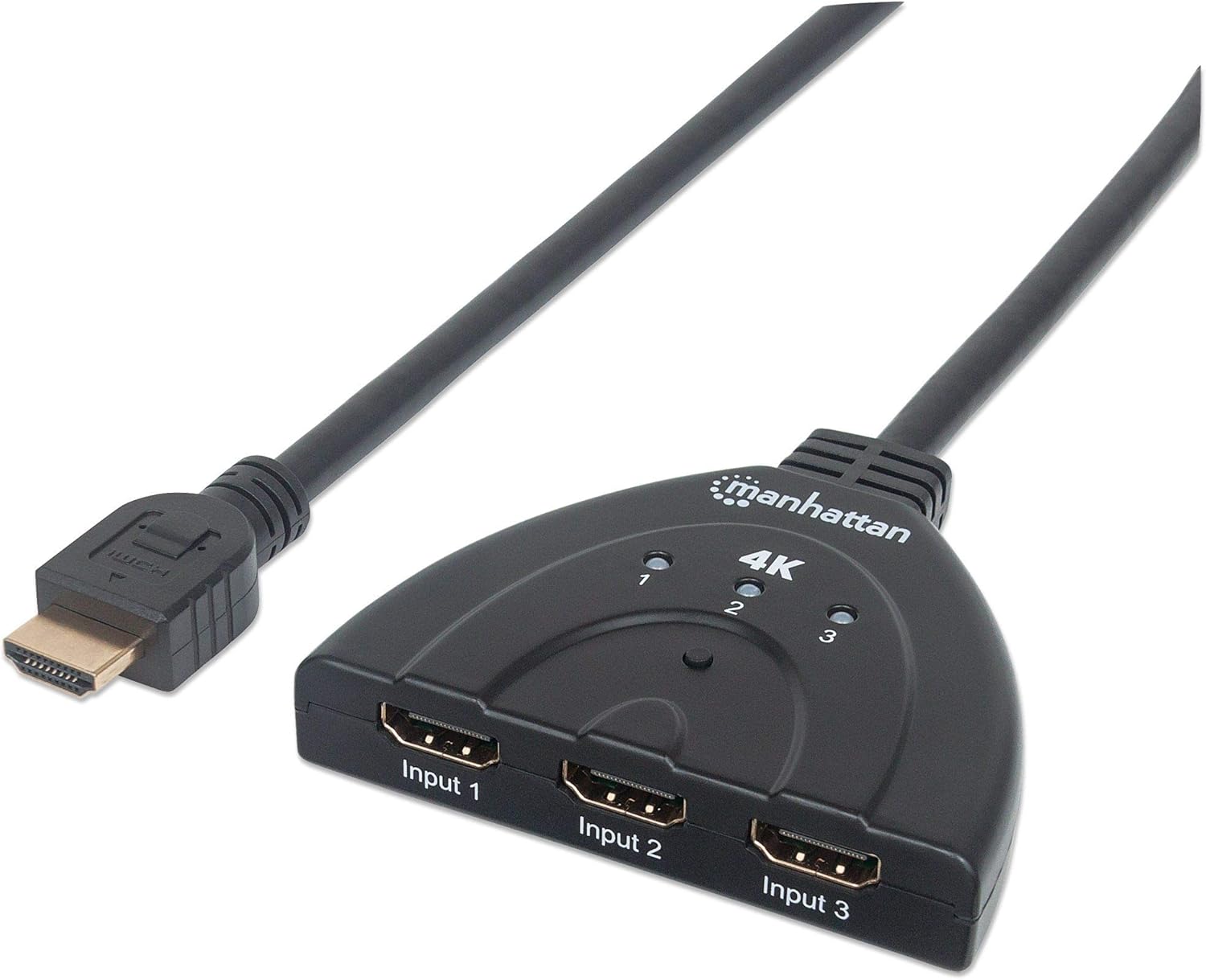

Manhattan 4K@60Hz 3-Port HDMI Switch | 207874
Easily connect multiple HDMI sources to a single display.

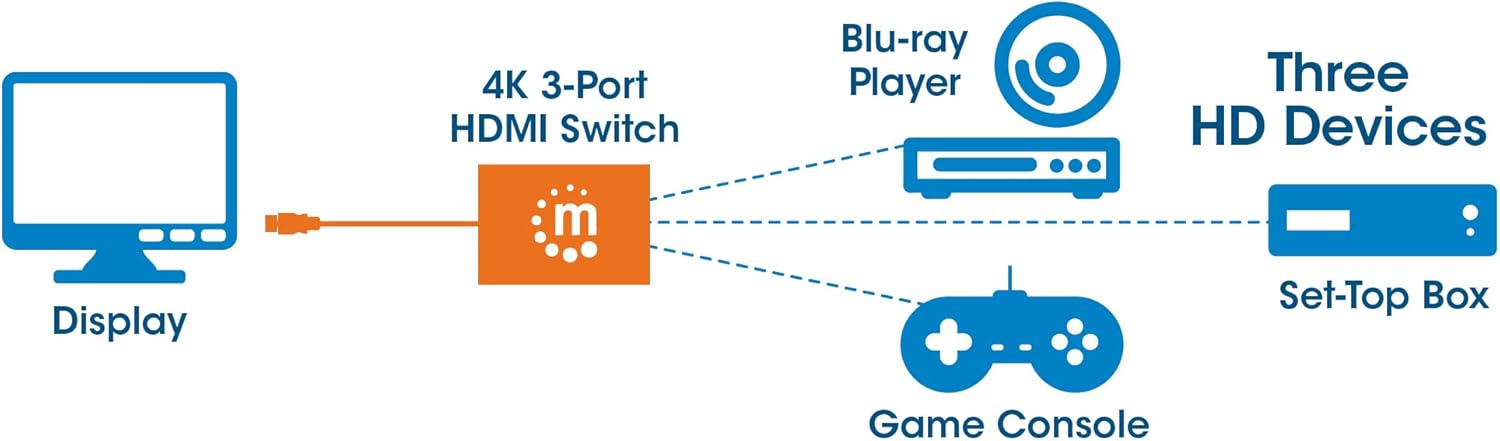

The Manhattan 4K 3-Port HDMI Switch allows media enthusiasts to connect three HDMI video sources — including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices — to a single Ultra-High-Definition (UHD) display.
Flexible Solution for Many HD Applications
With the increased number of high-definition media devices, the Manhattan 4K 3-Port HDMI Switch expands the connectivity options for your UHDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. Additionally, it offers a switching button so you can manually select sources when more than one UHD video source is on at the same time.
Best Possible Image Quality
Full compliance with HDMI and HDCP 2.2/1.4 ensures the Manhattan 4K 3-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers full 4K resolution images and supports 3D video as well as LPCM, DTS and Dolby TrueHD audio.
Features
Connects up to three Ultra-High-Definition (UHD) video sources to a single HDMI display
Supports automatic switching (when an UHD signal is detected) and manual switching (between sources with the push of a button)
Supports video amplifier bandwidth up to 600 MHz and 6.0 Gbps per channel (18 Gbps total) for 4Kx2K displays
Supports 36-bit Deep Color (12-bits per channel), 4:4:4 chroma subsampling and YCbCr 4:2:0 color formatting
Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio
Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
HDCP compliant
Plug and play: no special setup, power or remote required
Integrated HDMI cable
Gold-plated contacts for corrosion-free connections
Three-year warranty
| Category | Attribute | Value |
|---|---|---|
| Standards | Certifications | HDCP 2.2 / 1.4, CE, FCC, RoHS2 |
| General | Display Range | Up to 10 m (33 ft.) |
| USB Power Cable | 0.7 m (2.3 ft.) | |
| Power Consumption | 2 W | |
| Source to Switch Distance | 5m: 4K@60Hz (4:4:4, HDR), 10m: 1080p | |
| Connections | HDMI Output | 1 x HDMI male, 19-pin |

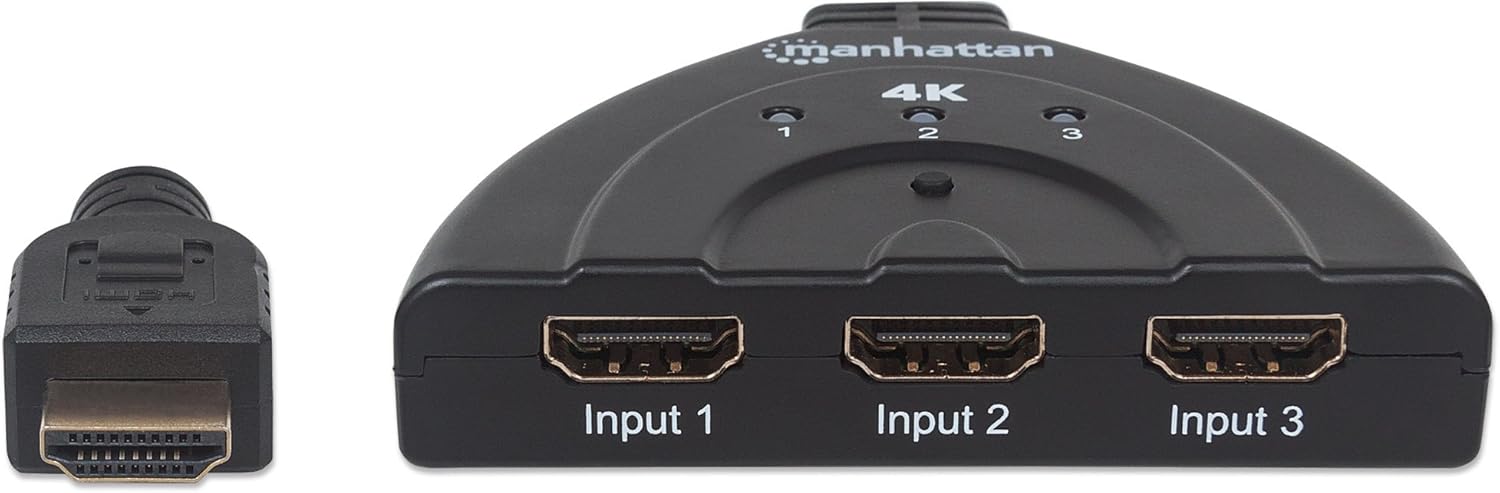

| HDMI Inputs | 3 x HDMI female, 19-pin | |

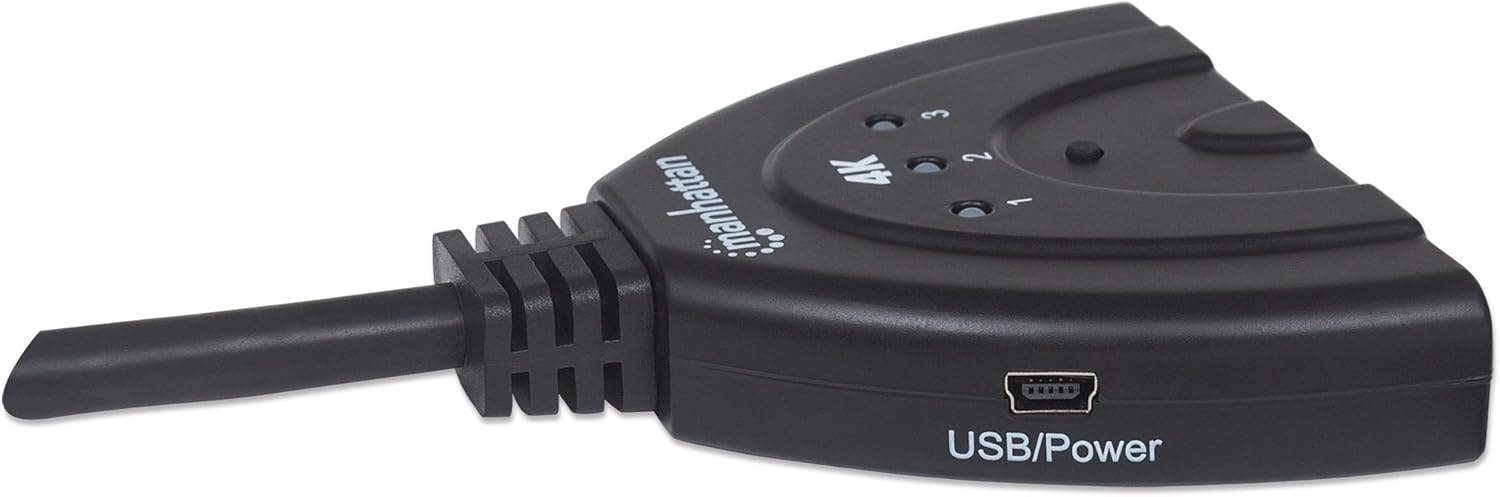

| Power Input | 1 x USB Mini-B, 5-pin | |
| Signal | Input Video Signal | 400 – 600 mV |
| Input DDC Signal | 5 V p-p (TTL) | |
| Max Range & Resolution | 18 Gbps, 4096x2160 @ 60 Hz | |
| Output Video | HDMI 2.0, HDCP 2.2 | |
| Supported Resolutions | Video Formats | 480i/p, 576i/p, 720p, 1080i/p |
| Physical | LED Indicators | Power & port status |
| Dimensions | 82 x 61 x 15 mm (3.2 x 2.4 x 0.6 in.) | |
| Cable Length | 58 cm (20 in.) | |
| Weight | 0.09 kg (0.2 lb.) | |
| Housing | Plastic | |
| Environment | Operating Temp | 0 – 40°C (32 – 104°F) |
| Storage Temp | -20 – 60°C (-4 – 140°F) | |
| Humidity | 0 – 96% (non-condensing) | |
| Package | Included | HDMI switch, USB cable, Quick Guide |
| Description | Downloads |
|---|---|
| Manhattan 4K@60Hz 3-Port HDMI Switch | 207874 Quick Instruction Guide | Downloads |
