DisplayPort Cable, 2m, featuring future-proof 8K@60Hz for high-end gaming and AV applications
The Manhattan DisplayPort Monitor Cable makes you ready for even the most demanding graphic challenges in gaming, digital signage and other high-end AV applications. Its superior DisplayPort 1.4 standard delivers images in brilliant 8K (7680 x 4320) at rapid 60 Hz or 4K UHD at blazing fast 144 Hz with HDR for perfect contrast and colors. The triple shielding and gold-plated contacts provide maximum conductivity as well as crisp, clear signal transmissions with zero EMI interference.
Features

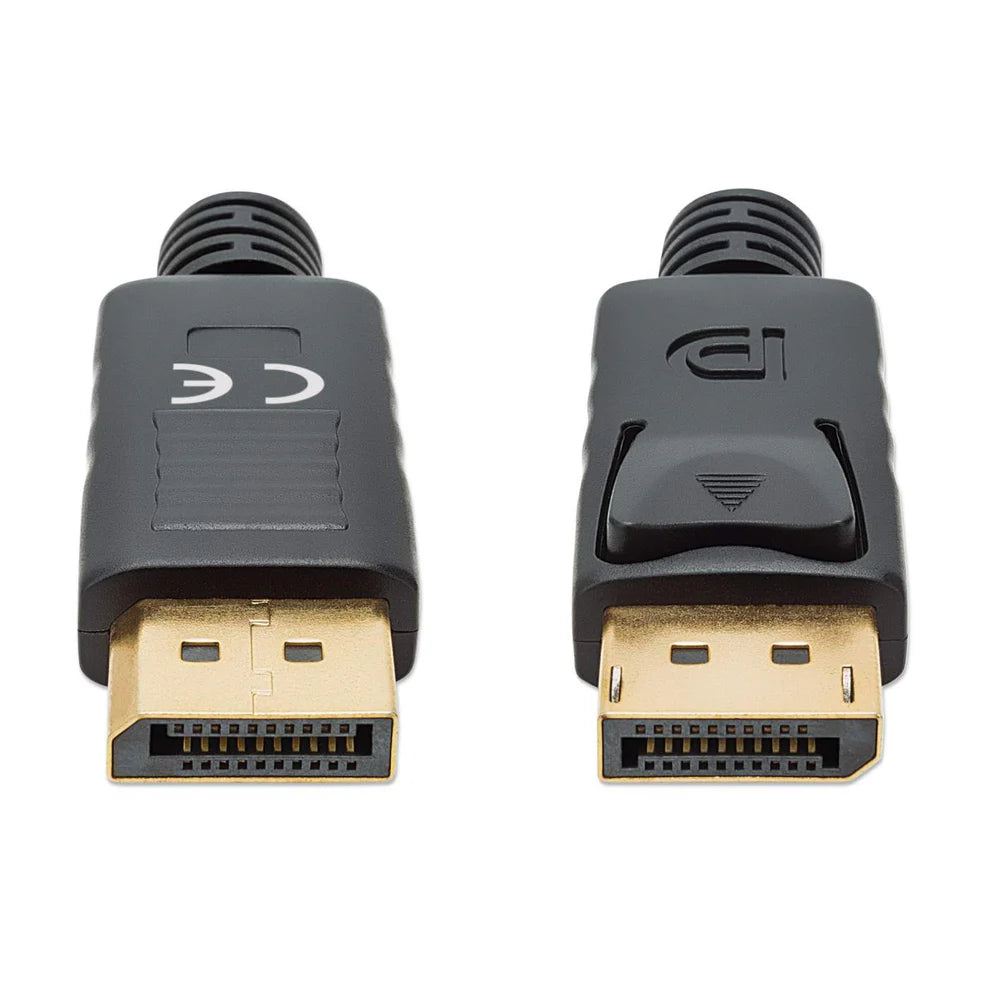

DisplayPort 20-pin male to DisplayPort 20-pin male latching connections
DisplayPort 1.4 with state-of-the art, future-proof features for high-end gaming and AV applications
Supports resolutions 8K@60Hz, 4K@144Hz, 1440p@144Hz (UWQHD), 1440p@165Hz (WQHD) and 1080p@240Hz
HDR for superior contrast and brilliant colors
Supports Dolby Vision™ and Dolby Atmos®
Up to 32.4 Gbps bandwidth
Gold-plated contacts for corrosion-free connections
Triple shielded to reduce EMI and other interference sources
Unwired Pin 20 to prevent short circuits
Supports Multi-Stream Transport (MST) to daisy-chain multiple displays
Uncompressed 32-channel audio
Fully compliant with DisplayPort High Bit Rate 3 (HBR3)
Display Stream Compression 1.2 (DSC) for maximum resolution output
HDCP 2.2 compliant
Lifetime warranty
| Standards & Certifications | DisplayPort v1.4, CE, RoHS, HDCP 2.2 | Connectors | Two DisplayPort 20-pin males with latches |
| Conductors | 19 conductors | Contacts | Gold-plated contacts |
| Connector Housing | ABS shell housing | Cable Gauge | 28 AWG |
| Shielding | Triple shielding: aluminum foil & braid | Withstanding Voltage | 300 VDC |
| Insulation Resistance | 5 MΩ | Contact Resistance | 10 Ω |
| Jacket Material | PVC | Cable Length | 2 m (7 ft.) |
| Weight | 131 g (4.62 oz.) | Operating Temperature | 0 - 40°C (32 - 104°F) |
| Storage Temperature | -20 - 60°C (-4 - 140°F) | Humidity | 0 - 96% (non-condensing) |
| Package Contents | 8K@60Hz DisplayPort 1.4 Cable |
| Description | Downloads |
|---|---|
| Manhattan 8K@60Hz DisplayPort 1.4 Cable | 355575 DataSheet | Download |
