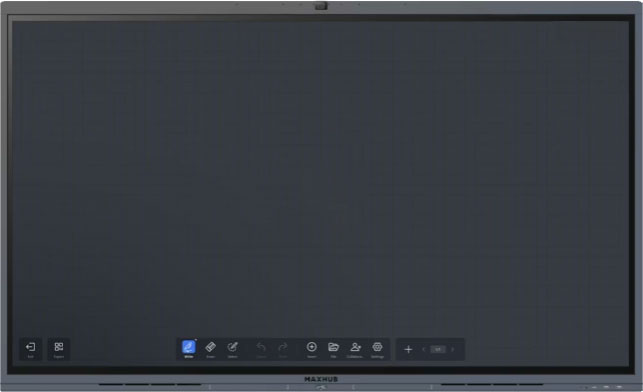

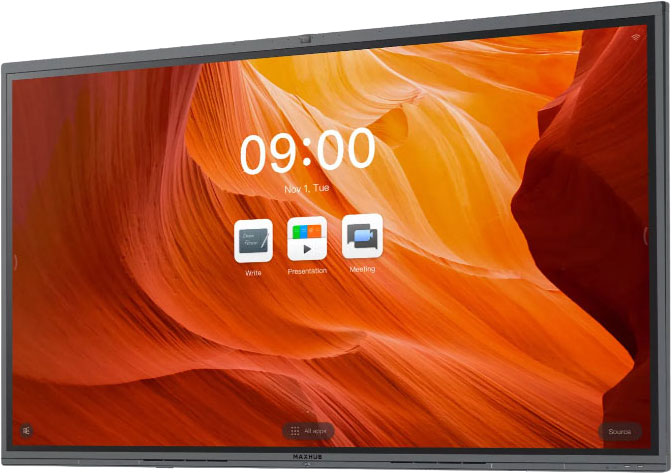

MAXHUB C6530 65” 4K Classic All-in-one Zoom Conference Touchscreen Display
Refine Meeting Efficiency
Drive productive teamwork and increase organizational efficiency with this meeting room must-have. Integrating professional video conferencing, seamless screen sharing, advanced whiteboard technology, and a brilliant audiovisual experience, the MAXHUB V6 Classic Series is the ultimate corporate-collaboration assistant.
Plug and Play
A complete, seamless design fulfills every meeting requirement, including a built-in camera, mic, and touch panel. Whether video conferencing or hosting a local discussion, it's as easy as plugging in your power cable.
See Every Detail in Ultra-HD
Experience 1.07 billion colors in brilliant detail with high-color gamut and ultra-HD, 4K display, promising a professional-grade image quality. Zero-bonding technology effectively reduces air refraction and parallax for enhanced visual clarity.
Experience Vibrant, Deep Colors
The V6 Classic Series features a 90% NTSC high-color gamut across a variety of formats, including presentations, printed documents, and video clips.
Never Worry about Scratches
High-strength, anti-glare, tempered glass significantly reduces scratches in over time use. Poor lighting is no longer an issue during conferencing – the screen remains bright, displaying intricate detail.
Vivid Imagery with high-color-accuracy Display
Pre-calibrated before delivery to restore the original color and achieve professional-grade imagery.
Advanced, Intuitive Video Conferencing
Experience next-level video conferencing with a wide field of vision, and crystal-clear, amplified audio. Thanks to auto-framing, the V6 Classic Series intuitively adjusts to the number of meeting participants and their location.
The newly upgraded 48MP camera ensures crisp detail during multi-participant video conferencing, while its 92° HFOV ultra-wide-angle lens expands the field of view to achieve a panoramic perspective. WDR Dynamic Anti-Backlight technology maintains ideal lighting contrast, preserving image clarity even under extreme lighting conditions.
Auto-Framing for a Face-to-Face Feel
With auto-framing, the V6 Classic Series display automatically adjusts to achieve the best angle based on the number of participants and their location, so it feels like a face-to-face interaction.
Speaker Tracking
8 microphones and speaker-tracking technology locate the sound source in real-time, ensuring the speaker is always the center of attention.
Exceptional Voice Clarity
8 non-equidistant microphone arrays
Built-in AI noise reduction
2.1 channel stereo sound
2x10W+20W (subwoofer) seam speakers
The V6 Classic Series microphone supports 8-meter, 180° wide-angle voice pickup, while AI noise-reduction technology enhances the human voice, filtering interference. Designed with powerful seam speakers, exceptional voice clarity is guaranteed.
Easy, Wireless Screen-sharing
The V6 Classic Series' dual WiFi modules simultaneously support a screen-sharing hotspot and Wi-Fi network connection. With low image latency, you'll enjoy a faster, more stable connection, and a superb screen-sharing experience.
Perfectly Synced
The V6 Classic Series' front-facing Type-C interface design allows you to cast from, and control, your own devices through the touchscreen. You can also use its camera, microphone, and speakers directly from your laptop. Wired screen-sharing requires just one Type-C cable – it's that easy.
Prioritizing Healthcare
Antibacterial glass, antibacterial passive styluses, and an antibacterial power button keeps you safe.
Effortless Access with MAXHUB OS 6.0

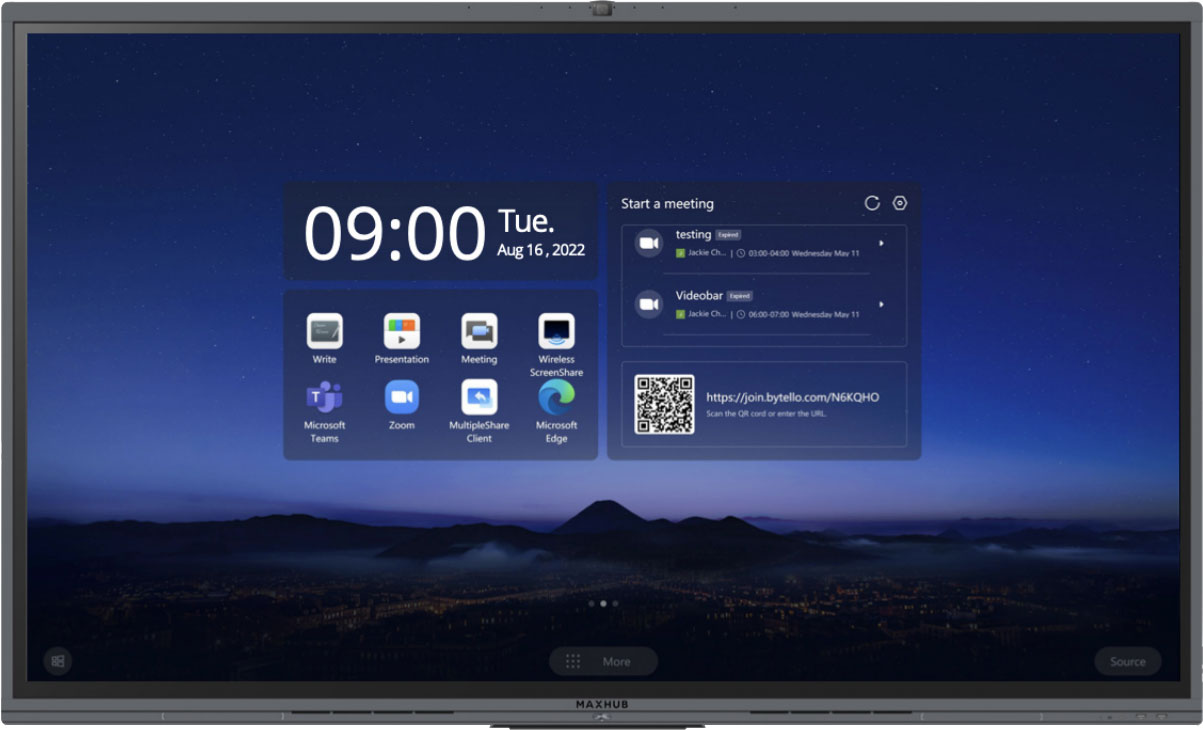

MAXHUB OS 6.0 provides easy access to whiteboarding, video conferencing apps, and wireless projection. Users can personalize the customizable homepage for a tailored user experience, and join a scheduled meeting with just one click thanks to the integrated calendar design.
-
Category |
Details |
Display |
|
Diagonal Size (inch) |
65 |
Backlight |
Direct-lit LED |
Panel Technology |
IPS |
Aspect Ratio |
16:9 |
Resolution |
3840 x 2160 |
Refresh Rate |
60Hz |
Response Time |
8ms |
Brightness (typ) |
350² |
Contrast Ratio |
1200:1 |
Viewing Angle |
178°/178° |
Colour Gamut (typ) |
90% NTSC |
Display Orientation |
Landscape |
Operation Hour |
16/7 |
Touch System |
|
Touch |
IR Touch |
Max Touch Points Supported |
20 |
Object Recognition Range |
≥ 2mm |
Accuracy |
± 1mm |
Glass |
Zero parallax, 3mm Anti-Glare, Antibacterial |
Supported Operating System |
Windows10/Windows8/Windows7/WindowsXP/Android/Linux/Mac OS X/Chrome OS |
Camera/Audio/Microphone |
|
Built-in Camera |
Yes, Single Camera, 48MP |
Camera Features |
Auto Frame / Speaker Tracking |
Speaker Output Power |
2.1 channel, 2x10W+20W |
Microphone Array |
8x far-field, beam-forming microphone - max 8m range |
Connectivity |
|
Input |
HDMI In x1, USB 2.0 x1, USB 3.0 x2, TOUCH 2.0 x1, USB Type-C x2 |
Audio |
Audio Out x1 |
Control |
RS232 x1 |
Propriety PC Slot |
Yes (No PC Included |
Wi-Fi Module |
SI06 (Included) |
Dimensions & Weight |
|
Product Dimensions (WxHxD) |
1,488 x 903 x 88 mm |
Shipping Dimensions (WxHxD) |
1,628 x 1,005 x 208 mm |
Net Weight |
36.25 Kg |
Shipping Weight |
46.75 Kg |
Wall mount |
600 x 400 mm |
Screws for VESA |
M8 x 25mm |
Power |
|
Power Supply |
AC100-240V,50/60Hz |
Max Power Consumption |
350W |
Standby |
≤0.5W |
Environment |
|
Operating Temperature |
0°C ~ 40°C |
Operating Humidity |
10% ~ 90%RH |
Storage Temperature |
-20°C ~ 60°C |
Storage Humidity |
10% ~ 90% |
-
