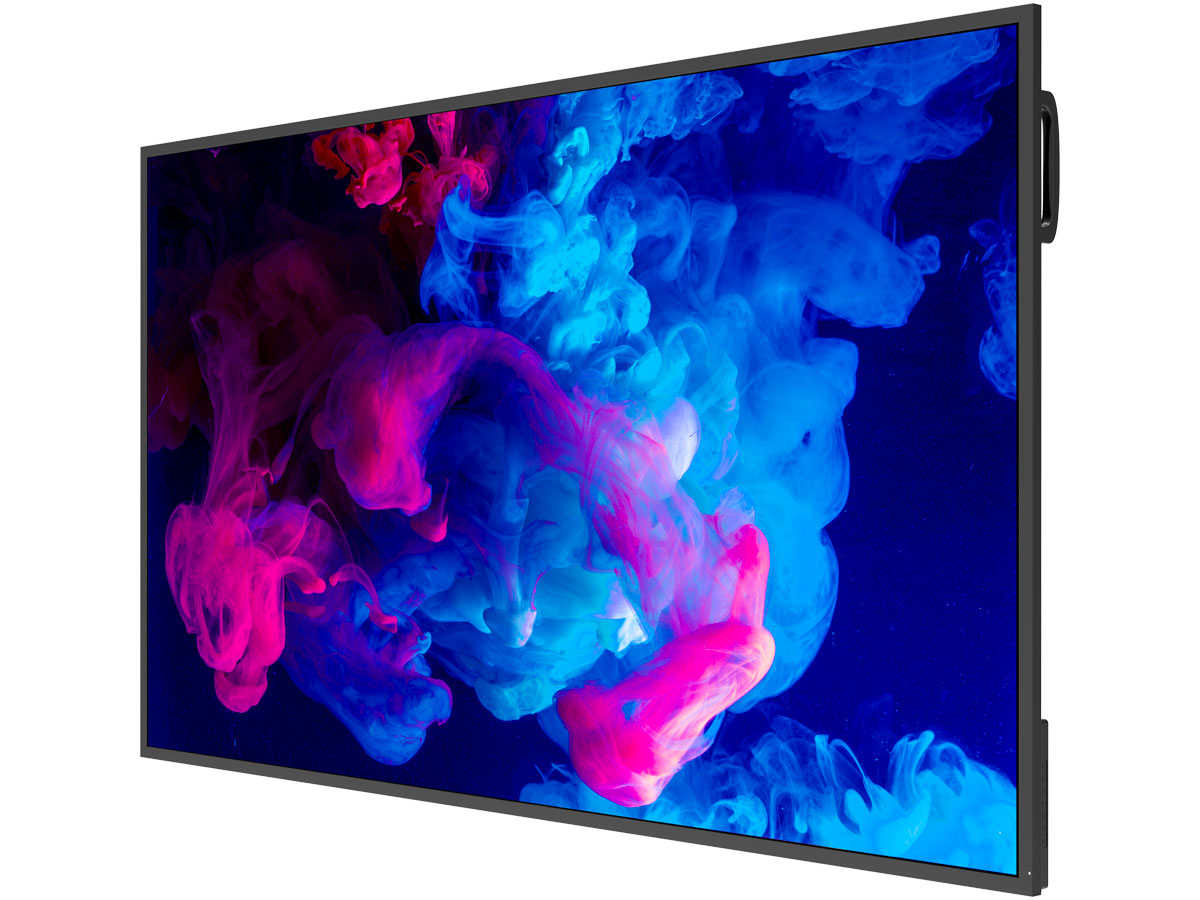

MAXHUB CMA Series
A 4K Commercial Display, Equipped with Non-glare Technology and Conformal Coating - Ideal for Meeting Rooms and Commercial Settings

Crystal-clear detail, anywhere












| Category | Attribute | Value |
|---|---|---|
| Display | Screen Size | 86" (85.6" actual) |
| Resolution | 3840 × 2160 (4K UHD) | |
| Panel Type | ADS | |
| Brightness (Typ.) | 450 nits | |
| Contrast Ratio | 1200:1 | |
| Viewing Angle | 178° (H/V) | |
| Refresh Rate | 60Hz | |
| Response Time | 8ms | |
| Anti-Glare | 25% Haze | |
| Lifetime | ≥ 50,000 hours | |
| Operation Time | 16/7 | |
| Orientation | Portrait / Landscape | |
| Internal Player | CPU / GPU | A55 x4 / Mali-G52 x2 |
| RAM / Storage | 4GB / 32GB | |
| OS | Android 11.0 | |
| UI Resolution | 4K | |
| Audio | Speaker Output | 2 × 10W |
| Connectivity | HDMI Input | 3 × HDMI 2.0 |
| USB Ports | 1 × Type-C (PD 65W), 2 × Type-A | |
| Ethernet | RJ45 In & Out | |
| Output Ports | HDMI Out, SPDIF, Audio Out, RS232 | |
| Mechanical | Dimensions (W×H×D) | 1930.8 × 1101.8 × 81.6 mm |
| Bezel Width | 15.9 mm (all sides) | |
| Weight (Net/Gross) | 60.75 kg / 43.15 kg (Note: may be reversed) | |
| VESA Mount | 800 × 600 mm | |
| Power | Supply | 100–240V~ 50/60Hz |
| Power (Typ. / Max) | 335W / 500W | |
| Features | Built-In Media Player | Yes |
| Screen Share | MAXHUB Share | |
| Device Management | MAXHUB PIVOT | |
| Wi-Fi | Wi-Fi 6, 2.4G & 5G, removable module | |
| OPS Slot | Yes (80-pin) | |
| Certification | Safety / EMC | IEC 62368-1 / Class B |
| Energy Certs | ErP & Energy Star 8.0 | |
| Warranty | Display | 3 Years |
| Included Items | Accessories | Power cord, Wi-Fi module, HDMI, remote, mount |
| Description | Downloads |
|---|---|
| MAXHUB CMA Series ND86CMA 86" 4K Ultra HD Digital Signage Display - Android DataSheet | Downloads |
