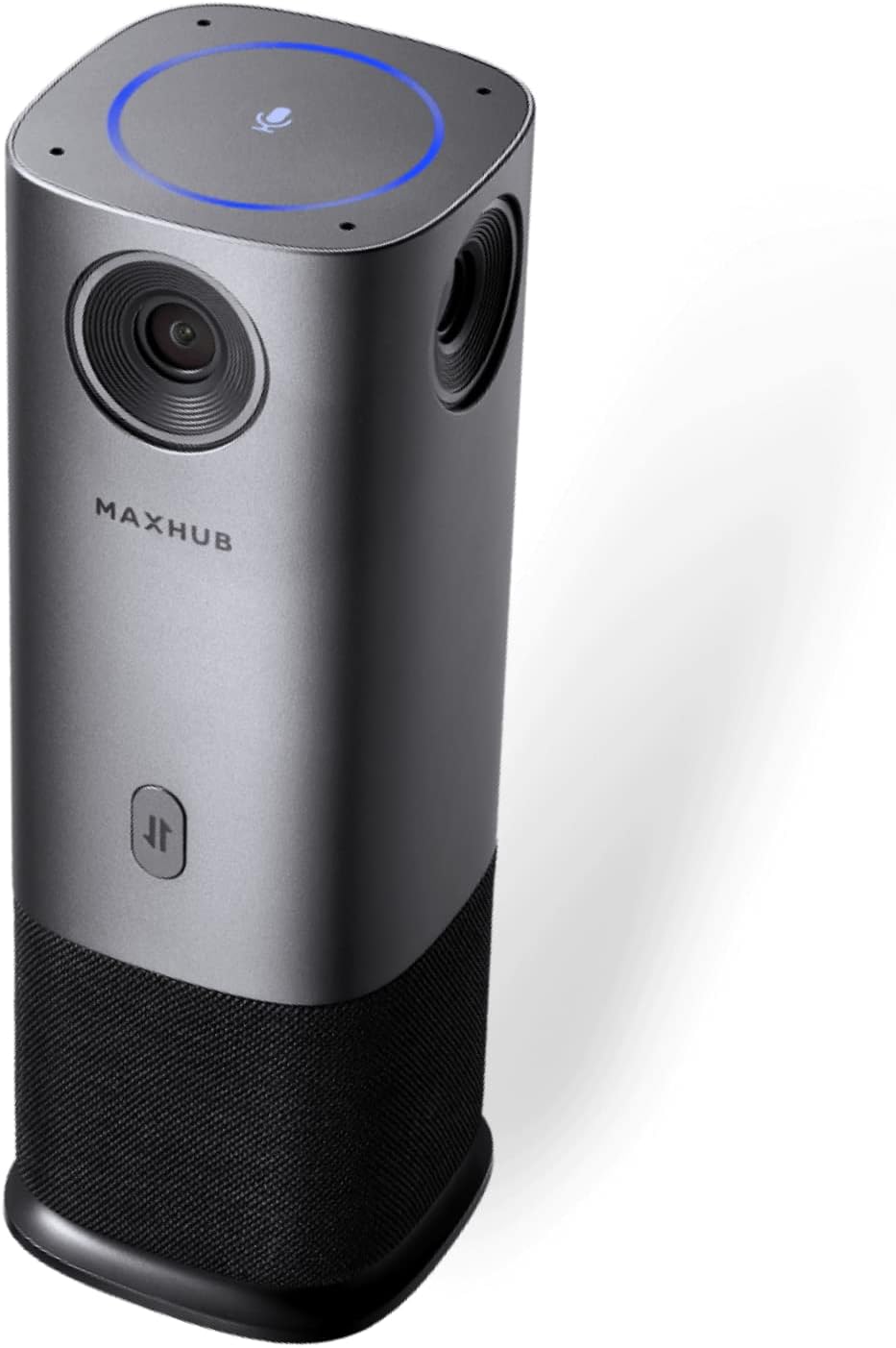

MAXHUB UC M40 360° All-in-One Conference Camera
Be Seen. Be Heard. Be Amazed.
MAXHUB UC M40 360° All-in-One Conference Camera
Meet the all-in-one conference camera that tracks every face and follows every word in small to medium-sized spaces.

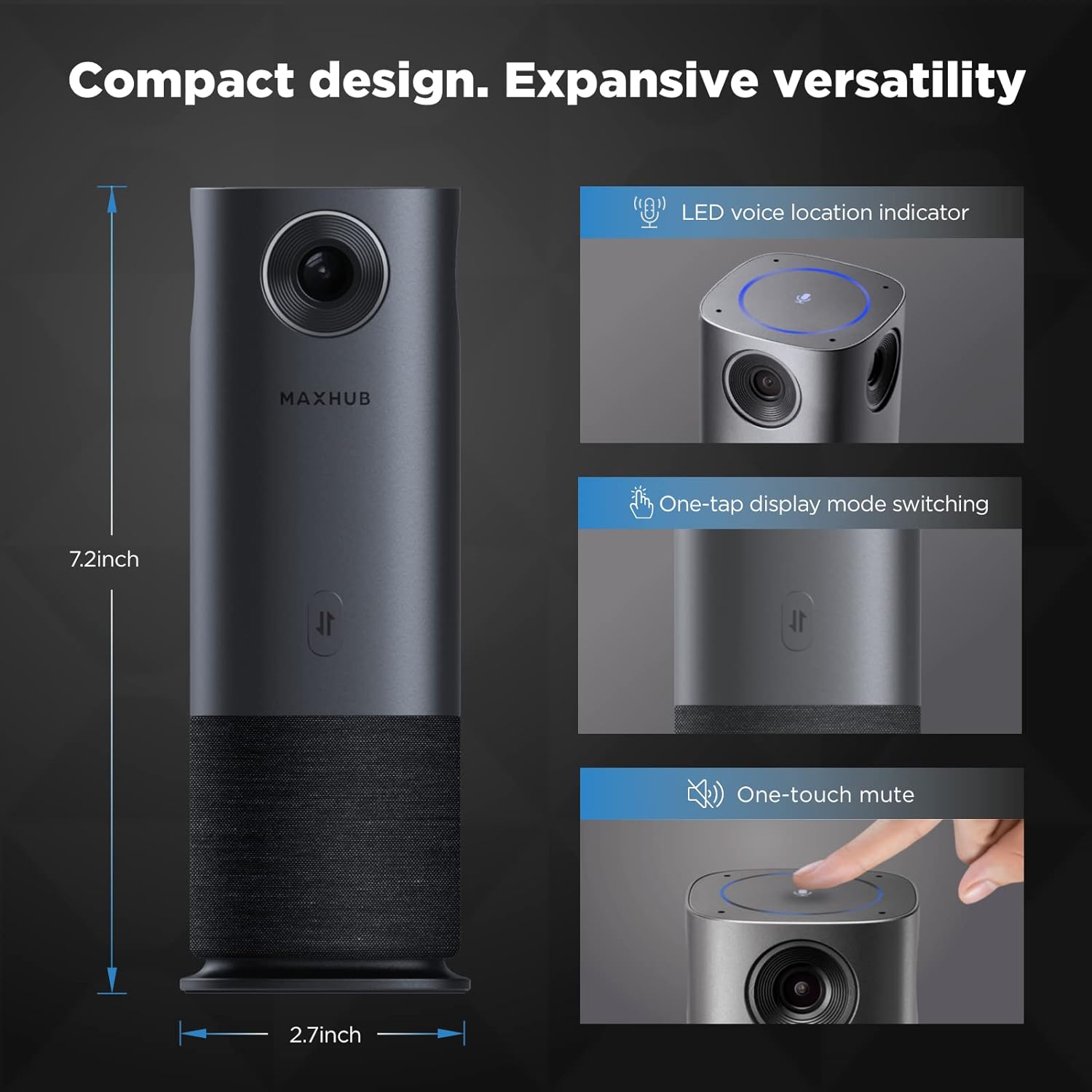

Compact Design, Expansive Versatility
Style meets substance in a sleek metal design that combines easy portability with robust capability as well as intuitive controls and displays. From one-tap mode switching to the LED voice location indicator, the UC M40 turns even challenging spaces into productive meeting places.

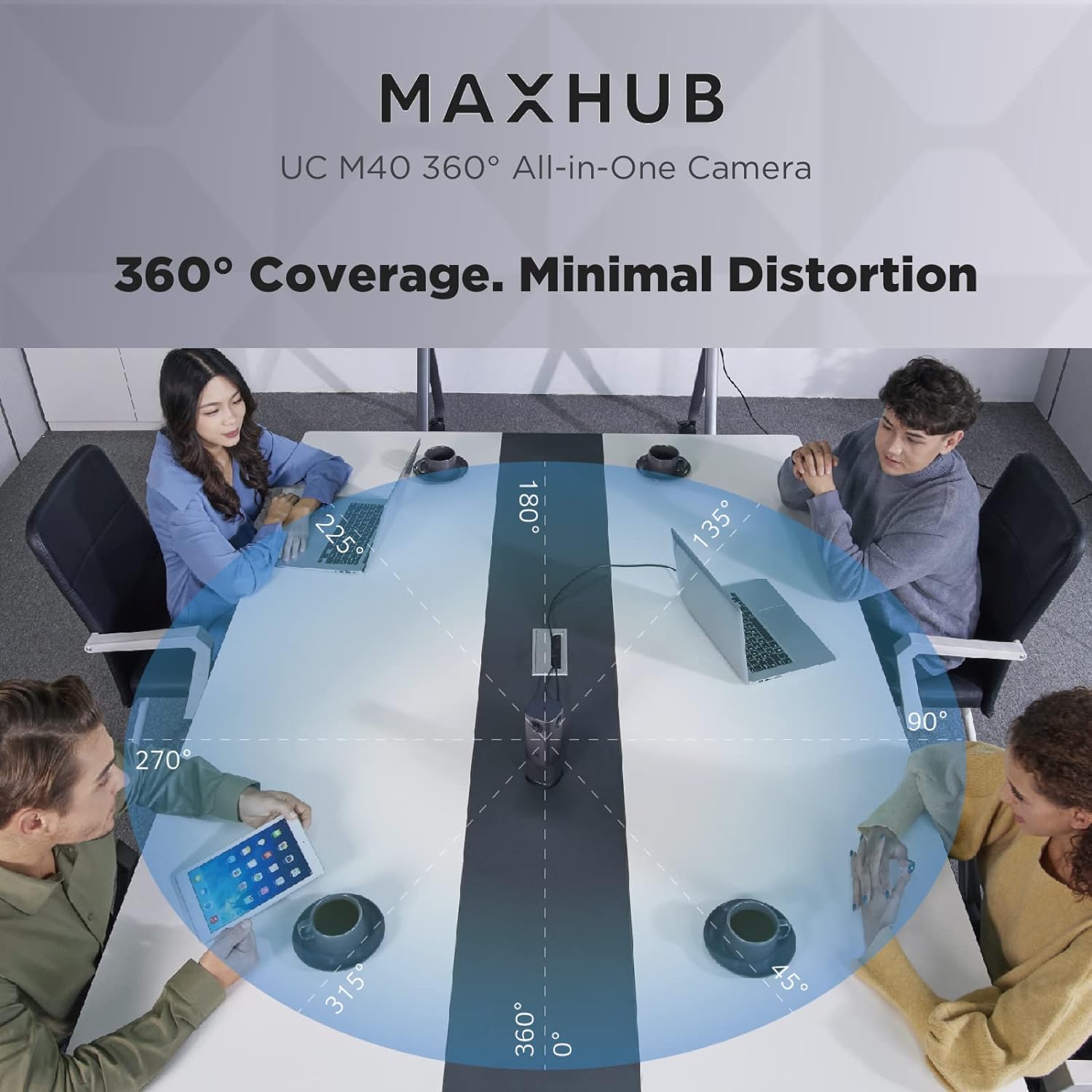

360° Coverage, Minimal Distortion
Communication is more direct, and collaboration more natural and immersive.
360° panoramic wide-angle view
Even if you’re seated to the side, you’ll be front and center on the screen.
5MP 4-lens camera
The UC M40’s 4-lens 360° super wide-angle camera captures every participant’s face directly, without fisheye distortion.

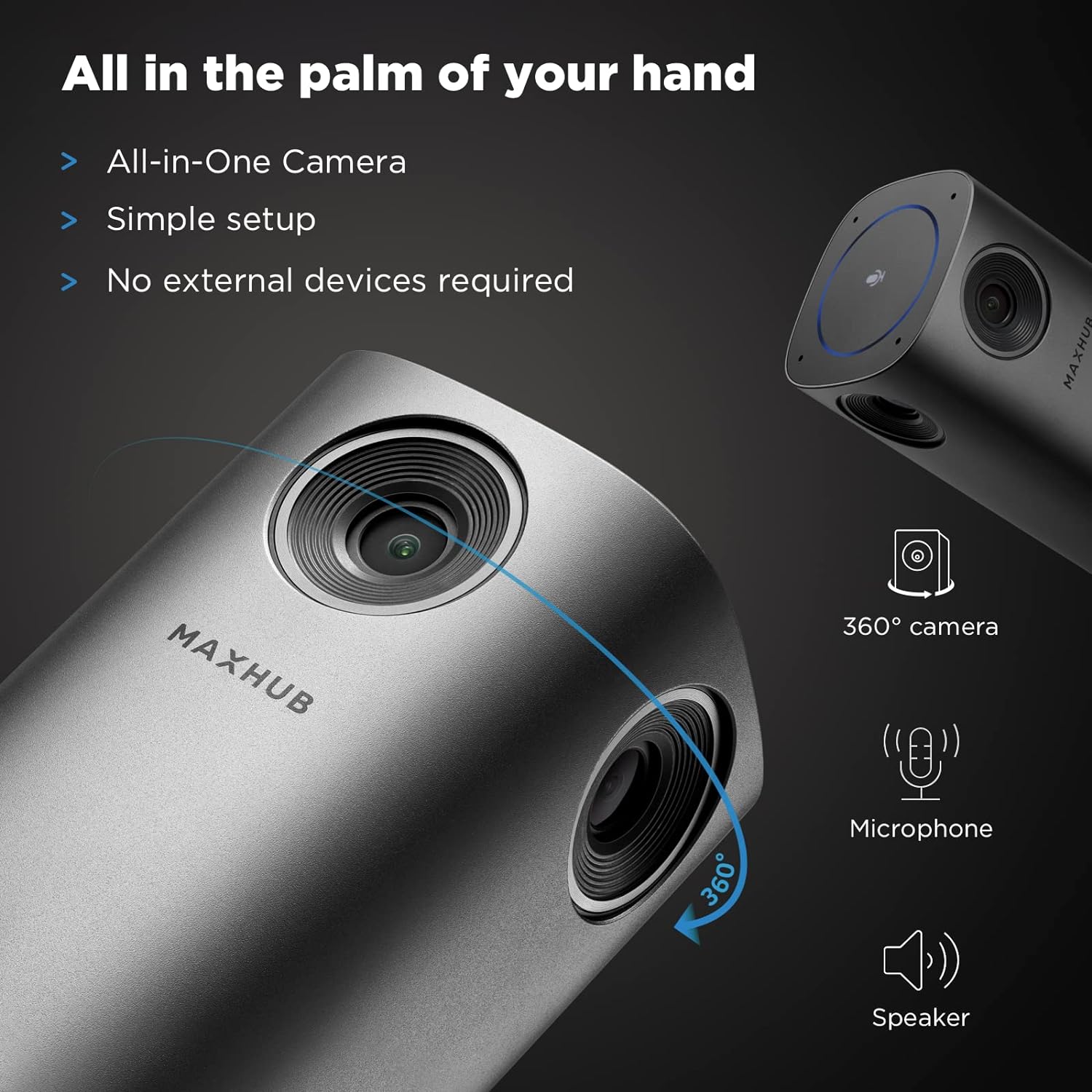

In the Palm of Your Hand
The UC M40 all-in-one conference camera integrates a 360° camera, speakers, and voice-tracking microphones in a design as portable as it is stylish. Best of all this camera requires no external devices or time-consuming setup.
Ready When You Are
Plug in the USB and start your meeting. Operating in Standalone Mode, the UC M40 provides full performance right out of the box.

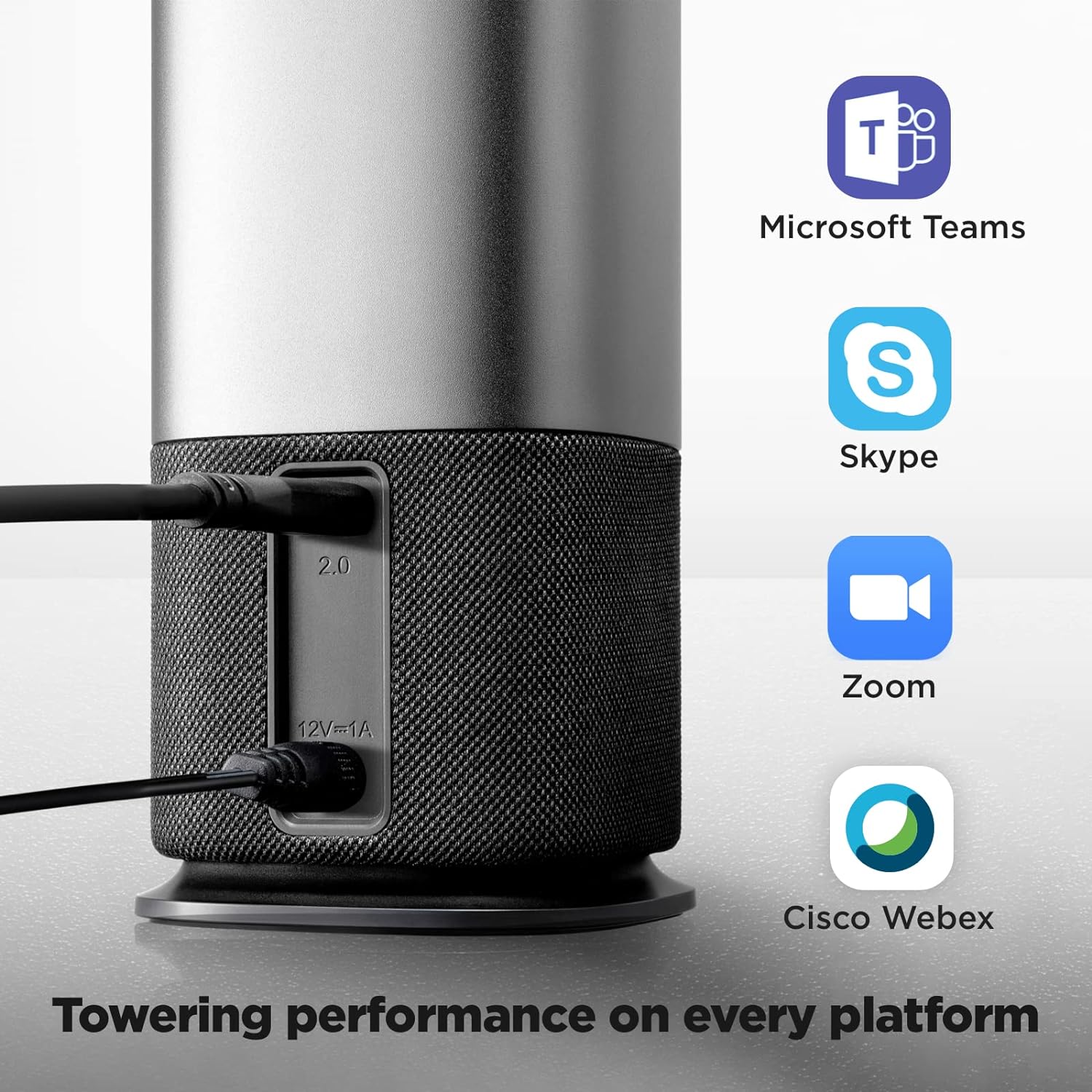

Incredible Performance Across Platforms
MAXHUB collaboration technology is compatible with all popular video conferencing applications. Whichever platform you prefer, the UC M40 will be your conference camera of choice.
| Device Type | Conference camera |
|---|---|
| Audio Support | Yes: built-in speaker, built-in microphone |
| Connectivity Technology | Wired |
| Dimensions | |
| Width | 6.76 cm |
| Depth | 18.23 cm |
| Height | 6.75 cm |
| Weight | 450 g |
| Camera | |
| Type | Colour |
| Digital Video Format | MJPEG, YUY2 |
| Max Digital Video Resolution | 4992 x 928 |
| Digital Video Capture Resolution | 1280 x 720, 1920 x 1080, 640 x 360, 4992 x 928 |
| Frame Rate (max) | 30 frames per second |
| Features | |
| Brightness control | |
| 3D Noise Reduction Technology | |
| Auto tracking | |
| WebEx compatible | |
| Flicker detection | |
| Exposure control | |
| Microsoft Teams compatible | |
| Google Hangouts compatible | |
| Zoom compatible | |
| RingCentral Meetings compatible | |
| Google Meet compatible | |
| Image Sensor | |
| Type | 5 MP 1/2.7" |
| Lens Construction | |
| Type | Fixed focal |
| Focal Length | 2.49 mm |
| Lens Iris | F/2.5 |
| Horizontal Field of View (degree) | 111 |
| Vertical Field of View (degree) | 85 |
| Diagonal Field of View (degree) | 140 |
| Interfaces | |
| Video | USB |
| Expansion / Connectivity | |
| Ports | USB 2.0 - Type C |
| Miscellaneous | |
| Cables Included | 1 x USB cable - external |
| Power | |
| Power Requirements | DC 12 V |
| Power Device | Power adapter - external 8 Watt |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 23.5 cm |
| Shipping Depth | 16.5 cm |
| Shipping Height | 9.1 cm |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Relative Humidity (operating) | 10 - 90% RH (non-condensing) |
| Description | Downloads |
|---|---|
| MAXHUB UC M40 360° All-in-One Conference Camera | Downloads |
