MAXHUB UC S07 Camera Systems Conferencing Video Bars

SKU: UC S07
Ultra HD (4K)Resolution
3 Year Swap-out WarrantyWarranty

Product description

  • Description
  • Specifications
  • MAXHUB UC S07 Camera Systems Conferencing Video Bars

    UC S07

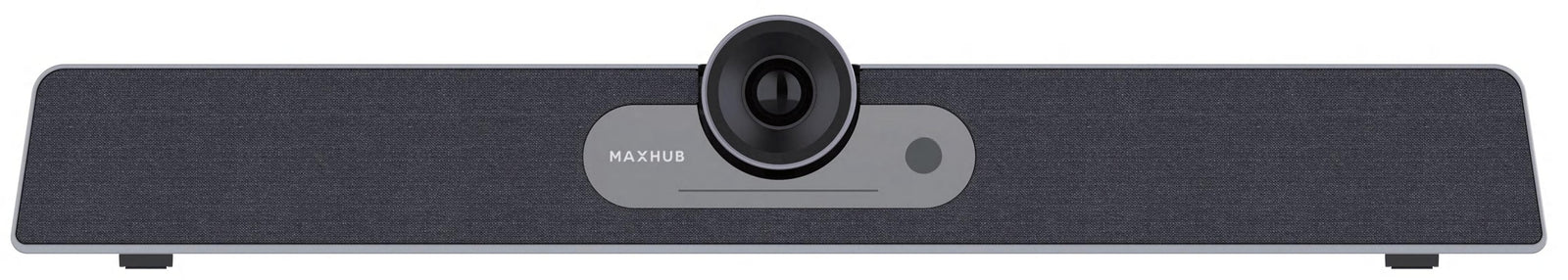

    MAXHUB UC S07
    All-in-one Ultra-HD USB Videobar with 8-meter Voice Pick-up Range for Small and Medium-sized Rooms

    UC S07


    Make Space

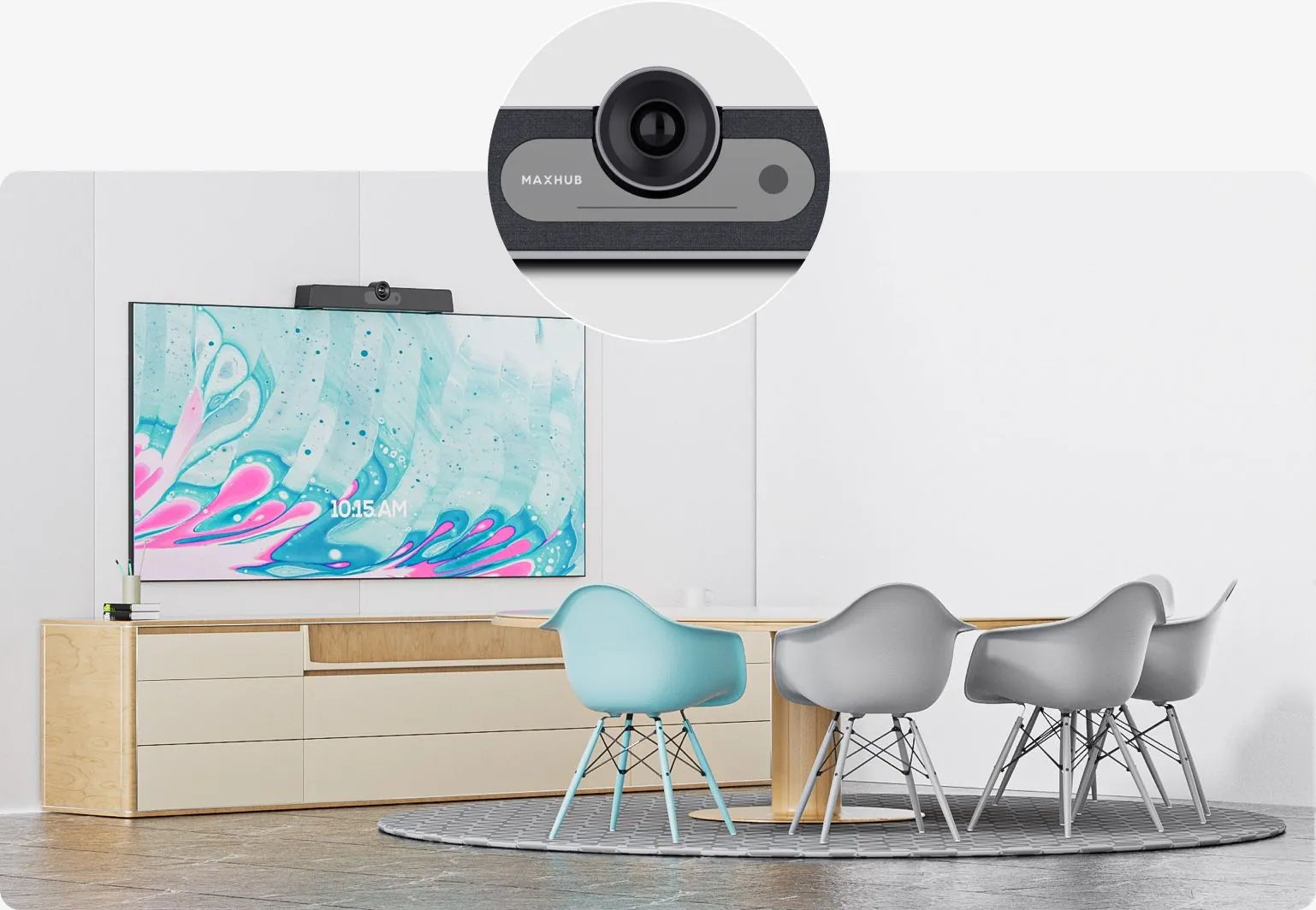

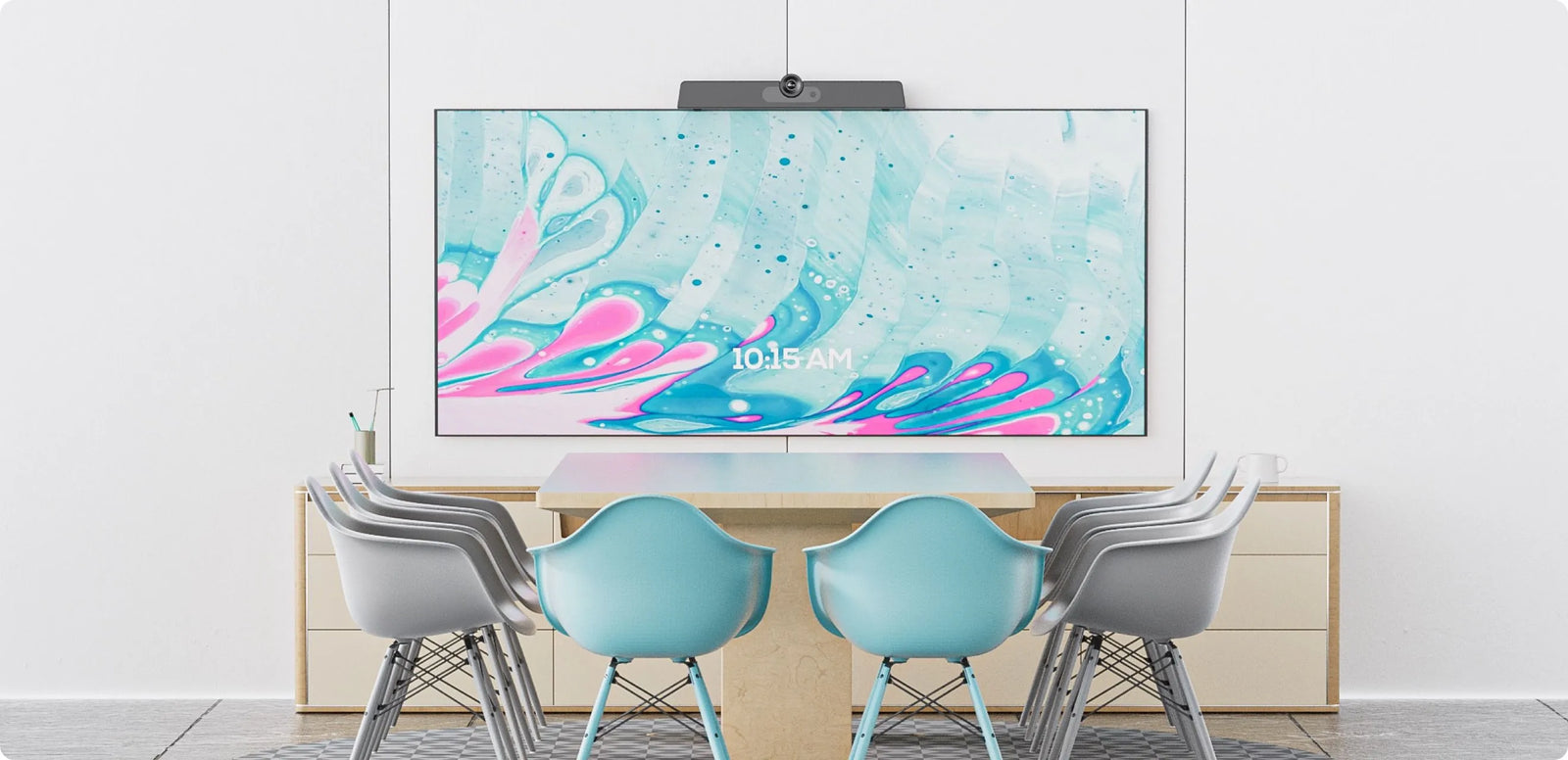

    For meetings in huddle rooms for 2 to 8 people, UC S07 features exceptional integrated capabilities in a compact USB camera bar.

    UC S07

    Intelligent Plug and Play
    All-in-one
    Perfect for a BYOD (Bring Your Own Device) environment, this plug and play camera bar features an integrated camera, microphone, and speaker.

    UC S07

    Easy set up
    All you need is two cables—one for the power supply (PoE) and a Type-C USB cable.

    UC S07

    Hands-free activation
    Thanks to the PIR sensor and hands-free function, the device automatically turns on when movement is detected within a 3m range. It enters standby mode when no movement is detected in a 30-minute timeframe, reducing energy consumption.

    UC S07


    Hear and be Heard, Everywhere
    Tracking you wherever you are
    Ensure better conversation with the 6 intelligent beam-forming microphones featuring 8m voice pickup. With speaker tracking and voice location locking, you and your colleagues can always get your point across loud and clear. AGC maintains constant and stable voice output regardless of the speaker's distance from the microphone.

    UC S07

    Filter noise for what really matter
    Keep the attention on you by filtering out distracting background noises like tapping, typing, or doors closing.

    UC S07

    Hear clearly
    Whether your meeting is a conversation between two people or a larger gathering of up to 8, you'll hear everyone clearly thanks to the studio-quality Hi-Fi speaker with 8 W+3 W output power. Plus, the tweeter and woofer design deliver an immersive sound experience to every corner of the room.

    UC S07

    See and be Seen Always
    See every detail

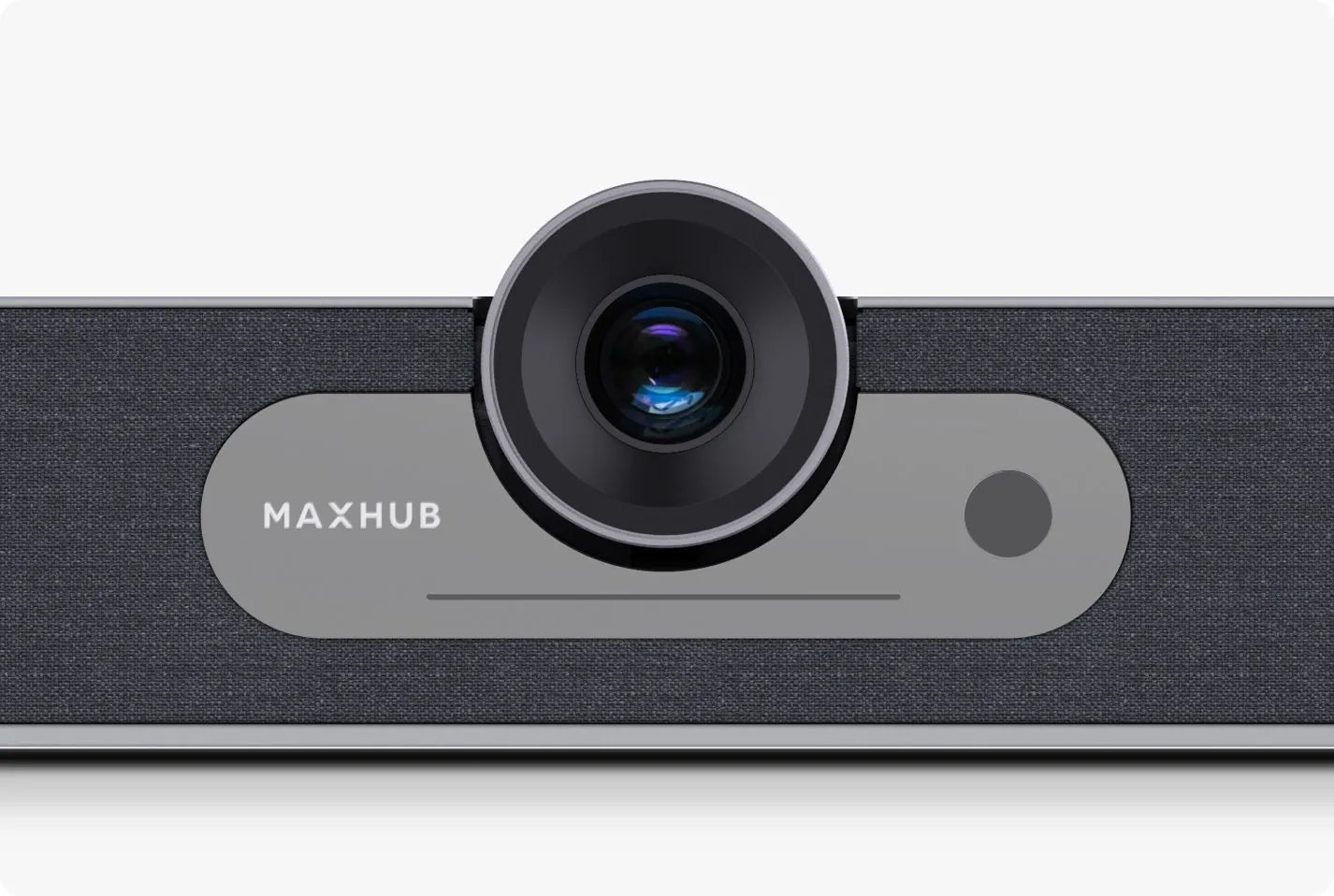

    UHD 4K video offers crystal clear video images.

    UC S07

    Razor-sharp focus from wide-angle to close-up
    See everyone in the meeting room simultaneously using the wide-angle view or see a close-up of an individual attendee. The 5x digital focus is ideal for use in huddle rooms.

    UC S07

    Easily auto-frame participants
    Auto-Framing with intelligent face detection seamlessly tracks the active speaker to keep participants engaged.


    Effcient Device Management
    Manage flexibly
    Device management flexibility means onsite IT administrators can manage the device through a USB cable via MAXHUB ALIGN (software), however, remote teams can also access the device via the cloud-based MAXHUB Pivot.

    UC S07

    Device Management at Your Fingertips
    Use MAXHUB ALIGN to update and optimize the status of your video meeting devices, and fine-tune camera performance to look your best on video calls. Device can be managed remotely for your hybrid meeting needs through the MAXHUB Pivot.

    UC S07

    Performance You Can Count On
    Never miss out on a crucial meeting. Phenomenal quality, backed by a 3-Year Hot Swap Warranty, gives you confidence that UC device will be ready when you are.



    UC S07
  • Camera
    Pixel 12M
    Sensor 1/2.3-inch 12MP Sony sensor
    Resolution and Frame Rate
    H.264/MJEPG
    - 3840 x 2160
    - 2560 x 1440
    - 1920 x 1080
    - 1280 x 720
    - 1024 x 576
    - 960 x 540
    - 800 x 600
    - 640 x 480
    - 640 x 360
    - 480 x 270
    - 352 x 288
    - 320 x 240
    YUY2
    - 640 x 480
    - 640 x 360
    - 480 x 270
    - 352 x 288
    - 320 x 240
    - 320 x 180
    - 160 x 120
    ZOOM 5x digital zoom
    Output Format MJPG; YUY2; H.264
    Field Of View 120° (D)
    Adjustable Angle ± 15° (V)
    Focus Mode Fixed-Focus
    Focus Distance 1m
    Preset Accuracy 0.1°
    Special Features
    - Auto Framing automatic adjustment FOV to fit in all participants
    - Speaker Tracking voice triggered people tracking
    - 2 Zooming Pre-sets for instant setting up
    Power
    Power Requirements 12V
    Overall Power(Max.) 10W
    POE Power Yes (IEEE 802.3af or 802.3at)
    Physical Specifications
    Dimension(Lx Hx D) 462 x 76 x 93 mm (18.2 x 3.0 x 3.7 inch)
    Dimension(package)(Lx Hx D) 1pcs 538 x 160 x 169 mm (21.2 x 6.3 x 6.7 inch) 4pcs 628 x 433 x 380 mm (24.7 x 17.0 x 15.0 inch)
    Maximum Sound Pressure 80dBSPL@1m
    Net Weight 1.05Kg/37.04oz
    Gross Weight 1pcs 2.55kg/90oz 4pcs 12.00kg/423.29oz
    Audio
    Speaker
    - Sound Chanel 1.1
    - Output Power 8W + 3W
    Microphone
    - Microphone Quantity 6
    - Voice Pickup Range 8m
    - Special Features Noise Reduction, Echo Cancellation, Anti-Reverberation, Built-in AGC Algorithm
    Input/Output Port
    USB 3.0 Type-C Connect USB host, upgrade system, etc.
    Audio Out Used for external audio equipment
    DC 2.0 Used for 12V power input power supply
    RJ45 Only support POE power supply
    Environmental Condition
    Operation Temperature 0℃ - 40℃
    Operation Humidity 10% - 90%RH
    Storage Temperature -20℃ - 60℃
    Storage Humidity 10% - 90%RH
    Altitude Below 5000 meters
    What's In The Box included
    - USB Cable 1 x USB Cable (1.8m/70.9 inch)
    - Remote Control 1 x Remote Control
    - Power Adapter 1 x Power Adapter
    - Wall-mounted Components 1 x Wall-mounted Components
    - Peeping Cover 1 x Peeping Cover
    PIR Sensor In power-on mode, it will automatically enter standby state If no moving object is detected within 3 meters within 30 minutes, minimizing energy consumption; In standby mode, it automatically starts up when detecting moving objects within 3 meters, simplifying the setup process.

Technical specifications

Resolution
Ultra HD (4K)
Warranty
3 Year Swap-out Warranty
