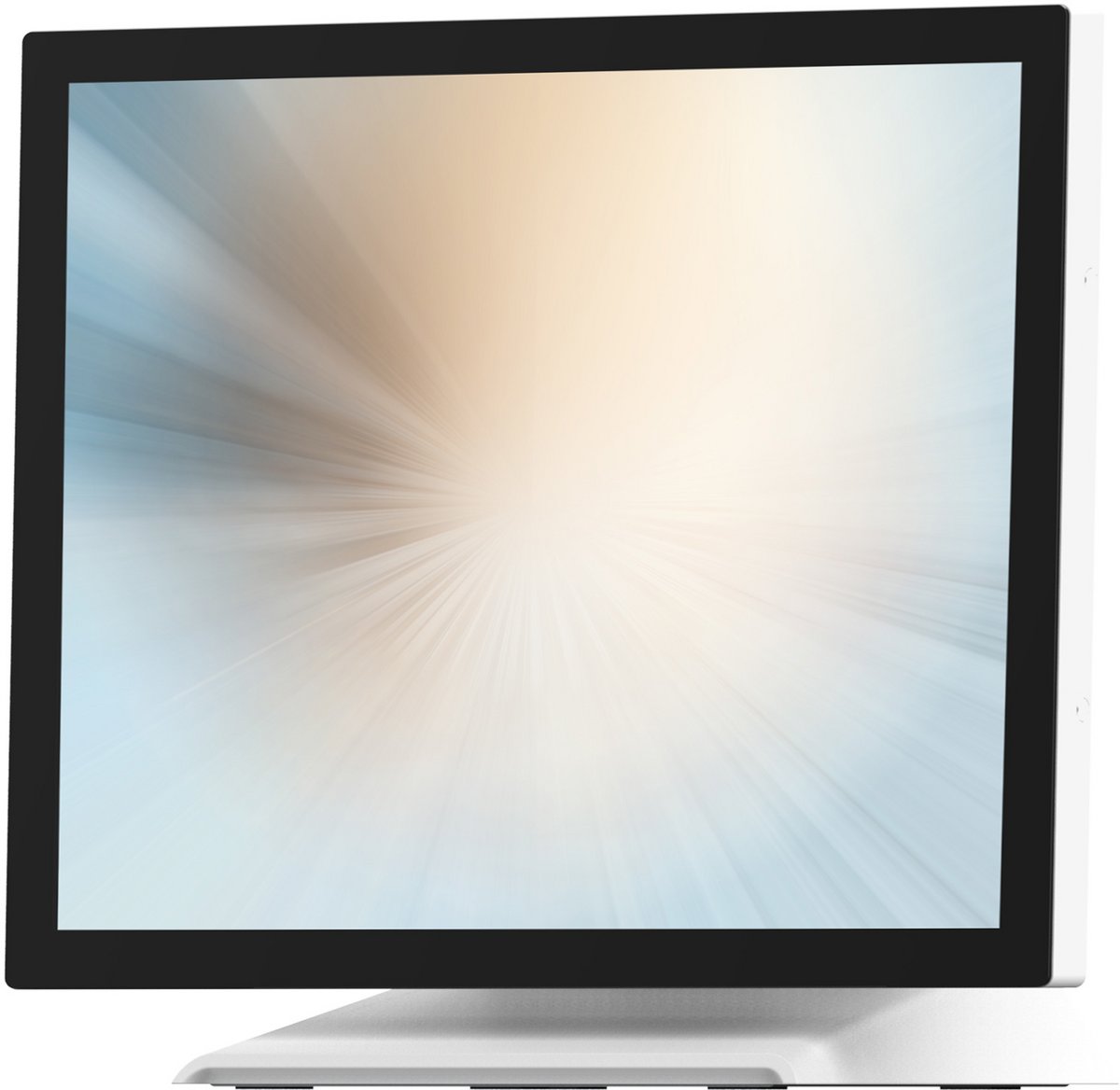

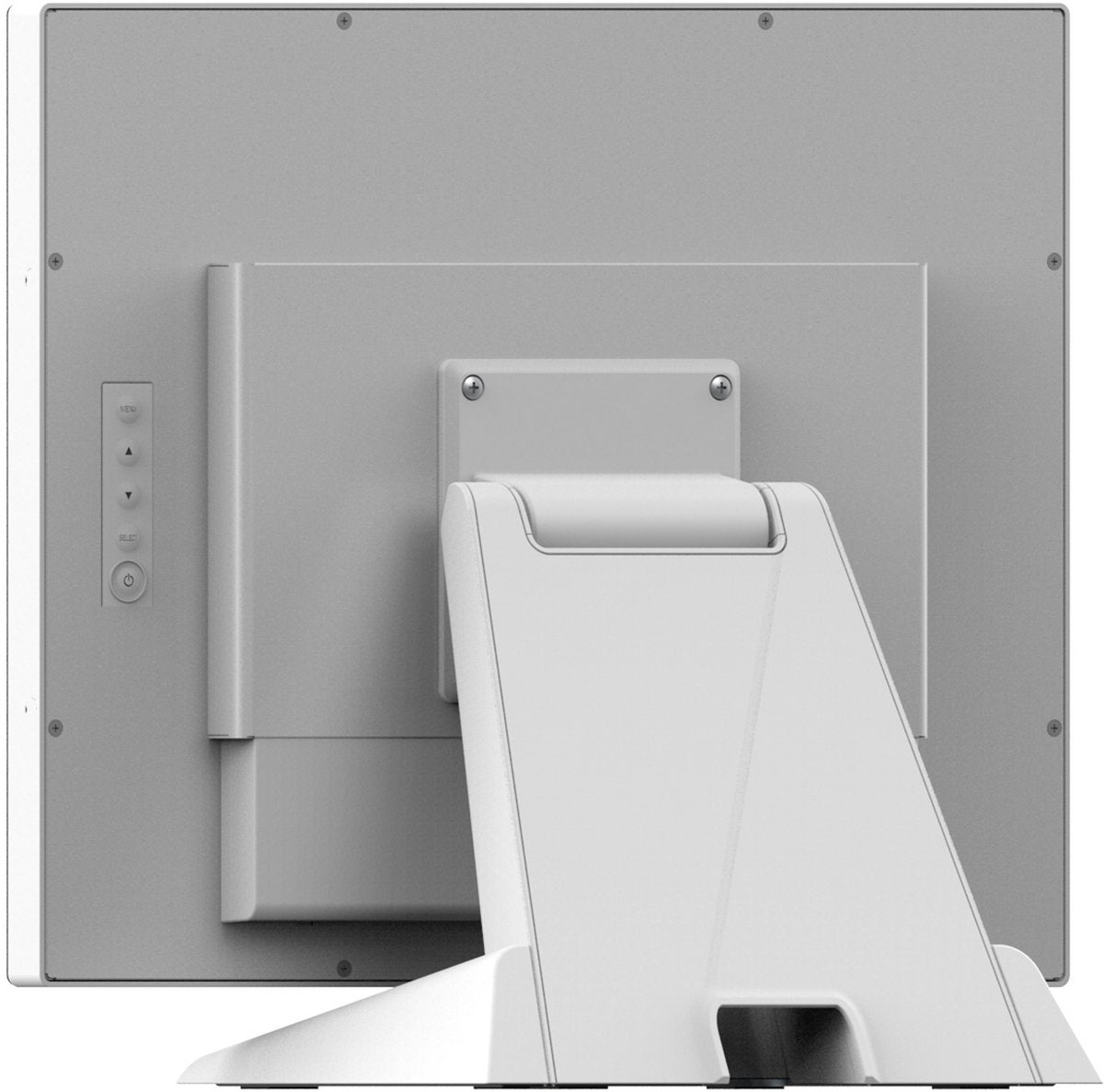

The DT-190P-M1 is a 19″ standard format medical-grade monitor perfect for a wide range of healthcare applications including, nurses’ stations, equipment/devices, laboratory instruments, medical carts, and advertising. This unique, 10-point touch monitor is specifically designed to enhance your medical space and end-user experience while maintaining a durable, compliant, and versatile product enabled by IP54 rated screens and IEC-60601-1-2 4th edition EMC compliance. Naturally intuitive, engineered performance, and designed for medical, this monitor combines a commonality of medical market requirements and consumer-grade touch experience into one solution.
| Size | 19" TFT LCD | Maximum Resolution | 1280 x 1024 |
| Contrast Ratio | 1000:1 | Aspect Ratio | 5:4 |
| Brightness | 350 nits (No Touch), 297 nits (P-CAP) | View Angle | H:178˚, V:178˚ |
| Touch Screen | Projected Capacitive | Touch Points | 10 |
| Touch Screen Interface | USB-HID (Type B) | Screen Treatment | Anti-Glare |
| USB Port | 1 x USB 2.0 (Type B) for Touch Interface (USB-HID) | Video Port | 1 x VGA, 1 x HDMI, 1 x DP |
| Audio Port | – | Power Input | 1 x 2.1 mm 12V DC Jack |
| Other Port | 1 x RJ11 (for remote key) | Color Temperature | 5500K / 6500K / 7500K / 9300K / User Definition |
| Gamma Selection | Native / Gamma 1.8 / Gamma 2.2 / DICOM Part 14, Calibrated | Gamma LUT (bits) | 10 |
| Scaling Mode | Full / 5:4 / 4:3 / 16:9 / 1:1 | Power Supply | Medical External Power Adaptor 60W |
| Speaker | – | Housing Color | White |
| Construction | Glass, SECC Metal, Plastic (ABS) | Compliance | Front Panel IP65 |
| Dimensions (W x H x D) mm | 416.0 x 379.6 x 219.0 | Net Weight (kg) | 6.7 |
| Gross Weight (kg) | 8.5 | Carton (W x H x D) mm | 500 x 460 x 295.0 |
| VESA | 100 x 100 mm | Ball Drop | IK07 |
| Certifications | CE, CB, FCC, UL, CCC, RoHS, IEC60601-1-2 4th edition EMC compliant | Operating Temperature | 0° C ~ 40° C, 20% ~ 80% RH. Non-Condensing |
| Storage Temperature | -20° C ~ 60° C, 20% ~ 90% RH. Non-Condensing | Box Contents | LCD Touch Monitor, Stand, Power Cord, DC Power Supply, HDMI Cable, VGA Cable, USB Cable (A to B), M3 Screw and IO Cover |
| Optional Peripheral | N/A | Optional Accessories | 60W Power Supply | Adapter 12V 60W BPM060S12F31 DC2.1 BP: PS-3316006024F0, Cable HDMI V2.0 A-A L1800 BK, A.3: HDMI-5313118134FH, Cable DP_DP V2 L1800 BK: DP-5313118123FV, Cable VGA PC99 1.8M BK V1: VGA-5313118072FH, Cable USB A-B L1830 BK: USB-5313118047FV |
| Warranty | 3 year |
| Description | Downloads |
|---|---|
| MicroTouch 19" TFT LCD Medical Touch Monitor | DT-190P-M1 DataSheet | Download |
| MicroTouch 19" TFT LCD Medical Touch Monitor | DT-190P-M1 User Manual | Download |
