1U, 13 x Ethernet, 1 GB RAM, 25W, PoE in, RS232, 1.2 kg
New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

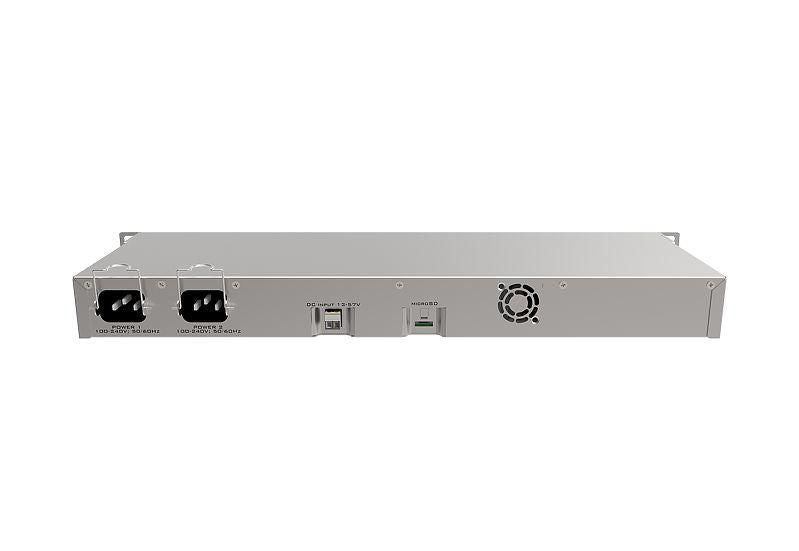

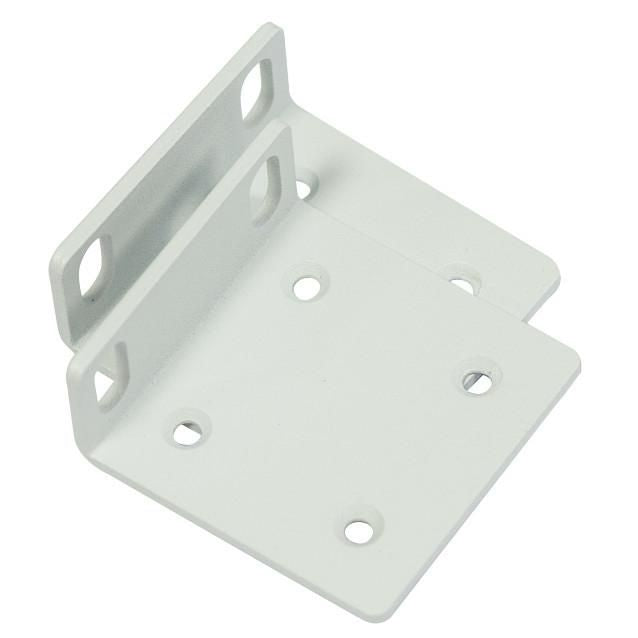

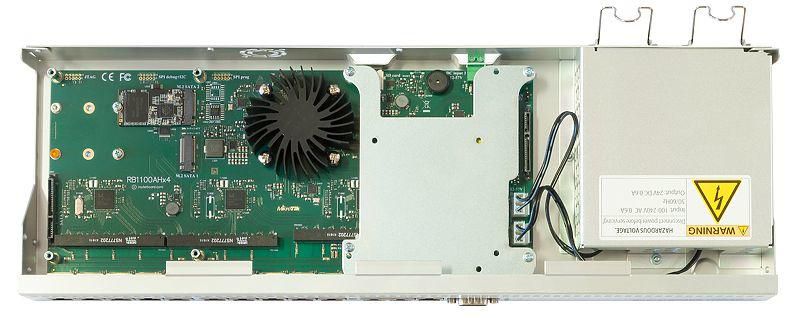

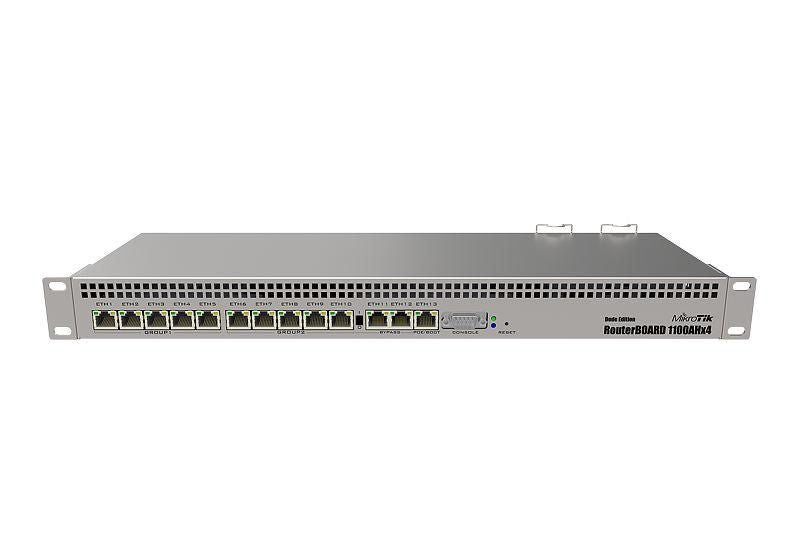

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.
| LED indicators | Yes | Product colour | Aluminium |
| Rack capacity | 1U | Rack mounting | Yes |
| Built-in processor | Yes | Internal memory | 128 MB |
| Processor cores | 4 | Processor frequency | 1400 MHz |
| Storage media | Flash | Country of Origin | Taiwan |
| EU ECCN Code | N/A | Tariff No. | 8517620000 |
| UNSPSC Code | 43222609 | US ECCN Code | 5A992 |
| Cabling technology | 10/100/1000Base-T(X) | Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes | Ethernet LAN data rates | 10, 100, 1000 |
| Networking standards | IEEE 802.3af, IEEE 802.3at | Gross Weight (Package) | 2.4 kg |

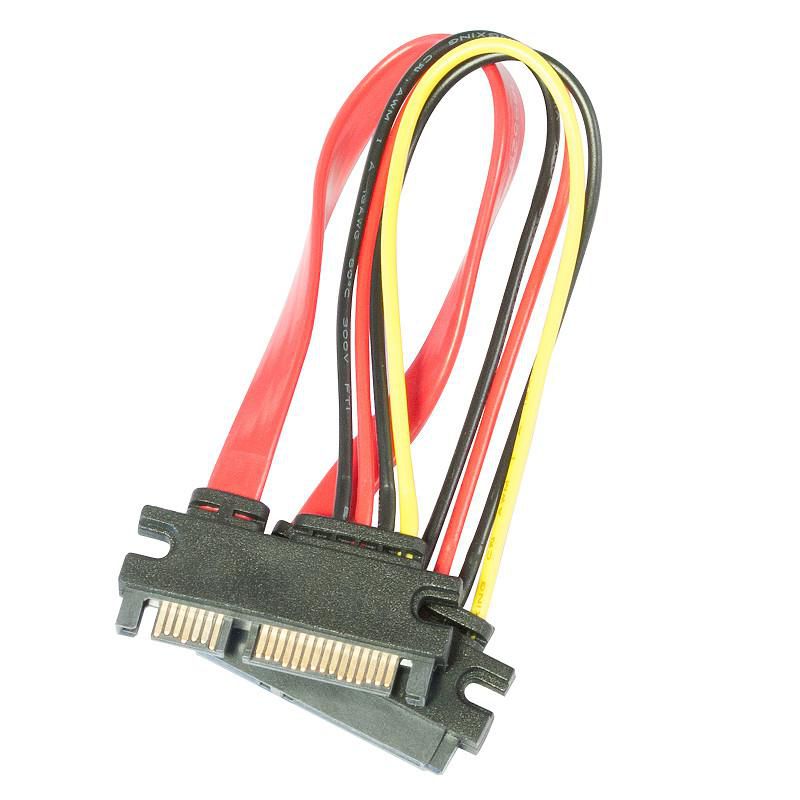

| Cables included | SATA | Ethernet LAN (RJ-45) ports | 13 |
| AC input voltage | 100 - 240 V | Power consumption (typical) | 25 W |
| Power over Ethernet (PoE) | Yes | Power source type | AC |
| Net Weight (Product, kg) | 1.86 kg | Product Depth | 14.8 cm |
| Product Height | 4.7 cm | Product Width | 44.4 cm |
| Brand Name | MikroTik | Warranty | 1 Year(s) |
| Ethernet WAN | Yes | Main category | Network |
| Subcategory | Wired Network | Subcategory | Wired Routers |
| Description | Downloads |
|---|---|
| MikroTik 1U High-Performance Router | RB1100AHX4 DataSheet | Download |
