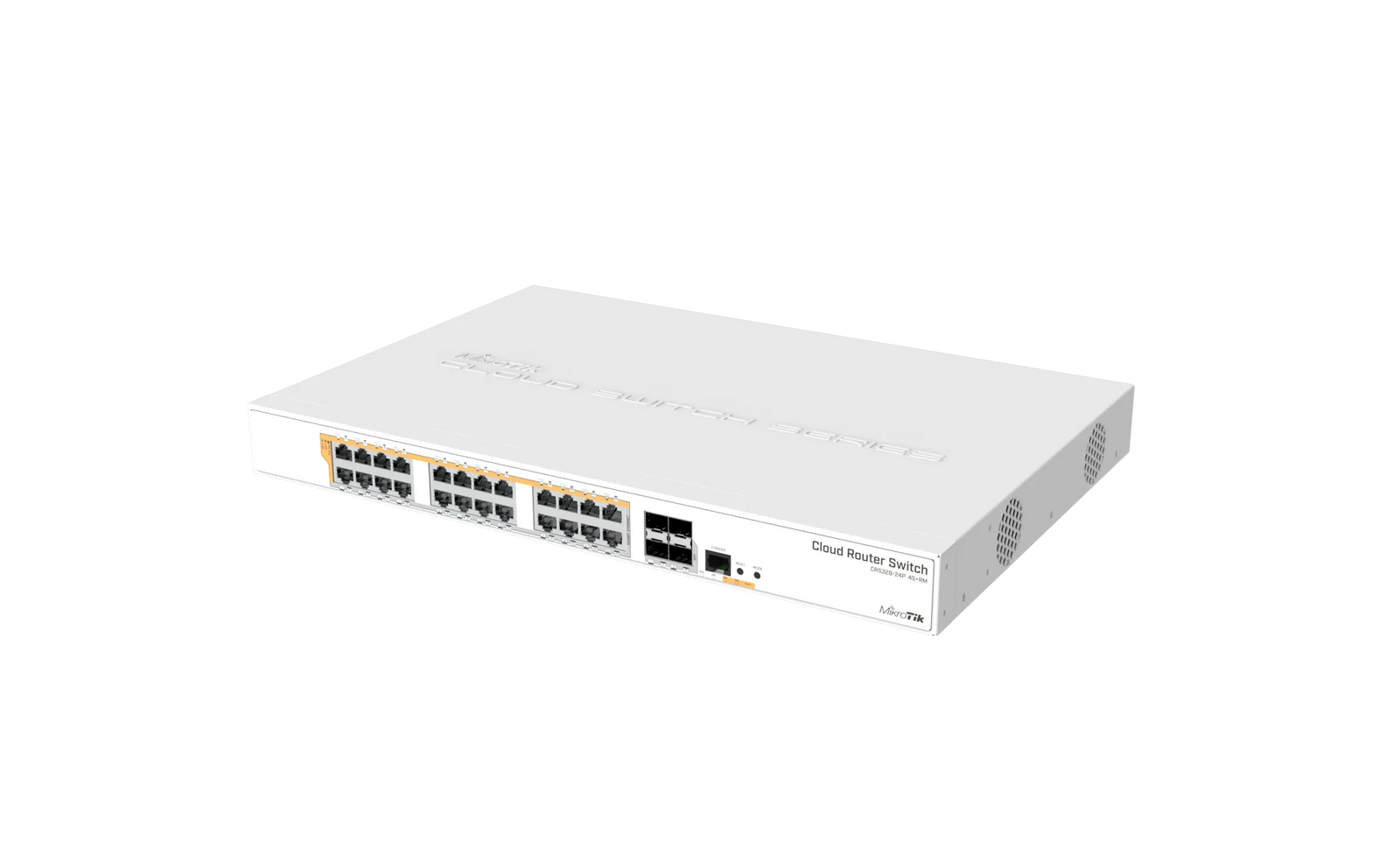

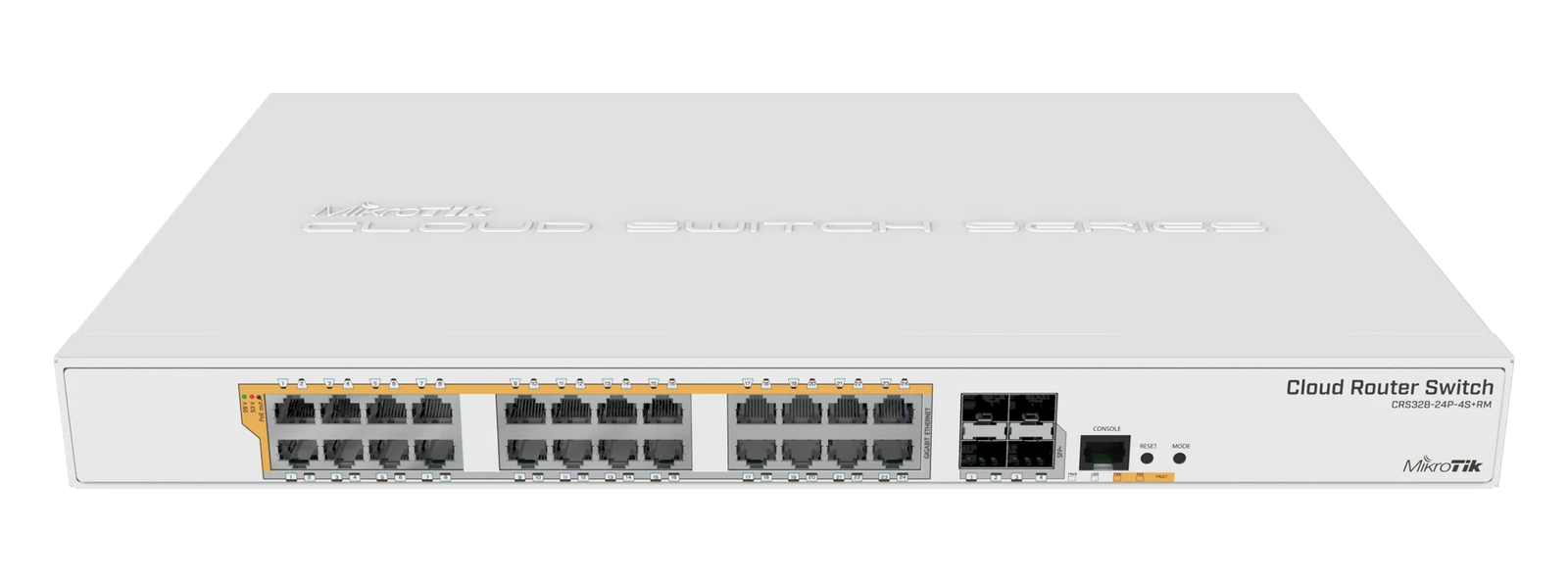

CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).
CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3x150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.
| Forwarding rate | 95.2 Mpps | Jumbo frames | 10218 |
| Jumbo frames support | Yes | MAC address table | 16000 entries |
| Switching capacity | 128 Gbit/s | Throughput | 64000 Mpps |
| Form factor | 1U | LED indicators | Yes |
| Number of fans | 2 fan(s) | Product colour | White |
| Rack mounting | Yes | ||
| Country of Origin | China | EU ECCN Code | N/A |
| Tariff No. | 8517620000 | UNSPSC Code | 43222612 |
| US ECCN Code | 5A992 | ||
| QoS support | Yes | Switch layer | L2/L3 |
| Switch type | Managed | System event log | Yes |
| Auto-sensing | Yes | Broadcast storm control | Yes |
| Link aggregation | Yes | Networking standards | IEEE 802.1Q, IEEE 802.3ad |
| Number of VLANs | 4000 | Port mirroring | Yes |
| VLAN support | Yes | ||
| Operating temperature (T-T) | -20 - 60 °C | Depth Verified | 6 cm |
| Gross Weight Verified | 4.3 kg | Height Verified | 56 cm |
| Width Verified | 35.5 cm | Cables included | AC |
| Rack mount kit | Yes | ||
| Built-in processor | Yes | Flash memory | 16 MB |
| Internal memory | 512 MB | MTBF | 200000 h |
| Processor frequency | 800 MHz | Processor manufacturer | ARM |
| RJ-45 ports quantity | 24 | RJ-45 ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 | Installed SFP+ modules | 4 |
| SFP+ module slots | 4 | ||
| AC input voltage | 100 - 240 V | Power supply units | 2 |
| Power consumption (max) | 44 W | Power source | AC |
| Power supply included | Yes | PoE | Yes |
| PoE ports quantity | 24 | PoE per port | 30 W |
| PoE types | Passive PoE, PoE+ | PoE voltage | 26 V |
| 4PPoE ports | 0 | Total PoE budget | 450 W |
| Net Weight | 3.8 kg | Product Depth | 30.5 cm |
| Product Height | 4.4 cm | Product Width | 44.3 cm |
| Management protocols | SNMP | Access Control List (ACL) | Yes |
| IGMP snooping | Yes | ||
| Brand Name | MikroTik | Warranty | 15 Month(s) |
| Main category | Network | Subcategory | Wired Network |
| Subcategory | Network Switches | Subcategory | Network Switches |
| Description | Downloads |
|---|---|
| MikroTik 24-Port PoE Gigabit Switch with 4× SFP+ | CRS328-24P-4S+RM DataSheet | Download |
| MikroTik 24-Port PoE Gigabit Switch with 4× SFP+ | CRS328-24P-4S+RM User Manual | Download |
| MikroTik 24-Port PoE Gigabit Switch with 4× SFP+ | CRS328-24P-4S+RM Quick Guide | Download |
