Gigabit Ethernet port, 8x SFP+ ports, PoE-in, 800MHz CPU, 512MB RAM, 16MB Flash, License level 5, RouterOS / SwitchOS

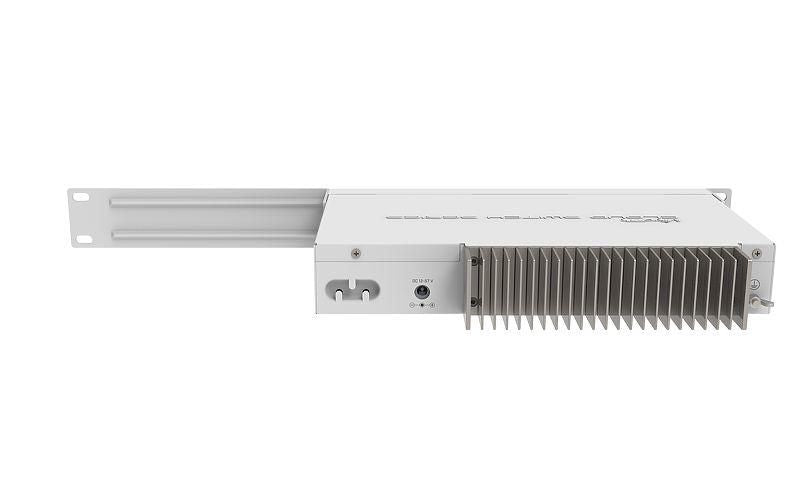

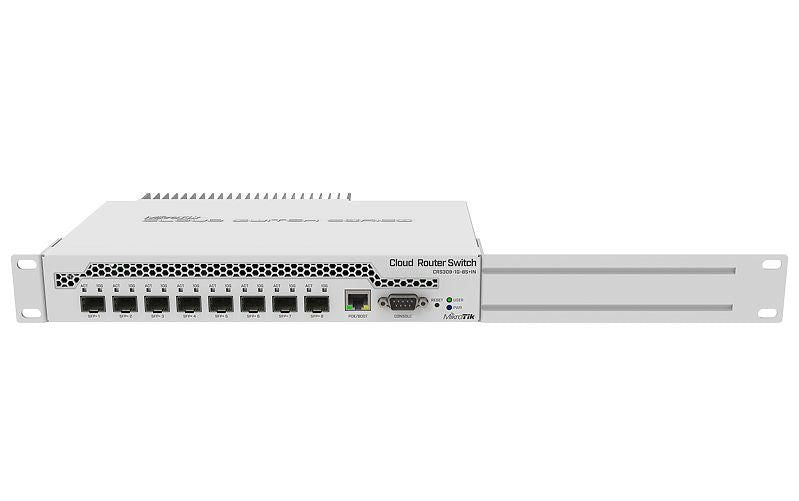

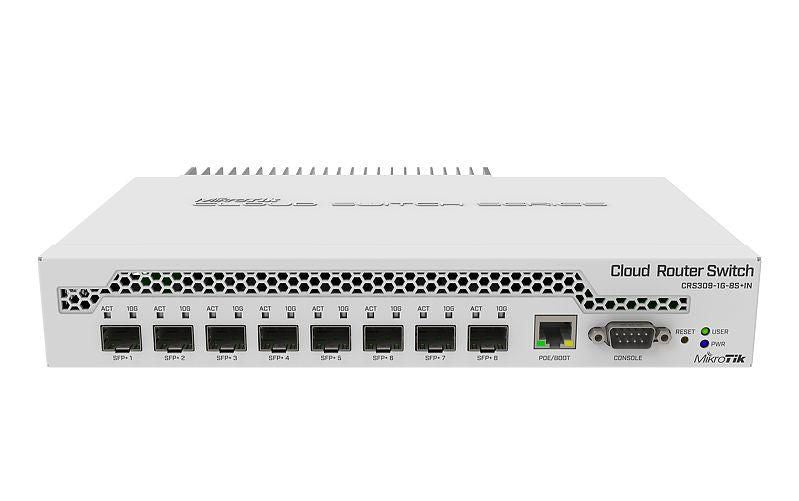

Desktop switch with one Gigabit Ethernet port and eight SFP+ 10Gbps ports
The CRS309-1G-8S+ is a very compact, yet powerful networking switch. It has eight SFP+ slots, supporting up to 10 Gbit module in each, which results in a total switching capacity of 162 Gbps and total non-blocking throughput of 81 Gbps.

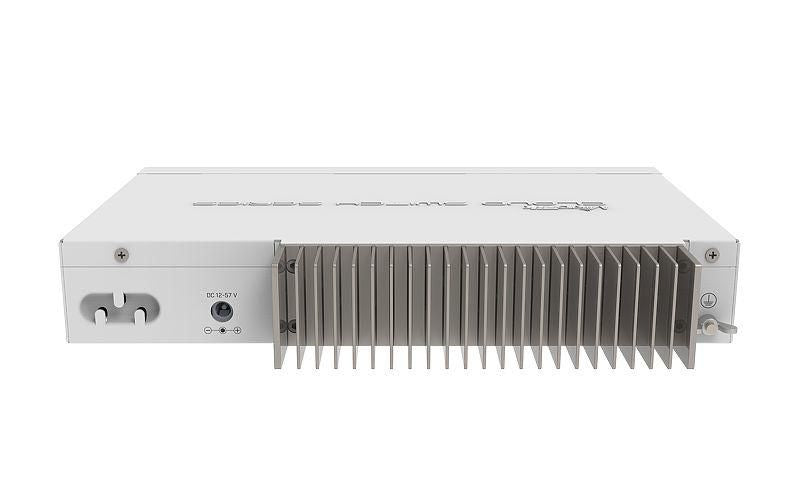

The device also has dual-core 800 MHz CPU, 512 MB RAM, a management Ethernet port with PoE power input, RS232 serial port, a grounding terminal and is capable of dual boot (choose which operating system you prefer, RouterOS, or SwOS).
| Switching Capacity | 162 Gbit/s | Product Colour | White |
| Rack Mounting | Yes | Country of Origin | Taiwan |
| EU ECCN Code | N/A | Tariff No. | 8517620000 |
| UNSPSC Code | 43222612 | US ECCN Code | 5A992 |
| Switch Type | Managed | 10G Support | Yes |
| Networking Standards | IEEE 802.3af, IEEE 802.3at | Operating Temperature | -40 - 70 °C |
| Package Depth | 20.6 cm | Package Weight | 1.218 kg |
| Package Height | 5.7 cm | Package Width | 38.3 cm |

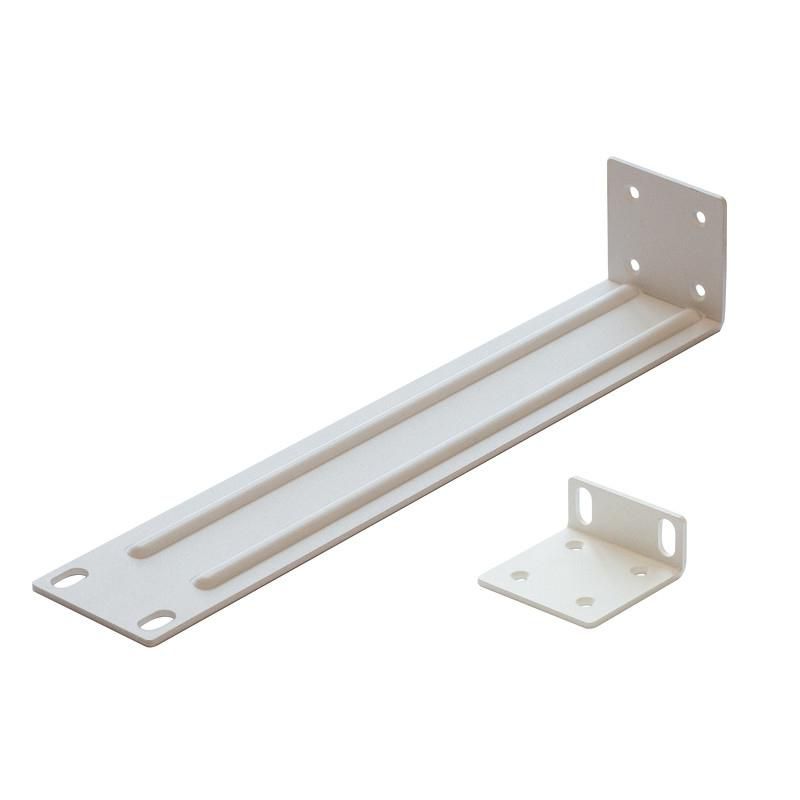

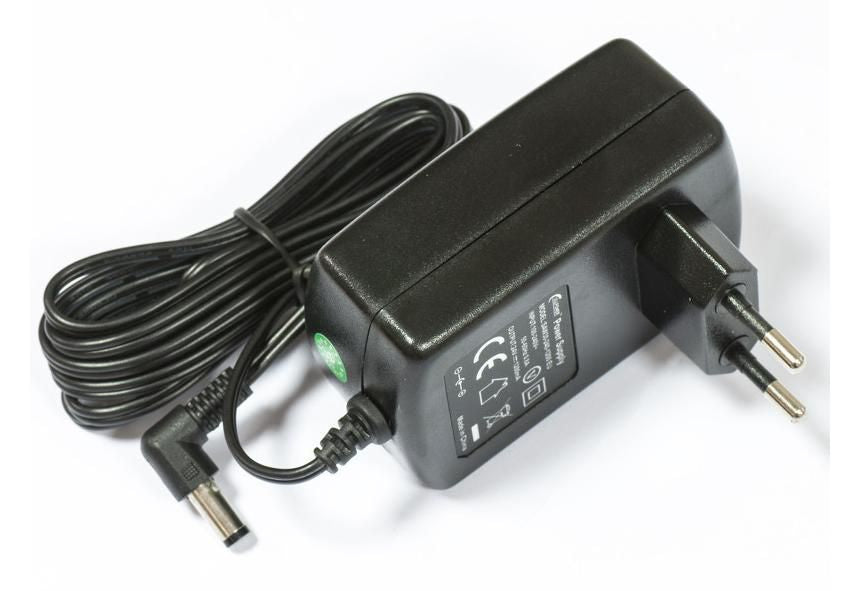

| AC Adapter Included | Yes | Mounting Brackets Included | Yes |

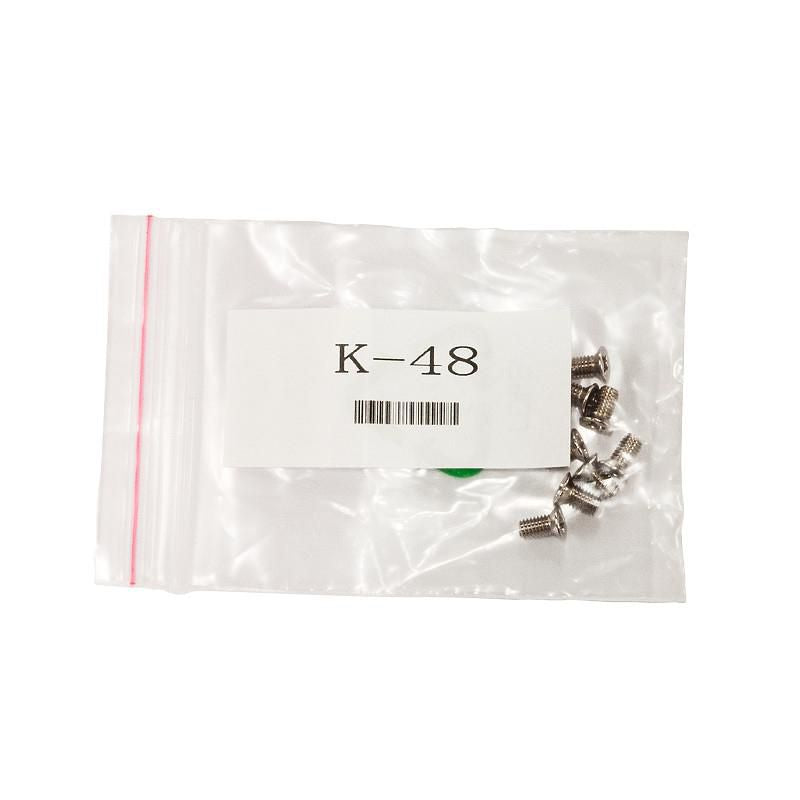

| Screws Included | Yes | Built-in Processor | Yes |
| Flash Memory | 16 MB | Internal Memory | 512 MB |
| Memory Type | RAM | Processor Frequency | 800 MHz |
| RJ-45 Ports | 1 | RJ-45 Port Type | Gigabit Ethernet (10/100/1000) |
| Console Port | RS-232 | Power Connector | DC-in jack |
| SFP+ Module Slots | 8 | DC Input Voltage | 12 - 57 V |
| Output Current | 1.2 A | Max Power Consumption | 23 W |
| PoE Support | Yes | PoE Voltage Range | 18 - 57 V |
| Net Weight (Product) | 1.16 kg | Product Depth | 11.5 cm |
| Product Height | 2.8 cm | Product Width | 14.1 cm |
| Brand Name | MikroTik | Warranty | 15 Month(s) |
| Main Category | Network | Subcategory | Wired Network / Network Switches |
| Description | Downloads |
|---|---|
| MikroTik 8x 10G SFP+ Fiber Switch | CRS309-1G-8S+IN DataSheet | Download |
