Official Partner
IPQ-4018, 128MB RAM, 16MB Flash, Dual-band 2412-2484MHz / 5150MHz-5875MHz, 2 x 10/100/1000, PoE, 802.11ac, White

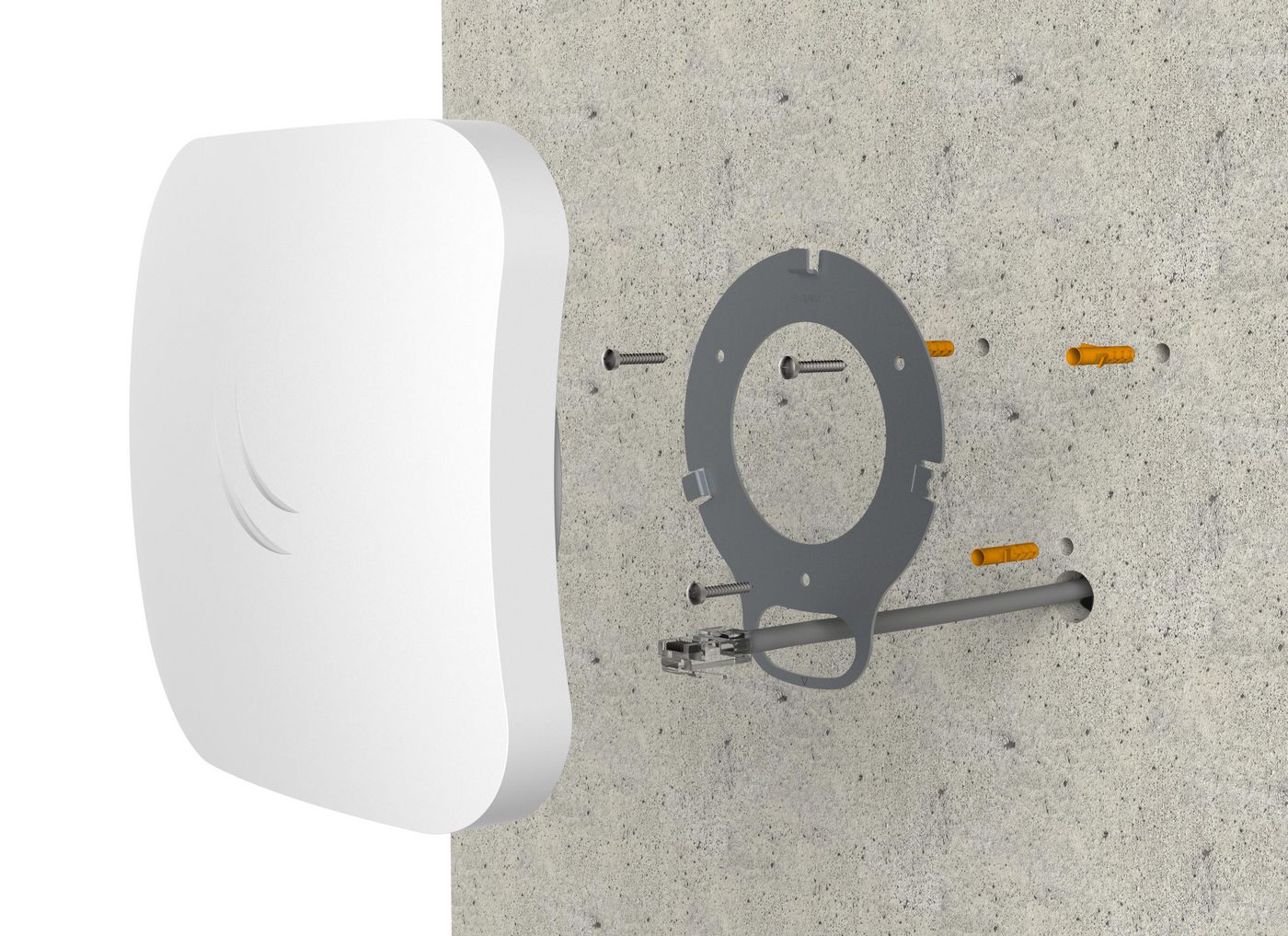

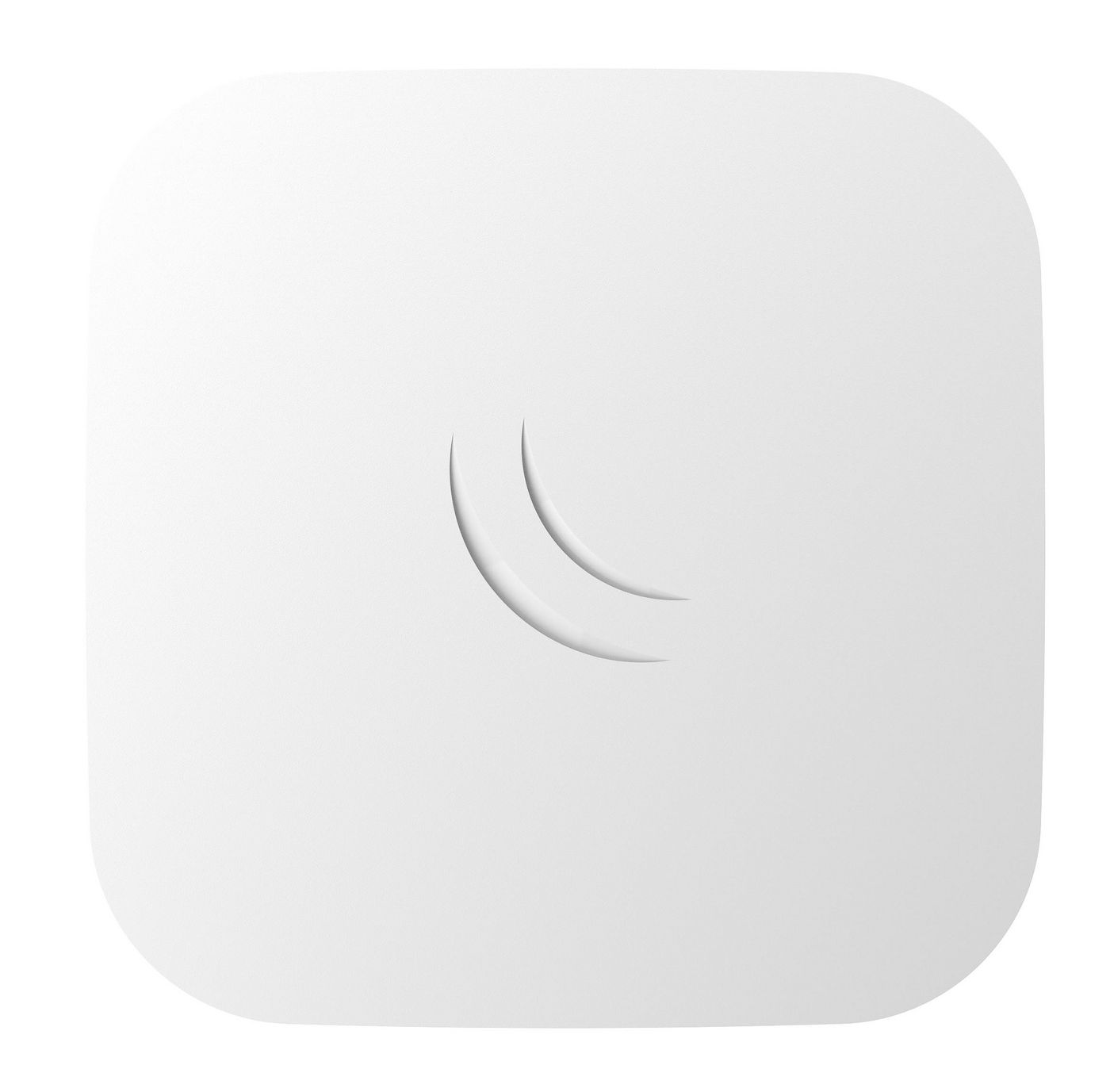

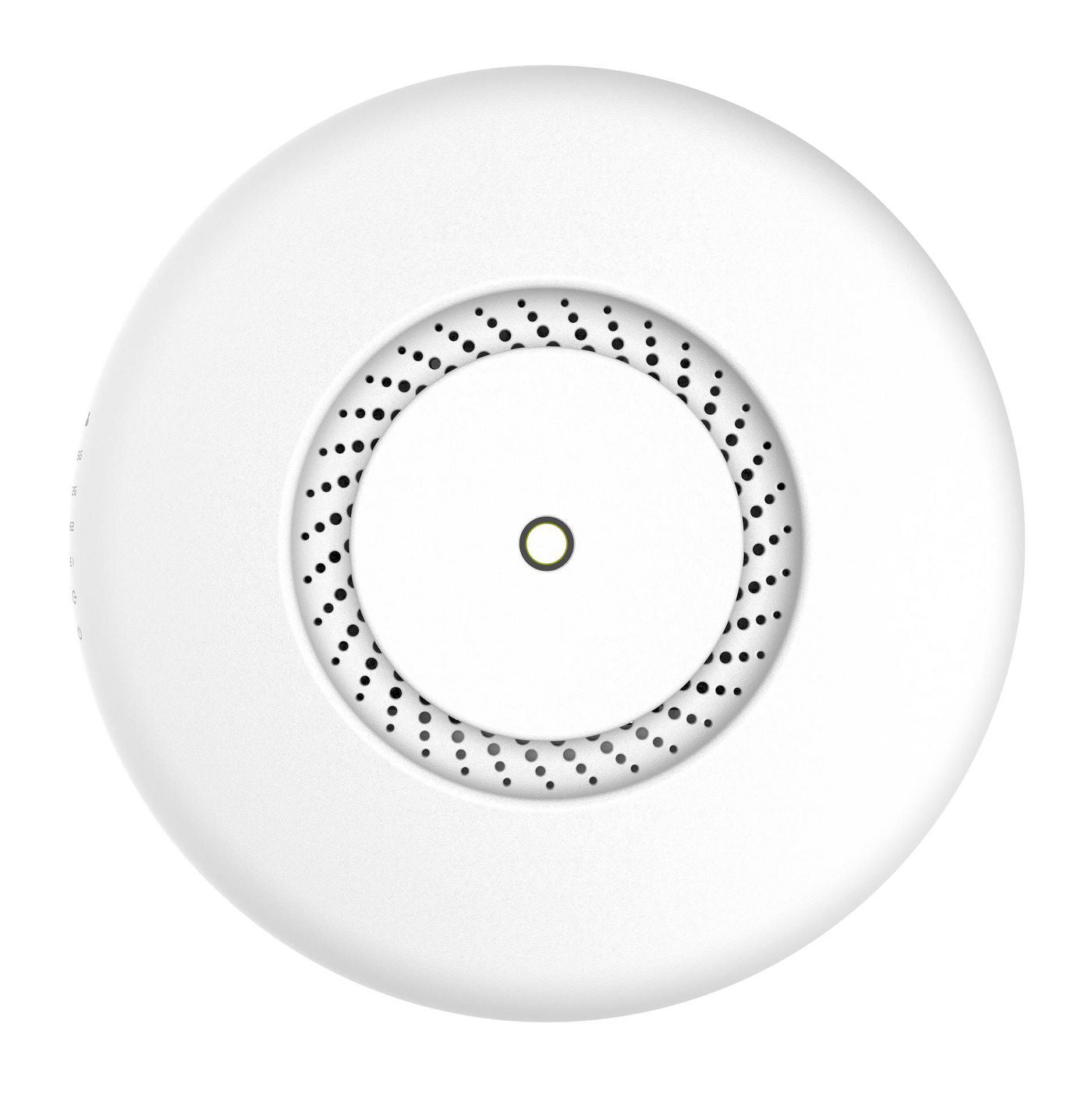

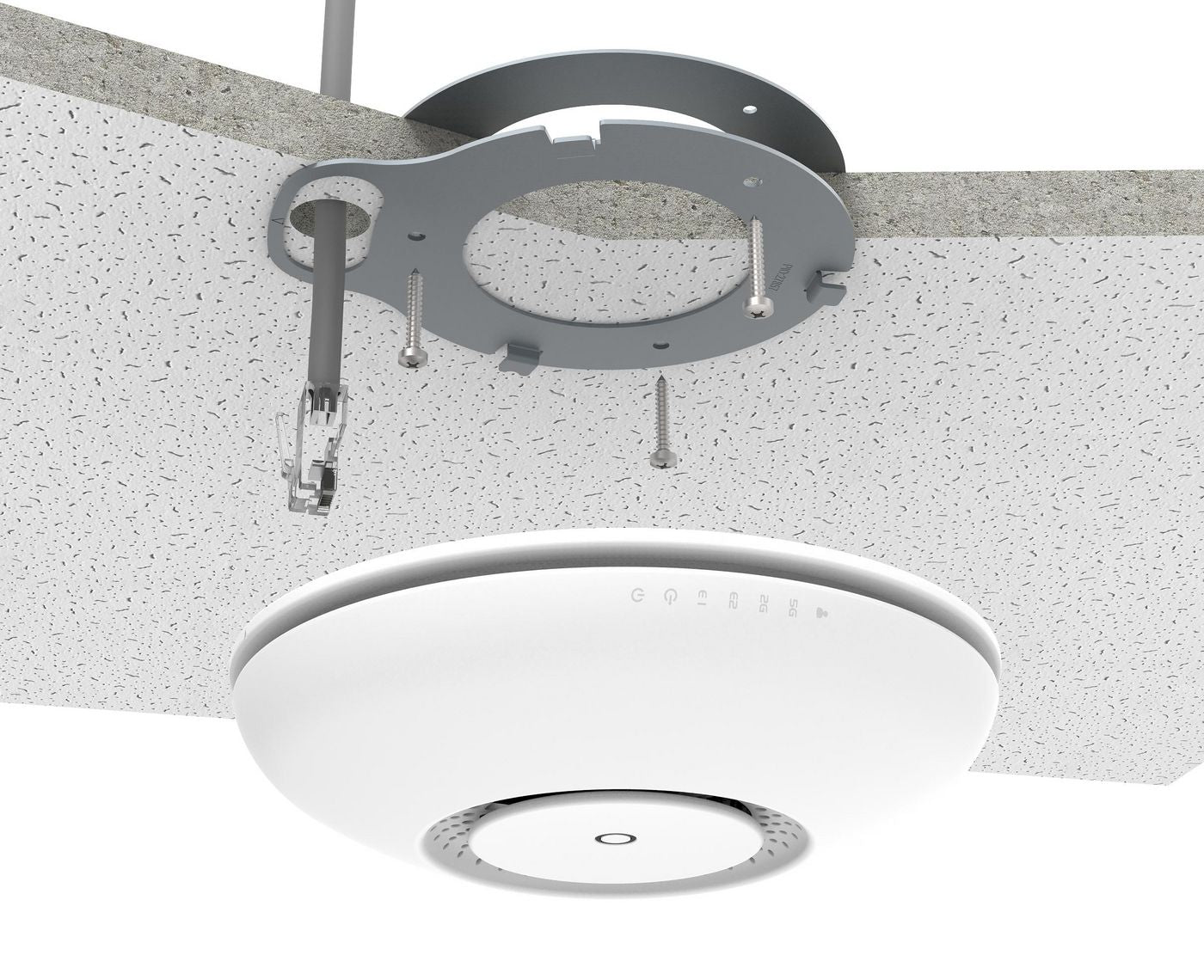

The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.
Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too.
| Antenna features | Integrated antenna | Antenna gain level (max) | 2.5 dBi |
| Antenna type | Internal | Antennas quantity | 4 |
| Certification | CE, FCC, IC, EAC, ROHS | Internal | No |
| LED indicators | Yes | Placement | Ceiling, Wall |
| Product colour | White | 2.4 GHz | Yes |
| 5 GHz | Yes | Ethernet LAN data rates | 10, 100, 1000 |
| Frequency band | 2.412 - 2.484, 5.15 - 5.875 GHz | Maximum data transfer rate | 867 Mbit/s |
| Max data rate (2.4 GHz) | 300 Mbit/s | Max data rate (5 GHz) | 867 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at | Transmitting power | 26 dBmW |
| Country of Origin | Taiwan | EU ECCN Code | N/A |
| Tariff No. | 8517620000 | UNSPSC Code | 43222640 |
| US ECCN Code | 5A992 | Operating temperature (T-T) | -40 - 50 °C |
| Depth Verified | 18.3 cm | Gross Weight Verified | 0.714 kg |
| Height Verified | 6.4 cm | Width Verified | 26.5 cm |
| AC adapter included | Yes | Mounting kit | Yes |
| PoE adapter included | Yes | Built-in processor | Yes |
| Flash memory | 16 MB | Internal memory | 128 MB |
| Operating system installed | RouterOS | Processor frequency | 716 MHz |
| Processor model | IPQ4018 | Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 | AC input voltage | 17 - 57 V |
| Input voltage | 17 - 57 V | Output voltage | 57 V |
| Power consumption (max) | 13 W | Power over Ethernet (PoE) | Yes |
| PoE type supported | Active PoE, Passive PoE | Net Weight (Product, kg) | 0.63 kg |
| Product Depth | 3 cm | Product Height | 13.6 cm |
| Product Width | 13.6 cm | Brand Name | MikroTik |
| Warranty | 15 Month(s) | Main category | Network |
| Subcategory | Wireless Network | Subcategory | Wireless Access Points |
| Description | Downloads |
|---|---|
| MikroTik cAP ac Dual-Band Ceiling Access Point | RBCAPGI-5ACD2ND DataSheet | Download |
| MikroTik cAP ac Dual-Band Ceiling Access Point | RBCAPGI-5ACD2ND User Manual | Download |
