Official Partner
ARM 32bit, IPQ-4018, 4 core, 716 MHz, IPQ-4018, 191 x 42 mm, RouterOS, 300 Mbit/s-867 Mbit/s, 802.11b/g/n /ac, AC1200

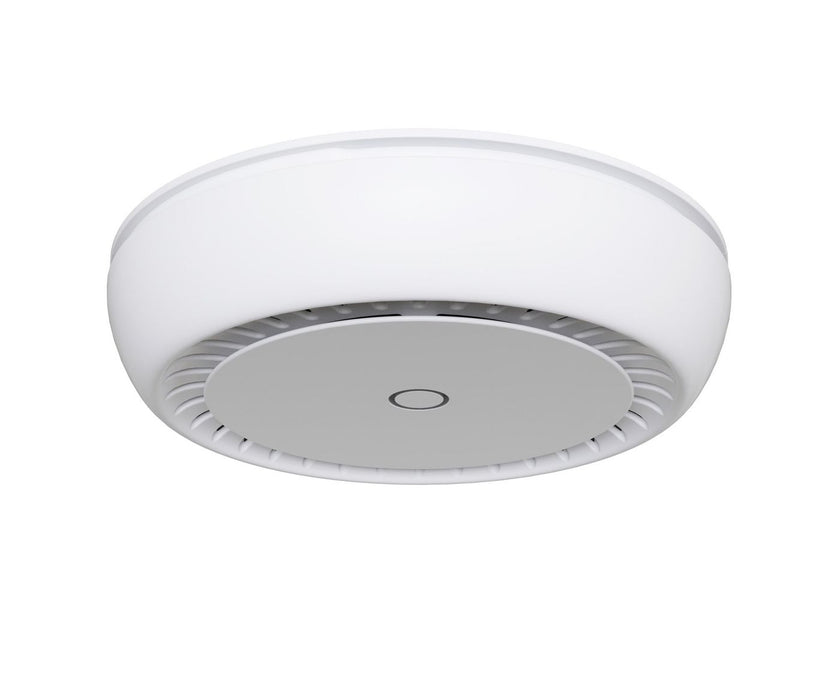

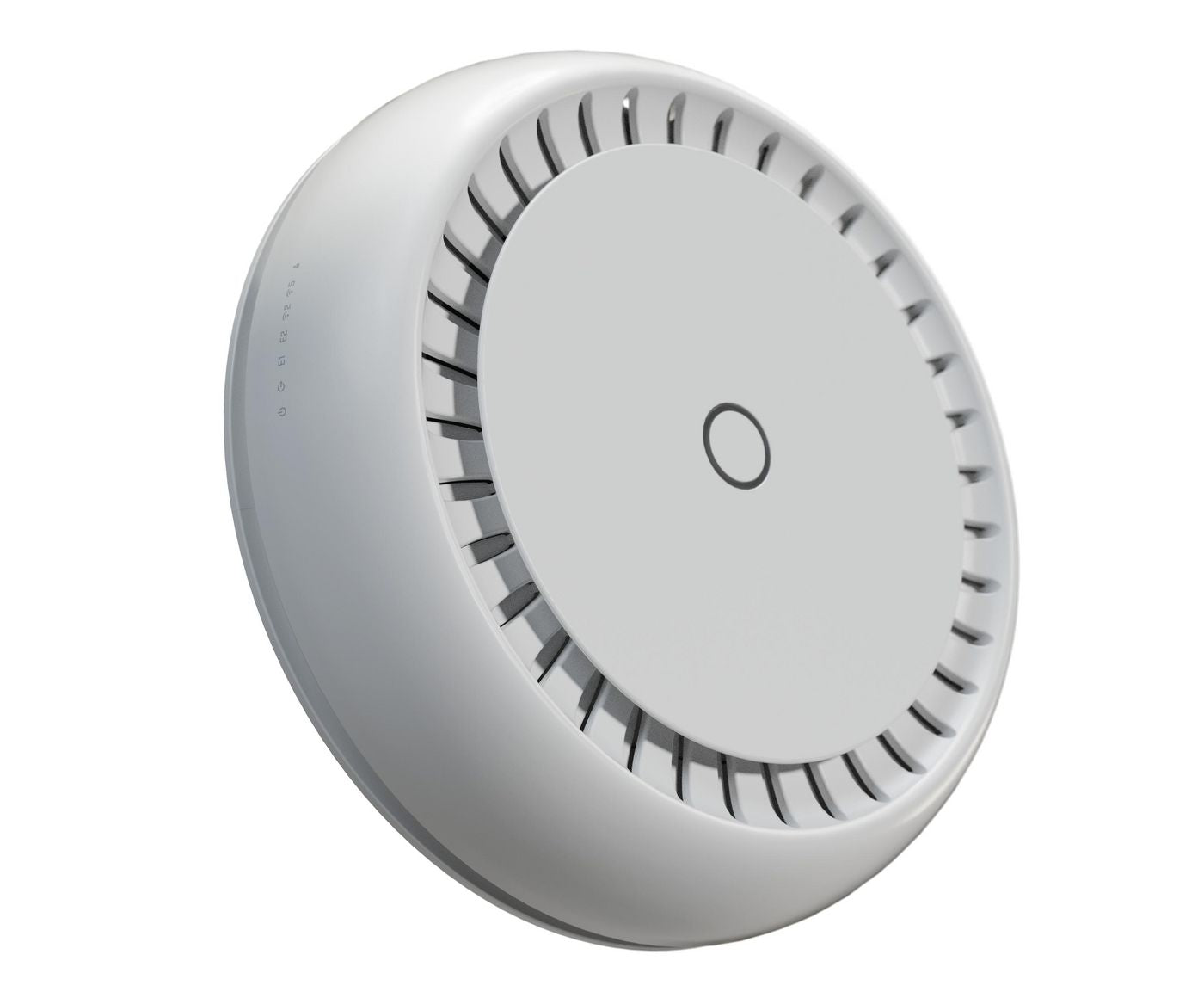

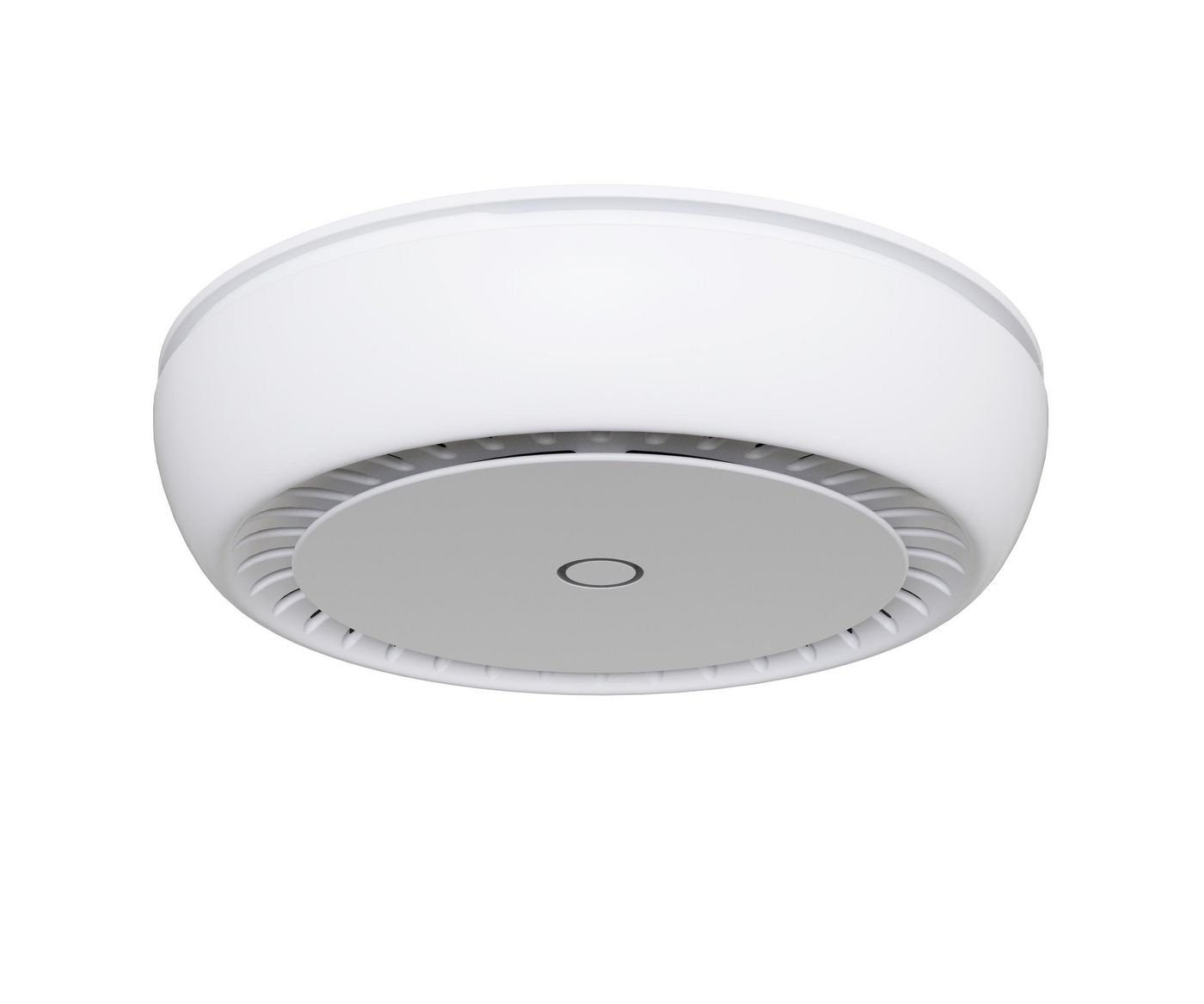

The ceiling AP on steroids! Our bestseller cAP is back – juiced up and stronger than ever. Compared to the previous cAP models, the improved high-gain antenna increases the covered area by up to 100%!
Need a nice-looking access point that won’t get in your way? Or perhaps you’re managing the network in a crowded place and don’t want everyone to have physical access to the device? Either way – ceiling is the answer! The device itself is pretty sleek - the low profile attracts less attention than a smoke detector. Your clients, guests, or colleagues won’t even notice it. But they will definitely notice the blazing fast wireless connection all across the premises.
The new design features a larger high-gain antenna, higher sensitivity, and a built-in reflector. These improvements allow increasing the covered area by up to 100%, compared to the previous cAP models!
The dual-band, dual-chain 2.4 and 5 GHz wireless radio provides a strong coverage in 360 degrees around it, so you don’t have to worry about the placement of the device so much. Putting it on the ceiling eliminates many signal absorption problems, such as the signal being blocked by large TV sets, metal cubicle walls in open space offices, etc.

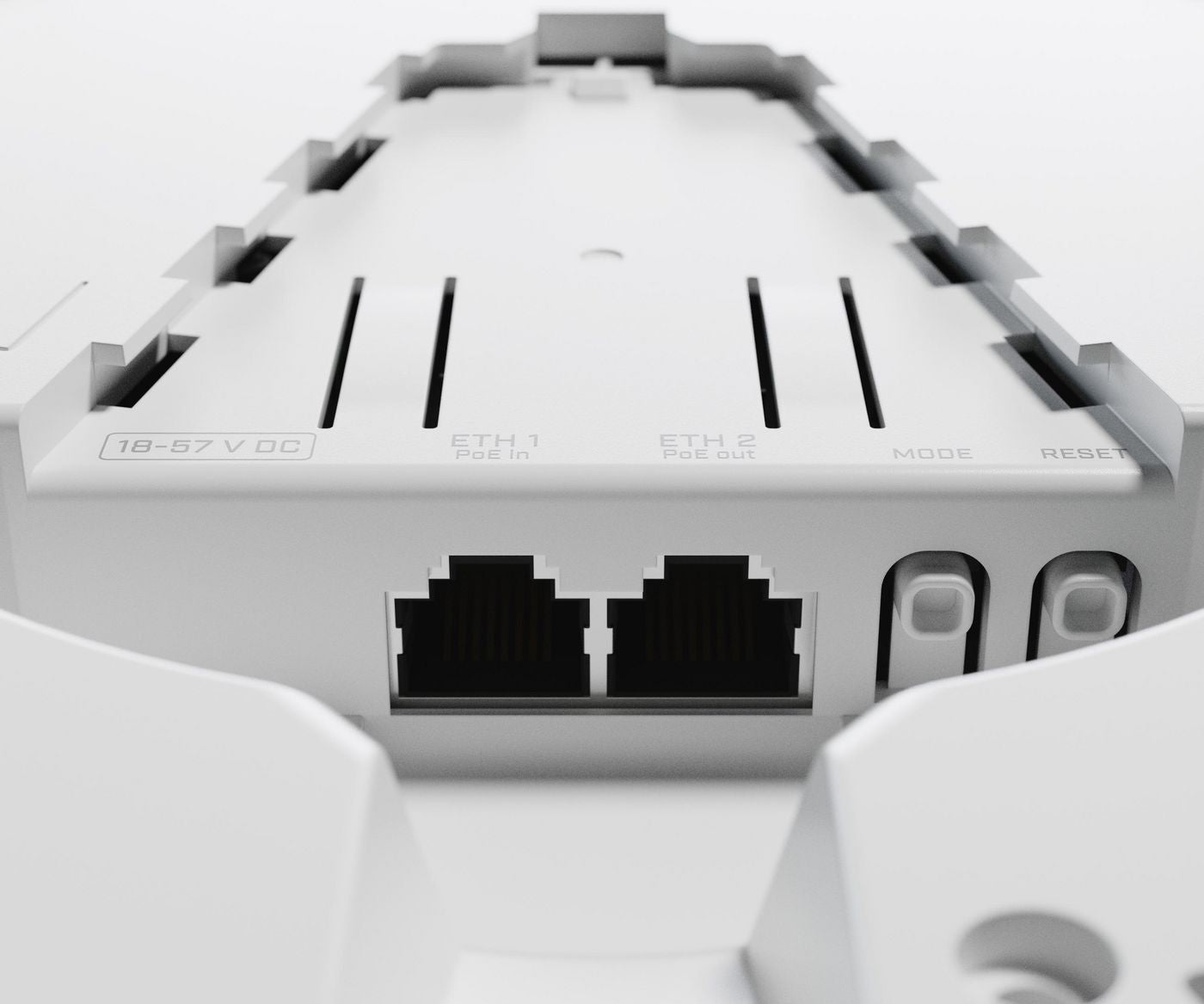

Even though the radio supports repeater mode, the two Gigabit Ethernet ports give you the ability to extend your network with cables, even if PoE power is required: the cAP XL ac supports 802.3af/at PoE input on the first port and passive PoE output (up to 57V) on the second port.
| Antenna Type | Internal | Compliance Certificates | CE, FCC, RoHS |
| Placement | Ceiling, Wall | Product Colour | White |
| WPS Push Button | Yes | 2.4 GHz | Yes |
| 5 GHz | Yes | 6 GHz | No |
| Bluetooth | No | Cabling Technology | 10/100/1000Base-T(X) |
| Ethernet LAN Data Rates | 10, 100, 1000 | Frequency Band | 2 - 5.5 GHz |
| Max Data Transfer Rate | 867 Mbit/s | Data Rate (2.4 GHz) | 300 Mbit/s |
| Data Rate (5 GHz) | 867 Mbit/s | MTBF | 100000 h |
| Networking Standards | IEEE 802.3af, 802.3at | Transmitting Power (CE) | 26 dBm |
| Wi-Fi Data Rate (Max) | 867 Mbit/s | Country of Origin | China |
| Tariff No. | 8517620000 | UNSPSC Code | 43222640 |
| Warranty Period | 5 year(s) | Wireless Technology | Wi-Fi 5 |
| Package Depth | 24.1 cm | Package Weight | 0.848 kg |
| Package Height | 5.4 cm | Package Width | 31.3 cm |
| Built-in Processor | Yes | Chipset | IPQ-4018 |
| Flash Memory | 128 MB | Internal Memory | 16 MB |
| Operating System | RouterOS | Processor Frequency | 716 MHz |
| Processor Model | IPQ4018 | Security Update Term | IPsec hardware acceleration |
| DC-in Jack | Yes | Ethernet LAN Ports | 2 |
| USB 2.0 Ports | 0 | AC Input Voltage | 17 - 57 V |
| Input Current | 1.2 A | Power Consumption (Max) | 24 W |
| Power Consumption (Typical) | 11 W | PoE Support | Yes (Passive PoE) |
| Net Weight | 0.7 kg | Product Height | 4.2 cm |
| Product Width | 19.1 cm | Security Features | IPsec hardware acceleration |
| Sustainability Certificates | CE, FCC, RoHS | Brand Name | MikroTik |
| Warranty | 15 Month(s) | Main Category | Network |
| Subcategory | Wireless Network / Wireless Access Points |
| Description | Downloads |
|---|---|
| MikroTik cAP XL ac 867 Mbit/s PoE Wireless Access Point | RBCAPGI-5ACD2ND-XL DataSheet | Download |
