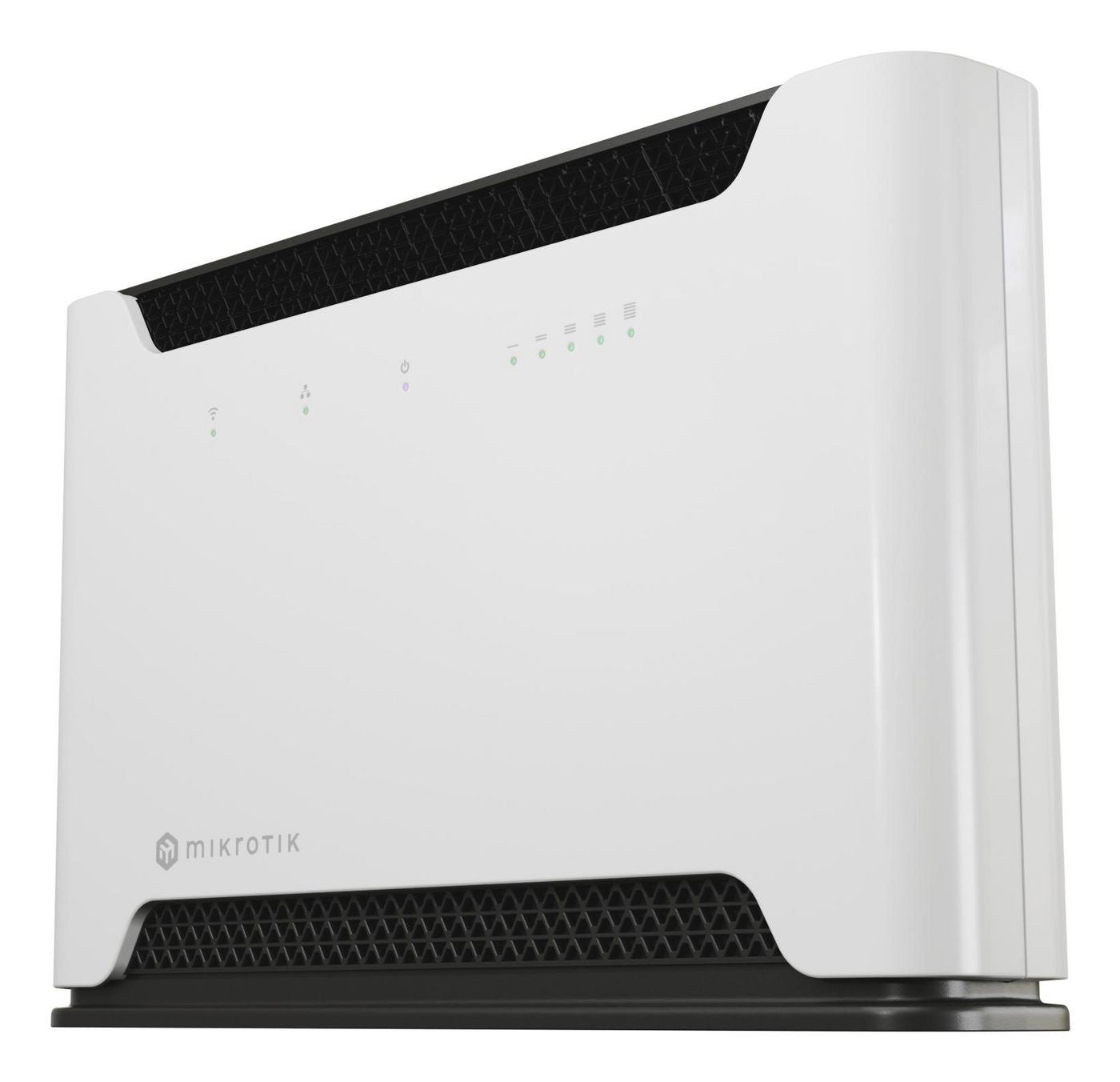

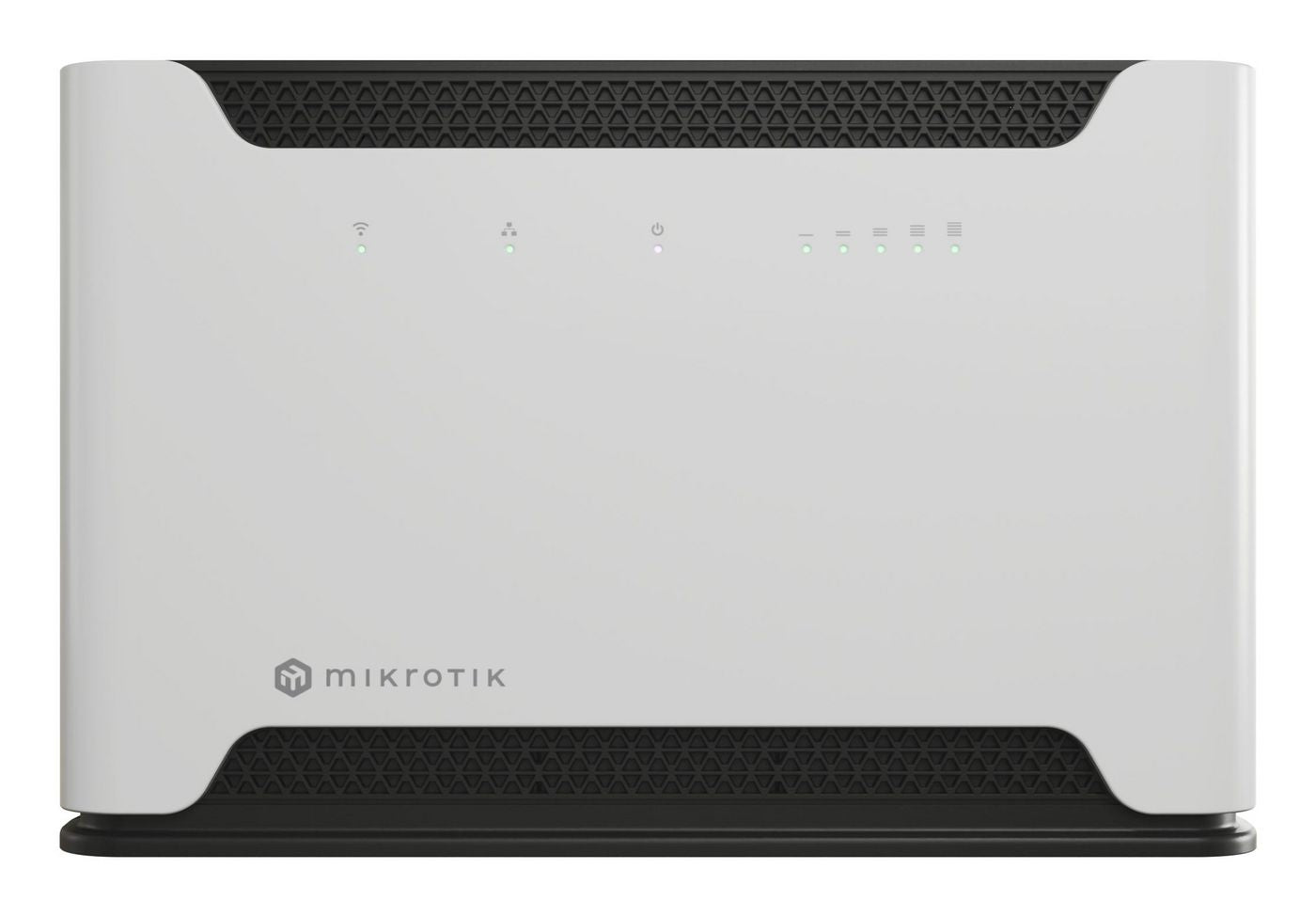

Quad-Core IPQ-4019 448-896 MHz (auto), 256 MB, 3G/LTE, 802.11b/g/n/ac, 5 x 1G Ethernet ports, USB, 32 MB Flash, 240 x 156 x 44 mm
Remove the bottleneck in your mobile internet setup
Are you tired of ISP or operator-issued routers that limit your speed and coverage? Chateau LTE12 is the solution, delivering faster, more reliable mobile internet, whether you are in the city or the countryside. With carrier aggregation and expanded 4x4 MIMO support, you’ll experience:
- Faster speeds in crowded areas
- More stable connections in remote locations
- Wider coverage across multiple LTE bands
New and improved LTE connectivity
- Upgraded LTE12 modem for stronger, reliable connections.
Expanded 4x4 MIMO support on more bands: 1 / 3 / 7 / 38 / 40 / 41
- Dual-band Wi-Fi for seamless performance across all devices
- Now with B32 support for improved LTE performance in supported regions!
Built for homes and businesses

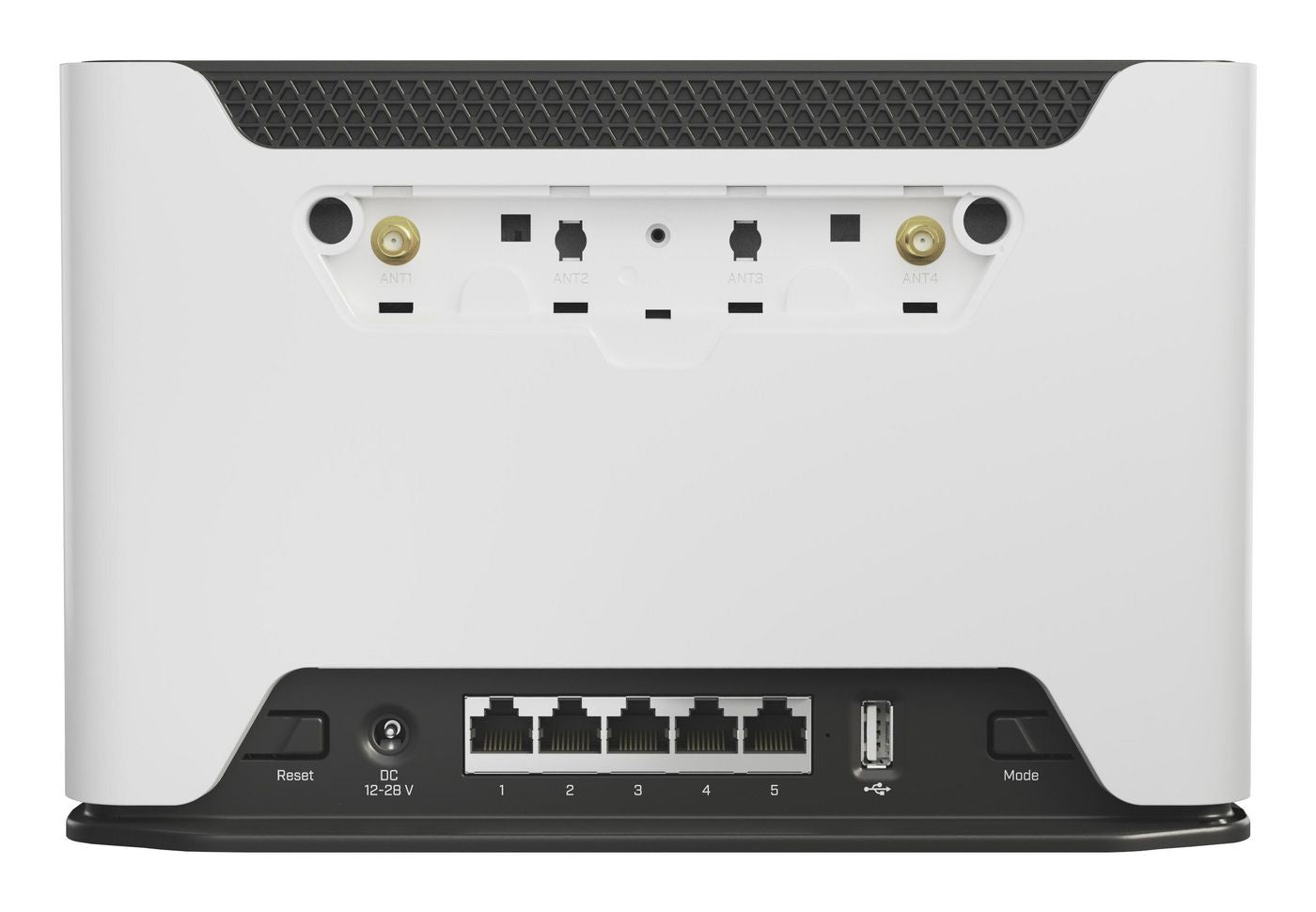

- 5x Gigabit Ethernet ports to connect media servers, PC towers, TVs, or smart home systems.
- Dual-band Wi-Fi (2.4 GHz & 5 GHz) ensures stable connections for all your devices.
- External LTE antenna support (SMA female ports) to boost signal strength in tricky signal areas.
- RouterOS for advanced security, VPNs, and full network control.
| Antenna connector type | SMA | Antenna design | Internal & external |
| Product colour | Black, White | Product type | Tabletop router |
| Built-in processor | Yes | Flash memory | 32 MB |
| Internal memory | 256 MB | Operating system installed | RouterOS |
| Processor cores | 4 | Processor frequency | 448 MHz |
| Processor manufacturer | Qualcomm | Processor model | Qualcomm Atheros IPQ4019 |
| Country of Origin | China | Tariff No. | 8517620000 |
| UNSPSC Code | 43222609 | MIMO | Yes |
| MU-MIMO technology | Yes | Number of data streams | 4x4 |
| Reset button | Yes | Web-based management | Yes |
| WPS push button | Yes | 3G | Yes |
| 4G | Yes | Mobile network generation | 4G |
| SIM card type | MicroSIM | Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes | Ethernet LAN data rates | 10, 100, 1000 |
| Ethernet LAN interface type | Gigabit Ethernet | Networking standards | IEEE 802.11a/ac/b/g/n |
| Operating temperature | -20 - 70 °C | Gross Weight (Package, kg) | 0.89 kg |
| DC-in jack | Yes | Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 1 | USB port | Yes |

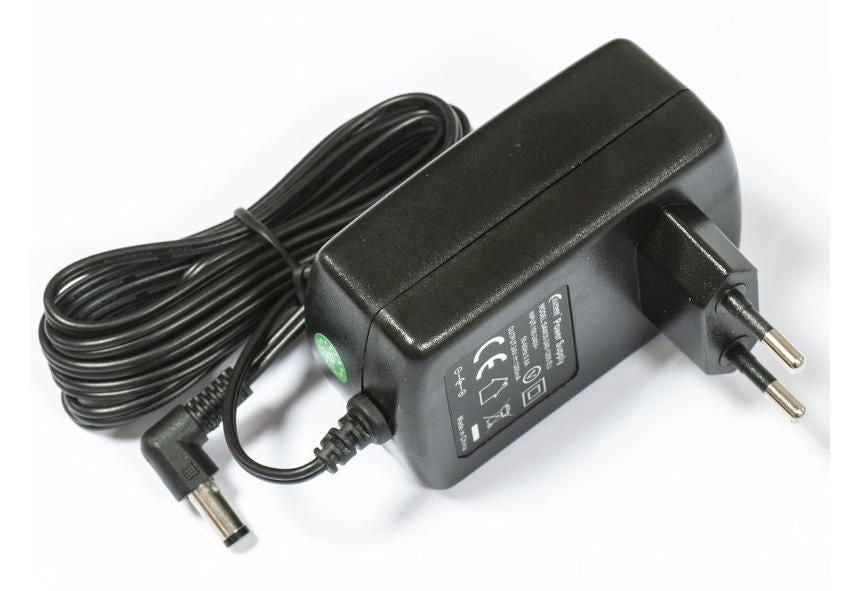

| External power adapter | Yes | Output voltage | 12 - 28 V |
| Power consumption (typical) | 18 W | Power source type | DC |
| Net Weight (Product, kg) | 0.78 kg | Product Depth | 4.4 cm |
| Product Height | 15.6 cm | Product Width | 24 cm |
| Brand Name | MikroTik | Warranty | 1 Year(s) |
| USB modem compatibility (3G/4G) | Yes | DSL WAN | No |
| Ethernet WAN | No | SIM card slot | Yes |
| WAN connection type | RJ-45/SIM/USB | Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) | Wi-Fi standards | 802.11a/b/g/n/ac |
| WLAN data rate (first band) | 300 Mbit/s | WLAN data rate (max) | 866 Mbit/s |
| WLAN data rate (second band) | 866 Mbit/s | Main category | Network |
| Subcategory | Wireless Network | Subcategory | Wireless Routers |
| Description | Downloads |
|---|---|
| MikroTik Chateau LTE12 Dual-Band Gigabit 4G Router | D53G-5HACD2HND-TC&EG120K-EA DataSheet | Download |
