9 ports, USB 3.0, 1 GB (RAM), RouterOS, DC x 3, 24-57 V, 20 W

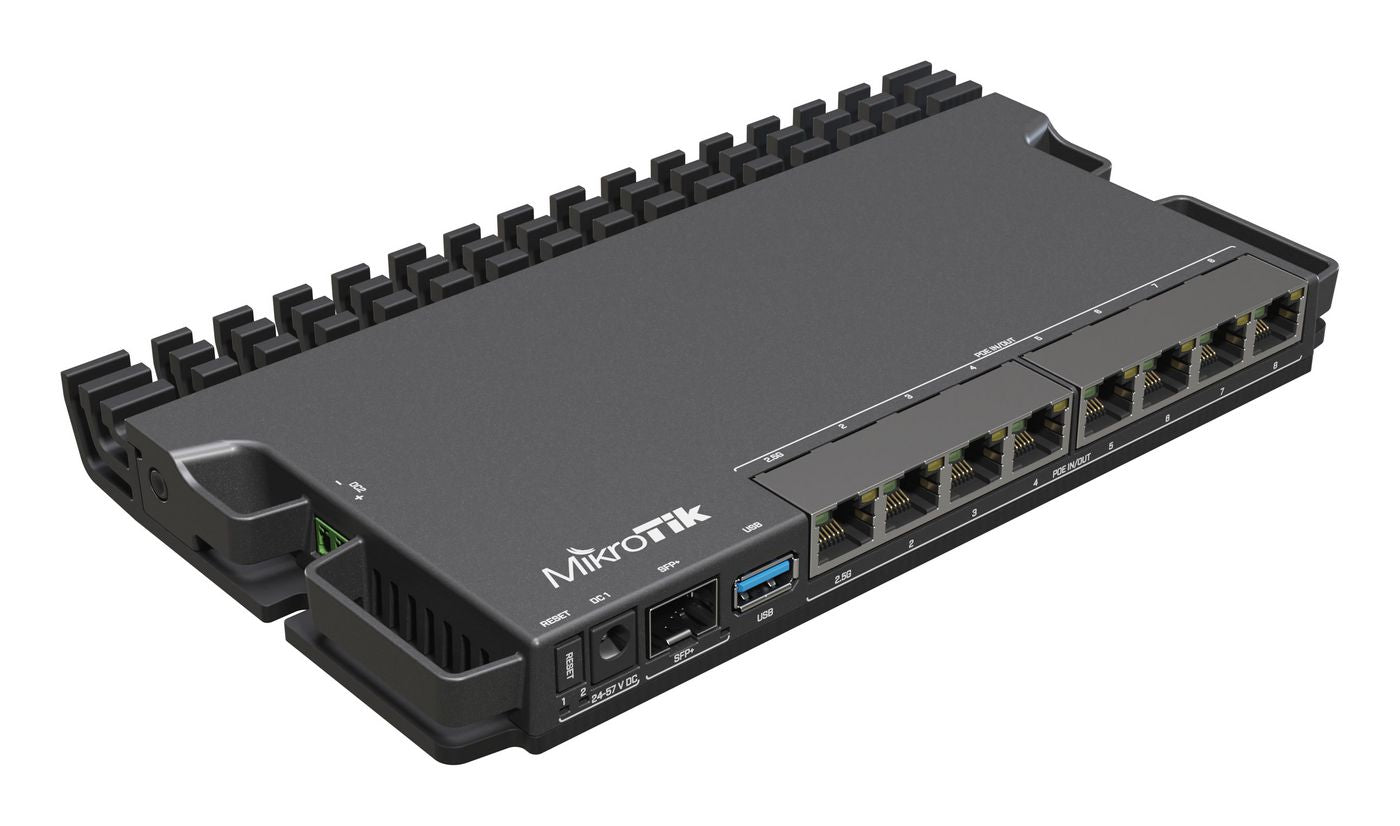

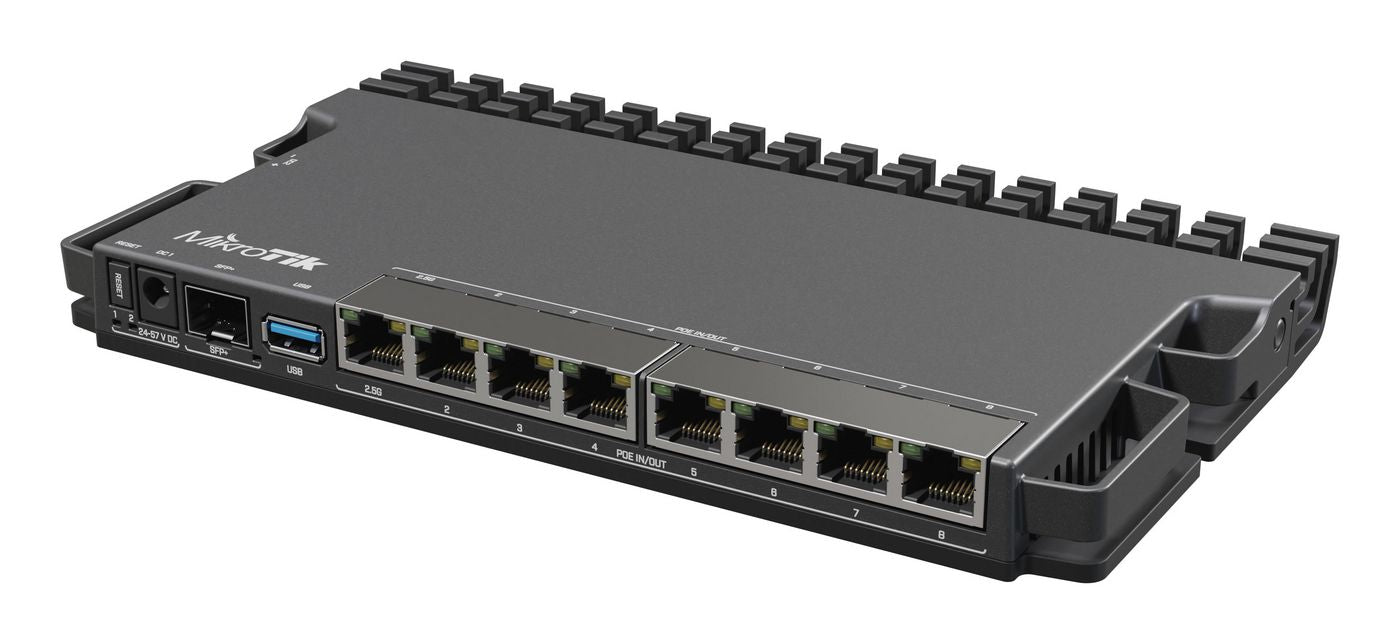

Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

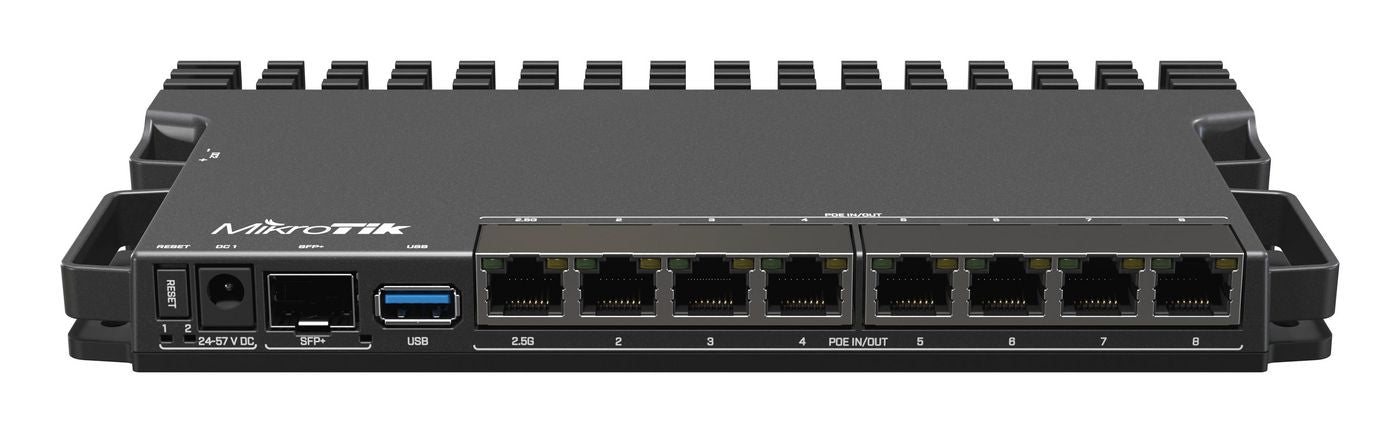

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
| Compliance certificates | RoHS | Product colour | Black |
| Certification | CE, EAC, ROHS | MTBF | 200000 h |
| ADR Information | No restrictions | Country of Origin | Latvia |
| EU ECCN Code | N/A | Tariff No. | 8517620000 |
| UNSPSC Code | 43222609 | US ECCN Code | 5A992 |
| Mobile network generation | Not supported | Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 10, 100, 1000 | Networking standards | IEEE 802.3af, IEEE 802.3at |
| Storage temperature (T-T) | -40 - 60 °C | Depth (package,cm) | 5 cm |
| Gross Weight (Package, kg) | 0.95 kg | Height (package,cm) | 31.1 cm |
| Width (package,cm) | 13.1 cm | DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 | Gigabit Ethernet (copper) ports quantity | 7 |
| Installed SFP+ modules quantity | 1 | PoE ports quantity | 1 |
| USB ports quantity | 1 | USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Power consumption (typical) | 20 W | Power over Ethernet (PoE) | Yes |
| Power source type | DC | Net Weight (Product, kg) | 0.81 kg |
| Sustainability certificates | RoHS | Brand Name | MikroTik |
| Warranty | 15 Month(s) | Ethernet WAN | Yes |
| Main category | Network | Subcategory | Wired Network |
| Subcategory | Wired Routers |
| Description | Downloads |
|---|---|
| MikroTik Compact 9-Port High-Performance Router | RB5009UG+S+IN DataSheet | Download |
| MikroTik Compact 9-Port High-Performance Router | RB5009UG+S+IN User Manual | Download |
