QCA9531 650 MHz, 64 MB RAM, 16 MB FLASH, 18 W, 802.3af/at, 802.11b/g/n, 300 Mbit/s, Wi-Fi 4, RS485

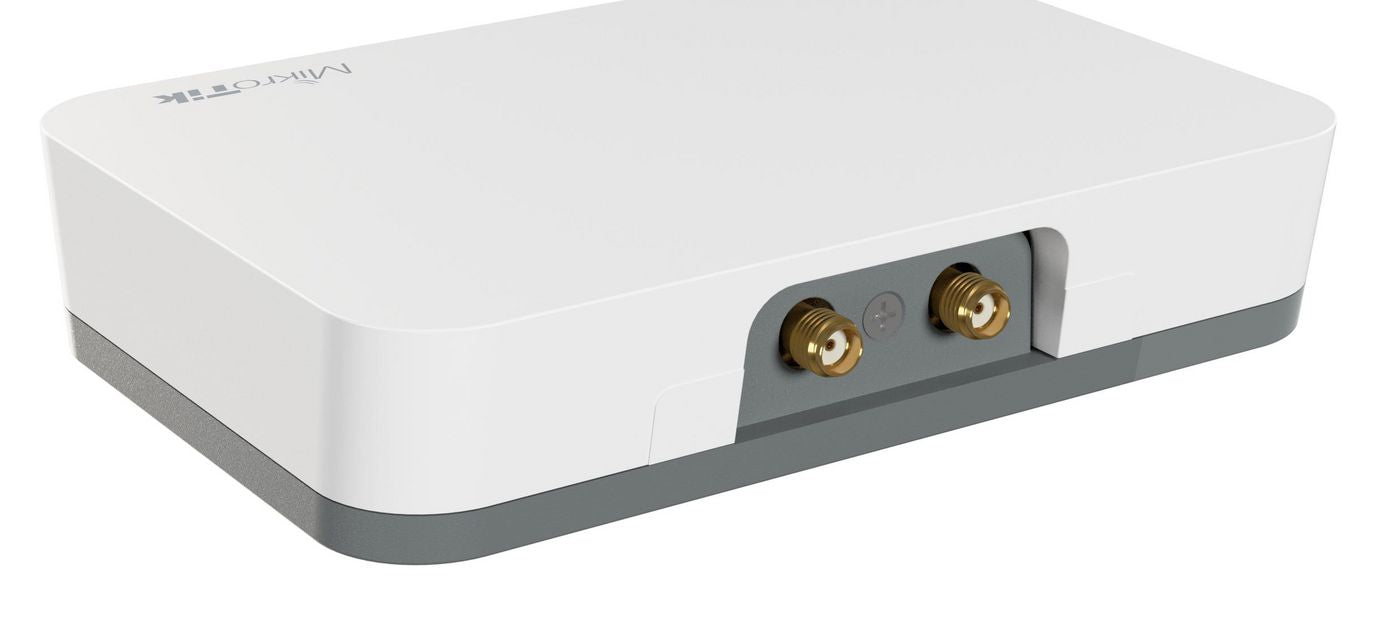

The newest addition to the MikroTik IoT product family – KNOT – is a truly universal device with exceptional connectivity options and protocol support. It is an IoT Gateway that uses Narrow Band and CAT-M technology. Because of the low cost, low bandwidth cellular connection, it is supported by countless mobile operators around the globe.
KNOT can monitor onboard GPIOs, convert Modbus protocol to TCP, and even forward Bluetooth packets to TCP/IP network via HTTPS and MQTT.
You can use the KNOT as a TCP bridge from wired Modbus sensors to send readings to a Modbus server. Yes, the KNOT brings wireless connectivity to wired sensors, such as electricity meters and relays.
It could be used as a backup connection for the Ethernet or as a management channel for your network. NB/CAT-M monthly plan is much cheaper than LTE. Why spend extra money on bandwidth you don’t need? For example, you can manage a KNOT-powered vending machine with temperature and liquid sensors with only a few megabytes per day!
KNOT features so many protocol support and connectivity options:

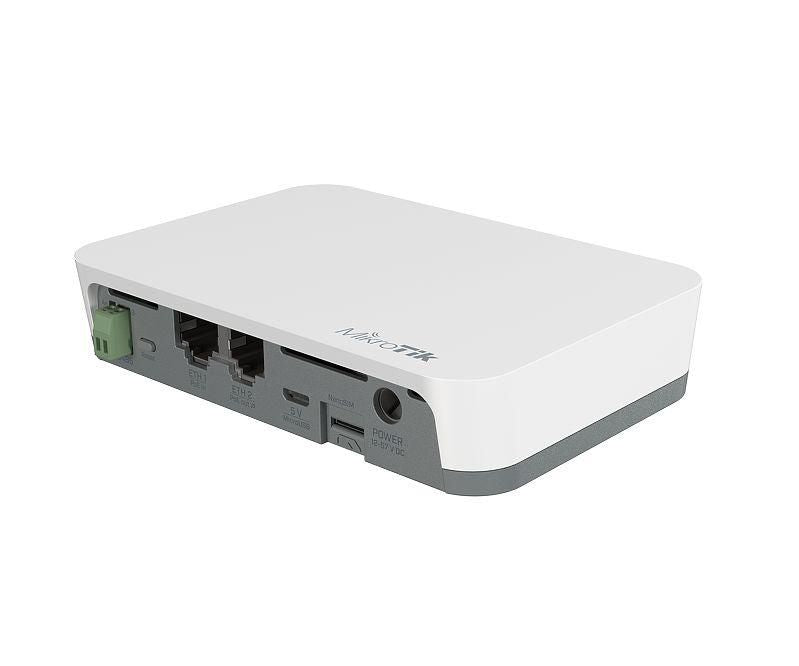

2.4 GHz wireless, Bluetooth, 2x 100 Mbps Ethernet ports with PoE-in and PoE-out, Micro-USB. Maximum convenience at the lowest cost!
With the Bluetooth interface, you can use the KNOT for asset tracking and telemetry based on Bluetooth advertisement packets. KNOT supports any BLE tag that sends advertisement data. iBeacon, Eddystone or any other format.
It has powerful filters for forwarding only relevant packets and ignoring others.

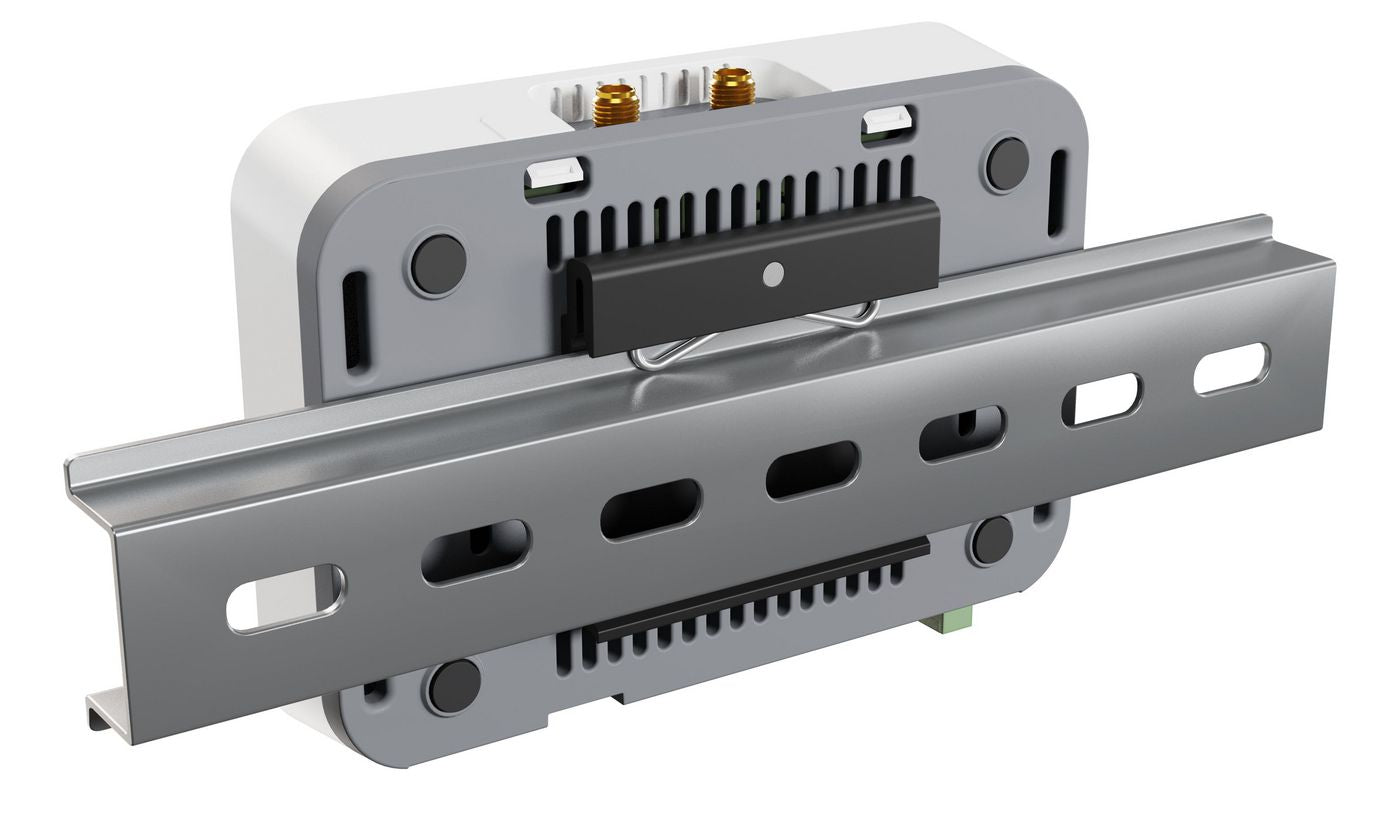

KNOT is a great tool for most outdoor cabinet IoT applications as well. It comes with a DIN rail mount that allows easy integration with all kinds of setups: from agriculture and asset tracking to cold chain monitoring, industrial manufacturing, and so on.
Bring flexible low-cost connectivity to the most remote or tricky areas with the MikroTik KNOT!
| Antenna gain level (max) | 1.5 dBi | Certification | CE, FCC, IC, EAC, ROHS |
| IP code | IP20 | Mounting type | DIN-rail |
| Product colour | White | Country of Origin | Lithuania |
| Tariff No. | 8517620000 | UNSPSC Code | 43222605 |
| Bluetooth | Yes | Bluetooth version | 5.2 |
| Cabling technology | 10/100Base-T(X) | Ethernet LAN data rates | 10, 100 |
| Forwarding rate | 300 Mpps | Networking standards | IEEE 802.11a/b/g/n, IEEE 802.3af/at |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) | Wi-Fi | Yes |
| Wi-Fi band | Single-band (2.4 GHz) | Wi-Fi standards | 802.11b/g, Wi-Fi 4 (802.11n) |
| WLAN data rate (max) | 300 Mbit/s | WLAN data rates supported | 300 Mbit/s |
| Operating temperature | -40 - 70 °C | Depth (package) | 5 cm |
| Gross Weight (Package) | 0.62 kg | Height (package) | 23.5 cm |
| Width (package) | 11.2 cm | Flash memory | 16 MB |
| Internal memory | 64 MB | Processor model | QCA9531 |
| Ethernet LAN (RJ-45) ports | 2 | Micro-USB 2.0 ports | 1 |
| Serial interface type | RS-485 | SIM card slot | Yes |
| SIM card type | NanoSIM | Power consumption | 18 W (typical) |
| Power over Ethernet (PoE) | Yes | Net Weight (Product, kg) | 0.44 kg |
| Product Depth | 8.7 cm | Product Height | 2.6 cm |
| Product Width | 12.2 cm | Compatible OS | RouterOS |
| Built-in processor | Yes | Processor frequency | 650 MHz |
| Wireless connection | Yes | Brand Name | MikroTik |
| Warranty | 15 Month(s) | Main category | Network |
| Subcategory | Firewalls & Gateways | Subcategory | Gateways/Controllers |
| Description | Downloads |
|---|---|
| MikroTik IoT Gateway NB IoT CAT-M WiFi4 BT5.2 RS485 PoE DIN-Rail | RB924I-2ND-BT5&BG77 DataSheet | Download |
