At a Glance:
Supports 2G, 3G and 4G (LTE)
Built-in 802.11b/g/n wireless
Built-in GPS module
1 x 10/100 Ethernet LAN port
1 x RS232 serial port
2 x SIM slots to alternate between cellular providers

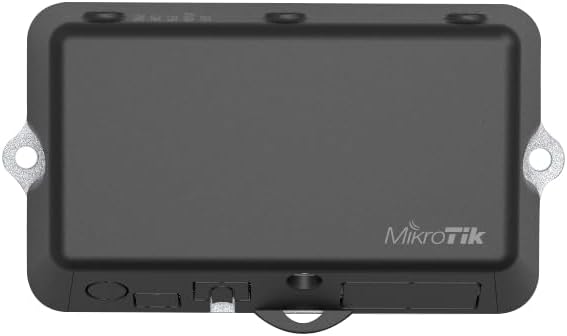

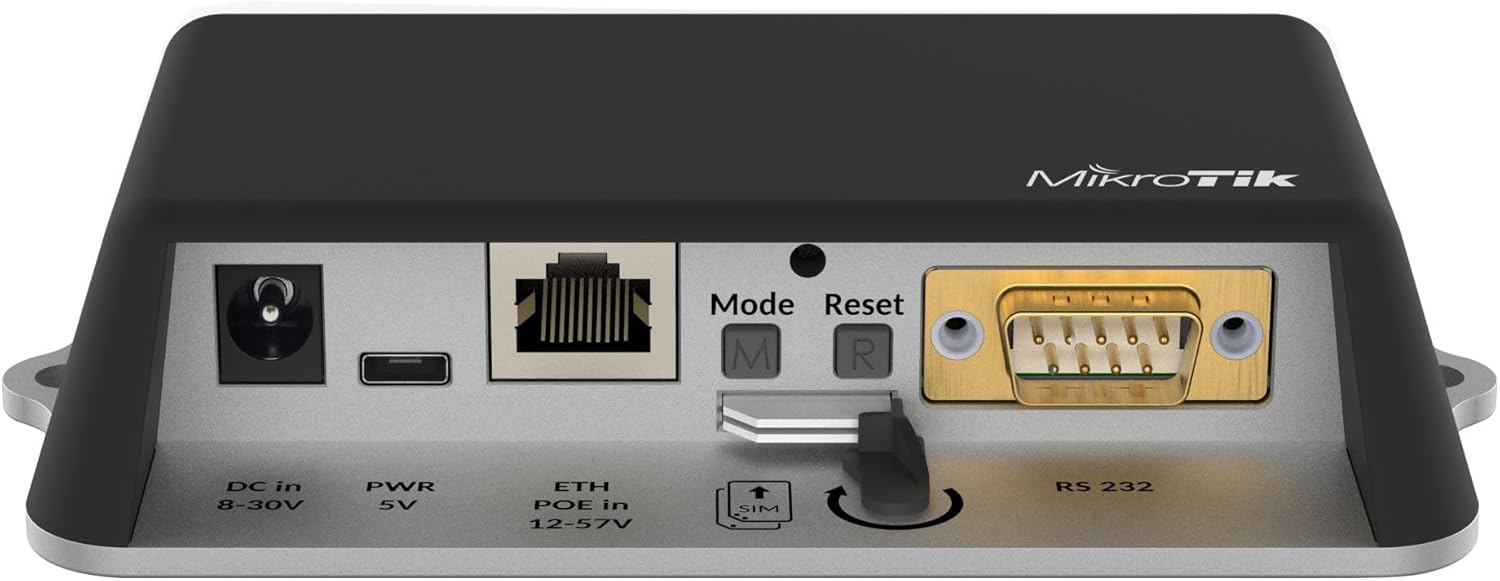

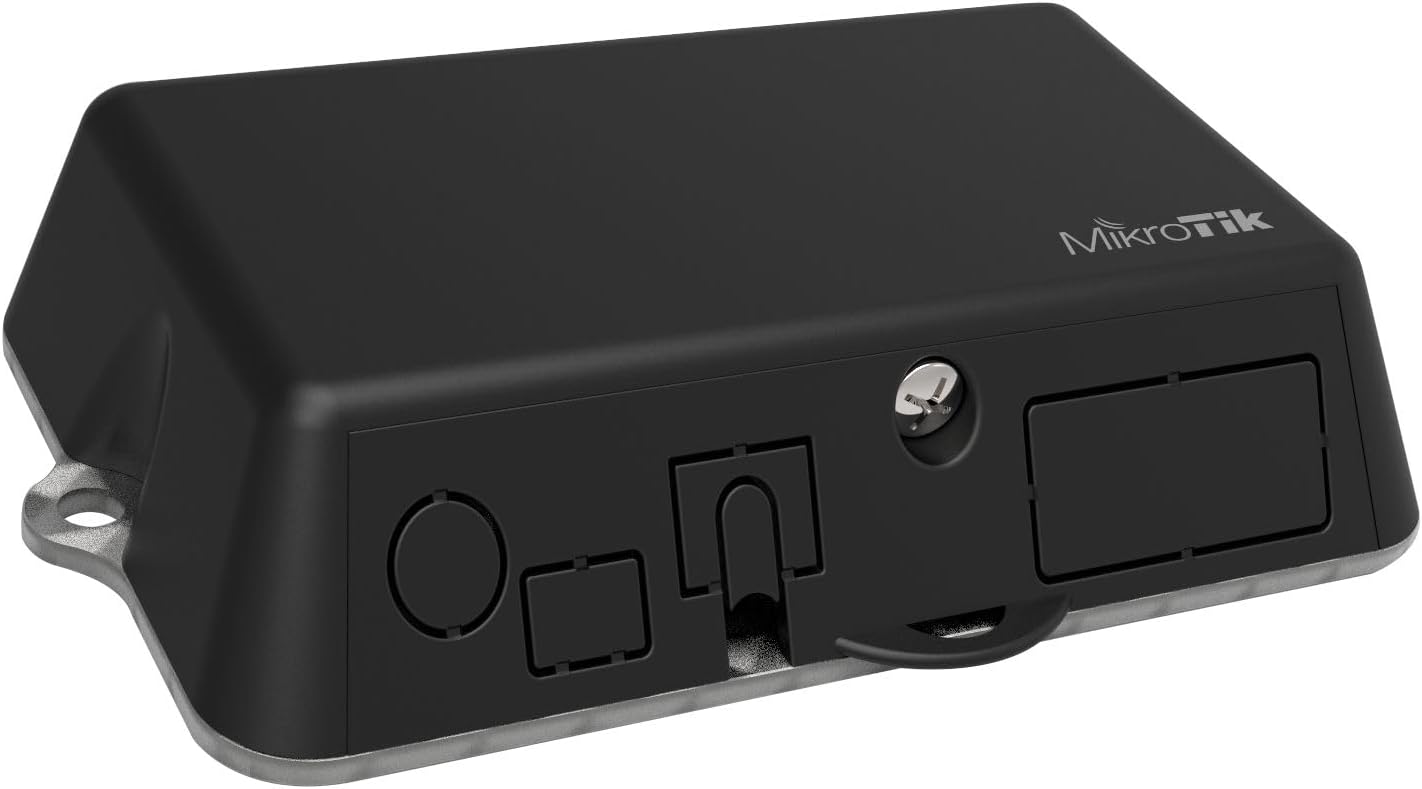

The LtAP mini LTE kit - RB912R-2nD-LTm+EC200A-EU is a small, waterproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity on International LTE bands 1,3,5,7,8,20,28,38,40,41.
| Architecture | MIPSBE | CPU | QCA9531 |
| CPU core count | 1 | CPU nominal frequency | 650 MHz |
| Dimensions | 139 x 77 x 28.5 mm | License level | 4 |
| Operating System | RouterOS V7 | Size of RAM | 64 MB |
| Storage size | 16 MB | Storage type | FLASH |
| Tested ambient temperature | -40°C – +70°C | Max Power consumption | 8W |
| MicroUSB input Voltage | 5 V | PoE in | 802.3af/at |
| PoE in input Voltage | 12–57 V | Number of DC inputs | 3 (DC jack, PoE-IN, MicroUSB) |
| DC jack input Voltage | 8–30 V | 2G Category | Class 12 |
| 3G Category | R7 (21 Mbps DL, 5.76 Mbps UL) | LTE Category | Cat 4 (150/50 Mbps) |
| LTE FDD bands | 20 / 8 / 3 / 1 / 7 / 5 / 28 | LTE TDD bands | 40 / 38 / 41 |
| Wireless 2.4 GHz number of chains | 2 | Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain (2.4 GHz) | 1.5 dBi | Wireless chip model (2.4 GHz) | QCA9531 |
| 10/100 Ethernet ports | 1 | Number of SIM slots | 2 (Mini-SIM) |
| MiniPCI-e slots | 1 | Serial port | RS232 |
| 1 MBit/s Tx/Rx | 22 dBm / -96 dBm | 11 MBit/s Tx/Rx | 22 dBm / -89 dBm |
| 6 MBit/s Tx/Rx | 20 dBm / -93 dBm | 54 MBit/s Tx/Rx | 18 dBm / -74 dBm |
| MCS0 Tx/Rx | 20 dBm / -93 dBm | MCS7 Tx/Rx | 16 dBm / -71 dBm |
| Ethernet Test (Bridging / fast path) | 98.4 Mbps (1518B) / 96.3 Mbps (512B) | Ethernet Test (64B) | 88.9 Mbps |
| Bridging (25 filter rules) | 36.3 Mbps (64B) | Routing (fast path) | 98.4 / 96.3 / 82.3 Mbps |
| Routing (25 simple queues) | 46.5 Mbps (64B) | Routing (25 IP filter rules) | 22.1 Mbps (64B) |
| Description | Downloads |
|---|---|
| Mikrotik LtAP Mini Lte Access Point Kit | RB912R-2ND-LTM+EC200A-EU DataSheet | Download |
