Official Partner
802.11b/g/n, 2.4 GHz, 3.5 W, RouterOS, 48x49x11 mm

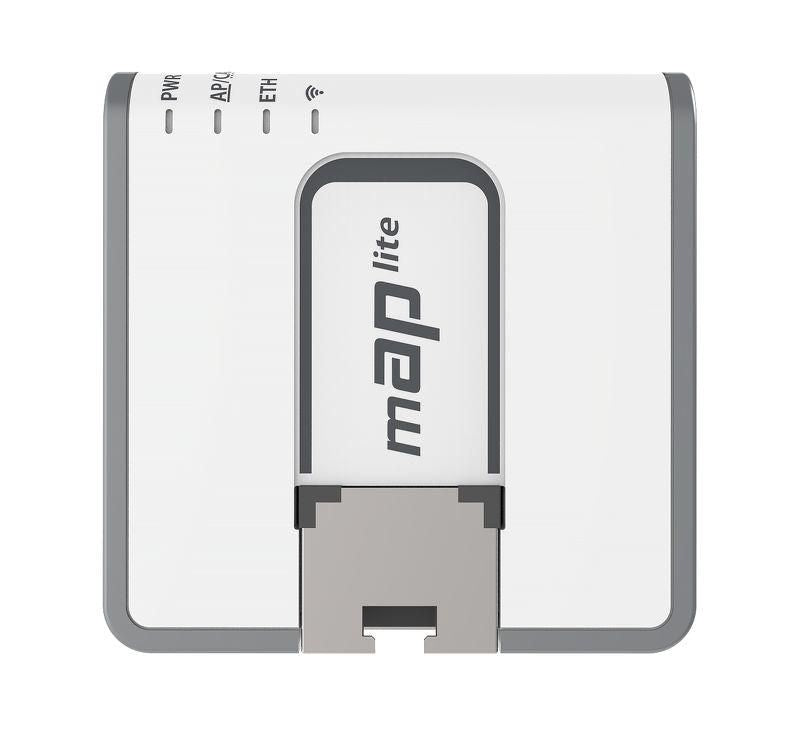

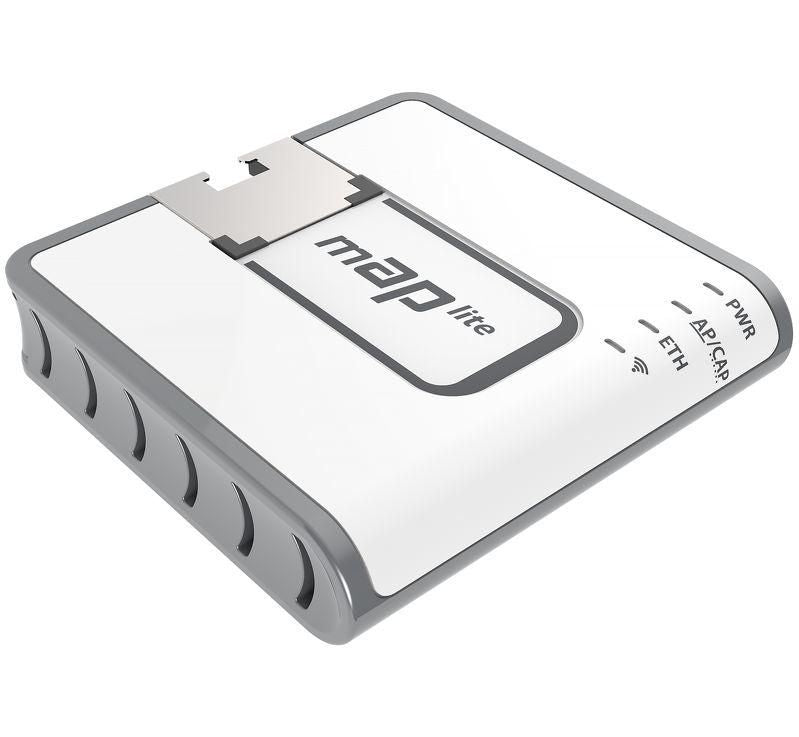

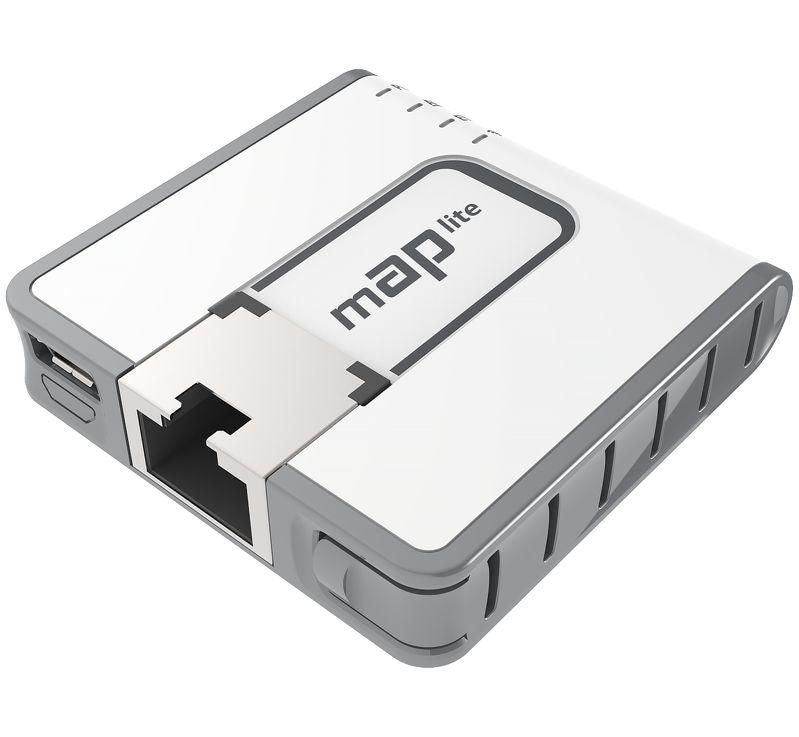

mAP lite

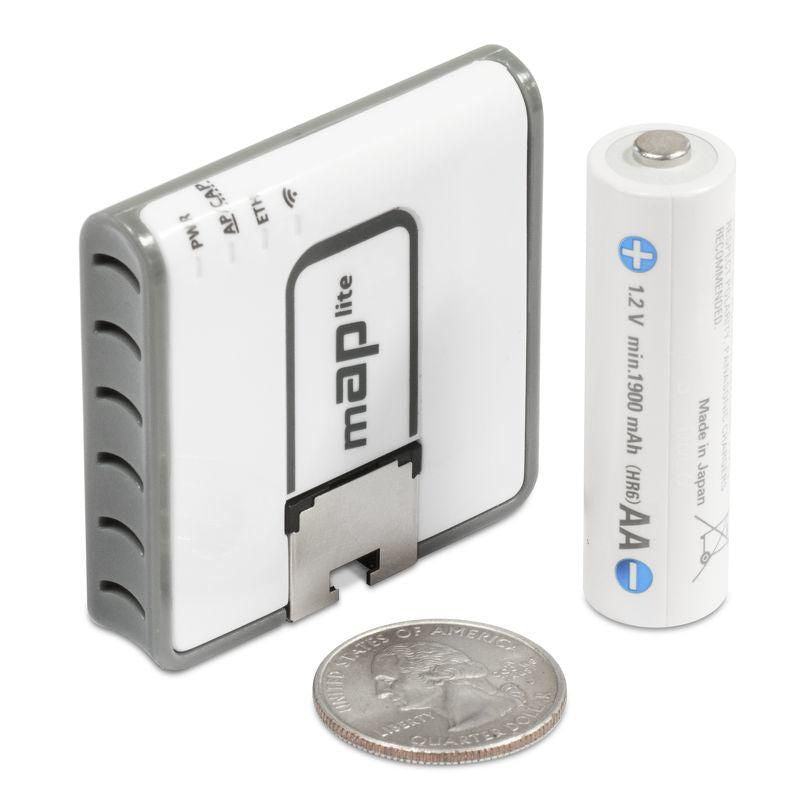

The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile.
You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you.
It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device.
The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.
| Antenna gain level (max) | 1.5 dBi | Internal | No |
| Product colour | White | 2.4 GHz | Yes |
| 5 GHz | No | Bandwidth | 2.4 GHz |
| Ethernet LAN data rates | 10, 100 | Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Receiver sensitivity | 11MBit/s -89, 1MBit/s -96, 54MBit/s -74, 6MBit/s -93, MCS0 -93, MCS7 -71 | Country of Origin | Taiwan |
| EU ECCN Code | N/A | Tariff No. | 8517620000 |
| UNSPSC Code | 43222640 | US ECCN Code | 5A992 |
| Operating temperature (T-T) | -30 - 70 °C | Depth Verified | 8.2 cm |
| Gross Weight Verified | 0.12 kg | Height Verified | 4.1 cm |
| Width Verified | 11.6 cm | AC adapter included | Yes |
| Built-in processor | Yes | Flash memory | 16 MB |
| Internal memory | 64 MB | Operating system installed | RouterOS |
| DC-in jack | Yes | Ethernet LAN (RJ-45) ports | 1 |
| Power consumption (max) | 3.5 W | Power over Ethernet (PoE) | Yes |
| Net Weight (Product, kg) | 0.2 kg | Product Depth | 1.1 cm |
| Product Height | 4.8 cm | Product Width | 4.9 cm |
| Brand Name | MikroTik | Warranty | 15 Month(s) |
| Main category | Network | Subcategory | Wireless Network |
| Subcategory | Wireless Access Points |
| Description | Downloads |
|---|---|
| MikroTik mAP lite 2.4GHz Mini Access Point | RBMAPL-2ND DataSheet | Download |
