800 MHz, RouterOS v7, 256 MB, 128 MB, 12-28 V, DC, 802.11b/g/n/ax, Wi-Fi 6, USB type A,

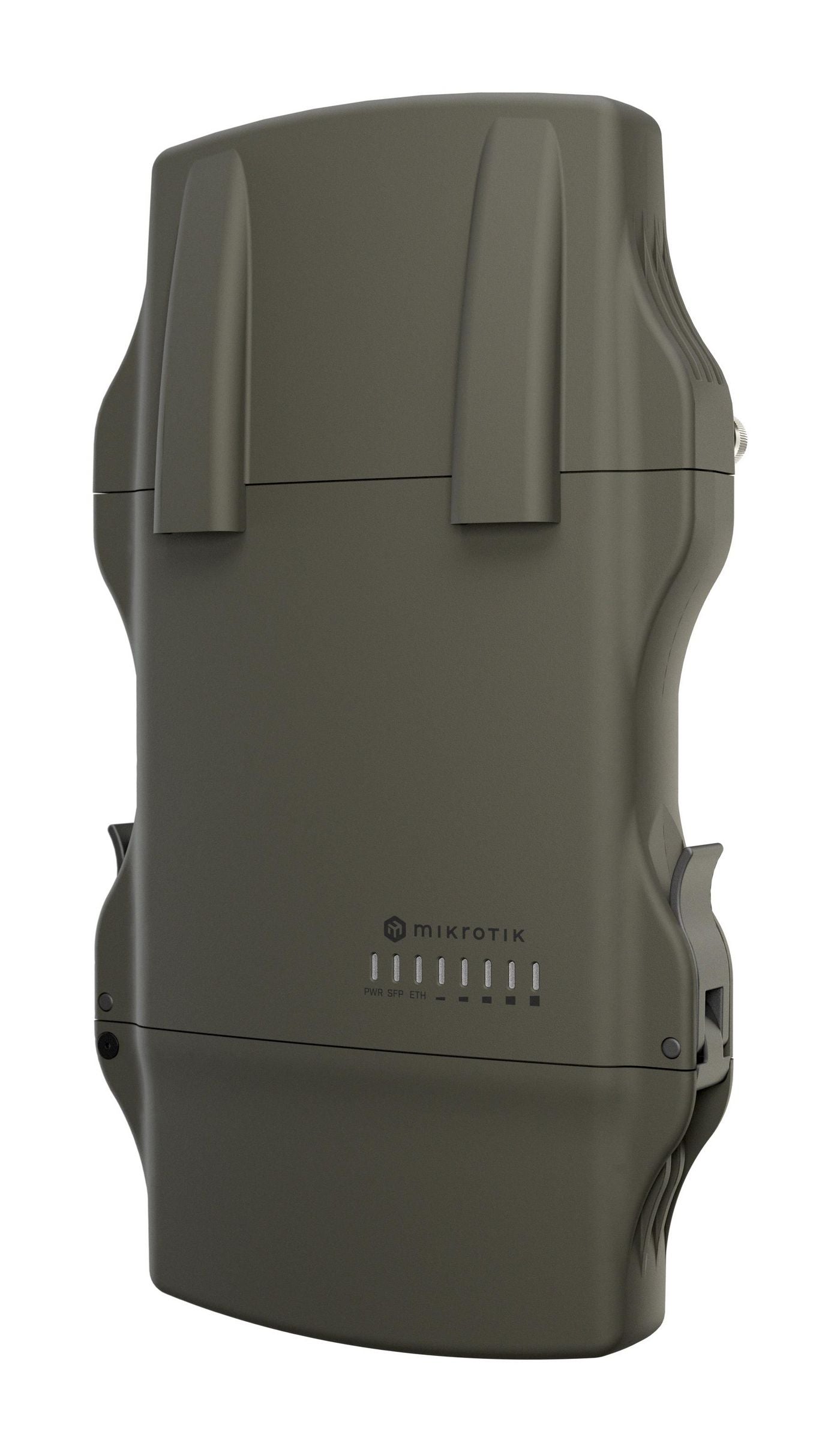

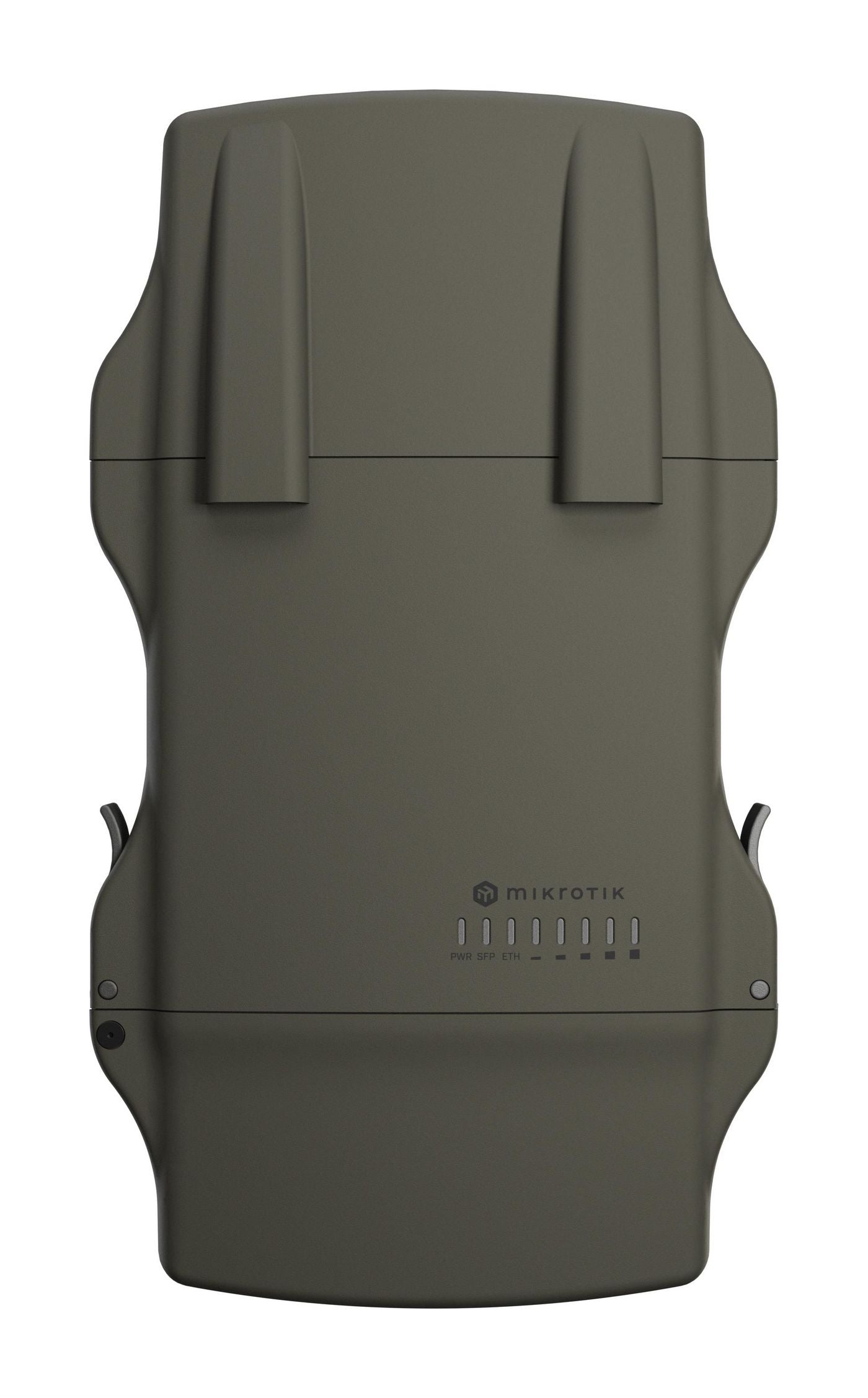

Meet one of your most versatile companions: the NetMetal ax – a powerful long-range outdoor access point that thrives in any environment. Designed for extra durability, it can be installed almost anywhere with ease – you can open and close the case with one hand. The rated IP66 protection will keep the device safe from dust and powerful water jets - in damp attics and elevator shafts, bustling docks, or coastal tower structures. No terrain is too rough for the NetMetal ax – the Mars rover of networking!

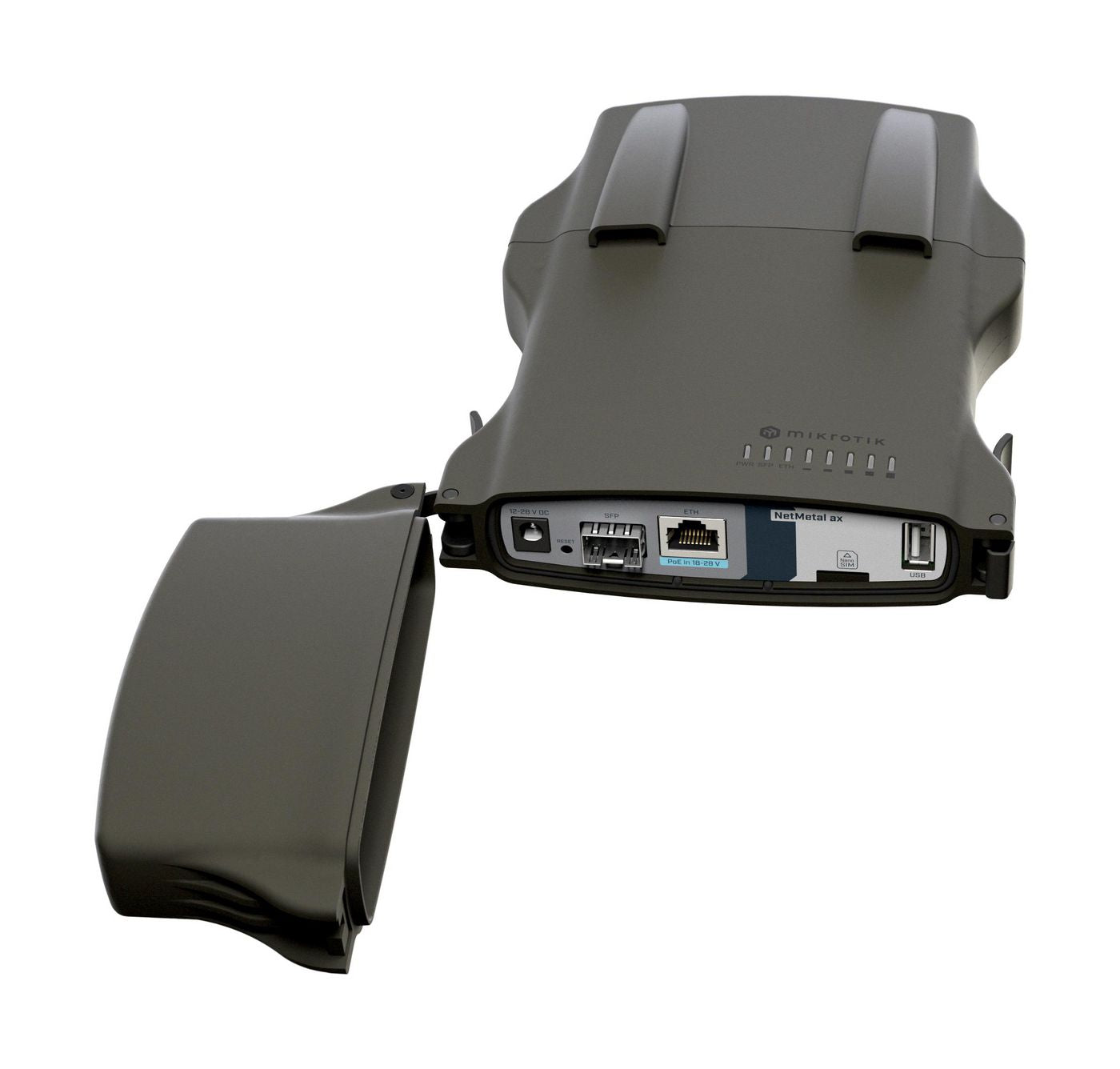

It features a modern dual-core ARM CPU, Gigabit Ethernet and 2.5 Gigabit SFP for fiber connectivity, a USB port, and a free miniPCIe slot that allows further customization. You could, for example, add an LTE modem for a mobile internet backup – we’ve added a NanoSIM slot on the NetMetal! But there are other options, like adding a gateway for LoRa IoT setups, such as our R11e-LR8!

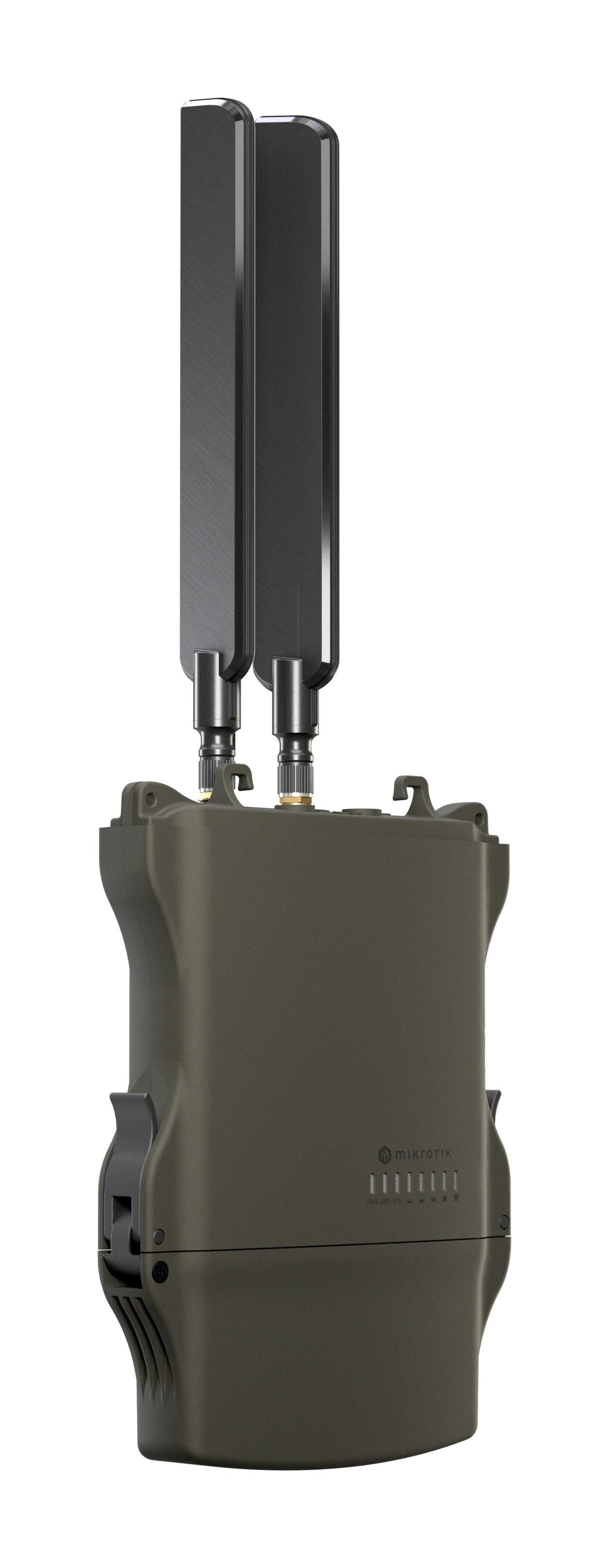

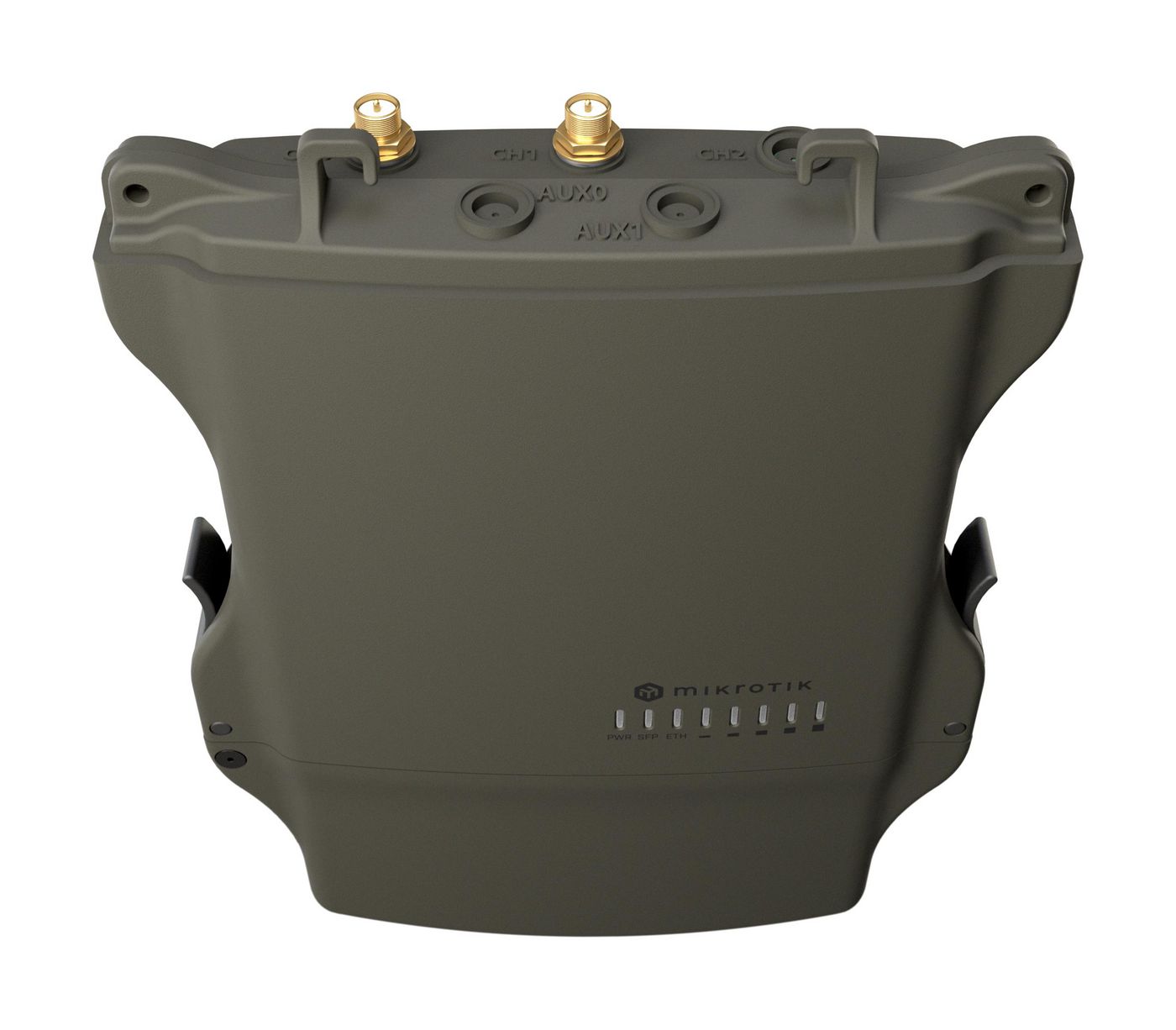

A powerful dual-band, dual-chain Wi-Fi 6 radio offers increased speed, stability, security, roaming, power management, and other features, compared to the previous wireless protocols. Two RP-SMA connectors allow adding an antenna of your choice for distances up to 30 kilometers.*. If necessary, you can adapt the NetMetal ax for lower range use with such antennas as our HGO-antenna-OUT screw-on omni antenna unit. It provides 3.3 dBi gain for the 2.4 GHz band and 5.5-7.1 dBi gain for the 5 GHz band.
If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.
*It’s important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.
| Certification | CE, FCC, IC, EAC, ROHS | Placement | Wall |
| Product Colour | Black | Reset Button | Yes |
| 2.4 GHz | Yes | 5 GHz | Yes |
| Ethernet LAN Data Rates | 10, 100, 1000 | Country of Origin | Lithuania |
| Tariff No. | 8517620000 | UNSPSC Code | 43222640 |
| SIM Card Slot | Yes | SIM Card Type | NanoSIM |
| I/O Ports | SFP | Wireless Standard | 802.11a/n/ac/ax |
| Package Weight | 3 kg | Built-in Processor | Yes |
| Chipset | QCN-6102, IPQ-5010 | Compatible OS | RouterOS v7 |
| Flash Memory | 256 MB | Internal Memory | 128 MB |
| Operating System | RouterOS | Processor Frequency | 800 MHz |
| DC-in Jack | Yes | Ethernet Ports | 1 |
| USB 2.0 Ports | 1 | USB Connector Type | USB Type-A |
| Power Consumption (Max) | 25 W | PoE Support | Yes (Passive PoE) |
| Net Weight | 2 kg | Brand Name | MikroTik |
| Main Category | Network | Subcategory | Wireless Network / Wireless Access Points |
| Description | Downloads |
|---|---|
| Mikrotik NetMetal ax Black PoE Wireless Access Point | L23UGSR-5HAXD2HAXD-NM DataSheet | Download |
