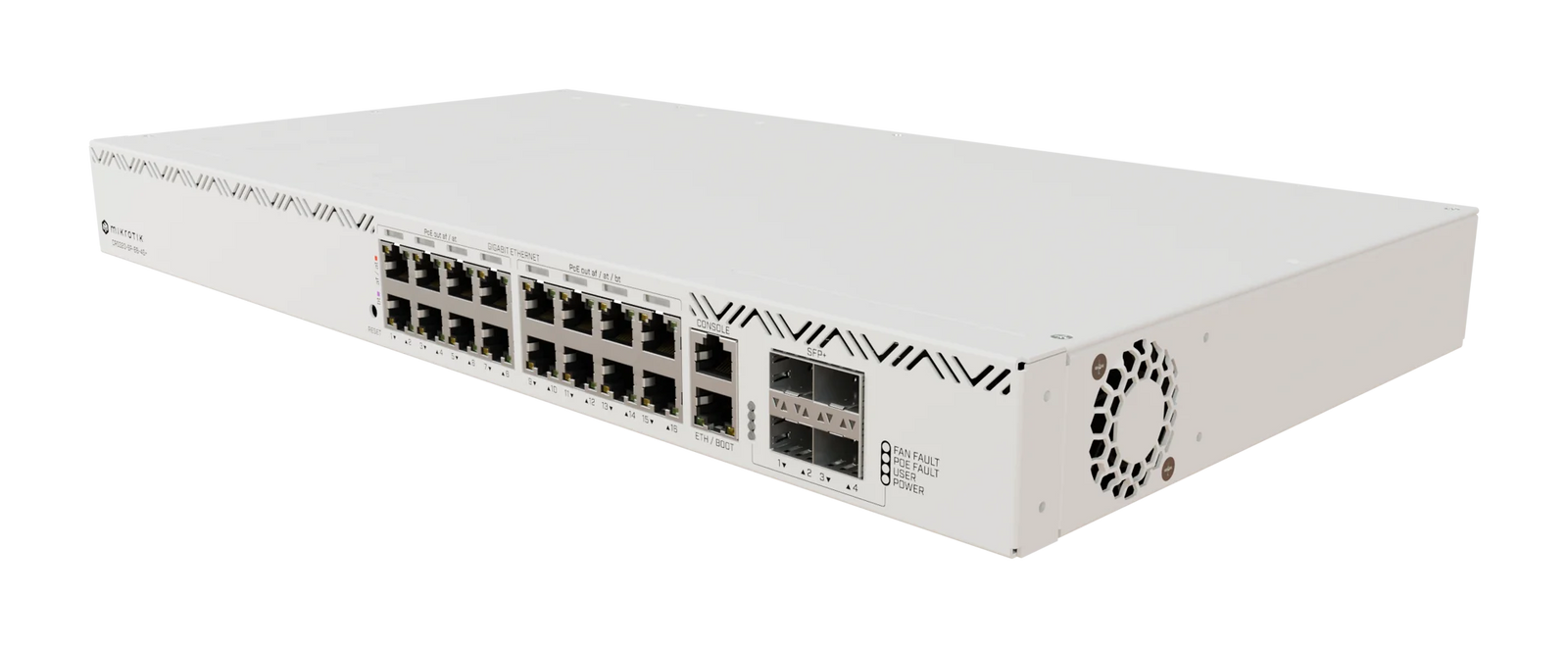

CRS320-8P-8B-4S+RM Cable management can get really exhausting. But it doesn’t have to. Our first PoE++ or 802.3bt switch can make your cable management so much easier, as it can output enough power for all your hotel, conference hall, office and high-rise building needs!

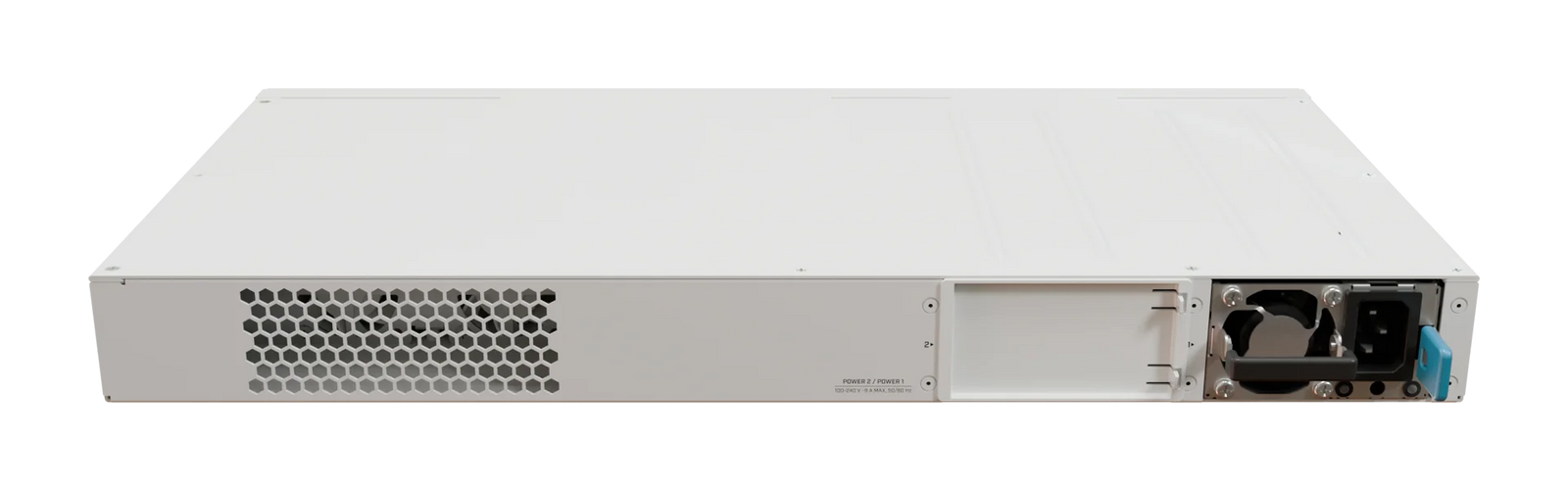

4K security cameras with built-in winter heating elements, LED ad screens, PoE-powered light fixtures – CRS320 can output up to 90W per port, enough even for the most demanding devices! It comes with a reliable 600 W power supply, but we’ve reserved an expansion slot for an additional PSU, in case you need to raise the power output to 1150 W.

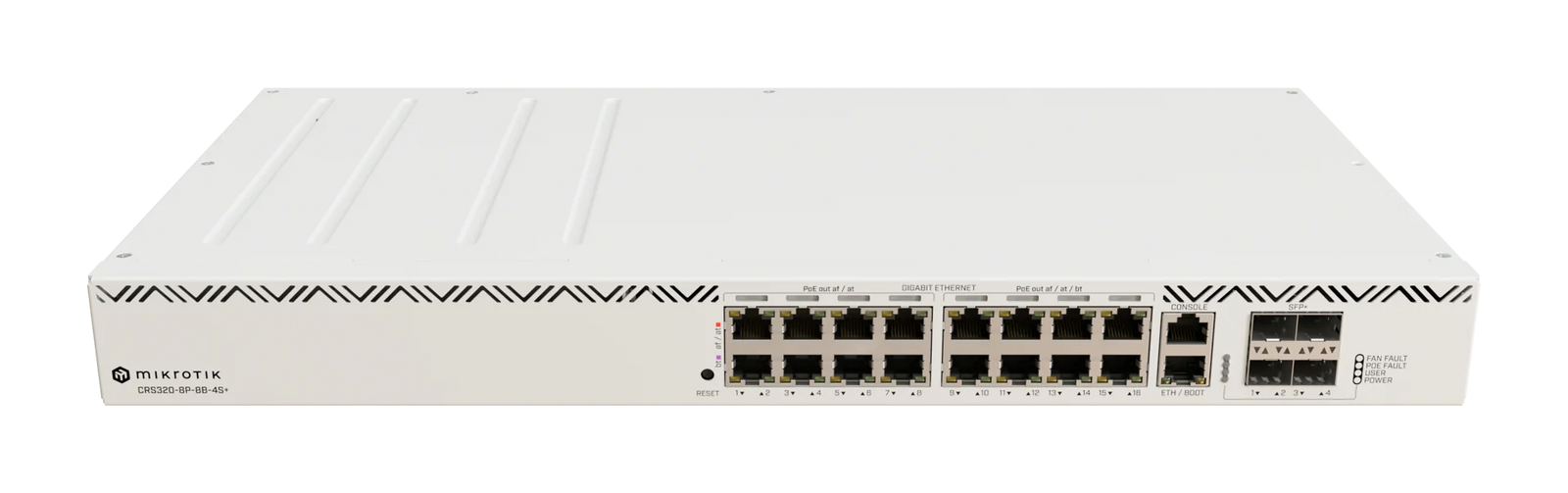

There are 17 Gigabit Ethernet ports: #1 - #8 Gigabit Ethernet ports with 802.3af/at PoE-out, #9 - #16 802.3bt PoE++ ports, and an extra Gigabit Ethernet port for management purposes. There’s also a console port, and four 10G SFP+ fiber ports for uplink.
At its core, this convenient switch has a phenomenal Marvel switch-chip – the same one you’ve seen in ISP bestsellers like the netPower 16P and netFiber 9! It can handle the heaviest loads, including VLAN-filtering and hardware-offloaded Layer-3 routing.
If you’ve been looking for a way to simplify your cable management – this is it! With a single CRS320, you can ditch that endless mess of DC power adapters and start living the clean minimalist PoE dream.
Unlike our previous 802.3af/at Power Sourcing Equipment, this is our first PoE switch with full implementation of the 802.3af/at/bt standard. It supports only fully compliant 802.3 at/af/bt Powered Devices - mAP-lite / RB1100AHx4 / CRS510-8XS-2XQ / CRS504-4XQ / FTC11XG / CRS305-1G-4S+OUT. While it can also power “802.3af/at/bt-compatible” Powered Devices, you must avoid specific grounding scenarios.
| Rack mounting | Yes | Reset button | Yes |
| Country of Origin | China | Tariff No. | 8517620000 |
| UNSPSC Code | 43222612 | 10G support | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at | Operating temperature (T-T) | -10 - 50 °C |
| Gross Weight (Package, kg) | 3.5 kg | Built-in processor | Yes |
| Flash memory | 32 MB | Internal memory | 256 MB |
| MTBF | 200000 h | Operating system | RouterOS |
| Processor frequency | 800 MHz | Processor manufacturer | ARM |
| Processor model | 98DX226S | RJ-45 Ethernet ports qty | 17 |
| RJ-45 ports type | Gigabit Ethernet (10/100/1000) | Console port | RJ-45 |
| SFP+ module slots qty | 4 | AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V | Power consumption (max) | 600 W |
| Power consumption (typical) | 36 W | Power source | AC |
| Power supply included | Yes | PoE | Yes |
| Net Weight (kg) | 3.3 kg | Product Depth | 23.5 cm |
| Product Height | 4.4 cm | Product Width | 44.4 cm |
| Compliance certificates | CE, EAC, RoHS | Brand Name | MikroTik |
| Warranty | 1 Year(s) | Main category | Network |
| Subcategory | Wired Network | Subcategory | Network Switches |
| Subcategory | Network Switches |
| Description | Downloads |
|---|---|
| MikroTik PoE++ Switch 17x1G 8x802.3at 8x90W bt 4x10G SFP+ 600W Power | CRS320-8P-8B-4S+RM DataSheet | Download |
