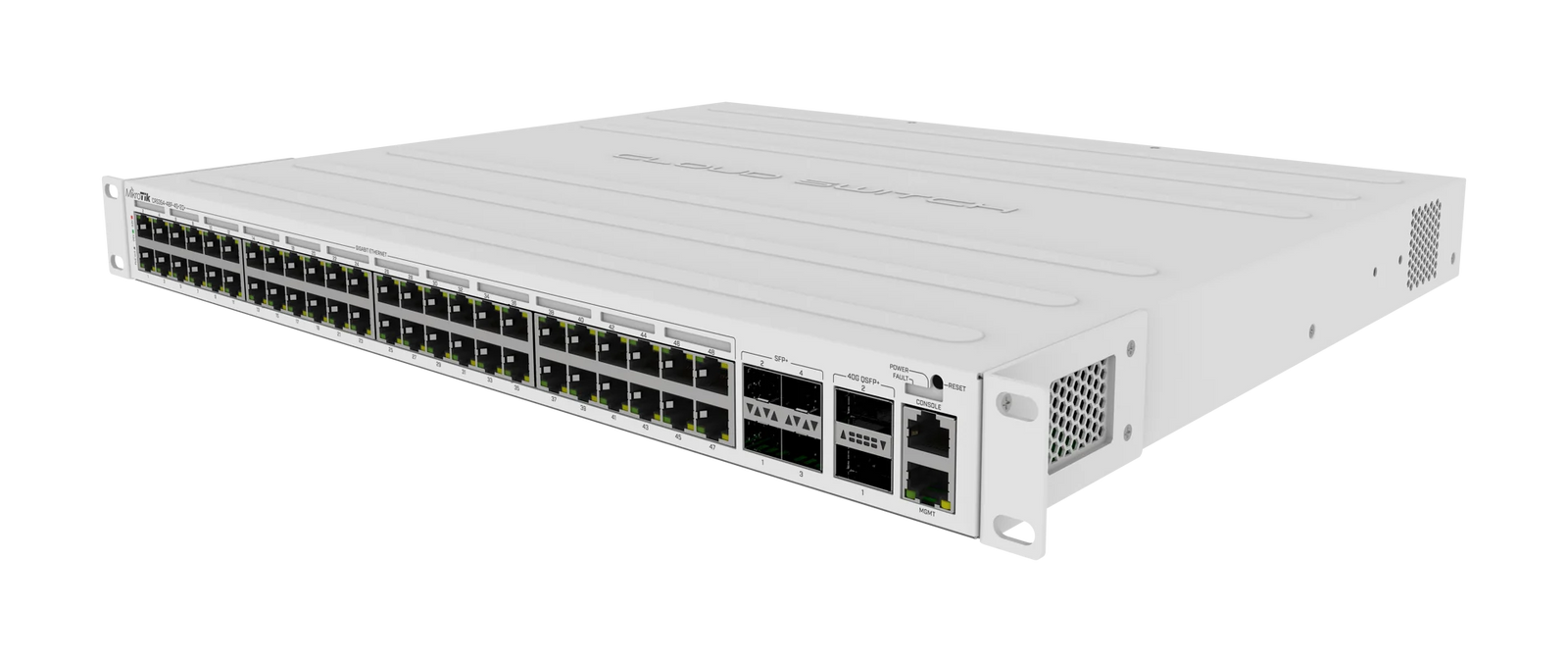

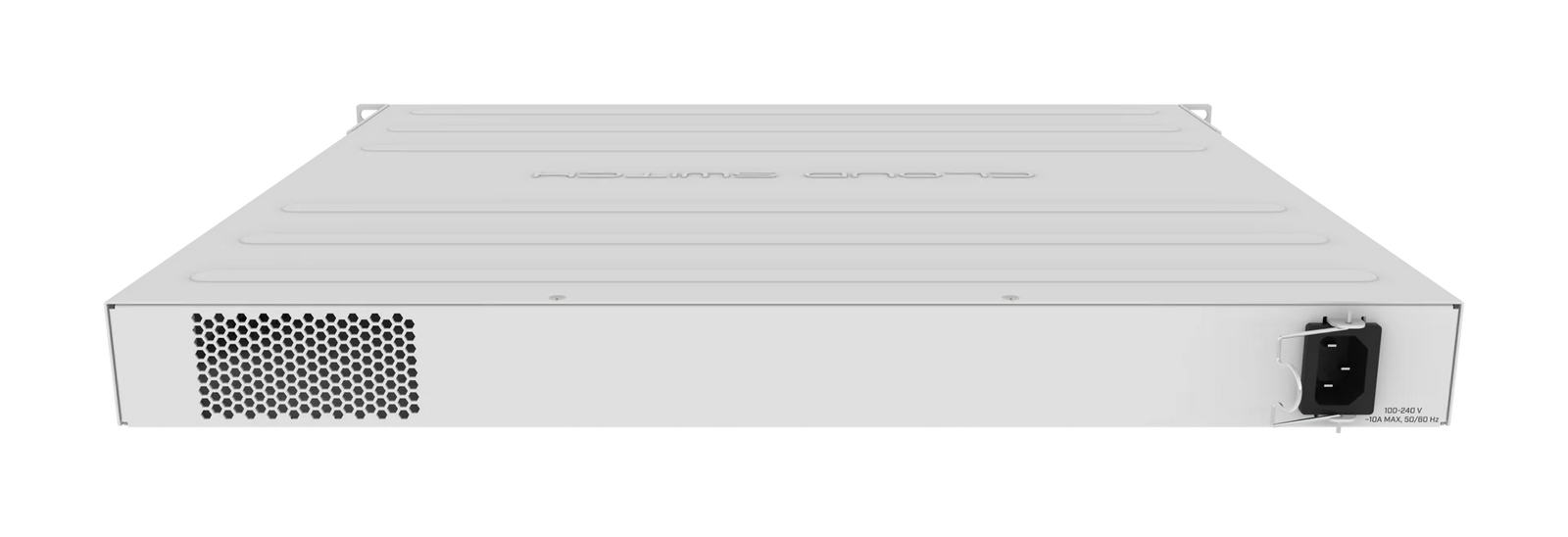

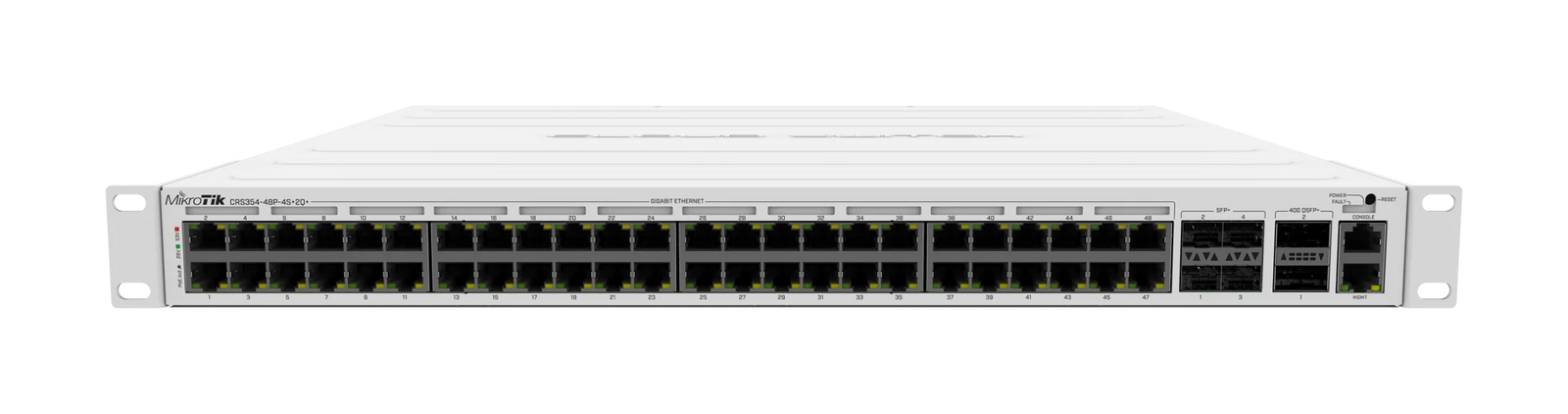

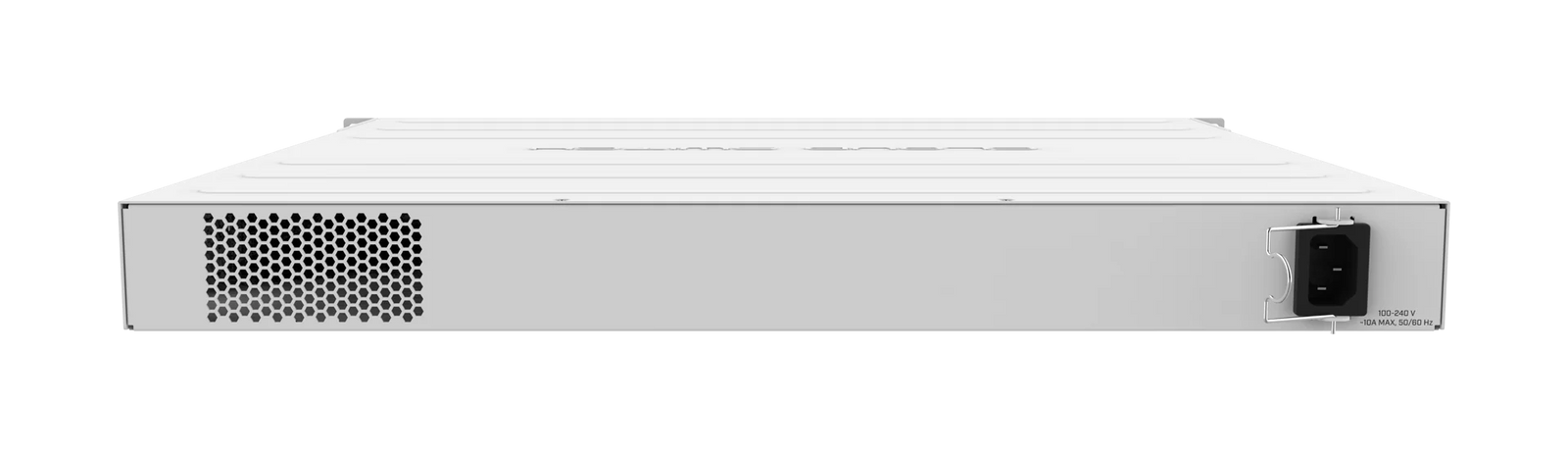

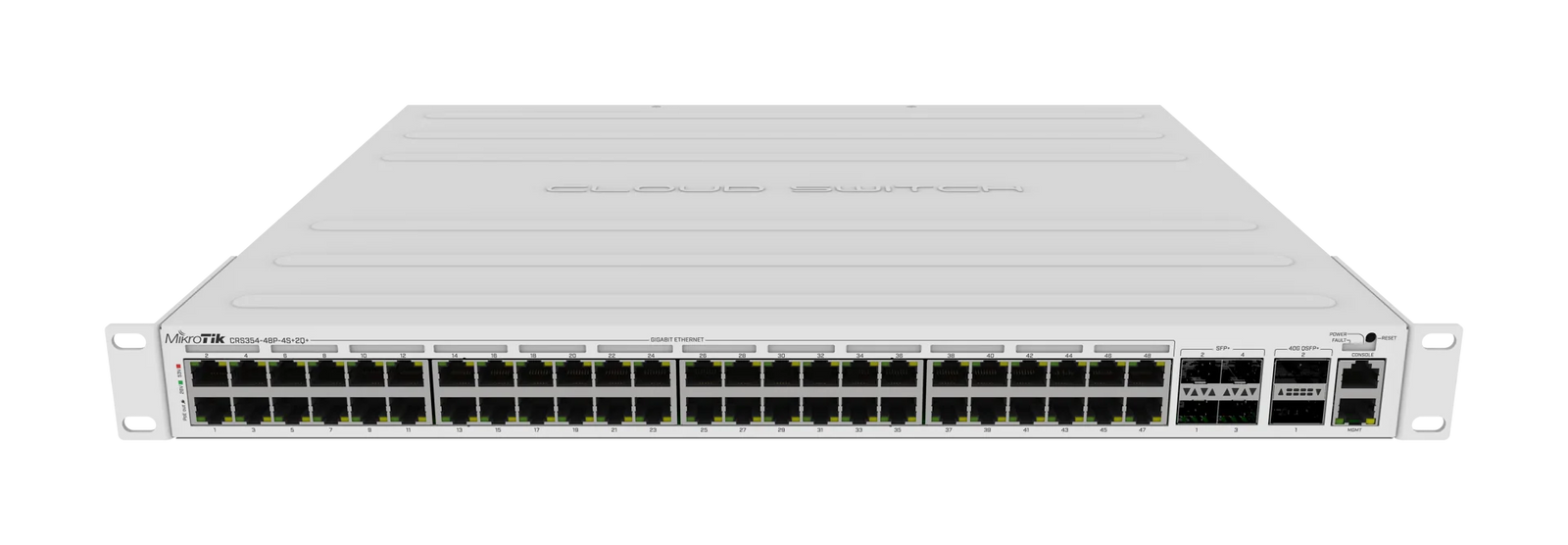

If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.
This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.
CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.
The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.
| Certification | CE/RED, EAC, RoHS | Form factor | 1U |
| Rack mounting | Yes | ||
| Country of Origin | Taiwan | EU ECCN Code | N/A |
| Tariff No. | 8517620000 | UNSPSC Code | 43222612 |
| US ECCN Code | 5A992 | ||
| Switch layer | L3 | Switch type | Managed |
| 10G support | Yes | Networking standards | IEEE 802.3af, IEEE 802.3at |
| Operating temperature (T-T) | -20 - 60 °C | Depth Verified | 55 cm |
| Gross Weight Verified | 7.58 kg | Height Verified | 13 cm |
| Width Verified | 49 cm | ||
| Cables included | AC | Rack mount kit | Yes |
| Screws included | Yes | ||
| Built-in processor | Yes | Flash memory | 32 MB |
| Internal memory | 128 MB | Memory type | Flash |
| Processor model | Qualcomm Atheros QCA9531 | ||
| RJ-45 Ethernet ports quantity | 48 | RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45 | Fast Ethernet (copper) ports | 1 |
| Gigabit Ethernet (copper) ports | 48 | QSFP+ module slots | 2 |
| SFP+ module slots | 4 | ||
| AC input voltage | 100 - 240 V | Power consumption (max) | 800 W |
| Power consumption (typical) | 85 W | Power supply included | Yes |
| PoE | Yes | PoE ports quantity | 48 |
| PoE power per port | 30 W | PoE voltage | 53 V |
| Net Weight (Product, kg) | 6.45 kg | Product Depth | 38.2 cm |
| Product Height | 4.4 cm | Product Width | 44.3 cm |
| Brand Name | MikroTik | Warranty | 15 Month(s) |
| Main category | Network | Subcategory | Wired Network |
| Subcategory | Network Switches | Subcategory | Network Switches |
| Description | Downloads |
|---|---|
| MikroTik PoE Switch 48x1G RJ45 4x10G SFP+ 2x40G QSFP+ 750W Power | CRS354-48P-4S+2Q+RM DataSheet | Download |
| MikroTik PoE Switch 48x1G RJ45 4x10G SFP+ 2x40G QSFP+ 750W Power | CRS354-48P-4S+2Q+RM User Manual | Download |
| MikroTik PoE Switch 48x1G RJ45 4x10G SFP+ 2x40G QSFP+ 750W Power | CRS354-48P-4S+2Q+RM Quick Guide | Download |
