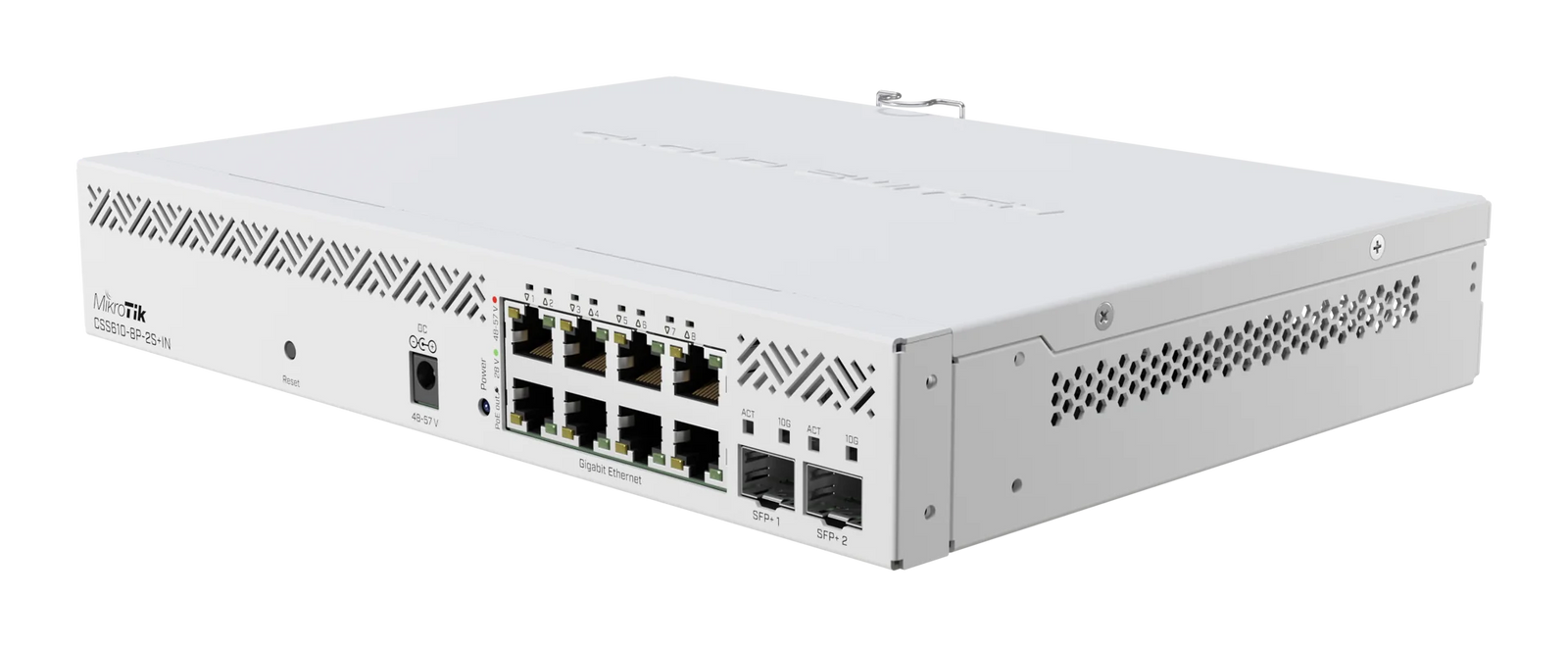

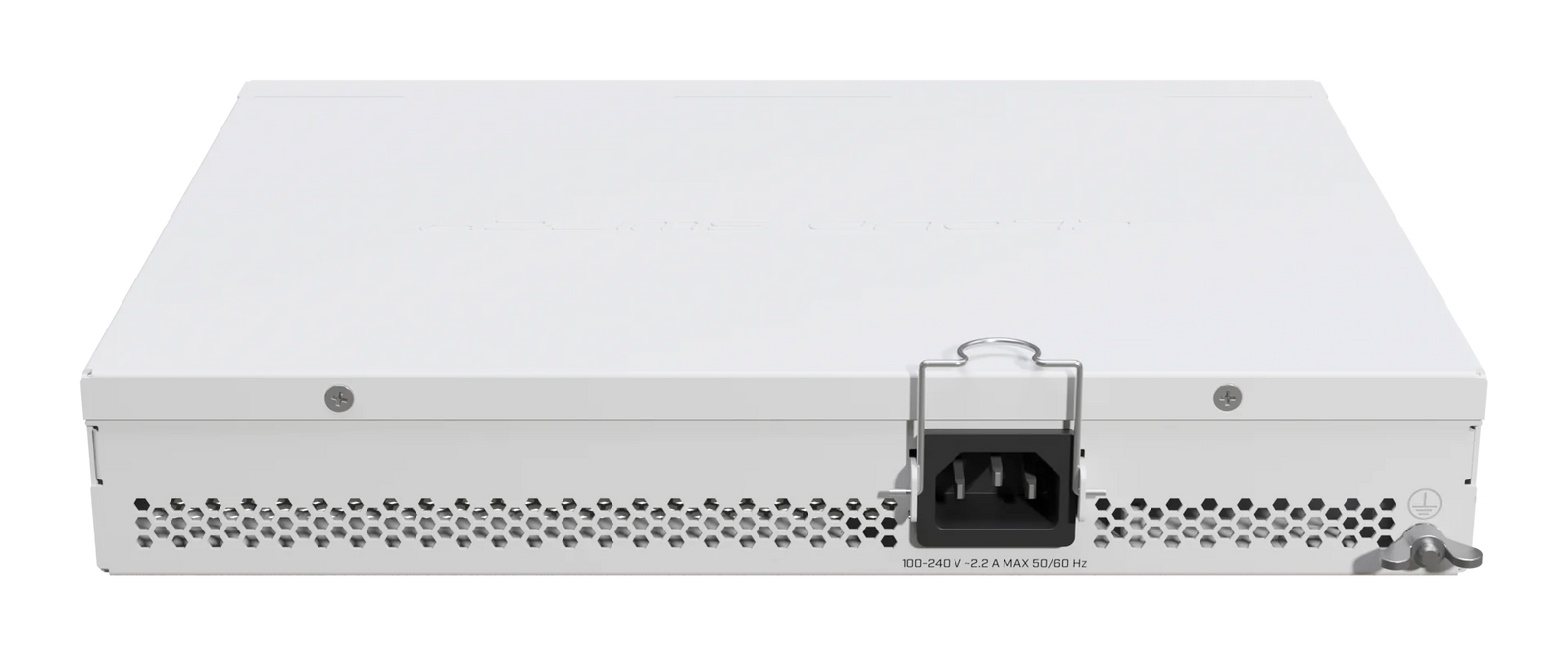

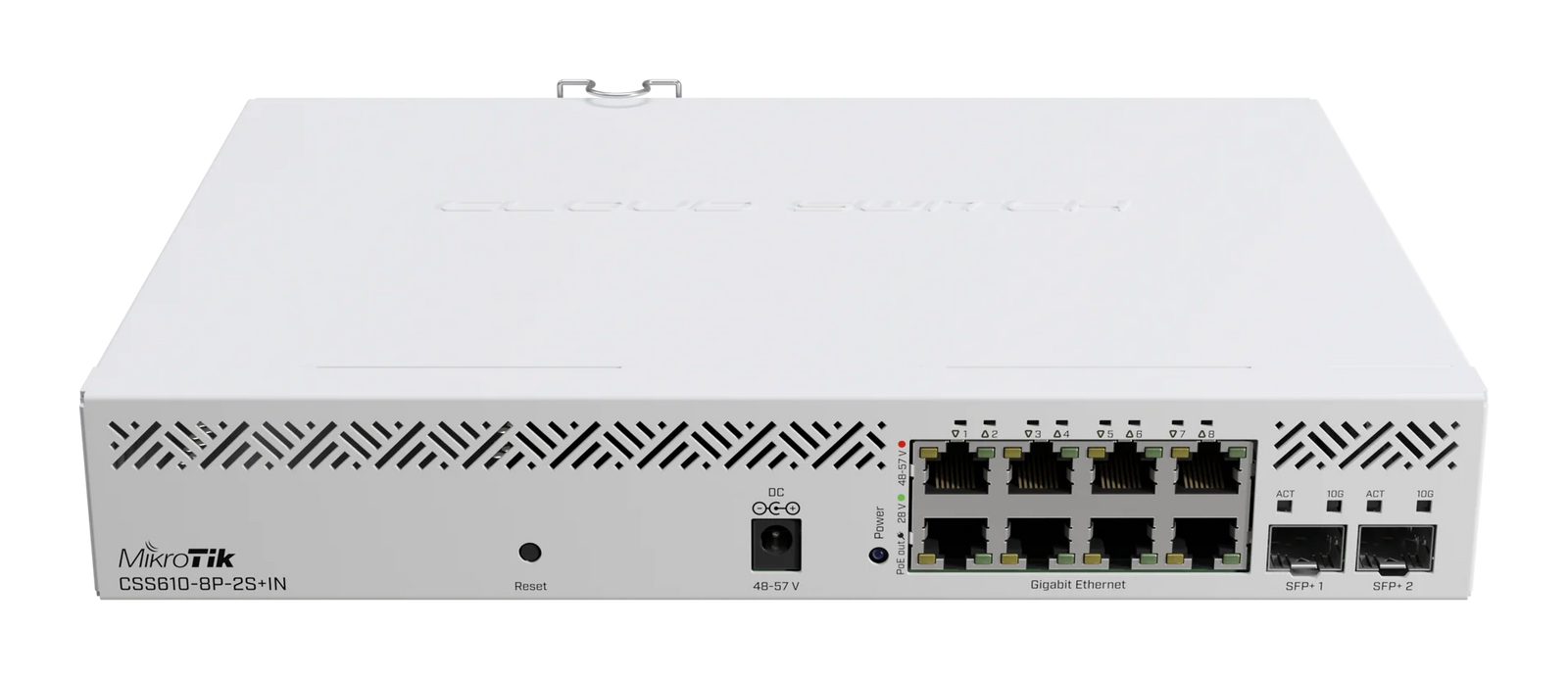

CSS610-8P-2S+IN is one of the most well-rounded switches on the market. It is a perfect fit for the most diverse setups: from home networks and small offices to hotels, call centers and so on. The unique combination of size, features, and price offers unbelievable scalability potential.
There are two SFP+ ports for 10 Gigabit fiber connectivity and eight Gigabit Ethernet ports with 802.3af/at and passive PoE-out (you only need a single PSU to provide both).
This switch is all about nice and easy setups. The compact form-factor means easier shipping and handling, while the lightweight SwOS means easier configuration. You can even configure this switch from your web browser! It gives you all the core functionality of a managed switch, and even more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitations, and even adjust some MAC and IP header fields.
But the real blessing is the combination of SFP+ and PoE-out Ethernet ports. With this setup, you can do all kinds of things on a tight budget. CSS610 has an impressive total PoE-out budget of 140 W, so you can use even in the most intense scenarios – like hotels, conference halls, or call centers! Use the PoE-out ports to connect the IP-phones while the SFP+ ports connect your primary server to the ISP. Or power a bunch of network cameras and instantly upload the footage to the cloud. And manage a cluster of wireless access points at the same time. Also, scalability is no longer a problem. With our pricing, you can afford a switch on every floor!
Like every toolbox needs screwdrivers and pliers, every network can use a solid PoE switch.
CSS610-8P-2S+IN – a solid choice!
| Compliance certificates | CE, RoHS | Switching capacity | 56 Gbit/s |
| Certification | EAC | IP code | IP20 |
| LED indicators | Yes | Product colour | White |
| Rack mounting | Yes | Reset button | Yes |
| Country of Origin | China | Tariff No. | 8517620000 |
| UNSPSC Code | 43222612 | Switch type | Managed |
| 10G support | Yes | Broadcast storm control | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at | VLAN support | Yes |
| Storage temperature (T-T) | -40 - 70 °C | Depth (package) | 6.3 cm |
| Gross Weight (Package) | 2.08 kg | Height (package) | 38.2 cm |
| Width (package) | 25.7 cm | Cables included | AC |
| Rack mount kit | Yes | Fanless | Yes |
| Flash memory | 0.064 MB | MTBF | 200000 h |
| Operating system | SwitchOS Lite | Processor model | Marvell 88E6193X |
| RJ-45 Ethernet ports qty | 8 | RJ-45 ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules qty | 2 | AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V | DC input voltage | 48 - 57 V |
| Input current | 2.2 A | Power consumption (max) | 162 W |
| Power source | AC/DC | Power supply included | Yes |
| PoE | Yes | PoE ports qty | 8 |
| PoE type supported | Passive PoE | Total PoE budget | 140 W |
| Net Weight (kg) | 1.76 kg | Product Depth | 21.6 cm |
| Product Height | 5 cm | Product Width | 27.2 cm |
| MAC address filtering | Yes | Sustainability certificates | CE, RoHS |
| Sustainability compliance | Yes | Brand Name | MikroTik |
| Warranty | 15 Month(s) | Main category | Network |
| Subcategory | Wired Network | Subcategory | Network Switches |
| Subcategory | Network Switches |
| Description | Downloads |
|---|---|
| MikroTik PoE Switch 8x1G RJ45 2x10G SFP+ 140W PoE Budget Fanless | CSS610-8P-2S+IN DataSheet | Download |
