1x 10/100 Mbit/s RJ-45, 600 MHz, PoE, 10-30 V, 129x129x34 mm, RouterOS

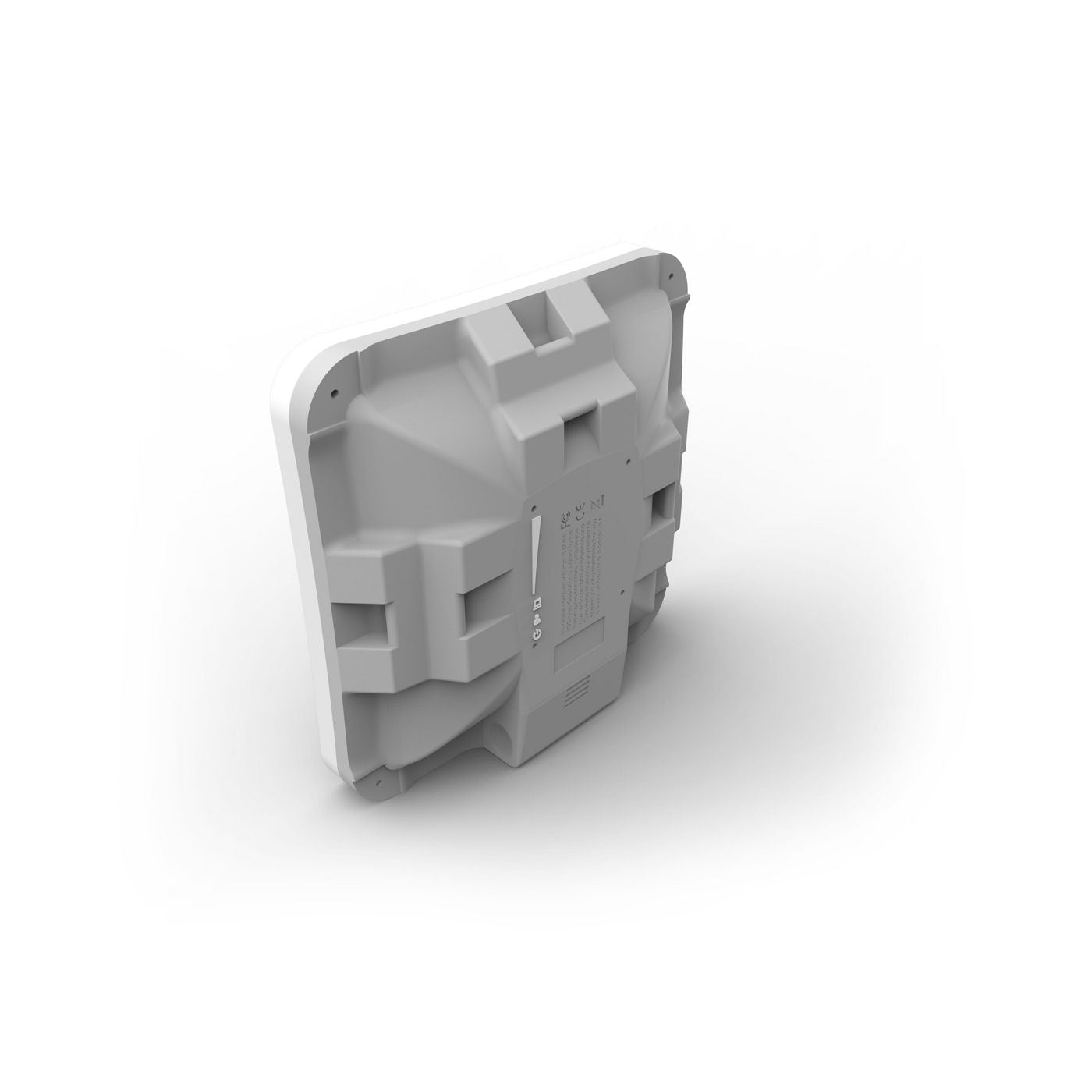

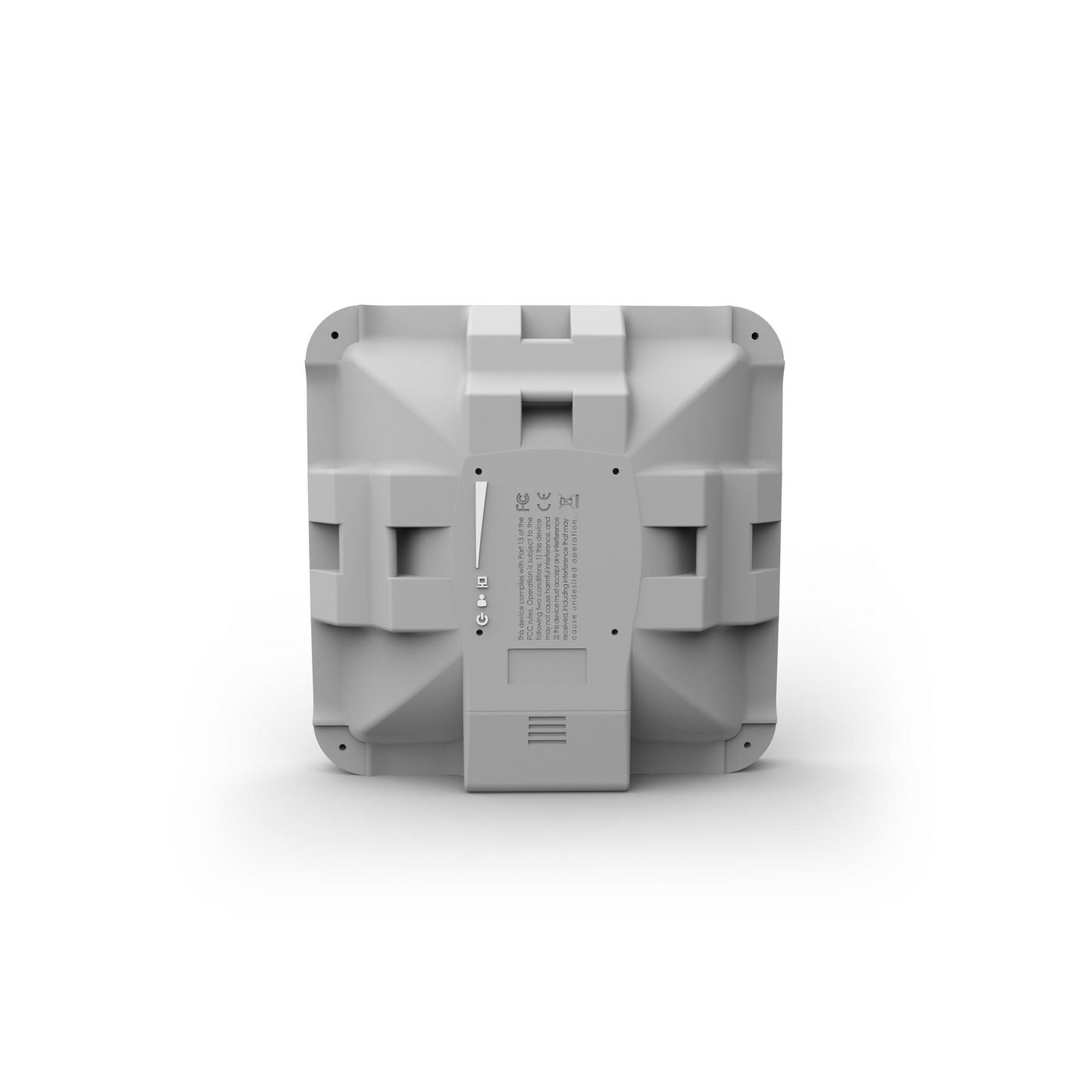

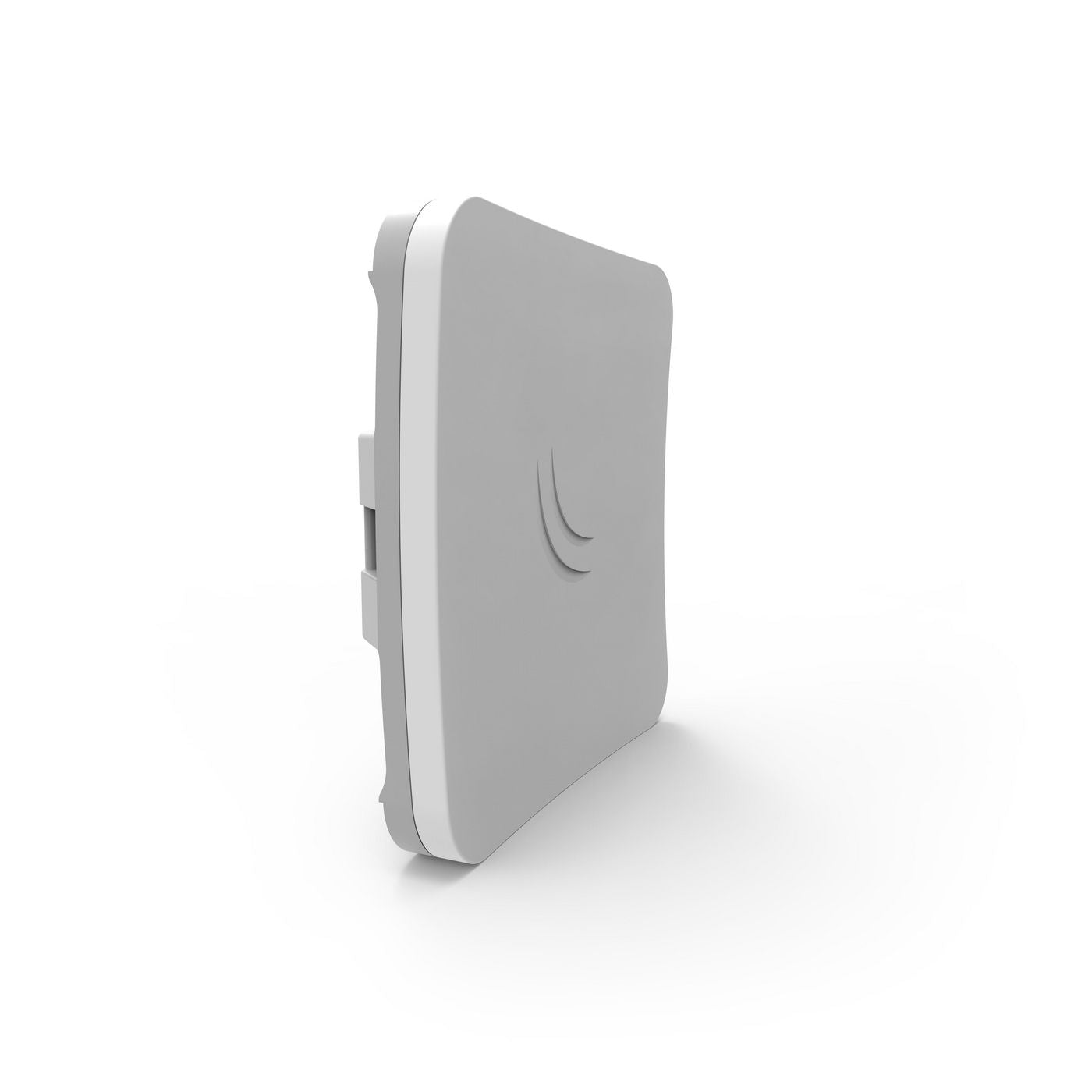

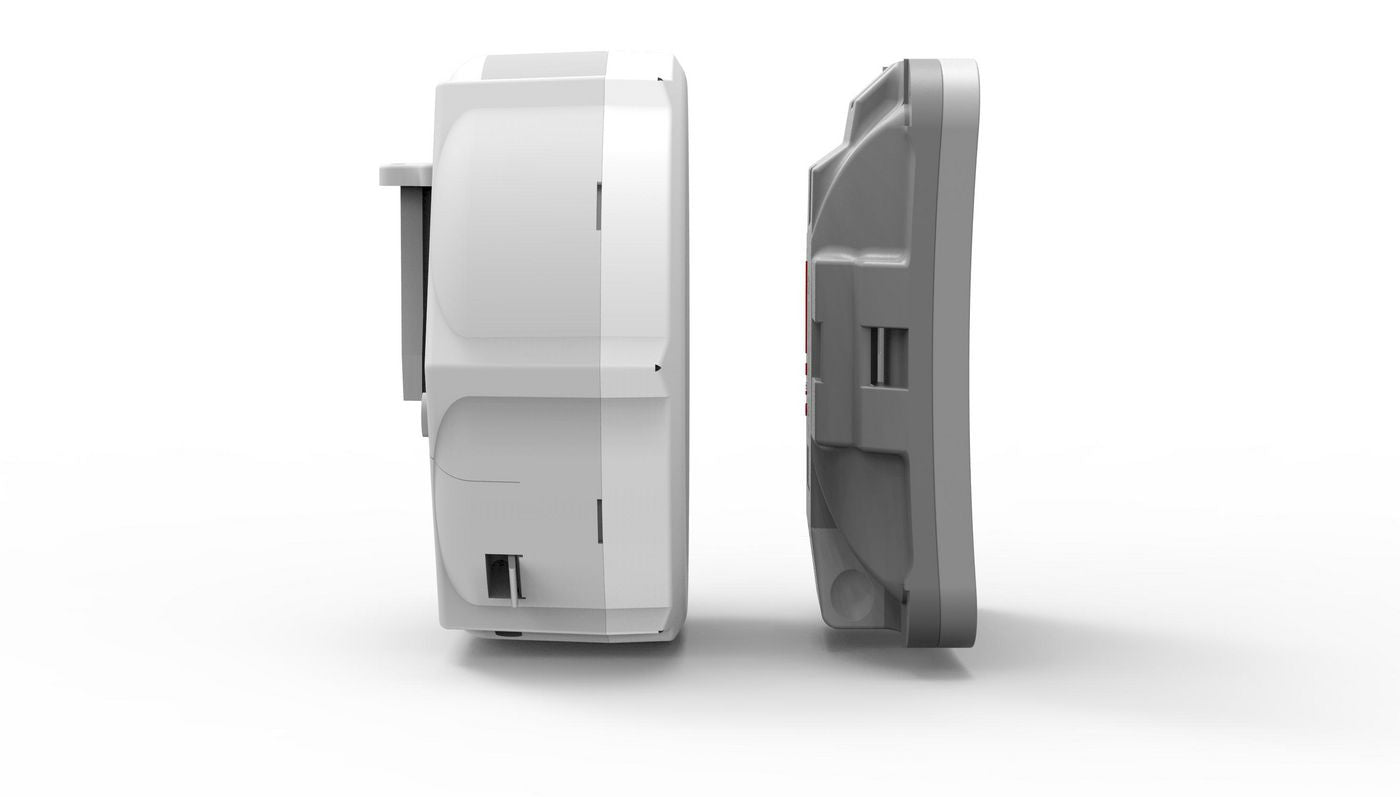

The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner (see photos for comparison).

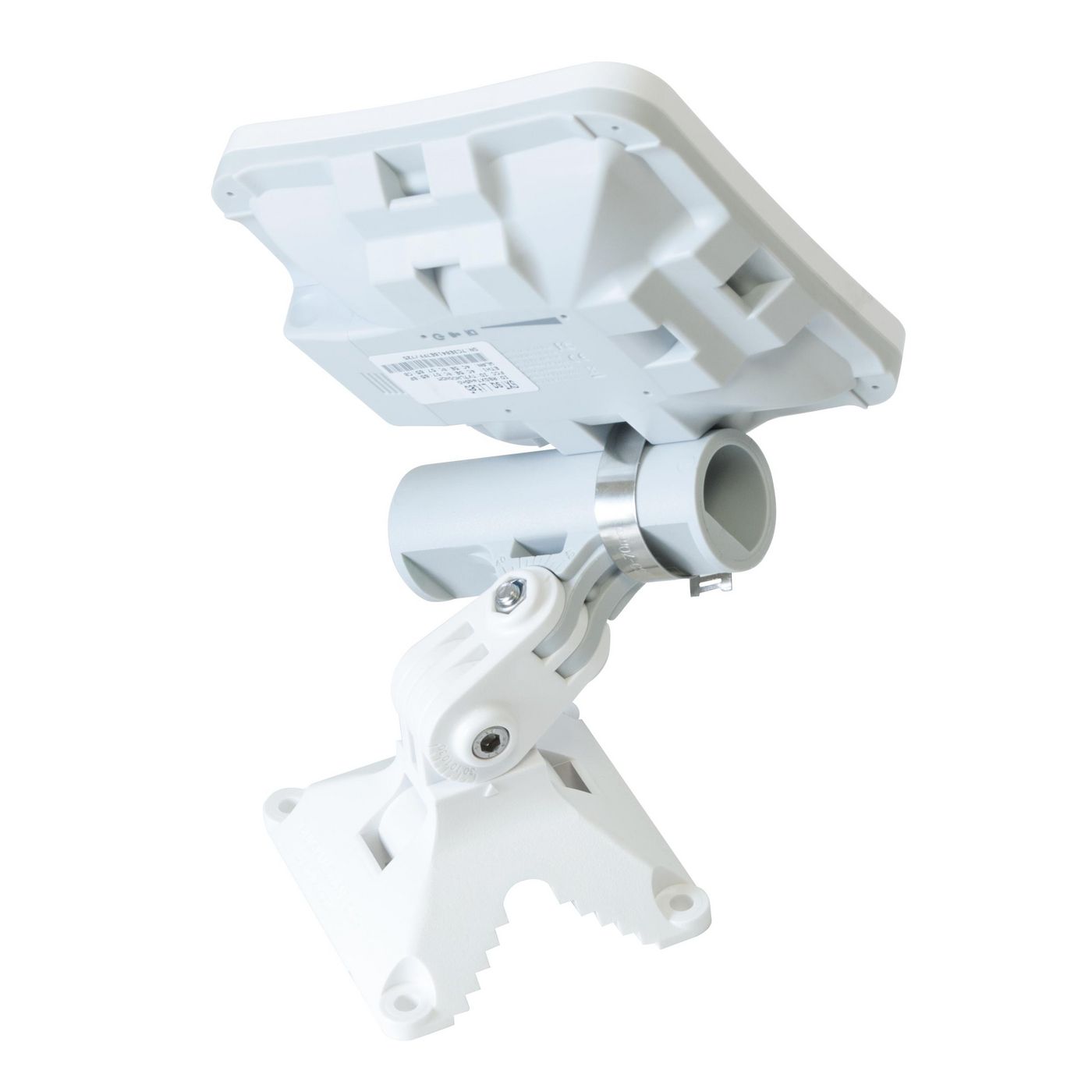

The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product).
| Antenna gain level (max) | 16 dBi | Internal | No |
| Product colour | White | 2.4 GHz | No |
| 5 GHz | Yes | Ethernet LAN data rates | 10, 100 |
| Networking standards | IEEE 802.11a, IEEE 802.11n | Receiver sensitivity | 54MBit/s20 -80, 6MBit/s 25 dBm -96, MCS0 25 -96, MCS7 19 -75 |
| Country of Origin | Taiwan | EU ECCN Code | N/A |
| Tariff No. | 8517620000 | UNSPSC Code | 43222640 |
| US ECCN Code | 5A992 | Operating relative humidity (H-H) | -40 - 70 % |
| Depth Verified | 18.1 cm | Gross Weight Verified | 0.47 kg |
| Height Verified | 5 cm | Width Verified | 25.6 cm |
| Built-in processor | Yes | Flash memory | 16 MB |
| Internal memory | 64 MB | Operating system installed | RouterOS |
| Ethernet LAN (RJ-45) ports | 1 | AC input voltage | 10 - 30 V |
| Input voltage | 10 - 30 V | Power consumption (max) | 6 W |
| Power over Ethernet (PoE) | Yes | Net Weight (Product, kg) | 0.61 kg |
| Product Depth | 12.9 cm | Product Height | 3.4 cm |
| Product Width | 12.9 cm | Security algorithms | Not supported |
| Brand Name | MikroTik | Warranty | 15 Month(s) |
| Main category | Network | Subcategory | Wireless Network |
| Subcategory | Wireless Access Points |
| Description | Downloads |
|---|---|
| MikroTik SXTsq Lite5 5GHz Outdoor CPE | RBSXTSQ5ND DataSheet | Download |
