800 MHz, RouterOS v7, 256 MB, 128 MB, PoE, 15 W, 18-28 V, 2400 Mbit/s, 802.11a/n/ac/ax, Wi-Fi 6, USB type A

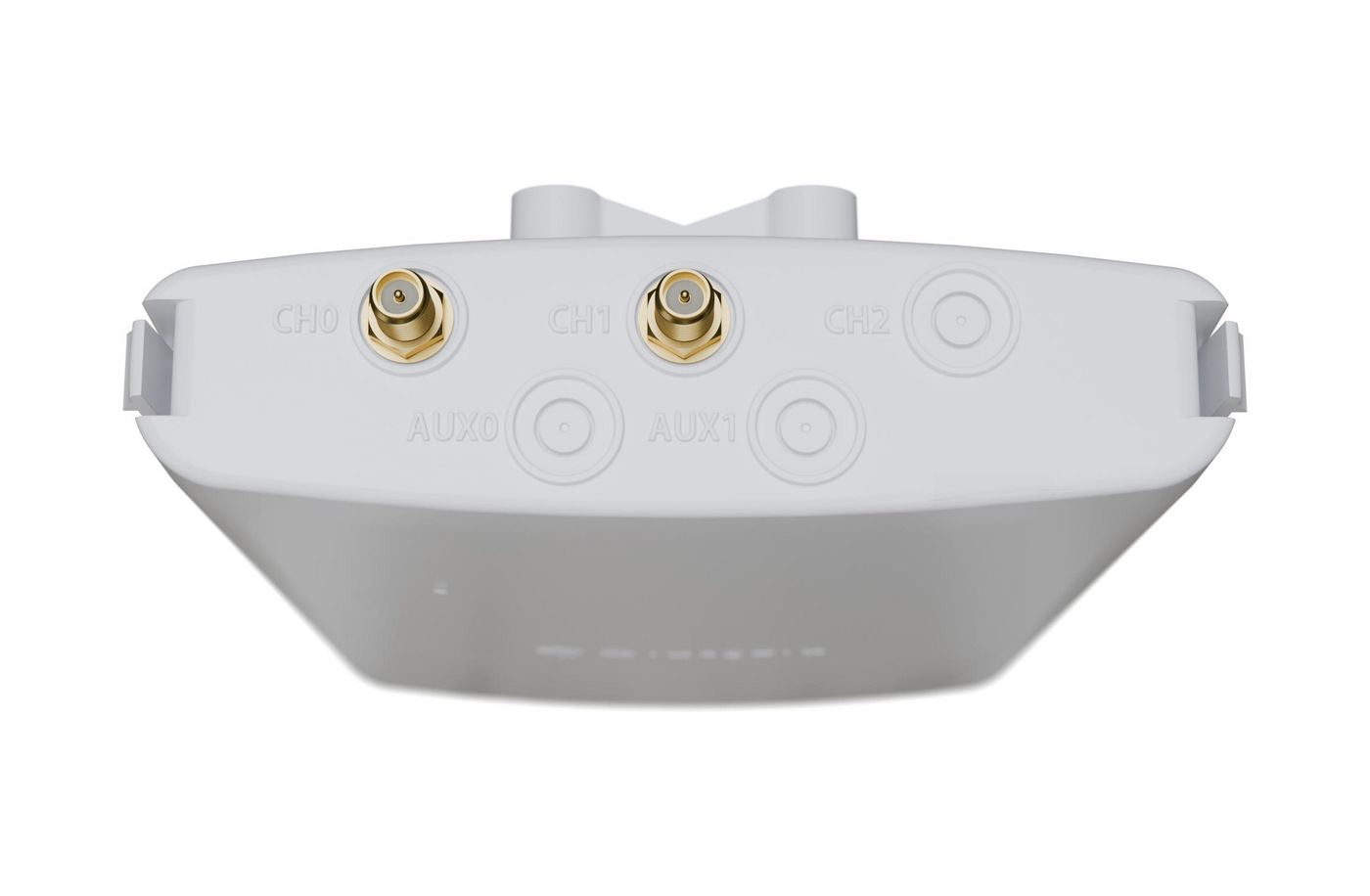

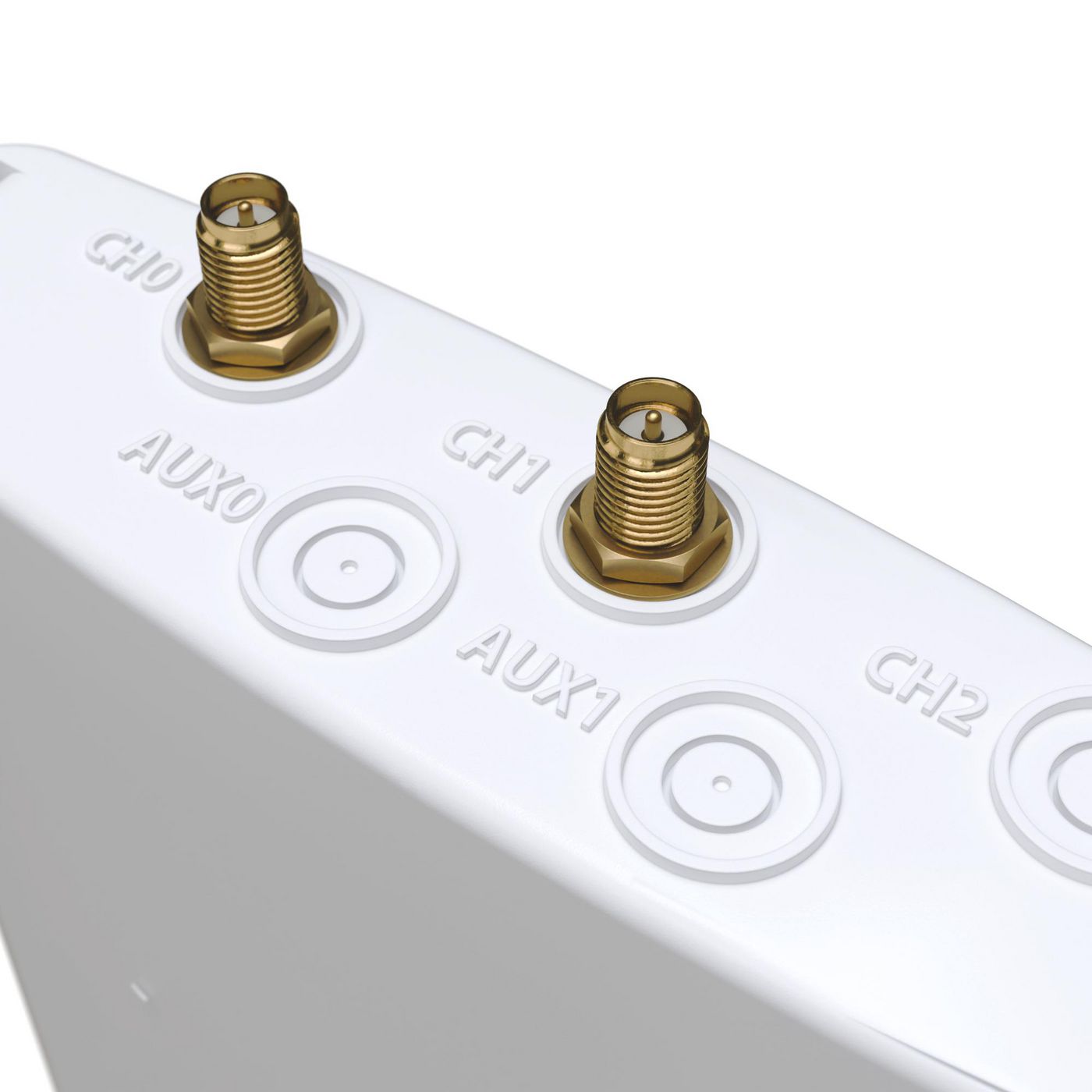

NetBox 5 ax is a powerful dual-chain outdoor device that can fill multiple roles in your setups: AP/CPE/Point-to-point. The strong 5 GHz Wi-Fi 6 radio comes with handy RP-SMA connectors. That means you can add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link for distances up to 30 kilometers.*
This weatherproof board features a modern Qualcomm Maple CPU based on the ARM architecture, 256 MB of RAM, a USB port for extra storage or other needs, and a Gigabit Ethernet port with PoE-in.

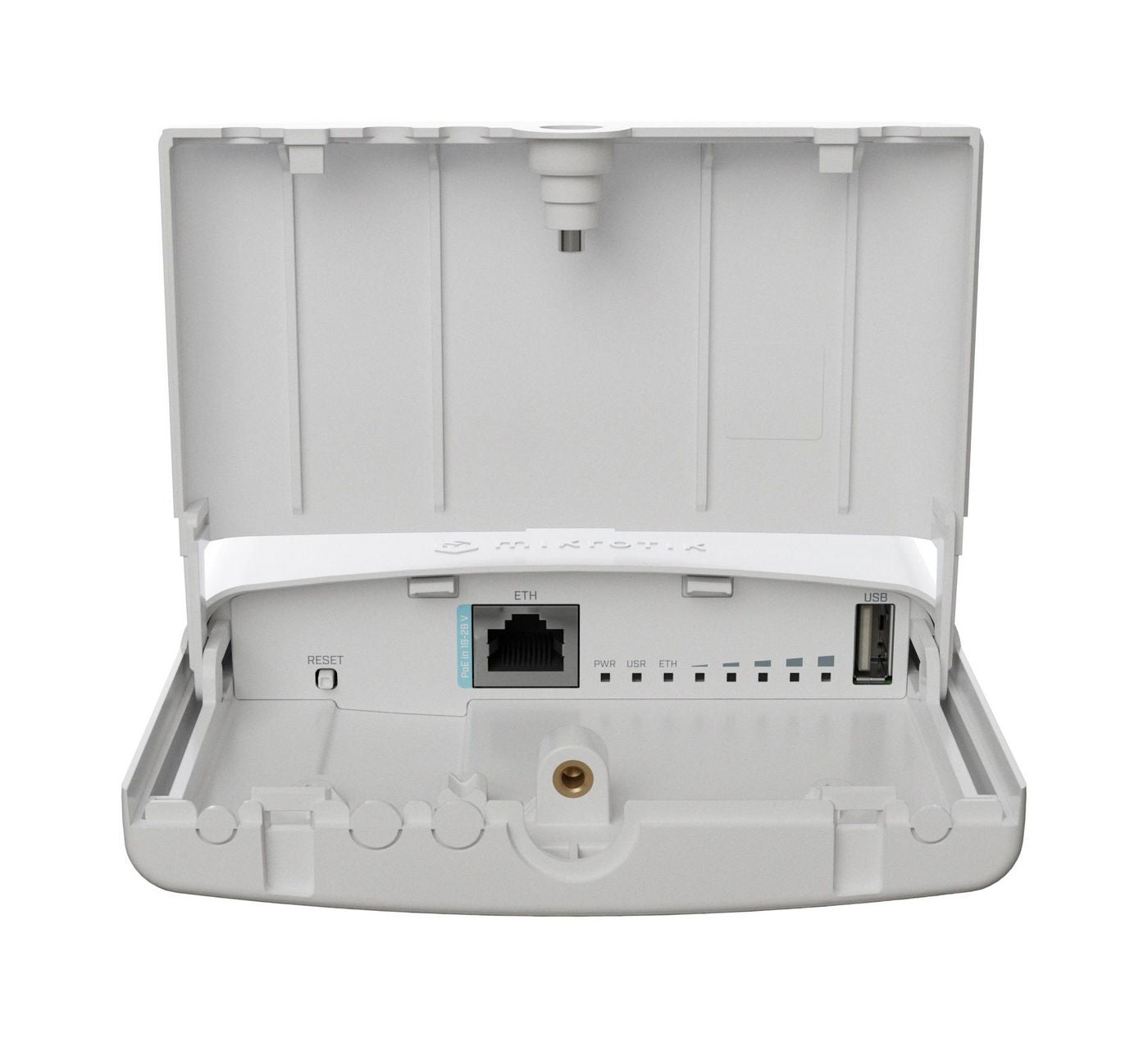

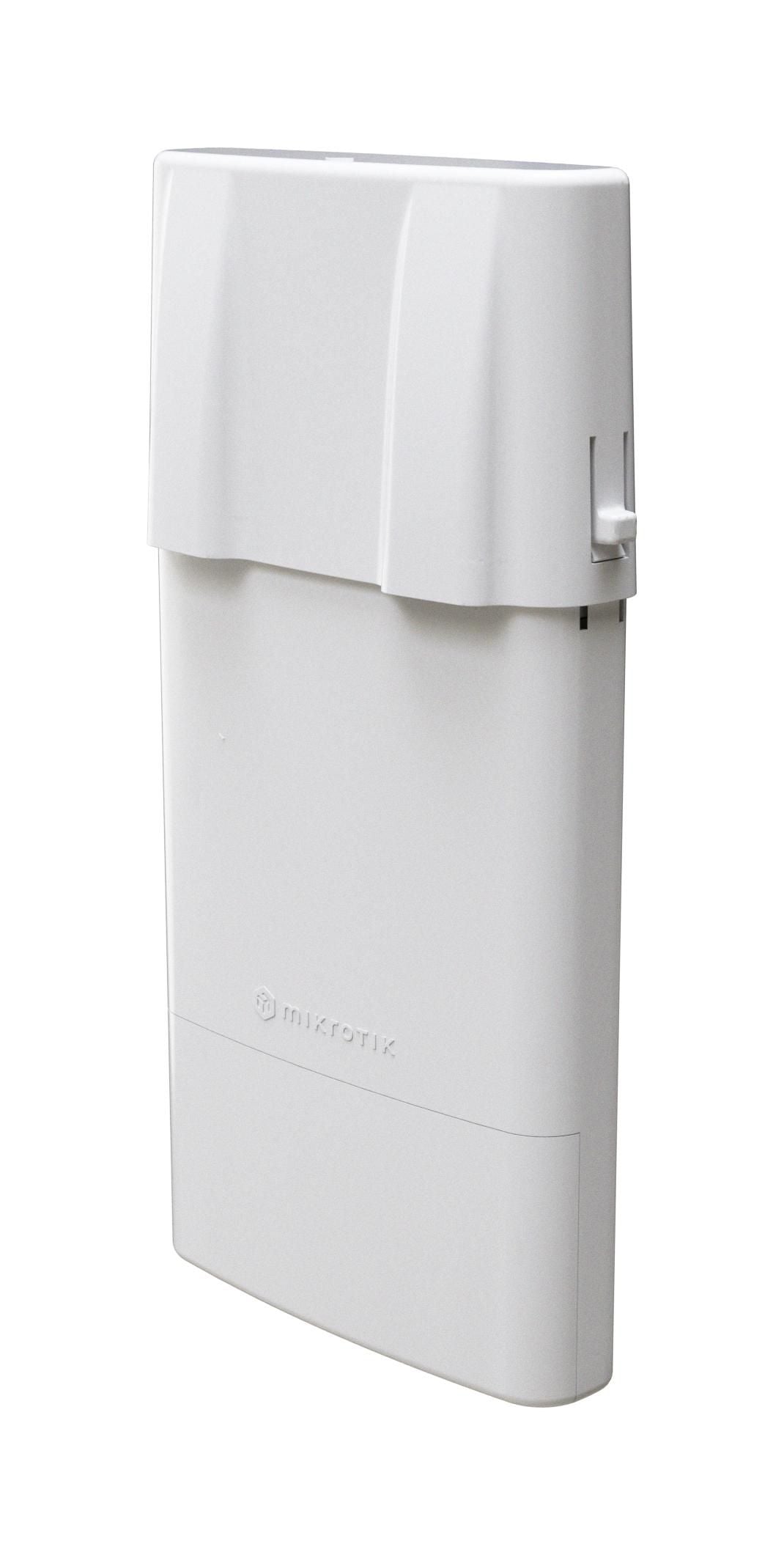

We’ve designed the case to make a sysadmins life easier. You can open the case effortlessly with just one hand. At the bottom, concealed behind a protective door, you’ll find exits for Ethernet. Equipped with a mounting loop for easy tower/pole installation, it also offers a separate DIN rail mount.
If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.
*It's important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.
| Antenna Connector Type | RP-SMA | Certification | CE, FCC, IC, EAC, ROHS |
| Placement | Wall | Product Colour | White |
| 5 GHz | Yes | Ethernet LAN Data Rates | 10, 100, 1000 |
| Networking Standards | IEEE 802.11a/ac/ax/n | Country of Origin | Lithuania |
| Tariff No. | 8517620000 | UNSPSC Code | 43222640 |
| Operating Temperature | -40 - 70 °C | Package Depth | 34 cm |
| Package Weight | 0.94 kg | Package Height | 6 cm |
| Package Width | 14 cm | Compatible OS | RouterOS |
| Internal Memory | 128 MB | DC-in Jack | Yes |
| Ethernet Ports | 1 | USB 2.0 Ports | 1 |
| USB Connector Type | USB Type-A | WAN Connection | Ethernet (RJ-45), Wi-Fi |
| Output Current | 1.5 A | PoE Support | Yes |
| Net Weight | 0.76 kg | Brand Name | MikroTik |
| Warranty | 15 Month(s) | Main Category | Network |
| Subcategory | Wireless Network / Wireless Access Points |
| Description | Downloads |
|---|---|
| MikroTik WiFi 6 Netbox 5 ax Router / Access Point | L11UG-5HAXD-NB DataSheet | Download |
