Network PoE Point of Sale Touch Screen
POS NETWORK ANDROID PCAP TOUCH SCREENS

Small-sized touch displays, ideal for meeting room booking or point-of-sale applications

PCAP Touch Screen
State of the art Projected Capacitive interactive technology offers the most responsive and sensitive touch experience available. Designed for commercial applications, PCAP touch technology works by fixing a sensor grid between a layer of cover glass and the LCD panel, when a finger touches the glass the grid detects the coordinates of the touch point. Unlike other touch technologies PCAP is not affected by dust or debris on the screen surface, allows for up to 10 touch points and offers superior optical quality.

Power Over Ethernet (PoE)
Power your screen by using the power cable provided or supply the power over an Ethernet cable. This minimises the number of cables needed for installation as you can supply power and internet connectivity to the screen simultaneously.

Versatile Touch Screen Solution

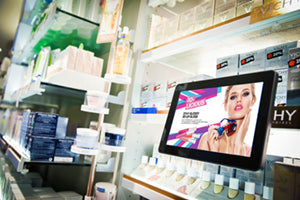

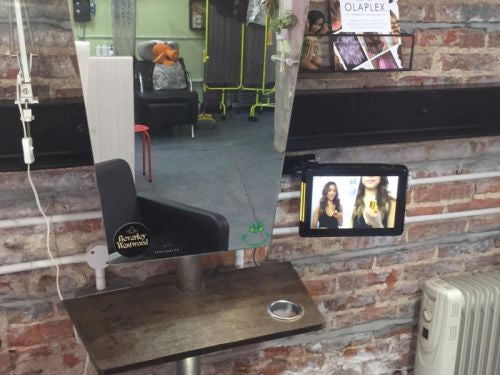

The POS PCAP Touch Screen is a versatile and flexible display with a wide range of applications. They can be used in corporate spaces in conjunction with meeting room booking software utilising the LED frame as a room availability indicator. These displays can also be used as point of sale touch screens in a host of locations too, such as retail, entertainment, hospitality, museums and art galleries.

Commercial Grade Tablet
Ideal for use in commercial applications these touch screens bring in a whole new level of audience engagement to your marketing campaigns. Unlike domestic touch tablets these screens can be in continuous use. The screen comes with an integrated Android media player that means you can display content without the need for an external PC

10 Point Touch
Having up to 10 touch points allows for a wider variety of applications than ever before. This kind of functionality allows you to manipulate images, zoom in an out as well as perform many other touch gestures; much like you would with a domestic tablet. It also allows for multiple users interacting with the screen at one time.

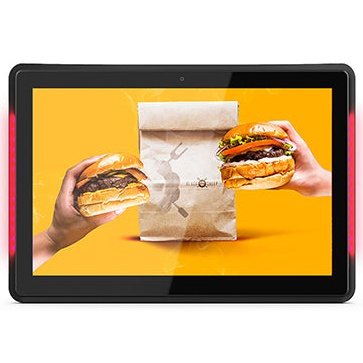

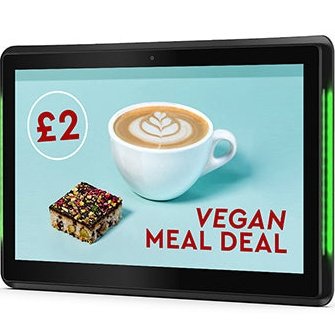

Multi Coloured LED Frame
The LED edges either side of the display can be red, green, blue, magenta, cyan, yellow and white. They can also be disabled completely if preferred

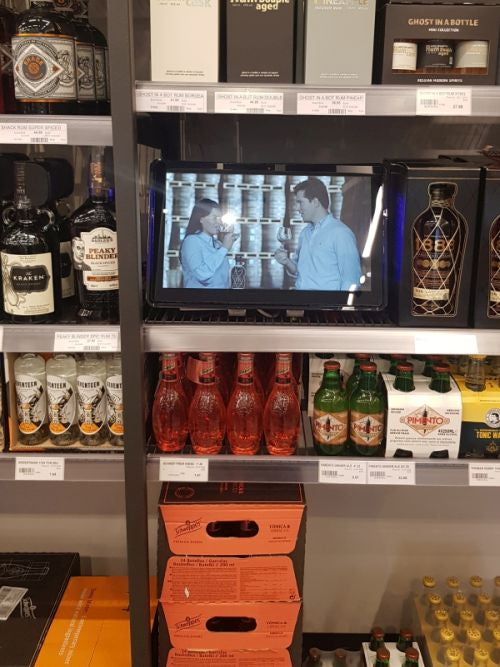

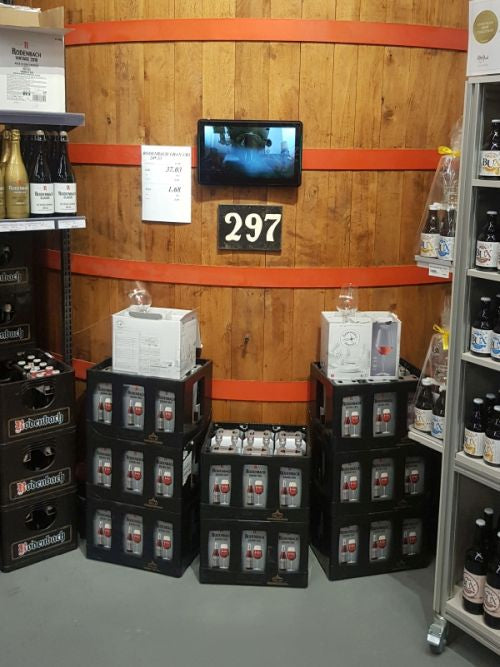

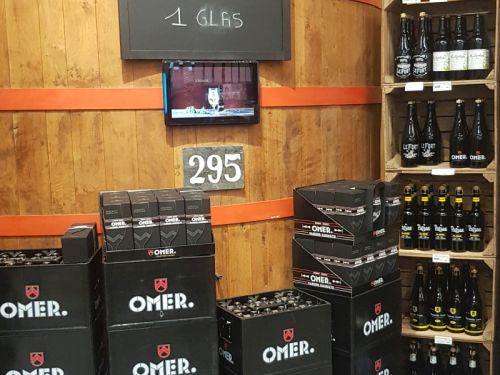

Designed For Public Spaces
As well as having a buttonless tempered glass frontage and rounded corners these screens also have an enclosure made from a light-weight polymer so they are ideal for shelf edge and POS displays. They also have a screwless design to achieve a seamless aesthetic and avoid tampering.

VESA Mounting Holes

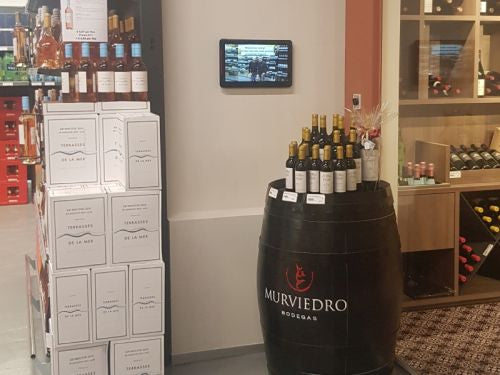

Unlike domestic tablets these displays have an integrated and secure screw based mounting solution on the rear for easy wall or stand installation.

No Integrated Battery
Unlike domestic tablets these displays do not have built-in batteries and therefore last considerably longer. They are designed to be used constantly 24/7 in public spaces and can be powered directly from the mains or over PoE.

Touch Content Management System
You can run your own touch software from the integrated PC board with Android or take advantage of our user friendly Touch Cloud Management System that puts you in control as you create, deploy and touch your very own content on screen. First, you create your custom layouts with our user friendly software that requires no knowledge of coding to use. Then deploy the content from your PC direct to your Touch Screens in a matter of seconds. Now all that is left to do is touch as you let your content do the talking about your brand, company, service or product.

Specification	Details
Resolution	1280x800
Aspect Ratio	16:10
Display Area	216.96x135.6
Unit Size	273.7x189.7x30.2
Package Size	368x234x75
VESA Holes	75x75
Net Weight	0.75kg
Gross Weight	1.15 kg
Speaker Type	2x2W
RAM	2GB
ROM	16GB
Power Consumption (W)	11
Panel
Brightness (cd/m²)	250
Colour	16.7M
Colour Depth	8 Bit
Viewing Angle	178°
Contrast Ratio	800:1
Power
Input Voltage	12V/2A
PoE Mode	48V Passive
Environmental
Operating Temperature	0°C to 50°C
Storage Temperature	-30°C to 60°C
Operating Humidity	10% to 80%
Storage Humidity	5% to 95%
Internal Media Player
Media Formats	Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
Media Resolution	1920x1080/1080x1920
CPU	Quad-core Cortex-A17 1.8GHz,RockChip RK3288
GPU	Mali-T764
USB	USB3.0 HOST (x1)
LAN	10/100M Ethernet (Network version screen only)
Wi-Fi	802.11b/g/n (Network version screen only)
OS	Android 8.1
Graphic Engine	OpenGL ES 1.1/2.0

Warranty

3-year warranty.
All standard product ranges come with a 3 year warranty starting from date of invoice. This excludes Electronic Shelf Label (ESL) products which come with a 2 year warranty. This also excludes all bespoke hardware which is manufactured under OEM.

Any warranty extension needs to be completed at point of order and should be clearly noted on the sales invoice.

Covers hardware failure but excludes accidental damage or user error.

All screen sizes up to and including 55”, as well as media players, are covered by a swap-out warranty. There may be some situations (such as not having a particular model in stock) where an advanced replacement product cannot be supplied, in these cases a collection, repair and return service will be implemented. Screens larger than 55” and freestanding models (“L” and “OT” ranges only, excluding “LUHB”, “LHDS”, “TAO”, “AB” and “OAB” ranges) are covered by an on-site service.

Free lifetime telephone and email technical support.
