IP Rated Ultra High Brightness Digital Signage Solution

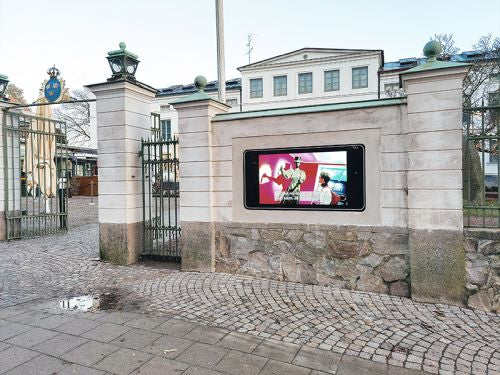

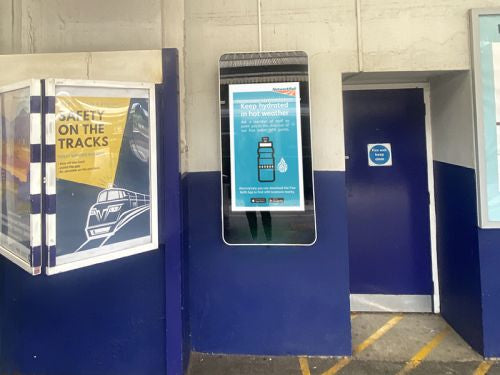

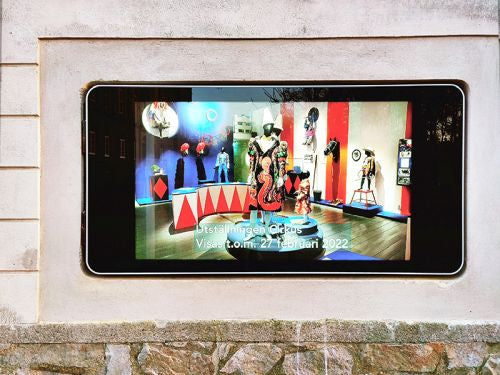

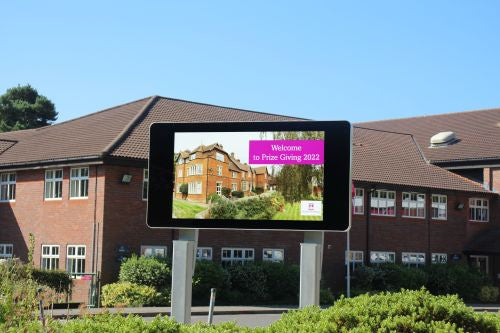

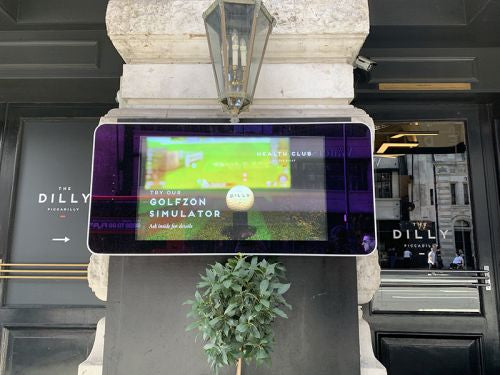

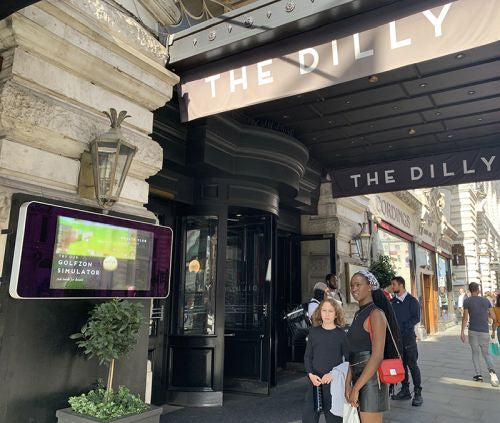

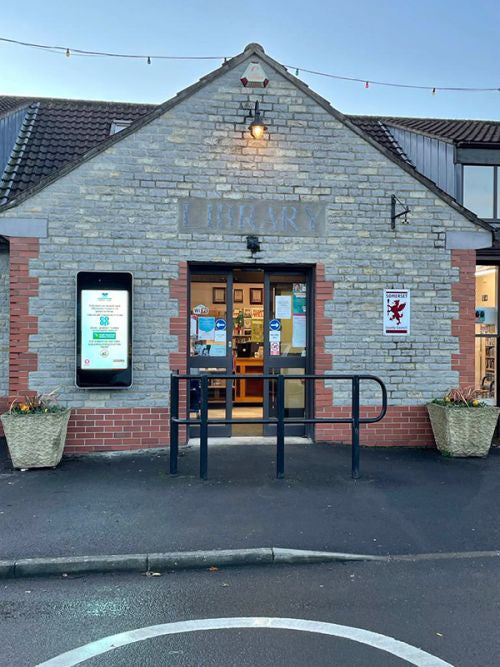

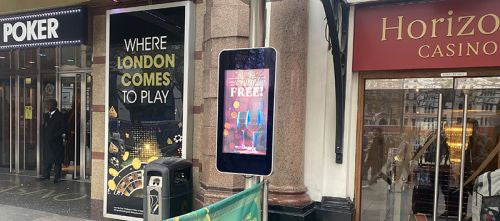

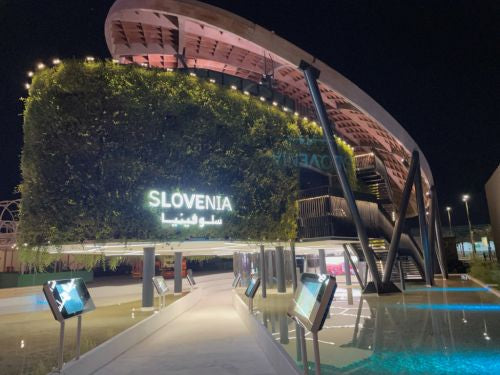

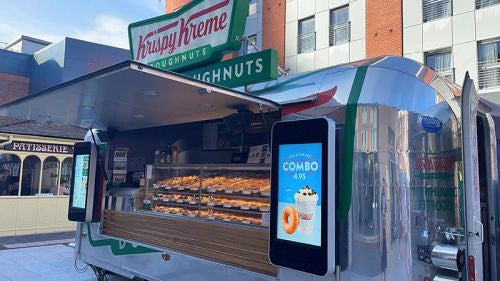

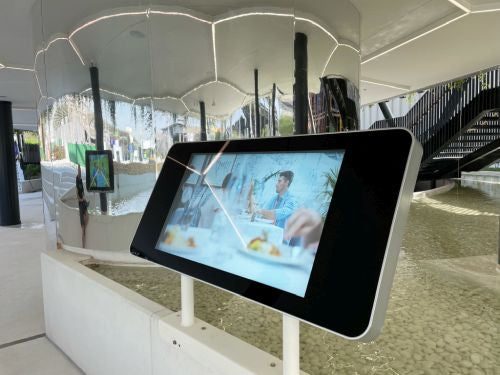

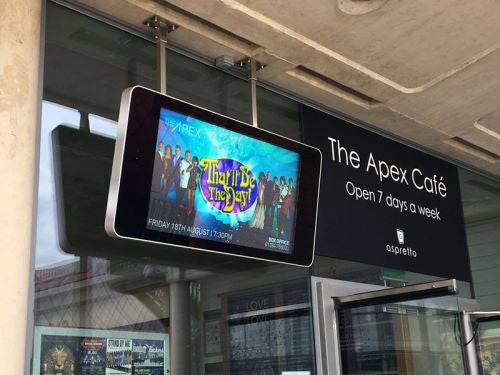

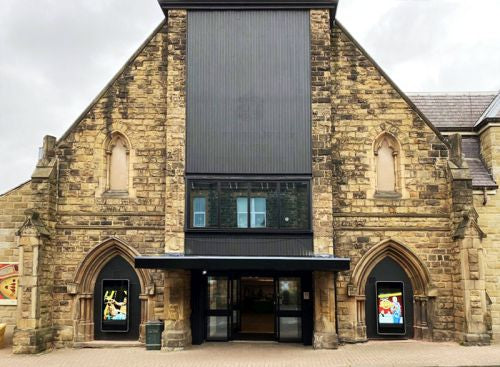

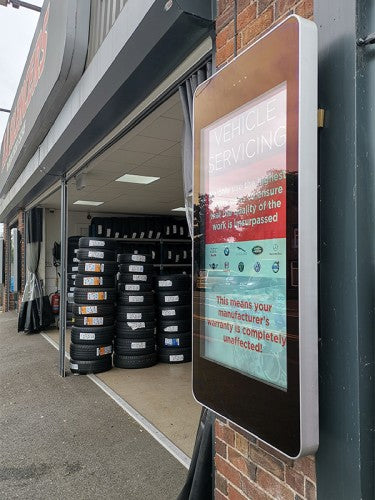

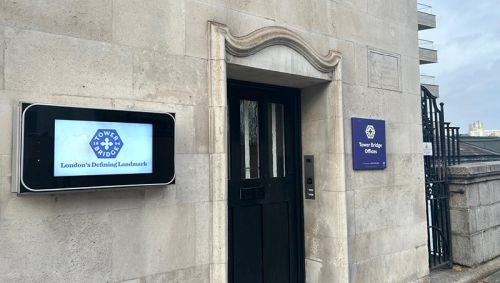

OUTDOOR DIGITAL ADVERTISING DISPLAYS
(22"-65") Larger sizes available on request

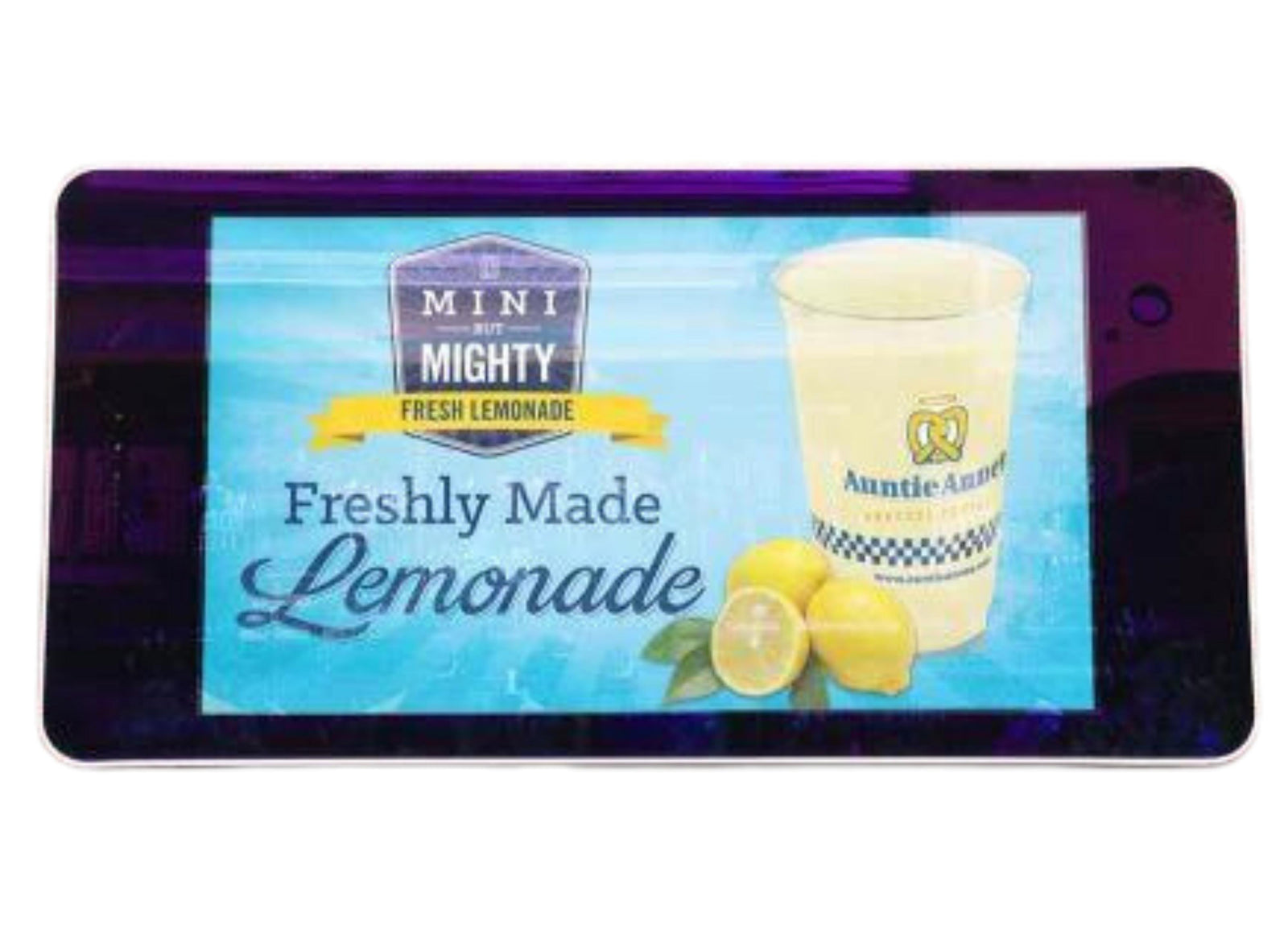

Fully integrated stunning tablet-style displays; perfect for any weather conditions
Direct Sunlight Readable
Thanks to their commercial grade ultra-high brightness panels (2,500cd/m²), these displays are up to 10 times brighter than a domestic TV and so are easily readable even in direct sunlight.
Weatherproof
Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP65 rated enclosure. They also feature a waterproof coating on all internal circuit boards and waterproof over-moulded AV connectors.
Vandal Proof
With a mild steel enclosure and thermally-toughened glass front, these IK10 rated displays are designed to withstand any damage that may occur in public spaces. To avoid tampering, controls and inputs are hidden and cannot be accessed by passers-by.
Advanced Temperature Control System
To maximise the lifespan of the display, the internal airflow system keeps the screen running at the optimal temperature regardless of the external conditions. Built-in air conditioning can be tailored to allow the display to work in any climate.
Anti Reflective Glass
The front glass face is specially treated to help diffuse direct sunlight, making the display easily readable even in bright weather conditions.
Plug and Play
Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos onto a USB, insert into the display, wait for your content to copy over, then remove. Your images and videos will now play in a continuous loop.
Free Lockable Wall Mount

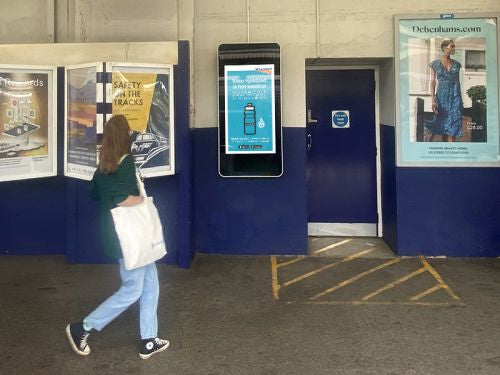

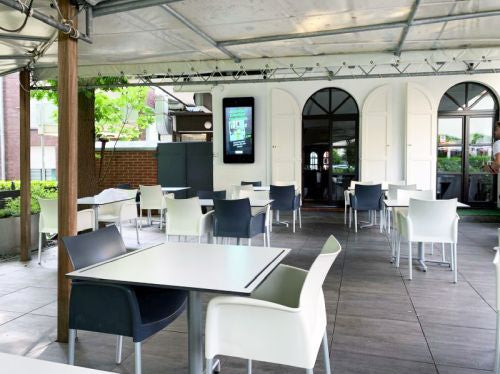

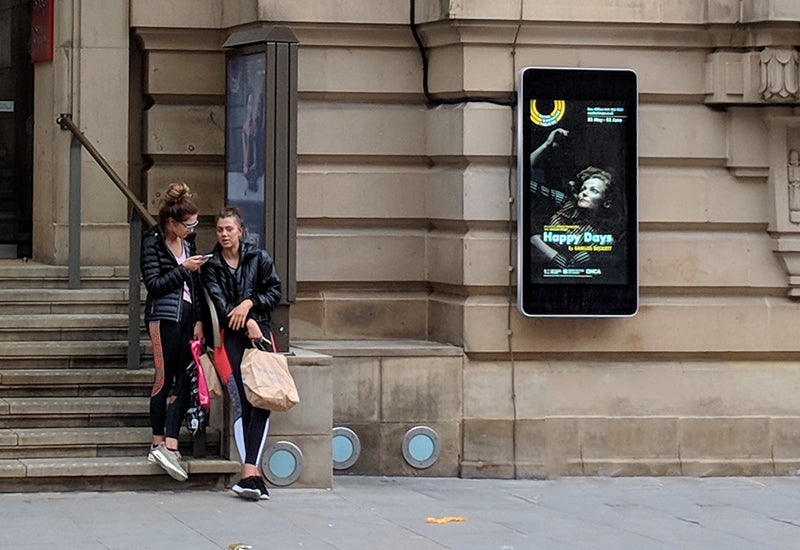

To ensure that this a complete turnkey solution, a lockable wall mount is included at no extra cost, allowing you to securely mount your screen in either landscape or portrait orientation.
Optional Network Upgrade
For a small charge, you can upgrade your screen to be networked. This will allow you to connect your screen via Wi-Fi, LAN or 4G, and then remotely update it over the internet.
Internal Locker
Should you need run the screen from an external source, there is space to fit a small PC or media player inside the lockable compartment. This can then be connected to the display via the HDMI, VGA or 3.5mm audio inputs.
Customisation Available
Bespoke displays can be manufactured to order should you require a non-standard solution, to incorporate a camera or touch screen upgrade for example. We can also modify existing models to add a 4G module for mobile connectivity or a vinyl logo/wrap.
| Panel | |
|---|---|
| Aspect Ratio | 16:9 |
| Viewing Angle | 178° |
| Contrast Ratio | 8000:1 |
| AV Inputs | Video |
| HDMI, VGA | |
| Power | Input Voltage |
| AC110~240V (50Hz~60Hz) | |
| Environmental | |
| Ingress Protection | IP65 |
| Impact Protection | IK10 |
| Operating Temperature | -20 °C to 50°C |
| Operating Humidity | 10% - 80% |
| Storage Temperature | -30 °C to 60°C |
| Storage Humidity | 5% - 90% |
| Computer | |
| Media Formats | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG) |
| Media Resolution | 1920x1080/1080x1920 |
| Internal Memory | 6GB |
| CPU | Quad-Core Cortex-A17@1.61GHz |
| GPU | Mali-T760 MP4 @600MHz |
| RAM | 2GB DDR3 |
| Internal Storage | 8GB NAND |
| USB | USB2.0 HOST (x2) |
| LAN | 10/100/1000Mb/s Ethernet |
| Wi-Fi | 802.11b/g/n/ac |
| OS | Android 5.1.1 |
| Graphic Engine | OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1 |
| Accessories | |
| Included | AC Power Cable, Remote Control, Wall Mount |
| Optional | Touch Screen Upgrade, Network Upgrade, Camera |
| Spec Sheet - Advertising Display | Download Link |
|---|---|
| 55" Outdoor Advertising Display - Spec Sheet | Download |
| Spec Sheet - Touch Screen | Download Link |
|---|---|
| 55" Outdoor PCAP Touch Screen - Spec Sheet | Download |
| Technical Drawings | Download Link |
|---|---|
| 55" Outdoor Advertising Display - Technical Drawing | Download |
| User Manual | Download Link |
|---|---|
| Outdoor Advertising Displays - User Manual | Download |
| Outdoor Advertising Display - Installation Guide | Download |
| Photos | Download Link |
|---|---|
| Outdoor Advertising Displays - Application Images | Download |
| Outdoor Advertising Displays - White Background Images | Download |
| Signage Software | Download Link |
|---|---|
| Advertising Playlist Editor | Download |
