Moove 76" SM76UHD10 Android 14 Stretched Ultra-wide Stretched Bar Display
SKU: SM76UHD10
£2,867.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Ultra-Wide 58:9 Display for Impactful Digital Signage
Massive 4K Space-Saving Elongated Screens
58:9 Ultra-Wide Stretched Bar Displays
Colossal display with unique aspect ratio that is guaranteed to grab attention and is ideal for unconventional spaces
*Terms and conditions apply.

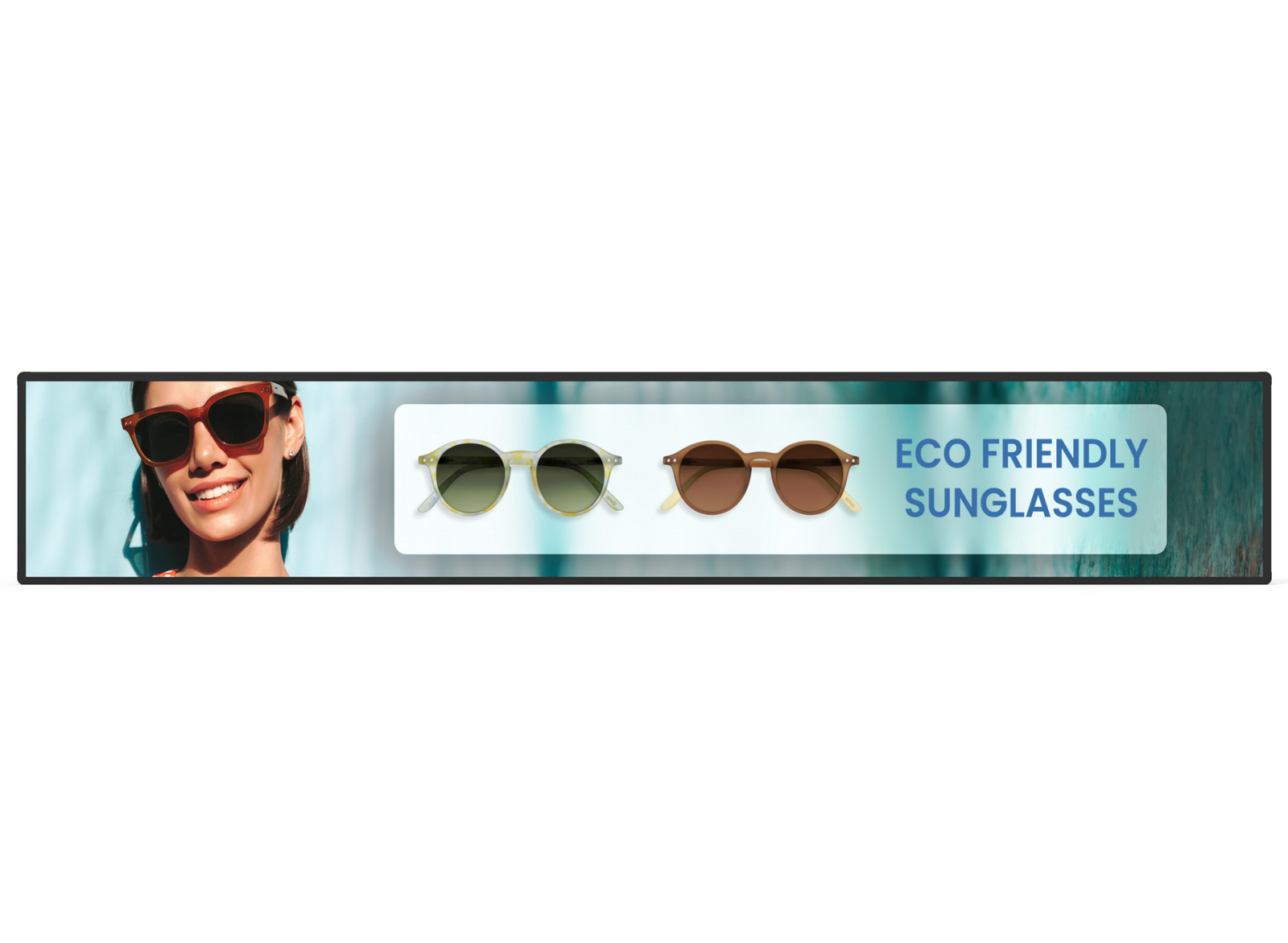

Extended Wide Format

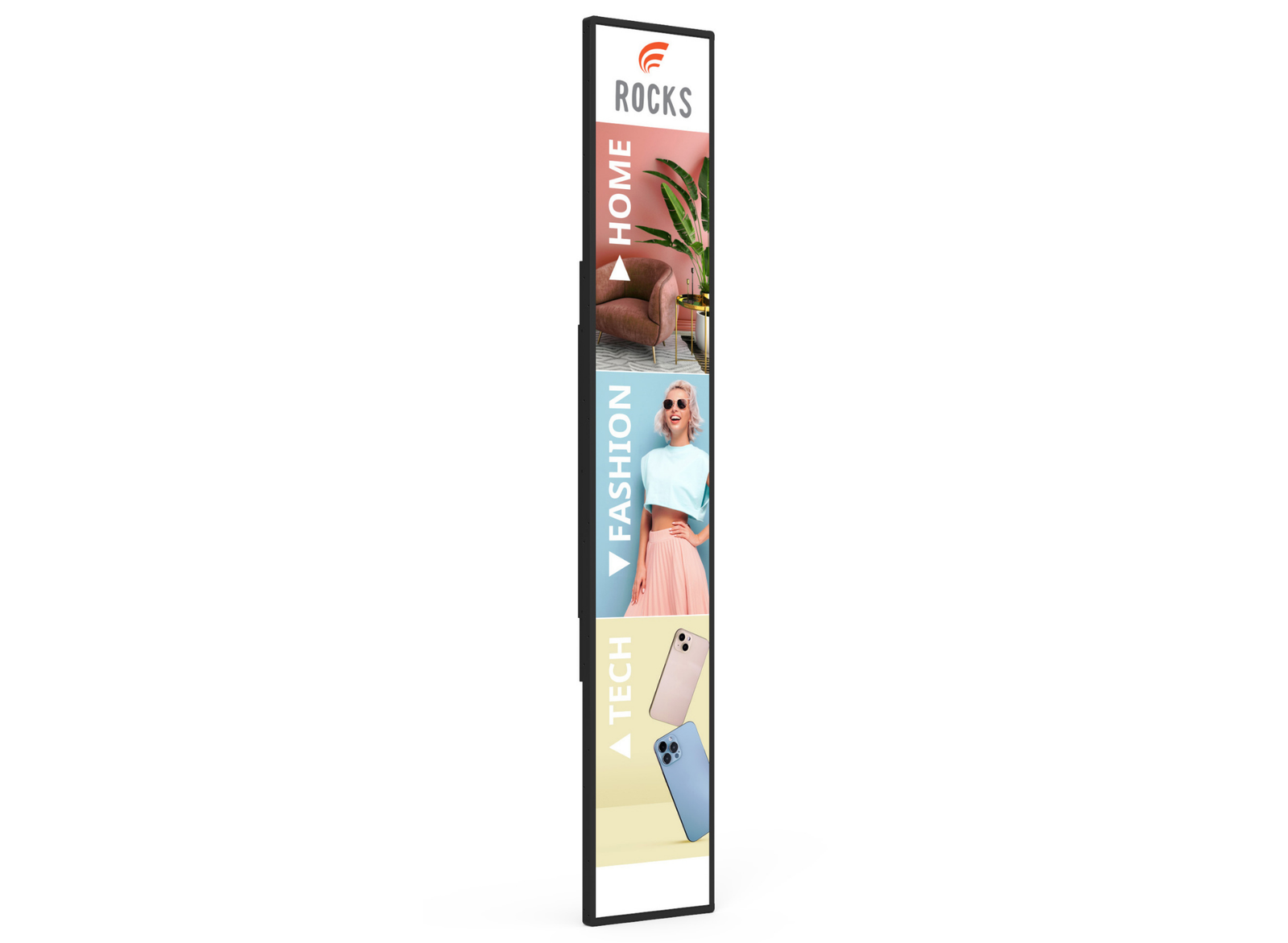

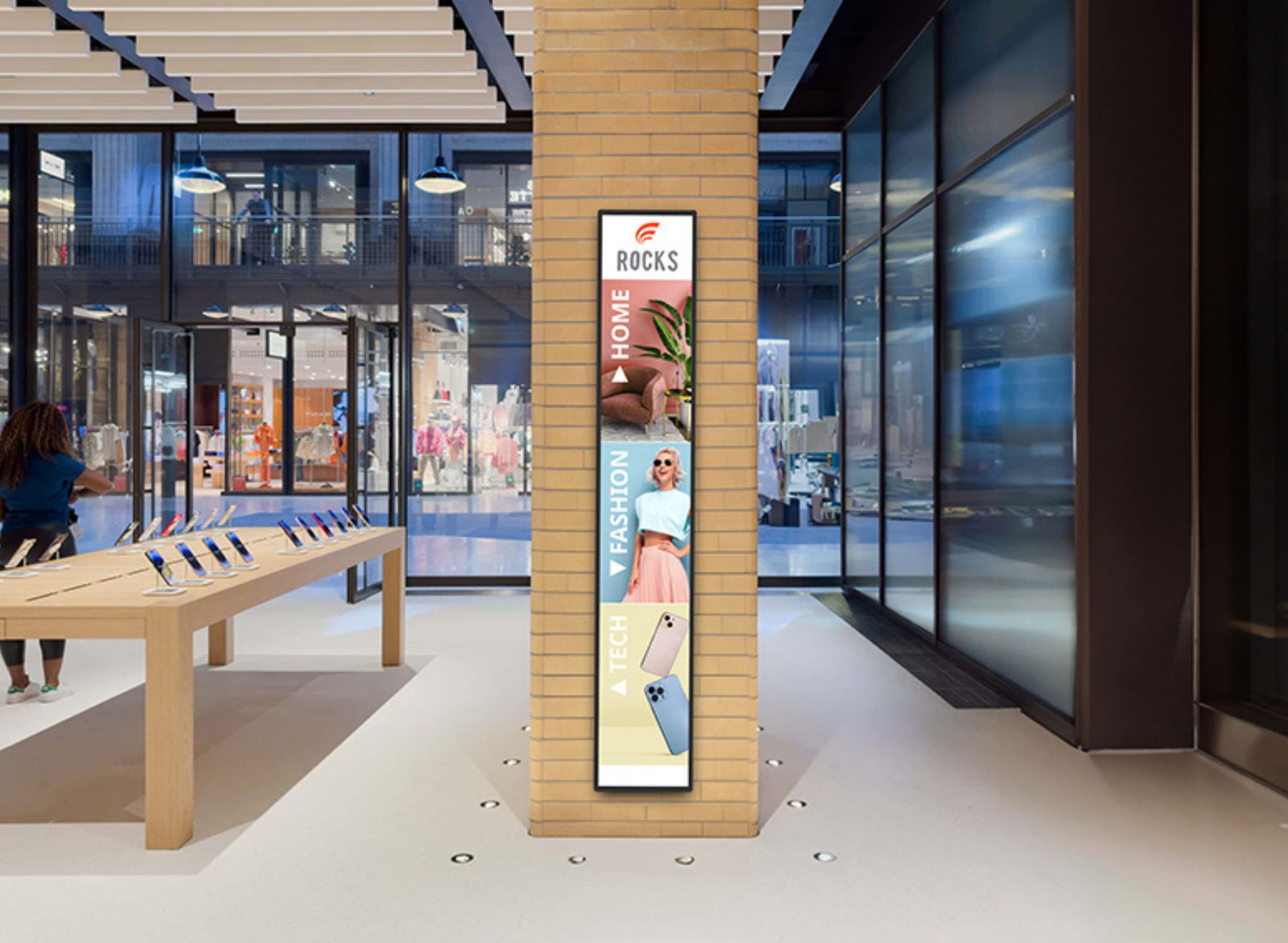

This unique display is a real showstopper thanks to its 58:9 aspect ratio and 76” diagonal display area. This stretched format is perfect for mounting in spaces where conventional 16:9 displays would not fit such pillars and narrow banner gaps. The flexibility of portrait or landscape mounting offers a versatile range of possible applications.
4K Resolution (3,840 x 600)
Unlike custom DV-LED stretched displays, this solution uses a 4K LCD panel to provide a clear image and fine details. This high resolution is essential to be able to read text at close proximity and also produces the crystal clear results when showing video.
Integrated Android 14 Media Player
The integrated Android 14 media player allows for easy updates via the internet and My Signage Portal. With a 25% performance boost compared to previous versions, the Android 14 OS also ensures full compatibility with modern applications and software.
Free Network Upgrade
Once connected to an external source you can tile the picture across multiple wide stretched monitors to create eye catching displays.
Integration Options
A flat wall mount, that can be used in both portrait and landscape orientation, is provided free of charge. For more custom installations, such as in retail gantries or recessed into walls, we can provide bespoke solutions on request. -
Resolution [px] 3840 x 600 @60Hz Display/Active Area [mm] 1895 x 296 Aspect Ratio 58:9 Brightness [cd/m2] 500 Colour 1.07 Billions (8bit + 2bit FRC); 72% NTSC Viewing Angle [ᵒ] 89/89/89/89 Contrast Ratio 1,200:1 Orientation Support Landscape / Portrait Operating Hours 24/7 Commercial Use CPU RK3568 64bit Cortex-A55 Quad @2GHz GPU Quad Mali-G52 2EE Graphics API Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1 OS Operating System Android 14 RAM 4GB Storage 32GB Media Format Supports 4K 60FPS H.265/H.264/VP9 video decoding; Supports FHD 60FPS H.264/H.265 video decoding LAN 10/100/1000M RJ45 Wi-Fi Dual-band 2.4GHz / 5GHz (802.11a/b/g/n/ac) Bluetooth 5.0 Optional 4G Module 1 × SIM Slot (optional) HDMI 1 × HDMI 2.0 IN USB 1 × USB 3.0 Type-A; 1 × USB 2.0 Type-A; 1 × USB Type-C (OTG only) RS232 1 × RJ45 (Serial Control) Ethernet 1 × RJ45 (10/100/1000M) Audio Out 1 x 3.5mm Audio Out Expansion Slot 1 × Micro SD Power Input 1 × IEC C13 (Kettle Lead) Switch 1 x Power Switch Speakers 5W x 2 4G Module (Optional) 1 x SIM In Power Supply AC 100–240V, 50/60Hz Power Consumption Typical: TBC; Max: TBC Standby Power TBC Screen Dimensions (mm) 1926.9 x 326.9 x 77.5 Package Dimensions (mm) 2060 × 460 × 220 VESA Mounting (mm) 600 × 250 M6 Net Weight TBC Gross Weight TBC Operating Temperature [ᵒC] 0 to 50ᵒC Storage Temperature [ᵒC] -10ᵒC to 60ᵒC Operating Relative-Humidity [%] 20% to 80% Storage Relative-Humidity 10% to 90% Included Accessories Wall Mount, Kettle Power Lead (1.8m); Remote Control + Batteries; User Manual (QR Code x2); Quick Start Guide Optional Accessories Floor Stand/Trolley, Ceiling Mount, Table Stand Warranty Period 3 Years Technical Support Lifetime -
Description Downloads Datasheet Download Technical Drawings Download Wall Mount Technical Drawing Download
